MAG TOOLS UC3016-BK Owner's Manual

SPECIFICATIONS
SERVICE CART WEIGHT CAPACITY
Total Load of Cart with All Accessories . . . . . . . . . . . . . . . 350 LBS
Top Shelf Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150 LBS
Bottom Shelf Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150 LBS
Loading cart beyond rated capacity may cause structural
PLEASE NOTE:
damage to the cart as well as personal and /or property damage. Please
educate your customers to the dangers of overloading. Do not attempt to
push cart with items on the top lid.
Total Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35.75"
Height to top of Top Shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32.75"
Total Length. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31"
Total Length w/Screw Driver Holder . . . . . . . . . . . . . . . . . . . 34.25"
Total Length w/Side Shelf Down . . . . . . . . . . . . . . . . . . . . . . . 32.25"
Total Length w/Side Shelf Extended . . . . . . . . . . . . . . . . . . . . . 45.5"
Total Length w/Screw Driver Holder and
Side Shelf Extended. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48.5"
Total Length w/Screw Driver Holder and
Side Shelf Down. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.5"
Total Depth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17.13"
Top Shelf Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3"
Top Shelf Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30"
Top Shelf Depth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16"
Bottom Shelf Height. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3"
Bottom Shelf Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30"
Bottom Shelf Depth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16"
Ground Clearance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.88"
Bottom Shelf Top to Bottom of Top Shelf . . . . . . . . . . . . . . . . 21.38"
Cart Volume. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11,700"³
UC3016-BK/ UC3016-BL/ UC3016-LG/ UC3016-OR/ UC3016-RD
UC3016-BK/UC3016-BL
UC3016-LG/UC3016-OR
OWNER'S MANUAL
Read and understand all instructions. Failure to follow all instructions listed below,
may result in electric shock, fire, explosion and/or serious personal injury. It is the
responsibility of the owner to make sure all personnel read this manual prior to using
the tool. It is also the responsibility of the tool owner to keep this manual intact and
in a convenient location for all to see and read. If the manual or product labels are
lost or not legible, contact Mac Tools
in English, the product and safety instructions shall be read and discussed with the
operator in the operator's native language by the purchaser/owner or his designee,
making sure that the operator comprehends its contents.
• Lock lid and drawers before moving. • Apply brake on locking casters
anytime cart is in place. • Do not pull cart. Push from handle on end to move.
• Units can tip or fall causing damage or personal injury. • Cart is designed to
roll easily on flat surfaces and should not be used on uneven or inclined surfaces.
• Do not open more than one loaded drawer at a time. • Do not stand on or step
in drawers. • Keep children away from unit. • Wear gloves when lifting edges.
• Failure to heed these warnings may result in personal injury and/or property
damage.
WARNING: This product can expose you to chemicals including nickel, which
is known to the State of California to cause cancer and birth defects or other
reproductive harm. For more information go to www.P65Warnings.ca.gov.
1
UC3016-RD

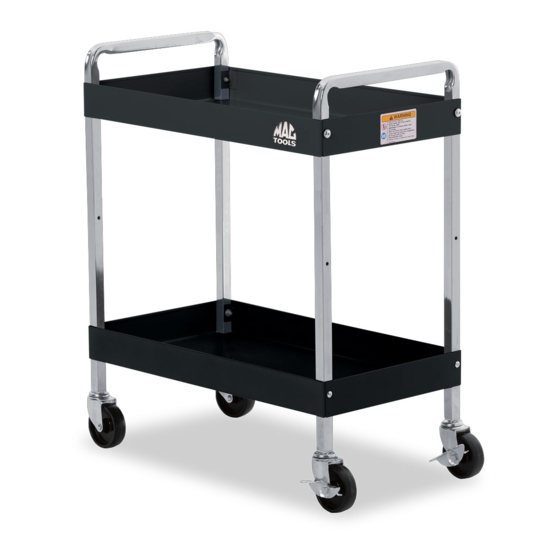

UTILITY CART
® for replacements. If the operator is not fluent
WARNING
TABLE OF CONTENTS
ENGLISH.........................................Pg. 1 - 4
ESPAGNOL....................................Pág 5 - 7
FRANÇAIS......................................p. 8 - 10
07/22/2020
