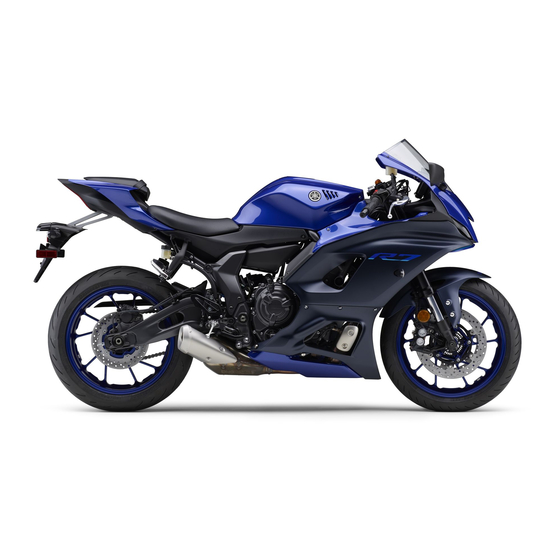

Yamaha R7 2022 Service Manual
Hide thumbs
Also See for R7 2022:
- Owner's manual (100 pages) ,
- Owner's manual (110 pages) ,
- Owner's manual (102 pages)
Advertisement
Advertisement
Table of Contents
Related Manuals for Yamaha R7 2022
Summary of Contents for Yamaha R7 2022
- Page 1 2022 SERVICE MANUAL YZF690 YZF690-U BEB-28197-E0...
-
Page 3: Important Manual Information
EAS20003 IMPORTANT This manual was produced by the Yamaha Motor Company, Ltd. primarily for use by Yamaha dealers and their qualified mechanics. It is not possible to include all the knowledge of a mechanic in one man- ual. Therefore, anyone who uses this book to perform maintenance and repairs on Yamaha vehicles should have a basic understanding of mechanics and the techniques to repair these types of vehicles. -
Page 4: How To Use This Manual
EAS20004 HOW TO USE THIS MANUAL This manual is intended as a handy, easy-to-read reference book for the mechanic. Comprehensive ex- planations of all installation, removal, disassembly, assembly, repair and check procedures are laid out with the individual steps in sequential order. •... - Page 5 EAS20005 SYMBOLS The following symbols are used in this manual for easier understanding. The following symbols are not relevant to every vehicle. SYMBOL DEFINITION SYMBOL DEFINITION Serviceable with engine mounted Gear oil Filling fluid Molybdenum disulfide oil Lubricant Brake fluid Special tool Wheel bearing grease Tightening torque...
- Page 7 TABLE OF CONTENTS GENERAL INFORMATION SPECIFICATIONS PERIODIC CHECKS AND ADJUSTMENTS CHASSIS ENGINE COOLING SYSTEM FUEL SYSTEM ELECTRICAL SYSTEM SELF DIAGNOSTIC...
-
Page 9: General Information
GENERAL INFORMATION IDENTIFICATION .................... 1-1 VEHICLE IDENTIFICATION NUMBER .............1-1 MODEL LABEL..................1-1 FEATURES...................... 1-2 MULTI-FUNCTION METER UNIT ............. 1-2 SPECIAL TOOLS .................... 1-7... -
Page 10: Vehicle Identification Number
IDENTIFICATION EAS20007 IDENTIFICATION EAS30002 VEHICLE IDENTIFICATION NUMBER The vehicle identification number “1” is stamped into the right side of the steering head pipe. EAS30003 MODEL LABEL The model label “1” is affixed to the frame under the passenger seat. This information will be needed to order spare parts. -
Page 11: Multi-Function Meter Unit
FEATURES Switching the display units EAS20008 FEATURES The display units can be switched between kilo- meters and miles. To switch the display units, EAS30982 set the multi-function display to the odometer or MULTI-FUNCTION METER UNIT a tripmeter, and then hold the “SEL” switch until the display units change. - Page 12 FEATURES Multi-function display The fuel meter indicates the amount of fuel in the fuel tank. The display segments of the fuel meter disappear from “F” (full) towards “E” (empty) as the fuel level decreases. When approximately 2.5 L (0.66 US gal, 0.55 Imp.gal) of fuel remains, the last segment starts flashing.
- Page 13 FEATURES The tripmeters will reset and continue counting The instantaneous fuel consumption function after 9999.9 is reached. should be used for general reference only. Do not use this figure to estimate the distance that can be traveled on the current tank of fuel. Fuel reserve tripmeter If the last segment of the fuel meter starts flash- Average fuel consumption display...
- Page 14 FEATURES This display shows the coolant temperature from 40 °C to 116 °C in 1 °C increments. The settings mode will exit after all settings are If the message “HI” flashes, stop the vehicle, confirmed. then stop the engine, and let it cool. Display brightness •...
- Page 15 FEATURES Shift timing indicator light OFF r/min The shift timing indicator light can be set be- tween 6000 r/min and 12000 r/min in increments of 200 r/min. While changing this setting, the shift timing indicator light will flash and the se- lected increment will be displayed on the ta- chometer.
-
Page 16: Special Tools
• For U.S.A. and Canada, use part number starting with “YM-”, “YU-”, or “ACC-”. • For others, use part numbers starting with “90890-”. Reference Tool name/Tool No. Illustration pages Yamaha diagnostic tool USB 3-4, 3-8, 4-67, 90890-03267 4-68, 7-15, 7-15, 7-15, 8-39, 9-3, 9-29,... - Page 17 SPECIAL TOOLS Reference Tool name/Tool No. Illustration pages Carburetor angle driver 2 90890-03173 Steering nut wrench 3-19, 4-88 90890-01403 Exhaust flange nut wrench YU-A9472 Oil filter wrench 3-24 90890-01426 Oil filter wrench YU-38411 Pressure gauge 3-25, 7-16, 7-17 90890-03153 Pressure gauge YU-03153 Oil pressure adapter H 3-25...
