Summary of Contents for Honeywell Ex-Or MLSM2000A

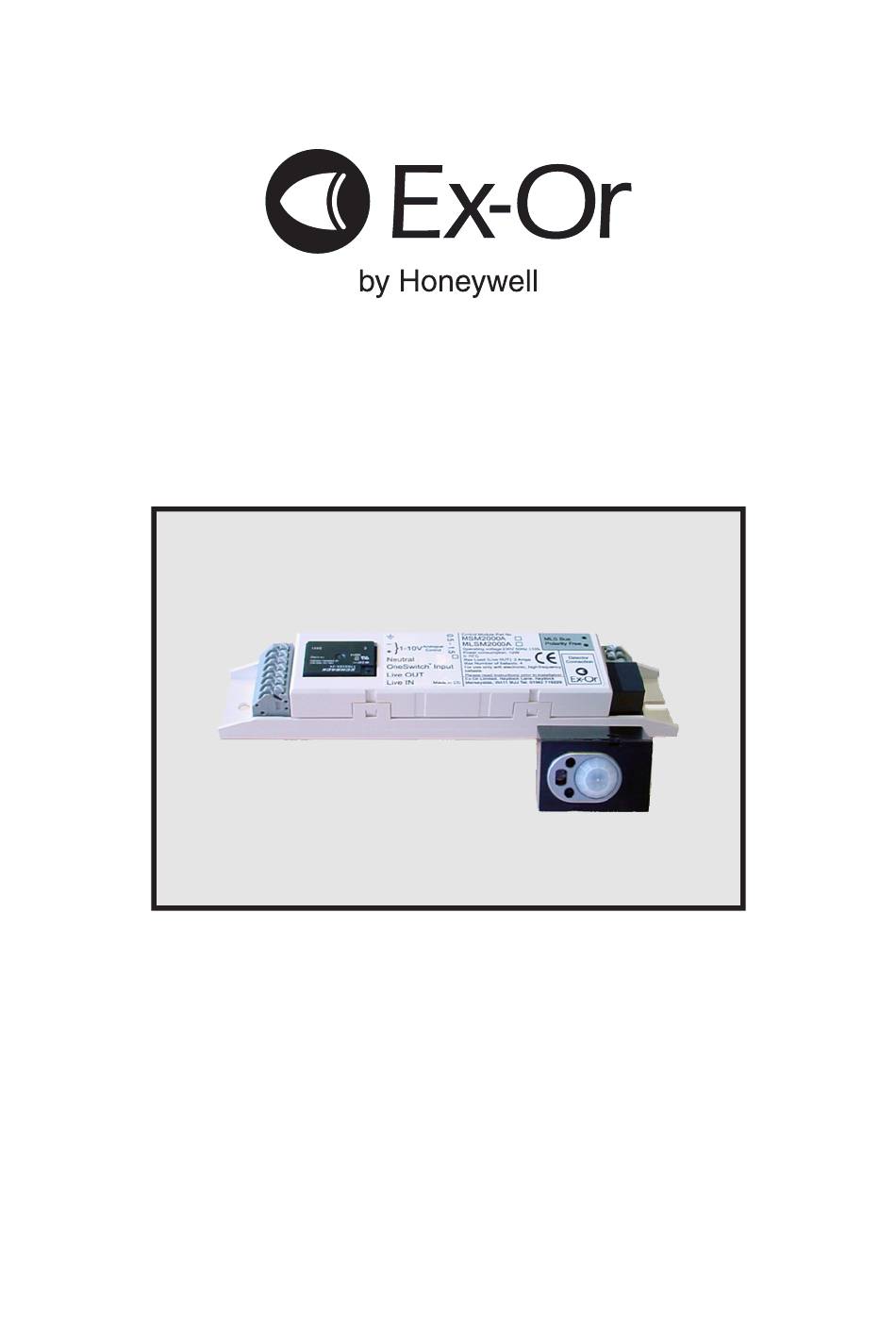

Page 1
MLS Digital Luminaire Controllers MLSM2000A - Control Module DHW/DHS - Mini Detector Head for use with Analogue 1-10V and Fixed-Output Electronic High-frequency Ballasts Installation and Commissioning Instructions Note: QuickSet Pro required for commissioning...
Page 2
Electrical Connections 32mm 800mm SIDE VIEW TOP VIEW 21.5mm Flying Lead RJ12 Plug Mini Detector Head 18.8mm 17.5mm 21.3mm 21.5mm 14.9mm Analogue 1-10V Control Module Part No MLSM2000A MLS Bus Control Module Polarity Free Analogue 1-10V Operating voltage 230V 50Hz 10% Control Power consumption: <2W tc 70 C...
Page 3
Commissioning Detectors are supplied factory pre-set which ensures the lighting will switch on automatically as soon as power is applied. Final commissioning of the detectors requires the use of the QuickSet Pro Programmer. Commissioning Detectors using the QuickSet Pro Programmer It is important that the Programmer be held perpendicular between 0.5m and 2m from the sensor.
Page 4
If the unit is built into a luminaire that is subsequently wrapped in film having adhesive properties, it is recommended that a layer of suitable packaging material be used to protect the silvered area. Honeywell Ex-Or St. Marks Court, North Street,...
