Honeywell GENT RF-700 Data And Installation

Data and Installation
Wireless Detector Adapter Base
(RF-700)

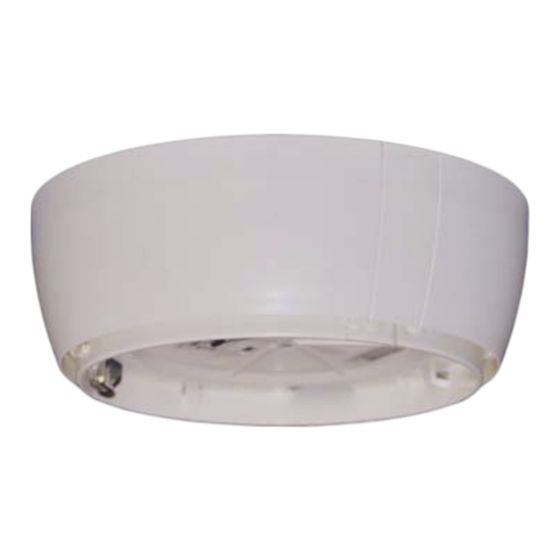

A Wireless Detector Adapter Base (RF-700) accepts a
compatible fire detector to allow wireless fire detection in a
Vigilon system. Compatible fire detector heads are:
¨
803271 - Heat detector (temperature rate of rise)
¨
803371 - Optical Smoke detector
¨
803374 - Dual Optical Smoke Heat detector
¨
802177 - Heat detector (high temperature)
¨
802473 - Optical Heat CO detector
Compatibility
A wireless device also referred to as plexus device and it
works with a Loop Radio Transceiver (LRT) that is
connected to a Vigilon device loop. The Vigilon panel that
controls the loop must have:
¨
MCC ³ V4.45 and LPC ³ V4.43
³ - means equal to or greater than
Batteries
This plexus device must only be operated with the approved
and recommended batteries Part No. 805597 - SAFT
Batteries LS14500 (pack of 4). The lifetime of the batteries is
dependent on the device type, the ambient operating
temperature and other area environmental conditions. The
batteries can be stored up to a maximum of 3 years from the
date of manufacture.
STANDARD 60mm
PLASTIC BOX
4188-1003 issue 3_11/11_Wireless Detector Adapter Base
Technical Data
Designed to meet
standard
Battery
Frequency band
Range
Dimensions in mm
Colour
Weight
Enclosure material
Storage temperature
base w/o batteries
Ambient operating
temperature
Relative Humidity
Ingress Protection
Devices per LRT
CROSS SECTION
OF CEILING TILE
S-QUAD
DETECTOR
PLATE
Align
markings
Align
markings
by Honeywell
EN54-25:2008
SAFT 4 x 3.6V
Lithium batteries -
LS14500
868MHz SRD
(14 channels)
Up to 100m
135 diameter x
88 depth
White RAL9010
178g excludes
batteries & detector
16g per battery -
(4 required)
110g - detector
ABS - VO rated
-20ºC to +65ºC
-20ºC to +30ºC
batteries
-20ºC to +65ºC
up to 95% - non
condensing
IP42
up to 31
(excludes the LRT)
