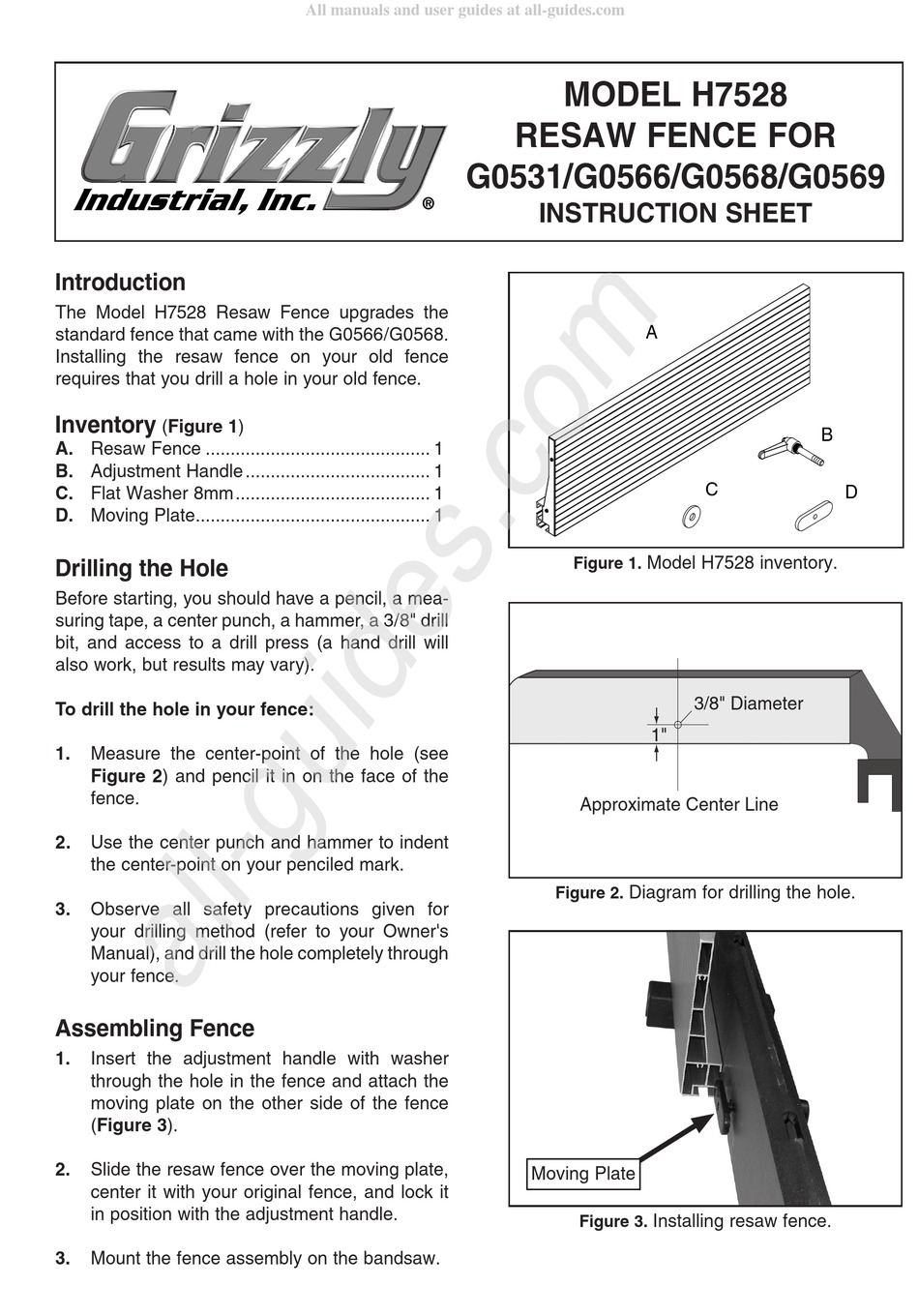

Grizzly H7528 Instruction Sheet

Introduction
The Model H7528 Resaw Fence upgrades the
standard fence that came with the G0566/G0568.
Installing the resaw fence on your old fence
requires that you drill a hole in your old fence.
Inventory
(Figure 1)
A. Resaw Fence ............................................. 1
B. Adjustment Handle ..................................... 1
C. Flat Washer 8mm ....................................... 1
D. Moving Plate ............................................... 1
Drilling the Hole
Before starting, you should have a pencil, a mea-
suring tape, a center punch, a hammer, a 3/8" drill
bit, and access to a drill press (a hand drill will
also work, but results may vary).
To drill the hole in your fence:
1.
Measure the center-point of the hole (see
Figure 2) and pencil it in on the face of the
fence.
2. Use the center punch and hammer to indent
the center-point on your penciled mark.
3.
Observe all safety precautions given for
your drilling method (refer to your Owner's
Manual), and drill the hole completely through
your fence.
Assembling Fence
1.
Insert the adjustment handle with washer
through the hole in the fence and attach the
moving plate on the other side of the fence
(Figure 3).
2.
Slide the resaw fence over the moving plate,
center it with your original fence, and lock it
in position with the adjustment handle.
3.
Mount the fence assembly on the bandsaw.
All manuals and user guides at all-guides.com
G0531/G0566/G0568/G0569
MODEL H7528
RESAW FENCE FOR
INSTRUCTION SHEET
�
Model H7528 inventory.
Figure 1.
��
�����������������������
Diagram for drilling the hole.
Figure 2.
Moving Plate
Installing resaw fence.
Figure 3.
�
�
�
�������������
