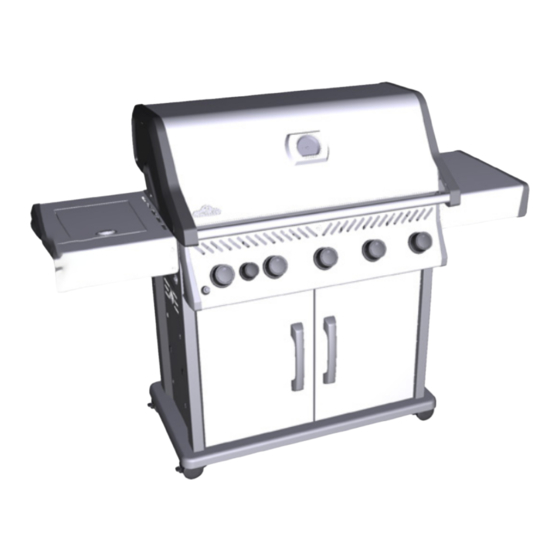

Napoleon ROGUE Series Assembly Manual
Hide thumbs
Also See for ROGUE Series:
- Owner's manual (68 pages) ,
- Assembly manual (32 pages) ,
- Instruction manual (49 pages)
Related Manuals for Napoleon ROGUE Series
Summary of Contents for Napoleon ROGUE Series
- Page 1 ROGUE SERIES ® Assembly Guide Guide de Montage Guía de Ensamblaje RSE625RSIB-1 RSE525RSIB-1 RSE425RSIB-1...
- Page 2 Available for some models in this guide: RSE425, RSE525, RSE525SIB, RSE625SIB. Disponible pour certains modèles dans ce guide: RSE425, RSE525, RSE525SIB, RSE625SIB. Disponible para algunos modelos en esta guía: RSE425, RSE525, RSE525SIB, RSE625SIB. WWW.NAPOLEON.COM...
- Page 3 BIENVENUE À NAPOLEON! BIENVENIDO A NAPOLEON! Congratulations on upgrading your grilling game and welcome to the Napoleon family! Register your grill today. We want to be by your side as you live memorable moments. Félicitations pour votre achat et bienvenue dans la famille Napoleon. inscrivez votre gril dès aujourd’hui.
- Page 4 ® (625) Assembly Guide Guide de Montage / Guía de Ensamblaje RSE625RSIB-1 RSE525RSIB-1 RSE425RSIB-1 (425) We Want Your Feedback! Visit Napoleon.com to write a review and register your grill. Apply Serial Number (525) 2x(525)1x (525) (425) SECTION A-A R0.071 0.080±0.010 0.562±0.016...
- Page 5 TO PREVENT PERSONAL INJURY, MUST PASS UL1439 SHARP EDGE TEST 2 ALL OUTSIDE SURFACES CLASS "C" 3 1MM #4 430, #4 304 AND 2B 304 MAY BE USED AS ALTERNATE MATERIALS DENOTES CRITICAL INSPECTION CRITERIA WWW.NAPOLEON.COM N735-0031 ED SIDE SHELF STN STN MISC PARTS MODEL:...
- Page 6 4x 4x 2x 2x WWW.NAPOLEON.COM...
- Page 7 2x 2x 4x 4x 2x 2x WWW.NAPOLEON.COM...
- Page 8 4x 4x 4x 4x WWW.NAPOLEON.COM...
- Page 9 WWW.NAPOLEON.COM...
- Page 10 WWW.NAPOLEON.COM...
- Page 11 4x 4x WWW.NAPOLEON.COM...
- Page 12 5/8” (16 mm) 3/4” (20 mm) WWW.NAPOLEON.COM...
- Page 13 2x (625) 1x (525) 2x 2x RSE425 WWW.NAPOLEON.COM...
- Page 14 1x (625 / 525) 2x (425) 2x 2x WWW.NAPOLEON.COM...
- Page 15 WWW.NAPOLEON.COM...
- Page 16 WWW.NAPOLEON.COM...
- Page 17 2x 2x WWW.NAPOLEON.COM...
- Page 18 3x 3x WWW.NAPOLEON.COM...
- Page 19 4x (625 / 525) 2x (425) 2x (625 / 525) (425 ) WWW.NAPOLEON.COM...
- Page 20 WWW.NAPOLEON.COM...
- Page 21 WWW.NAPOLEON.COM...
- Page 22 WWW.NAPOLEON.COM...
- Page 23 WWW.NAPOLEON.COM...
- Page 24 N570-0128 N710-0062 N710-0063 62007 N010-1284-SER N475-0363-GY1SG N010-1285-SER N475-0449-GY1SG N010-1286-SER N475-0499-GY1SG N010-1287-SER N080-0364 N010-1288-SER N350-0076 N010-1289-SER N710-0094 N010-1113 N710-0108 N010-1101 N710-0120 N010-1220 N080-0378-GY1SG N660-0007 N430-0002 N160-0045 N080-0365 N380-0040 N750-0016 N387-0014 N357-0021 N380-0039 N455-0109 N387-0013 N455-0110 N080-0254G N160-0023 N590-0327-GY1SG N080-0380-GY1SG 62050 WWW.NAPOLEON.COM...
- Page 25 Caster Kit / Kit de Roulettes / Kit de Ruedas x - standard part p - propane n - natural ac - accessory x - standard p - propane n - gas naturel ac- accessoire x - standard p - propano n - gas natural ac - accesorio WWW.NAPOLEON.COM...
- Page 26 WWW.NAPOLEON.COM...
- Page 27 (625) (525) (425) WWW.NAPOLEON.COM...
- Page 28 RSE425RSIB-1 Napoleon products are protected by one or more U.S. and Canadian and/or foreign patents or patents pending. Les produits de Napoleon sont proteges par un au plusieurs brevets am ricains, canadiens et (ou) au par des brevets en instance.
