e-Manual

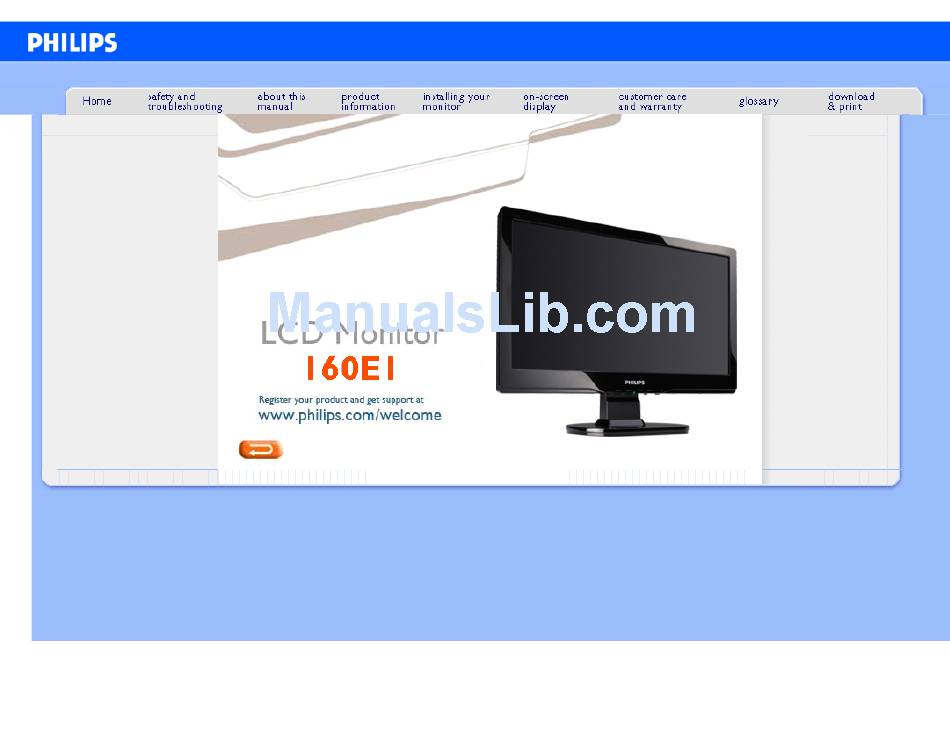

Philips LCD Monitor Electronic User's Manual
file:///F|/160E1 CD MANUAL-20081225/lcd/manual/ENGLISH/160E1/INDEX.HTM2008-12-26 19:11:24

Advertisement

Table of Contents
loading

Related Manuals for Philips 1.60E+03

Summary of Contents for Philips 1.60E+03

  • Page 1 Philips LCD Monitor Electronic User’s Manual file:///F|/160E1 CD MANUAL-20081225/lcd/manual/ENGLISH/160E1/INDEX.HTM2008-12-26 19:11:24...

  • Page 2: Safety And Troubleshooting Information

    DC power cord for normal operation. Please use approved power cord provided by Philips all the time. If your power cord is missing, please contact with your local service center. (Please refer to Customer Care...
  • Page 3 Safety and Troubleshooting Information ● Service: ● ● ● ● file:///F|/160E1 CD MANUAL-20081225/lcd/manual/ENGLISH/160E1/safety/safety.htm（第 2／2 页）2008-12-26 19:11:34 extreme cold. In order to maintain the best performance of your monitor and use it for a longer lifetime, please use the monitor in a location that falls within the following temperature and humidity ranges.

  • Page 4: Faqs (Frequently Asked Questions)

    What are the .inf and .icm files on the CD-ROM? How do I install the drivers (.inf and . icm)? file:///F|/160E1 CD MANUAL-20081225/lcd/manual/ENGLISH/160E1/safety/saf_faq.htm（第 1／6 页）2008-12-26 19:11:47 Recommended video mode for Philips 15.6": 1366 x 768 @60Hz. Unplug all cables, then connect your PC to the monitor that you used previously.
  • Page 5 FAQs (Frequently Asked Questions) How do I adjust the resolution? What if I get lost when I am making monitor adjustments? What is the Auto function? My Monitor has no power (Power LED does not light up). What should I do? Will the LCD monitor accept an interlaced signal under PC models? What does the Refresh Rate mean for LCD? file:///F|/160E1 CD MANUAL-20081225/lcd/manual/ENGLISH/160E1/safety/saf_faq.htm（第...
  • Page 6 FAQs (Frequently Asked Questions) Will the LCD screen be resistant to scratches? How should I clean the LCD surface? Can I change the color setting of my monitor? file:///F|/160E1 CD MANUAL-20081225/lcd/manual/ENGLISH/160E1/safety/saf_faq.htm（第 3／6 页）2008-12-26 19:11:47 from the top to the bottom of the screen determines flicker, an active matrix display uses an active element (TFT) to control each individual pixel and the refresh rate is therefore not really applicable to LCD technology.
  • Page 7 Yes. Philips LCD monitors have this optional feature. For standard VESA mount holes on the rear cover allows the user to mount the Philips monitor on most of the VESA standard arms or accessories. We recommend to contact your Philips sales representative for more information.
  • Page 8 FAQs (Frequently Asked Questions) What differentiates passive matrix LCDs from active matrix LCDs? What are the advantages of TFT LCD compared with CRT? Why is vertical frequency of 60Hz optimal for an LCD monitor? What kind of wide-angle technology is available? How does it work? file:///F|/160E1 CD MANUAL-20081225/lcd/manual/ENGLISH/160E1/safety/saf_faq.htm（第...
  • Page 9 FAQs (Frequently Asked Questions) Why is there no flicker on an LCD Monitor? Why is an LCD monitor virtually low of Electro Magnetic Interference? file:///F|/160E1 CD MANUAL-20081225/lcd/manual/ENGLISH/160E1/safety/saf_faq.htm（第 6／6 页）2008-12-26 19:11:47 of inlet light and displays it. Since the refraction ratio of inlet light on liquid crystal varies with the inlet angle of the light, the viewing angle of a TFT is much narrower than that of a CDT.

  • Page 10: Troubleshooting

    • FAQs This page deals with problems that can be corrected by a user. If the problem still persists after you have tried these • Common Problems solutions, contact Philips customer service representative. • Imaging Problems Common Problems • Regulatory Information •...
  • Page 11 The after- image will disappear after a peroid of time. The remaining dots are normal characteristic of the liquid ● crystal used in today’s technology. Consumer Information Centers list and contact Philips customer service RETURN TO TOP OF THE PAGE...
  • Page 12 Troubleshooting file:///F|/160E1 CD MANUAL-20081225/lcd/manual/ENGLISH/160E1/safety/saf_troub.htm（第 3／3 页）2008-12-26 19:11:54...

  • Page 13: Regulatory Information

    • Commission Federale de la From the planning, design and production stages, Philips emphasizes the important of making products Communication (FCC Declaration) that can easily be recycled. At Philips, end-of-life management primarily entails participation in national •...
  • Page 14 Green < 20W (typ.) OFF (Sleep) Amber < 0.5 W Switch Off < 0.5 W ® PHILIPS s an NERGY artner, has determined that this product meets ® NERGY guidelines for energy efficiency. We recommend you switch off the monitor when it is not in use for a long time.
  • Page 15 Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. RETURN TO TOP OF THE PAGE Trade Name: Philips Philips Consumer Electronics North America P.O. Box 671539 Responsible Party: Marietta , GA 30006-0026...
  • Page 16 Regulatory Information Commission Federale de la Communication (FCC Declaration) Réorienter ou déplacer l'antenne de réception. ● Augmenter la distance entre l'équipement et le récepteur. ● Brancher l'équipement sur un autre circuit que celui utilisé par le récepteur. ● Demander l'aide du marchand ou d'un technicien chevronné en radio/télévision. ●...
  • Page 17 Regulatory Information socket). All equipment that works together (computer, monitor, printer, and so on) should have the same power supply source. The phasing conductor of the room's electrical installation should have a reserve short-circuit protection device in the form of a fuse with a nominal value no larger than 16 amperes (A). To completely switch off the equipment, the power supply cable must be removed from the power supply socket, which should be located near the equipment and easily accessible.
  • Page 18 Regulatory Information Placering/Ventilation ADVARSEL: SØRG VED PLACERINGEN FOR, AT NETLEDNINGENS STIK OG STIKKONTAKT ER NEMT TILGÆNGELIGE. Paikka/Ilmankierto VAROITUS: SIJOITA LAITE SITEN, ETTÄ VERKKOJOHTO VOIDAAN TARVITTAESSA HELPOSTI IRROTTAA PISTORASIASTA. Plassering/Ventilasjon ADVARSEL: NÅR DETTE UTSTYRET PLASSERES, MÅ DU PASSE PÅ AT KONTAKTENE FOR STØMTILFØRSEL ER LETTE Å...
  • Page 19 Please find out about the local regulations on how to dispose of your old monitor from your local Philips dealer. (For customers in Canada and U.S.A.) This product may contain lead and/or mercury.
  • Page 20 Regulatory Information China RoHS The People's Republic of China released a regulation called "Management Methods for Controlling Pollution by Electronic Information Products" or commonly referred to as China RoHS. All products including CRT and LCD monitor which are produced and sold for China market have to meet China file:///F|/160E1 CD MANUAL-20081225/lcd/manual/ENGLISH/160E1/safety/regs/regulat.htm（第...
  • Page 21 Regulatory Information RoHS request. RETURN TO TOP OF THE PAGE file:///F|/160E1 CD MANUAL-20081225/lcd/manual/ENGLISH/160E1/safety/regs/regulat.htm（第 9／9 页）2008-12-26 19:12:02...

  • Page 22: Other Related Information

    Other Related Information Other Related Information • Safety and Troubleshooting • FAQs • Troubleshooting Information for Users in the U. S. • Regulatory Information • Information For units set at 115 V : for Users in the U.S • Information Use a UL Listed Cord Set consisting of a minimum 18 AWG, Type SVT or SJT three conductor cord a maximum of 15-feet long and a parallel blade, grounding type attachment plug rated 15 A, 125 V.

  • Page 23: About This Manual

    • Notational Descriptions About This Guide This electronic user's guide is intended for anyone who uses the Philips LCD Monitor. It describes the LCD monitor's features, setup, operation and other important information. Its contents are identical to the information in our printed version.
  • Page 24 ©2009 Koninklijke Philips Electronics NV All rights reserved. Reproduction, copying, use, modification, hiring, renting, public performance, transmission and/or broadcasting in whole or in part is prohibited without written consent of Philips Electronics NV file:///F|/160E1 CD MANUAL-20081225/lcd/manual/ENGLISH/160E1/about/about.htm（第 2／2 页）2008-12-26 19:12:17 NOTE: This icon indicates important information and tips that help you make better use of your computer system.

  • Page 25: Product Information

    • Horizontal Frequency file:///F|/160E1 CD MANUAL-20081225/lcd/manual/ENGLISH/160E1/product/product.htm（第 1／6 页）2008-12-26 19:12:39 Philips eliminated toxic substances like lead from its displays. Lead-free display helps protect your health and promotes environmentally sound recovery and disposal of waste from electrical and electronic equipment.Philips complies with the European Community stringent RoHS Directive mandating restrictions on hazardous substances in electrical and electronic equipment.
  • Page 26 Product Information VIDEO • Video dot rate • Input impedance - Video - Sync • Input signal levels • Sync input signal • Sync polarities * This data is subject to change without notice. Resolution & Preset Modes A. Maximum Resolution For 160E1 1366 x 768 at 60Hz (analog input) B.
  • Page 27 NERGY guidelines for energy efficiency. RETURN TO TOP OF THE PAGE V. freq (Hz) 70.09 59.94 75.00 60.32 75.00 60.00 75.03 59.79 Power Used color < 20 W (typ.) Green < 0.5 W Amber < 0.5 W ® PHILIPS artner,...
  • Page 28 Product Information Physical Specifications • Tilt • Power supply • Power consumption • Temperature • Relative humidity • System MTBF • Cabinet color Pin Assignment The 15-pin D-sub connector (male) of the signal cable: Pin No. file:///F|/160E1 CD MANUAL-20081225/lcd/manual/ENGLISH/160E1/product/product.htm（第 4／6 页）2008-12-26 19:12:39 -5°...
  • Page 29 Product Information Product Views Follow the links to see various views of the monitor and its components. Front View Product Description Physical Function Tilt file:///F|/160E1 CD MANUAL-20081225/lcd/manual/ENGLISH/160E1/product/product.htm（第 5／6 页）2008-12-26 19:12:39 RETURN TO TOP OF THE PAGE RETURN TO TOP OF THE PAGE...
  • Page 30 Product Information RETURN TO TOP OF THE PAGE file:///F|/160E1 CD MANUAL-20081225/lcd/manual/ENGLISH/160E1/product/product.htm（第 6／6 页）2008-12-26 19:12:39...

  • Page 31: Philips Pixel Defect Policy

    TFT LCD panels used in flat panel monitors are sometimes unavoidable. No manufacturer can guarantee • Pin Assignment that all panels will be free from pixel defects, but Philips guarantees that any monitor with an unacceptable number of defects will be repaired or replaced under warranty. This notice explains the different types of •...
  • Page 32 In order to qualify for repair or replacement due to pixel defects during the warranty period, a TFT LCD panel in a Philips flat panel monitor must have pixel or sub pixel defects exceeding the tolerances listed in the following tables.
  • Page 33 Philips Pixel Defect Policy 1 lit subpixel 2 adjacent lit subpixels 3 adjacent lit subpixels (one white pixel) Distance between two bright dot defects* Total bright dot defects of all types BLACK DOT DEFECTS MODEL 1 dark subpixel 2 adjacent dark subpixels...

  • Page 34: Installing Your Lcd Monitor

    Installing Your LCD Monitor Installing Your LCD Monitor • Front View Produt Description • Connecting to Your PC Front View Product Description • The Base • Getting Started • Optimizing Performance file:///F|/160E1 CD MANUAL-20081225/lcd/manual/ENGLISH/160E1/install/install.htm（第 1／3 页）2008-12-26 19:12:52 To switch monitor's power On and Off MENU / OK To access OSD menu/ Confirm To adjust brightness of the display...
  • Page 35 Installing Your LCD Monitor Rear View Optimizing Performance For best performance, ensure that your display settings are set at 1366 x 768, 60Hz. ● file:///F|/160E1 CD MANUAL-20081225/lcd/manual/ENGLISH/160E1/install/install.htm（第 2／3 页）2008-12-26 19:12:52 Kensington anti-thief lock AC power input VGA input RETURN TO TOP OF THE PAGE Note: You can check the current display settings by pressing the 'MENU' button once.
  • Page 36 Installing Your LCD Monitor RETURN TO TOP OF THE PAGE file:///F|/160E1 CD MANUAL-20081225/lcd/manual/ENGLISH/160E1/install/install.htm（第 3／3 页）2008-12-26 19:12:52...

  • Page 37: Connecting To Your Pc

    Connecting to Your PC Connecting to Your PC • Front View Product Description Accessory Pack • Accessory Pack Unpack all the parts. • Connecting to Your PC • Getting Started • Optimizing Performance • The base file:///F|/160E1 CD MANUAL-20081225/lcd/manual/ENGLISH/160E1/install/connect.htm（第 1／3 页）2008-12-26 19:12:57 Power cord VGA cable EDFU pack...
  • Page 38 Connecting to Your PC Connecting to Your PC Connect the power cord to the back of the monitor firmly. Connect to PC file:///F|/160E1 CD MANUAL-20081225/lcd/manual/ENGLISH/160E1/install/connect.htm（第 2／3 页）2008-12-26 19:12:57 Turn off your computer and unplug its power cable. Connect the monitor signal cable to the video connector on the back of your computer.
  • Page 39 Connecting to Your PC file:///F|/160E1 CD MANUAL-20081225/lcd/manual/ENGLISH/160E1/install/connect.htm（第 3／3 页）2008-12-26 19:12:57 Turn on your computer and monitor. If the monitor displays an image, installation is complete. RETURN TO TOP OF THE PAGE...
  • Page 40 The Base The Base • Front View Product Description Remove the Base • Accessory Pack Condition: • Connecting to your PC for VESA standard mounting applications ● • Getting Started • Optimizing Performance Remove the 3 screws and then remove the base from the LCD monitor. •...
  • Page 41 The Base RETURN TO TOP OF THE PAGE file:///F|/160E1 CD MANUAL-20081225/lcd/manual/ENGLISH/160E1/install/base.htm（第 2／2 页）2008-12-26 19:13:04...

  • Page 42: Getting Started

    Use the information file ( .inf) for Windows® 95/98/2000/Me/XP/Vista or later • Optimizing Performance The built-in VESA DDC2B feature in Philips Monitors supports Plug & Play requirements for Windows® 95/98/2000/Me/XP/Vista. This information file ( .inf) should be installed in order that your Philips monitor can be enabled from the 'Monitor' dialog box in Windows®...
  • Page 43 Getting Started For Windows® Me For Windows® XP file:///F|/160E1 CD MANUAL-20081225/lcd/manual/ENGLISH/160E1/install/gt_start.htm（第 2／3 页）2008-12-26 19:13:12 Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'. Double click on the 'Display' Icon. Select the 'Settings' tab then click on 'Advanced...'. Select 'Monitor' - If the 'Properties' button is inactive, it means your monitor is properly configured.
  • Page 44 Getting Started For Windows® Vista If your Windows® 95/98/2000/Me/XP/Vista version is different or you need more detailed installation information, please refer to your Windows® 95/98/2000/Me/XP/Vista user's manual. file:///F|/160E1 CD MANUAL-20081225/lcd/manual/ENGLISH/160E1/install/gt_start.htm（第 3／3 页）2008-12-26 19:13:12 Click on the 'Have disk...' button, then click on the 'Browse...' button and then select the appropriate drive F: (CD-ROM Drive).

  • Page 45: On-Screen Display

    Description of the On Screen Display What is the On-Screen Display? This is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance of the monitors directly through an on-screen instruction window. The user interface provides user- friendliness and ease-of-use when operating the monitor.
  • Page 46 On-Screen Display The OSD Tree Below is an overall view of the structure of the On-Screen Display. You can use this as a reference when you want to work your way around the different adjustments later on. file:///F|/160E1 CD MANUAL-20081225/lcd/manual/ENGLISH/160E1/osd/osddesc.htm（第 2／3 页）2008-12-26 19:13:22...
  • Page 47 On-Screen Display RETURN TO TOP OF THE PAGE file:///F|/160E1 CD MANUAL-20081225/lcd/manual/ENGLISH/160E1/osd/osddesc.htm（第 3／3 页）2008-12-26 19:13:22...
  • Page 48 Customer Care & Warranty Customer Care & Warranty PLEASE SELECT YOUR COUNTRY/AREA TO REVIEW DETAILS OF YOUR WARRANTY COVERAGE WESTERN EUROPE: • Ireland • Spain EASTERN EUROPE: Turkey LATIN AMERICA: Peru • NORTH AMERICA: PACIFIC: ASIA: Pakistan AFRICA: MIDDLE EAST: file:///F|/160E1 CD MANUAL-20081225/lcd/manual/ENGLISH/warranty/warranty.htm2008-12-26 19:13:28 Austria •...
  • Page 49 Should you encounter any difficulties while installing or using this product, please contact the Philips helpdesk directly to benefit from your Philips Warranty. This two-year service warranty entitles you to a swap model on-site if your monitor turns out to be faulty or defective.
  • Page 50 Just a phone call away In order to avoid unnecessary inconvenience, we advise you to read the operating instructions carefully or go to the Philips helpdesk. To solve your problem quickly, please prepare the following details before contacting the Philips helpdesk: ● ●...
  • Page 51 Your Philips Warranty file:///F|/160E1 CD MANUAL-20081225/lcd/manual/ENGLISH/warranty/war_1st.htm（第 3／3 页）2008-12-26 19:13:31...
  • Page 52 Philips Warranty Contact Information Philips Warranty Contact Information Country Austria Belgium Denmark Finland France Germany Greece Ireland Italy Luxembourg The Netherlands Norway Portugal Spain Sweden Switzerland United Kingdom file:///F|/160E1 CD MANUAL-20081225/lcd/manual/ENGLISH/warranty/warfirst.htm2008-12-26 19:13:37 Code Telephone number Tariff € 0.07 0810 000206 €...

  • Page 53: Your Guarantee In Central And Eastern Europe

    Your Guarantee in Central and Eastern Europe Dear Customer, Thank you for purchasing this Philips product, which has been designed and manufactured to the highest quality standards. If, unfortunately, something should go wrong with this product Philips guarantees free of charge labor and replacement parts during a period of 24 months from date of purchase.
  • Page 54 In order to avoid unnecessary inconvenience, we advise you to read the operating instructions carefully before contacting our dealers or Information Centers In case your Philips product is not working correctly or is defective, please contact your Philips dealer or directly the Website: file:///F|/160E1 CD MANUAL-20081225/lcd/manual/ENGLISH/warranty/war_ee.htm（第...

  • Page 55: Consumer Information Centers

    Consumer Information Centers Consumer Information Centers Antilles Belarus India • • Pakistan Montenegro Ukraine Eastern Europe BELARUS Technical Center of JV IBA M. Bogdanovich str. 155 BY - 220040 Minsk Tel: +375 17 217 33 86 BULGARIA LAN Service 140, Mimi Balkanska Str. Office center Translog 1540 Sofia, Bulgaria Tel: +359 2 960 2360...
  • Page 56 Consumer Information Centers ESTONIA FUJITSU SERVICES OU Akadeemia tee 21G EE-12618 Tallinn Tel: +372 6519900 www.ee.invia.fujitsu.com HUNGARY Serware Szerviz Vizimolnár u. 2-4 HU - 1031 Budapest Tel: +36 1 2426331 Email: inbox@serware.hu www.serware.hu LATVIA ServiceNet LV Jelgavas iela 36 LV - 1055 Riga, Tel: +371 7460399 Email: serviss@servicenet.lv LITHUANIA...
  • Page 57 PL - 05-500 Piaseczno Tel: +48 22 7501766 Email: servmonitor@zolter.com.pl www.zolter.com.pl RUSSIA Tel: +7 095 961-1111 Tel: 8-800-200-0880 Website: www.philips.ru TURKEY Türk Philips Ticaret A.S. Yukari Dudullu Org.San.Bolgesi 2.Cadde No:22 34776-Umraniye/Istanbul Tel: (0800)-261 33 02 file:///F|/160E1 CD MANUAL-20081225/lcd/manual/ENGLISH/warranty/warcic.htm（第 3／11 页）2008-12-26 19:14:23...
  • Page 58 Philips Antillana N.V. Vedia 3892 Capital Federal CP: 1430 Buenos Aires Phone/Fax: (011)-4544 2047 BRASIL Philips da Amazônia Ind. Elet. Ltda. Rua Verbo Divino, 1400-São Paulo-SP CEP-04719-002 Phones: 11 21210203 -São Paulo & 0800-701-0203-Other Regions without São Paulo City CHILE Philips Chilena S.A.
  • Page 59 Consumer Information Centers COLOMBIA Industrias Philips de Colombia S.A.-Division de Servicio CARRERA 15 Nr. 104-33 Bogota, Colombia Phone:(01)-8000 111001 (toll free) Fax : (01)-619-4300/619-4104 MEXICO Consumer Information Centre Norte 45 No.669 Col. Industrial Vallejo C.P.02300, -Mexico, D.F. Phone: (05)-3687788 / 9180050462...
  • Page 60 Rambla O'Higgins 5303 Montevideo Uruguay Phone: (598) 619 66 66 Fax: (598) 619 77 77 Customer Desk: Phone: 0004054176 VENEZUELA Industrias Venezolanas Philips S.A. Apartado Postal 1167 Caracas 1010-A Phone: (02) 2377575 Fax : (02) 2376420 Canada CANADA Philips Electronics Ltd.
  • Page 61 Rm 1007, Hongyun Building, No. 501 Wuning road, 200063 Shanghai P.R. China Phone: 4008 800 008 Fax: 21-52710058 HONG KONG Philips Electronics Hong Kong Limited Consumer Service Unit A, 10/F. Park Sun Building 103-107 Wo Yi Hop Road Kwai Chung, N.T.
  • Page 62 Madras 600 006 NEW DELHI Customer Relation Centre 68, Shivaji Marg New Dehli 110 015 INDONESIA Philips Group of Companies in Indonesia Consumer Information Centre Jl.Buncit Raya Kav. 99-100 12510 Jakarta Phone: (021)-7940040 ext: 2100 Fax : (021)-794 7511 / 794 7539...
  • Page 63 PHILIPS ELECTRONICS & LIGHTING, INC. Consumer Electronics 48F PBCOM tower 6795 Ayala Avenue cor VA Rufino St. Salcedo Village 1227 Makati City, PHILS Phone: (02)-888 0572, Domestic Toll Free: 1-800-10-PHILIPS or 1-800-10-744 5477 Fax: (02)-888 0571 file:///F|/160E1 CD MANUAL-20081225/lcd/manual/ENGLISH/warranty/warcic.htm（第 9／11 页）2008-12-26 19:14:23...
  • Page 64 Consumer Information Centers SINGAPORE Accord Customer Care Solutions Ltd Authorized Philips Service Center Consumer Service 620A Lorong 1 Toa Rayoh Singapore 319762 Tel: +65 6882 3999 Fax: +65 6250 8037 TAIWAN Philips Taiwan Ltd. Consumer Information Centre 13F, No. 3-1 Yuan Qu St., Nan Gang Dist.,...
  • Page 65 Consumer Information Centers SOUTH AFRICA PHILIPS SA (PTY) LTD Customer Care Center 195 Main Road Martindale, Johannesburg P.O. box 58088 Newville 2114 Telephone: +27 (0) 11 471 5194 Fax: +27 (0) 11 471 5123 E-mail: customercare.za@philips.com Middle East DUBAI Philips Middle East B.V.

  • Page 66: Your International Guarantee

    In the event you require service whilst in another country a dealer address can be given to you by the Philips Consumer Help Desk in that country, the telephone and fax number of which can be found in the relevant part of this booklet.
  • Page 67 International Guarantee file:///F|/160E1 CD MANUAL-20081225/lcd/manual/ENGLISH/warranty/war_intl.htm（第 2／2 页）2008-12-26 19:14:30...
  • Page 68 Should you encounter any difficulties while installing or using this product, please contact Philips directly to benefit from your Philips F1rst Choice Warranty. This three-year service warranty entitles you to a swap model on-site within 48 hours of your call being received within the first year of purchase.
  • Page 69 ● Where IS SERVICE AVAILABLE? Warranty service is available in all countries where the product is officially distributed by Philips Consumer Electronics. In countries where Philips Consumer Electronics does not distribute the product, the local Philips service organization will attempt to provide service (although there may be a delay if the appropriate spare parts and technical manual(s) are not readily available).
  • Page 70 Please contact Philips at: (800) 479-6696 Three years free parts and three years free labor will be provided at Philips Canada depot or any one of its authorized service centers. (In Canada, this warranty is given in lieu of all other warranties. No other warranties are expressed or implied, including any implied warranties of merchantability or fitness for a particular purpose.
  • Page 71 ● Just a phone call away Philips’ customer help desks are located worldwide. Within the U.S. you can contact Philips customer care Monday-Friday from 8:00 AM-9:00 PM Eastern Time (ET) and on Saturdays from 10:00 AM-5:00 PM ET hrs by using one of the contact phone numbers.
  • Page 72 Glossary Glossary A B C D E Active matrix This is a kind of liquid crystal display structure in which switching transistors are attached to each pixel to control the on/off voltage. It produces a brighter and sharper display with a broader viewing angle than a passive matrix display.
  • Page 73 (degrees Kelvin). Lower Kelvin temperatures such as 2400° K are red; higher temperatures such as 9300° K are blue. Neutral temperature is white, at 6504° K. Philips monitors generally offers 9300° K, 6500° K, and user define. Contrast The luminance variation between light and dark areas in an image.
  • Page 74 Glossary Contrast ratio The ratio of luminance between the brightest white pattern and the darkest black pattern. D-SUB A VGA Analog input connector. Your monitor comes with a D-Sub cable. Digital Visual Interface (DVI) The Digital Visual Interface (DVI) specification provides a high-speed digital connection for visual data types that is display technology independent.
  • Page 75 Glossary Companies joining this program, must be willing to commit themselves to manufacture one or more products capable of going into a low -power state (< 30 W) either after a period of inactivity, or after a predetermined time selected by the user. Gamma Screen luminance as a function of video voltage approximately follows a mathematical power function of the input video signal, the exponent of which is called gamma.
  • Page 76 Glossary A technique of improving the viewing angle of an LCD where the liquid crystal molecules are switched in the plane of the LCD layer rather than vertical to it. LCD (liquid crystal display) A display composed of liquid crystal suspended between two transparent sheets. The display is composed thousands of pixels which can be turned on or off with electrical stimulation.
  • Page 77 Using a standard unified color space, sRGB will help represent pictures taken by an sRGB compatible device correctly on your sRGB enabled Philips monitors. In that way, the colors are calibrated and you can rely on the correctness of the colors shown on your screen.
  • Page 78 Glossary USB plug: An upstream and a downstream USB plug is provide for user's convenience. TFT(thin film transistor) Usually made from amorphous silicon (a-Si) and used as a switch to a charge storage device located below each sub-pixel on an active matrix LCD. USB or Universal Serial Bus A smart plug for PC peripherals.
  • Page 79 Glossary The upstream port of a hub connects the hub towards the host. Each of the other downstream ports of a hub allows connection to another hub or function. Hubs can detect, attach and detach at each downstream port and enable the distribution of power to downstream devices. Each downstream port can be individually enabled and configured at either full or low speed.
  • Page 80 Glossary Upstream The direction of data flow towards the host. An upstream port is the port on a device electrically closest to the host that generates upstream data traffic from the hub. Upstream ports receive downstream data traffic. Vertical refresh rate Expressed in Hz, it is the number of frames (complete pictures) written to the screen every second.

  • Page 81: Download And Print

    Download and Print Download and Print • Installing your LCD monitor driver • Download and Printing Installing Your LCD monitor driver Instructions System requirements: PC running Windows 95, Windows® 98, Windows® 2000 , Windows® Me, Windows® XP, ● Windows® Vista or later Find your driver ".inf/.icm/.cat"...
  • Page 82 Download and Print 'source', choose 'source'). Printing instructions: To print the manual: With the manual file open, follow your printer's instructions and print the pages you need. file:///F|/160E1 CD MANUAL-20081225/lcd/manual/ENGLISH/download/download.htm（第 2／2 页）2008-12-26 19:14:51 RETURN TO TOP OF THE PAGE...
