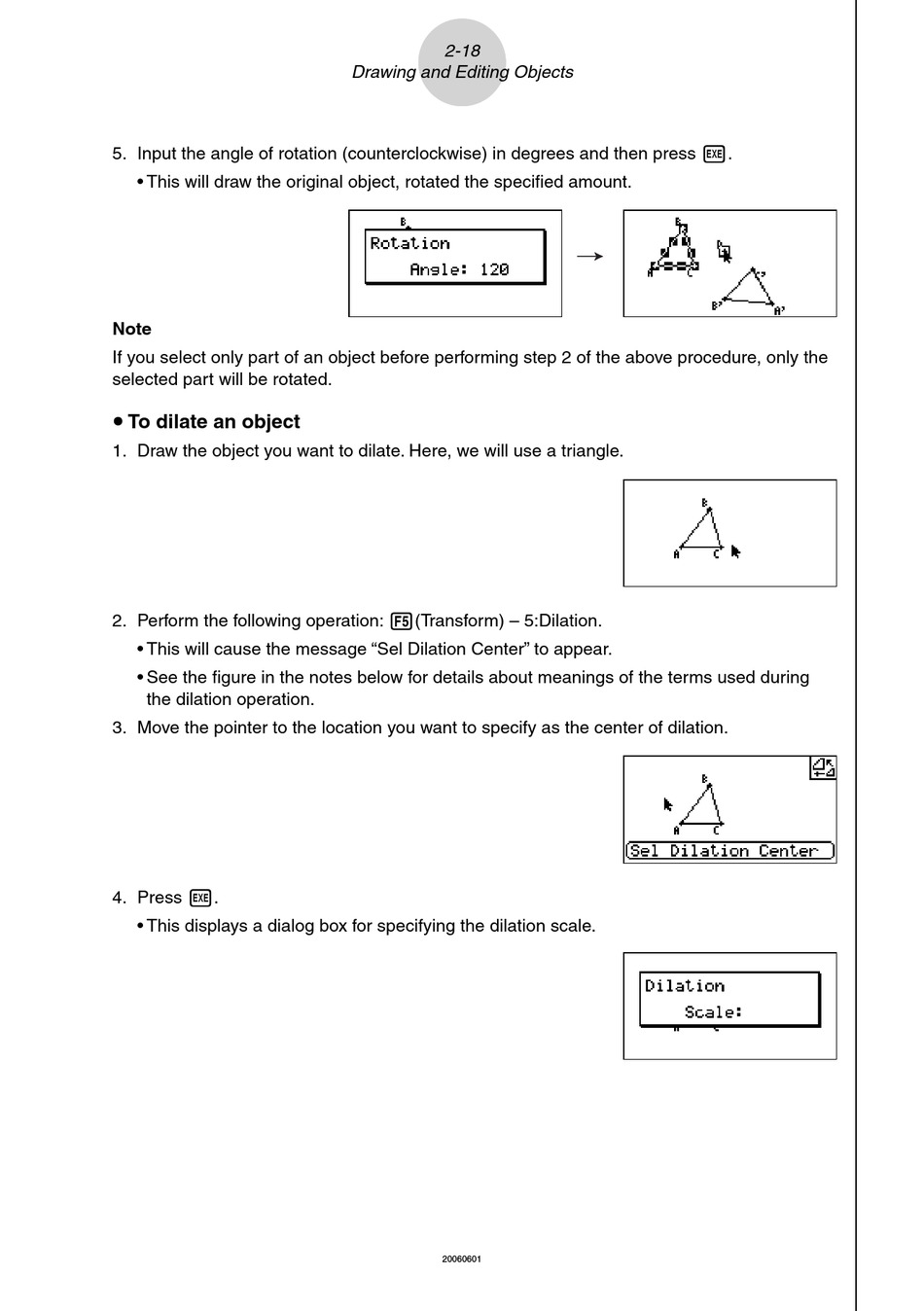

Casio Geometry User Manual page 28

5. Input the angle of rotation (counterclockwise) in degrees and then press w.
• This will draw the original object, rotated the specifi ed amount.
Note
If you select only part of an object before performing step 2 of the above procedure, only the
selected part will be rotated.
u To dilate an object
1. Draw the object you want to dilate. Here, we will use a triangle.
2. Perform the following operation: 5(Transform) – 5:Dilation.
• This will cause the message "Sel Dilation Center" to appear.
• See the fi gure in the notes below for details about meanings of the terms used during
the dilation operation.
3. Move the pointer to the location you want to specify as the center of dilation.
4. Press w.
• This displays a dialog box for specifying the dilation scale.
2-18
Drawing and Editing Objects
20060601
/ /
