Communications Systems | PVA-CSK PAVIRO Call Station Kit

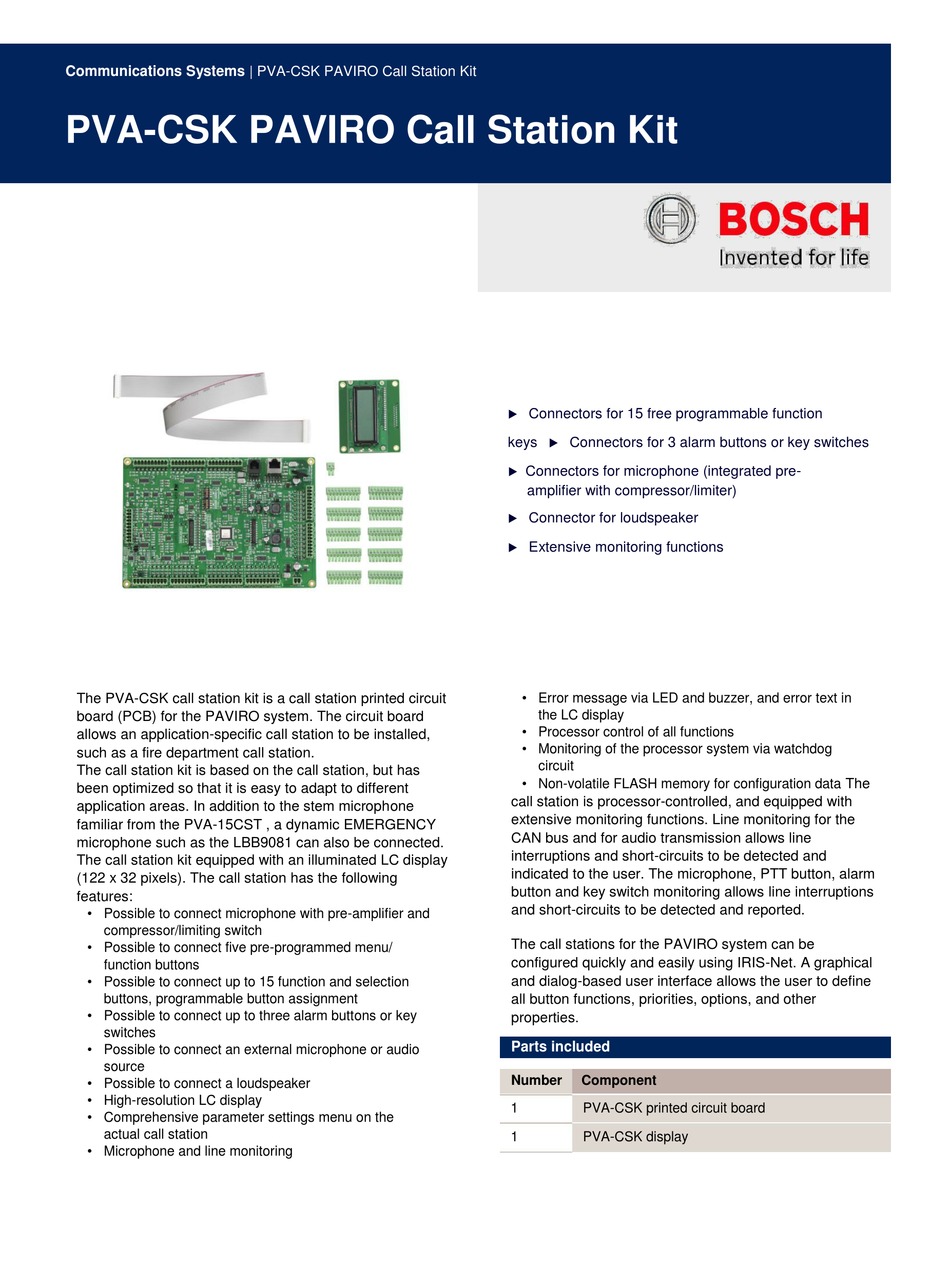

PVA-CSK PAVIRO Call Station Kit
The PVA-CSK call station kit is a call station printed circuit
board (PCB) for the PAVIRO system. The circuit board
allows an application-specific call station to be installed,
such as a fire department call station.
The call station kit is based on the call station, but has
been optimized so that it is easy to adapt to different
application areas. In addition to the stem microphone
familiar from the PVA-15CST , a dynamic EMERGENCY
microphone such as the LBB9081 can also be connected.
The call station kit equipped with an illuminated LC display
(122 x 32 pixels). The call station has the following
features:
• Possible to connect microphone with pre-amplifier and
compressor/limiting switch
• Possible to connect five pre-programmed menu/
function buttons
• Possible to connect up to 15 function and selection
buttons, programmable button assignment
• Possible to connect up to three alarm buttons or key
switches
• Possible to connect an external microphone or audio
source
• Possible to connect a loudspeaker
• High-resolution LC display
• Comprehensive parameter settings menu on the
actual call station
• Microphone and line monitoring
 Connectors for 15 free programmable function
keys  Connectors for 3 alarm buttons or key switches
 Connectors for microphone (integrated pre-
amplifier with compressor/limiter)
 Connector for loudspeaker
 Extensive monitoring functions
• Error message via LED and buzzer, and error text in
the LC display
• Processor control of all functions
• Monitoring of the processor system via watchdog
circuit
• Non-volatile FLASH memory for configuration data
call station is processor-controlled, and equipped with
extensive monitoring functions. Line monitoring for the
CAN bus and for audio transmission allows line
interruptions and short-circuits to be detected and
indicated to the user. The microphone, PTT button, alarm
button and key switch monitoring allows line interruptions
and short-circuits to be detected and reported.
The call stations for the PAVIRO system can be
configured quickly and easily using IRIS-Net. A graphical
and dialog-based user interface allows the user to define
all button functions, priorities, options, and other
properties.
Parts included
Number Component
1 PVA-CSK printed circuit board
1 PVA-CSK display
