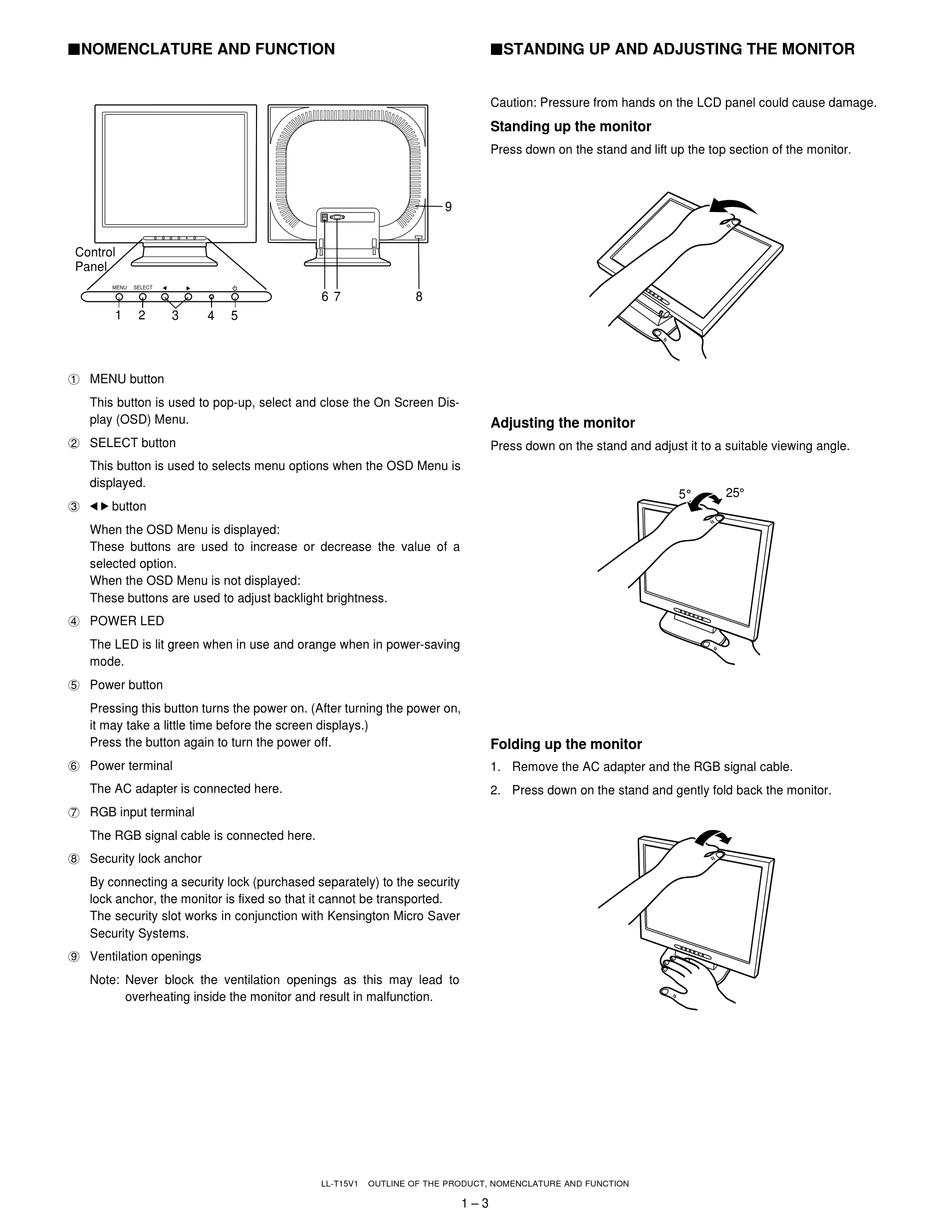

NOMENCLATURE AND FUNCTION
Control
Panel
MENU
SELECT
1
2
3
4
5
1 MENU button
This button is used to pop-up, select and close the On Screen Dis-
play (OSD) Menu.
2 SELECT button
This button is used to selects menu options when the OSD Menu is
displayed.
3 e d button
When the OSD Menu is displayed:
These buttons are used to increase or decrease the value of a
selected option.
When the OSD Menu is not displayed:
These buttons are used to adjust backlight brightness.
4 POWER LED
The LED is lit green when in use and orange when in power-saving
mode.
5 Power button
Pressing this button turns the power on. (After turning the power on,
it may take a little time before the screen displays.)
Press the button again to turn the power off.
6 Power terminal
The AC adapter is connected here.
7 RGB input terminal
The RGB signal cable is connected here.
8 Security lock anchor
By connecting a security lock (purchased separately) to the security
lock anchor, the monitor is fixed so that it cannot be transported.
The security slot works in conjunction with Kensington Micro Saver
Security Systems.
9 Ventilation openings
Note: Never block the ventilation openings as this may lead to
overheating inside the monitor and result in malfunction.
CAUTION!
Caution: Pressure from hands on the LCD panel could cause damage.
Standing up the monitor
Press down on the stand and lift up the top section of the monitor.
9
6 7
8
Adjusting the monitor
Press down on the stand and adjust it to a suitable viewing angle.
Folding up the monitor
1. Remove the AC adapter and the RGB signal cable.
2. Press down on the stand and gently fold back the monitor.
