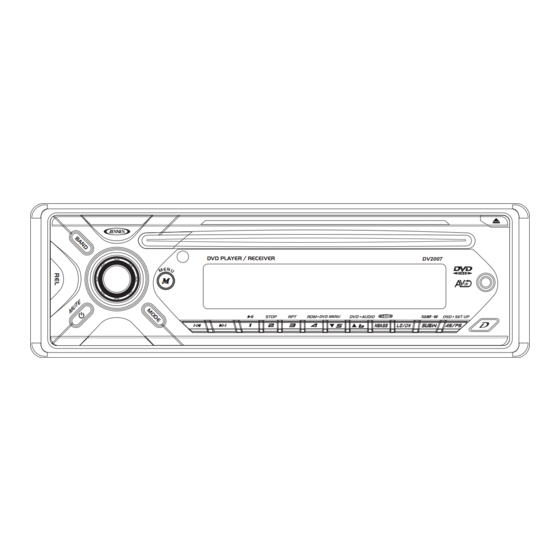

DV2007
CD MP3 / WMA/ DVD PLAYER / RECEIVER
/
Installation and Operation Manual
DVD PLAYER / RECEIVER
DV2007
M
DVD MENU

Advertisement

Table of Contents
loading

Related Manuals for Jensen DV2007

Summary of Contents for Jensen DV2007

  • Page 1 DV2007 CD MP3 / WMA/ DVD PLAYER / RECEIVER Installation and Operation Manual DVD PLAYER / RECEIVER DV2007 DVD MENU...

  • Page 2: Safety Information

    Note these scratches are not an indication of any problem with the player. Label side Do not bend DV2007 or USB or Memory DVD players and DVD Video discs have their own Region Code numbers. This unit can play the disc of all region code numbers.

  • Page 3: Installation

    DV2007 3. INSTALLATION Before You Begin Disconnect Battery Before you begin, always disconnect the battery negative terminal. Remove Transport Screws Important Notes • Before final installation, test the wiring connections to make sure the unit is connected properly and the system works.

  • Page 4: Wiring Diagram-Audio/Video Connections

    DCP . 4. WIRING DIAGRAM-AUDIO/VIDEO CONNECTIONS Screws Dashboard PANEL RELEASE BUTTON FUSE DV2007 SUB-WOOFER OUTPUT BLUE SUB-W OUT WOOFER External Remote Receiver Not Included. Sold Separately EXTERNAL REMOTE JACK...

  • Page 5: Control Panel Function

    DV2007 5. WIRING DIAGRAM - POWER / SPEAKERS (20 PIN) FUSE 20-PIN AUDIO/POWER HARNESS (See Figure 1 ) (Not supplied) RCA-TO-RCA iPod GREY WHITE CABLES REAR CHANNEL BLACK WHITE FRONT WIRED CHANNEL REMOTE BLUE POWER ANTENNA/ Power Antenna AMPLIFIER REMOTE Connect to power antenna or amplifier, If not used, Tape bare end of wire.

  • Page 6: Remote Function

    Press Eject Fast Forward Fast Backward Left Right Down Next Back Pause/Play Stop Numeric 1 Numeric 2 Numeric 3 Numeric 4 DV2007 MODE VOLUME AUDIO GOTO MUTE DISPLAY SYSTEM TUNER CD/M P3/W MA Short Long Short Long Short Long Short...

  • Page 7: Basic Operations

    DV2007 8. BASIC OPERATIONS 3) PANEL RELEASE BUTTON (REL) Press this button to remove the control panel. 1) POWER ON/OFF BUTTON ( Press POWER/MUTE button or any other button on the front of the radio (except Open/Eject) to turn the unit on. And Long press POWER /MUTEbutton again to turn the unit off.

  • Page 8: Audio Operation

    User has 5 seconds to use Volume Up or Down button to adjust the Fader between the front and rear speakers from R12 (full rear) to F12 (full front). “C00” represents an equal balance between the front and rear speakers. DV2007 CLOCK TIME FORMAT 12 HOURS...

  • Page 9: Tuner Operation

    DV2007 10. TUNER OPERATION 7) BAND BUTTON (BAND) Press BAND to change between three FM bands and two AM bands. 20&21)TUNING UP/DOWN BUTTON ( Manual Tuning Press the Up Tuning( ) or Down Tuning ( )button for more than 3 seconds to move the radio frequency number up or down by one step.

  • Page 10: Cd/Mp3/Wma Operation

    The player can display ID3 information (Name, Album, Artist, Copyright… ).If this information is not available then display company information(i.e. name etc.) Extended information will be scrolling at the bottom of the TFT screen (only on the externally connected TFT screen). DV2007 MP3/WMA Music Files ) or TRACK /FILE DOWN (...

  • Page 11: Mute Button

    DV2007 CD/MP3/WMA Operation - Remote Control To operates CD function through the following keys on the remote control. 17. Play/ Pause 18. Stop MODE Fast Forward VOLUME Fast Backward 14. Next AUDIO 15. Back 19~29. Numeric buttons 32. Repeat GOTO 10~13.
  • Page 12 4. Press again to “ Repeat Off”. This player can repeat play selected point to point. DV2007 Under a CD/MP3/WMA File is playing, use cursor key access to “ Rep A-B”, field to select the A-B point want to repeat play.

  • Page 13: Dvd Operation

    DV2007 13. DVD OPERATION DVD Operation - Remote control MODE VOLUME AUDIO GOTO MUTE DISPLAY 2) EJECT BUTTON ( Press the EJECT button to eject the disc or loading the disc. 17)PLAY/PAUSE ( Press PAUSE to pause playback. Press PAUSE to single step forward to the next picture in the video (DVD and VCD only).

  • Page 14: Goto Button

    1) The first press will show the current subtitle setting selected; subsequent presses 2) Some DVDs display subtitles automatically and cannot be turned Off, even if the QOff 1/5 Chl 2/5 Eng toggle to the next subtitle setting. subtitle function is set to Off. DV2007...
  • Page 15 DV2007 3) During some scenes, the subtitles may not appear immediately. 4) Some DVDs allow subtitle selections and turn subtitles on or off only via the disc menu. 5) When a player is turned on or a disc is replaced, the Set Up returns to the default setting.

  • Page 16: Multi-Format Disc

    Use right arrow key to go the “ Filter” field. Press “OK” key to open the selection box. Use up/down keys to navigate thru the categories need to be hidden, then press “OK” key to confirm. Use left key to exit the filter function. DV2007...

  • Page 17: Mpeg4 Operation

    DV2007 15. MPEG4 OPERATION The unit supports playback MPEG4 files , the details operation is exactly the same as CD/MP3/ WMA operation. The following are special functions pertaining to the playback of the MPEG4 File: External Subtitle External Subtitle setting is used for choosing the language domain, (only for MPEG4). After select one language domain (alphabet), when playback a MPEG4 with external subtitle, the subtitle display will use this language alphabet.
  • Page 18 AUTO = If the content is PAL, the output is PAL. If the content is NTSC, the output is NTSC Playing PAL DVDs with TV SYS set to NTSC is not allowed. The OSD will indicate:(OSD) PAL to NTSC error. DV2007...
  • Page 19 DV2007 Rating Settings 1. Using the Up/Down buttons, move to “Rating”, the Rating settings will appear: Use the Right buttons to select the setting. Use the Up/Down buttons to select the setting to be changed. The following subsections explain how to change each of the player's Rating settings.

  • Page 20: Specification

    Unit Mounting Angle ........... . < 30º DV2007...

  • Page 21: Troubleshooting

    DV2007 19. TROUBLE SHOOTING Symptom Cause No power The vehicle ignition is not If the power supply is prop- erly connected to the vehi- cle accessory terminal, switch the ignition key to “ACC”. The fuse is blown Replace the fuse.
