Summary of Contents for Wallgate Thrii-Tap+

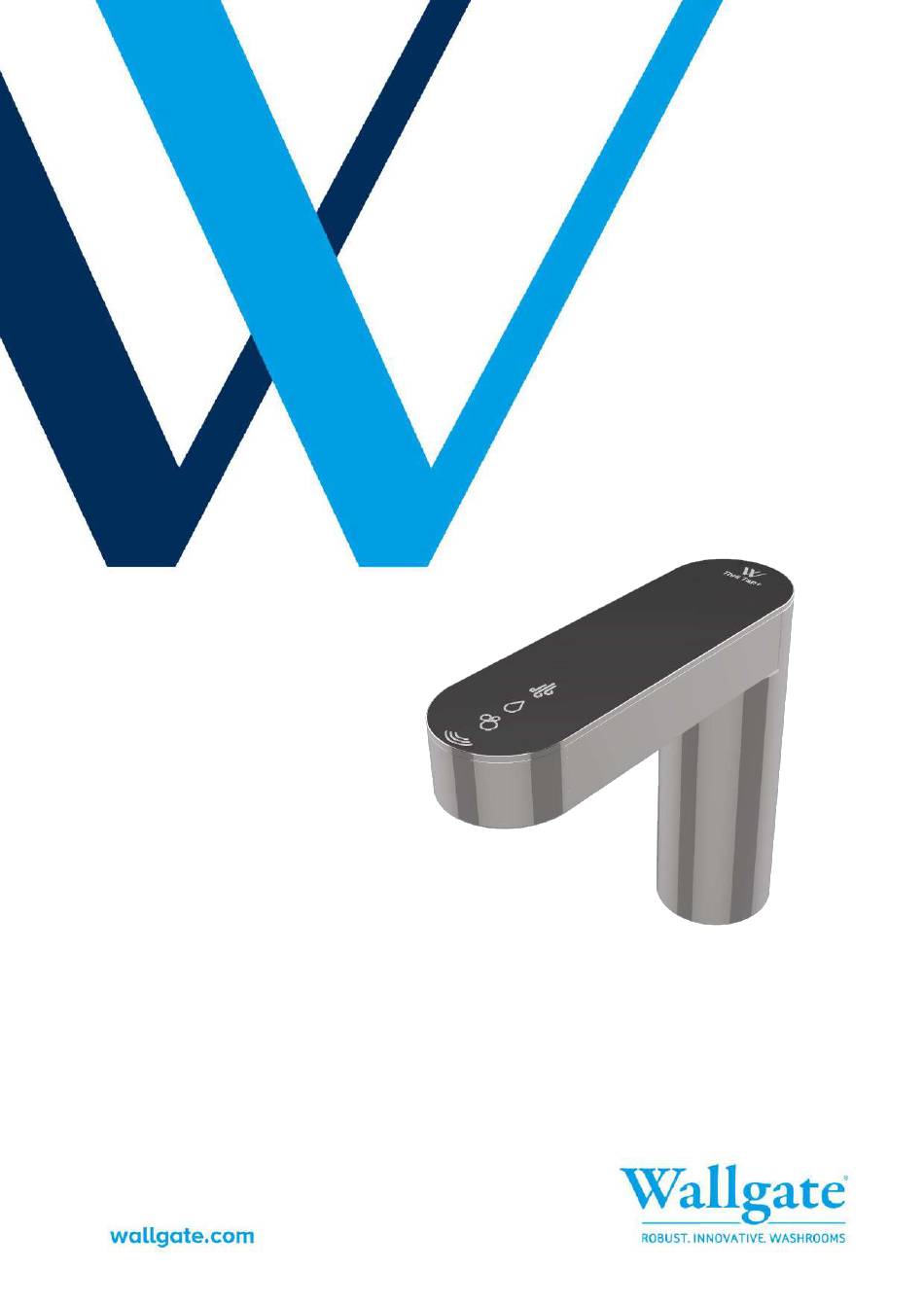

- Page 1 Product Manual Thrii-Tap+ Hand Wash Dryer Thrii-Tap+ D Original Instructions...
- Page 2 Product Manual Thrii-Tap+ D Hand Wash Dryer Revision 2...
-
Page 3: Safety Information
Product Manual Thrii-Tap+ D Hand Wash Dryer Safety Information WARNINGS! The appliance must be earthed. The means for disconnection from the mains supply must be incorporated in the fixed wiring in accordance with the wiring rules. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. -
Page 4: Table Of Contents
Product Manual Thrii-Tap+ D Hand Wash Dryer Table of Contents Safety Information ............................3 1. Disclaimer & Copyright Notice ........................5 2. Conventions ............................... 6 2.1. Warning ..............................6 2.2. Note ................................ 6 2.3. Numbered procedures ..........................6 2.4. Bullet lists ............................... 6 2.5. -
Page 5: Disclaimer & Copyright Notice
Every effort has been made to supply the information within this manual which is correct. Wallgate Limited will not be liable for any damage or loss that arises if the person installing, operating, or maintaining the unit has not read or not complied with the manual. -
Page 6: Conventions
Certain conventions are used in this manual to make it easier to read and understand. It is recommended that you read and understand these warnings before you install and commission the Wallgate Thrii Tap+. 2.1. Warning A warning with white text on a red background is used to give information about hazards that can cause injury or death. -
Page 7: Glossary
(male) with an internal (female) thread. Power up The external electricity supply is provided to the Thrii Tap+. Thrii Tap+® is a registered trademark of Wallgate Limited. Description sourced from Wikipedia at http://en.wikipedia.org/wiki/British_standard_pipe_thread Revision 2... -
Page 8: Technical Specification
Product Manual Thrii-Tap+ D Hand Wash Dryer 4. Technical Specification Weight Item Weight Tap Head 2.0 kg Control Module 8.2 kg Full soap container 2.6 kg Total 12.8kg Tap Head Width 60mm Dimensions Height 178mm Length 200mm Control Module Width 344 mm Dimensions Height... -
Page 9: Overview
Product Manual Thrii-Tap+ D Hand Wash Dryer 5. Overview The Wallgate Thrii-Tap+ is an integrated hand wash dryer unit with automatic infra- red sensor operation. There are two model options that are otherwise identical except for the Tap head mounting method. It is available as a wall mounted configuration to be installed with... - Page 10 Product Manual Thrii-Tap+ D Hand Wash Dryer Figure 2: Tap head outlet nozzles. Revision 2...
-
Page 11: Package Contents
Product Manual Thrii-Tap+ D Hand Wash Dryer 6. Package Contents Before you begin the installation, make sure that you have the following items: ✓ 1 Tap head ✓ 1 Installation instructions ✓ 1 Air hose – with 2 jubilee clips ✓... -
Page 12: Installing The Support Frame, Water, Waste And Electrical Connections
For optimum operation, a dynamic water flow pressure of between 1 & 3 bar is required. Note: Request advice from Wallgate before you connect the control module to a gravity-fed water supply. Revision 2... -
Page 13: Deck Mounted Tap Head
Product Manual Thrii-Tap+ D Hand Wash Dryer 7.1.1. Deck Mounted Tap Head Figure 3 shows the maximum allowable depth of a basin for the deck mounted tap only: 100 mm. When using the wall mounted models this can be increased. Please also note the clearance required under the basin and between the basin and wall. - Page 14 Product Manual Thrii-Tap+ D Hand Wash Dryer Measure, mark and core a hole through basin or vanity to the dimensions shown in figure 4 below. Figure 4: Deck Mounted Tap mounting dimensions. Revision 2...
-
Page 15: Mounting Guidelines
Product Manual Thrii-Tap+ D Hand Wash Dryer 7.2. Mounting Guidelines 7.2.1. Control Module Mounting Guidelines Figure 5: Wall mounting of Thrii-Tap+ engine. under basin installations although it is recommended to use the orientation shown above (fig 5). The engine is to be mounted to a flat wall via the mounting tabs. These are bi- directional slotted for ease of installation regardless of the control modules’... - Page 16 Product Manual Thrii-Tap+ D Hand Wash Dryer The control module must have a clearance envelope of 100mm (see Fig 6). Figure 6: Minimum engine clearance. When the module is securely mounted to the wall the power cable should be connected to an easily accessible switched UK plug socket or switched fused spur (depending on installation requirements).
-
Page 17: Soap Hook Mounting Guidelines
Product Manual Thrii-Tap+ D Hand Wash Dryer 7.2.2. Soap Hook Mounting Guidelines The soap hook can be installed remotely from the module in a position convenient for access, and within space constraints.0.6m of soap tube is supplied for connection between the soap bottle and the module. The soap hook must be fastened to the wall with appropriate fasteners for the wall material (to be supplied by others). -
Page 18: Tap Head Mounting Guidelines
Product Manual Thrii-Tap+ D Hand Wash Dryer 7.2.3. Tap Head Mounting Guidelines 7.2.3.1. Deck Mounted Tap Head 1. Remove 2x M6 nuts and mounting bracket from tap head. 2. Carefully pass tap head hoses through hole made in basin or vanity before seating washer and tap onto deck as shown in figure 7. - Page 19 Product Manual Thrii-Tap+ D Hand Wash Dryer 3. Then thread the mounting bracket over to hoses. Position the mounting bracket over the tap assembly and align with the two M6 threaded rods. Secure into position using the M6 nutsand tighten by hand. Figure 8: Installing fixing bracket.
-
Page 20: Connecting The Control Module To The Tap Head
Product Manual Thrii-Tap+ D Hand Wash Dryer 7.3. Connecting the Control Module to the Tap head Figure 10: Deck mounted tap shown without vanity top Figure 11: Control Module I/O arrangement. Revision 2... - Page 21 Product Manual Thrii-Tap+ D Hand Wash Dryer 1. First connect air hose to tap. Ensure jubilee clips are positioned roughly 15mm from each end of air hose. Push one end of air hose over black air hose spigot protruding from bottom of tap head. Then push the other end over the “air outlet spigot”...
- Page 22 Product Manual Thrii-Tap+ D Hand Wash Dryer 3. Now take the flexi hose and check rubber O-ring is fitted correctly in half inch BSP female nut. Then screw on to module “water outlet” by hand. Tighten with 23mm spanner. Figure 13: Flexi hose / water outlet connection. 4.
- Page 23 Product Manual Thrii-Tap+ D Hand Wash Dryer 5. Take 2x soap hoses from bottom of tap head and push over “soap and air outlets” indicated in fig 11. Use 2x cable ties to secure soap tube onto outlet spigots. Figure 15: Soap Air outlet connections. Revision 2...
-
Page 24: Mains Water Connection To Control Module
3. Fully open the mains water supply isolating tap. Check the incoming water connections for leaks. 4. Switch ON the power to the Control Module, this will power-up the Wallgate Thrii-Tap ready for use. 5. Upon initial power-up, the Wallgate Thrii-Tap+automatically runs through a 15-second water calibration cycle. - Page 25 Product Manual Thrii-Tap+ D Hand Wash Dryer Figure 16: Soap bottle installation/connection. 8. Unscrew the cap from the soap container and replace with the push-fit cap pre-connected to the soap tube pushing fully into place ensuring no leaks. 9. Press the soap prime switch, (The button on the underside of the control module next to the air intake grille and the soap mode switch) until soap is consistently dispensed into the bowl.
- Page 26 Product Manual Thrii-Tap+ D Hand Wash Dryer 10. Check the wash & dry cycle operates correctly as per the list of checks below and repeat the cycle at least five times. ✓ Soap dispenses. ✓ Water dispenses & water is warm (if heated supply is installed). ✓...
-
Page 27: Programmed Settings
Any service or repair work must be done by a qualified engineer. During the warranty period, the service or repair must only be done by a Wallgate engineer or appointed service agent. Refer to the Wallgate terms and conditions for warranty information. - Page 28 Product Manual Thrii-Tap+ D Hand Wash Dryer Item Description Item Description MED Fan speed LED indicator Menu Select button LOW Fan speed LED indicator UP Button Air Heater ON/OFF DOWN Button Air Heater OFF LED indicator ENTER Button Air Heater ON LED indicator FAN SPEED Button Ribbon cable connector HIGH Fan speed LED indicator...
-
Page 29: Operation
Product Manual Thrii-Tap+ D Hand Wash Dryer 8.1. Operation The hand wash and dry cycle is activated when your hands are placed centrally under the tap and dispensing nozzles. An infra-red hand sensor initiates the cycle when it detects hands under the tap head. When the cycle starts, a sequence of soap, water and hand dryer air are dispensed. -
Page 30: Dryer Operation
Product Manual Thrii-Tap+ D Hand Wash Dryer 8.1.2. Dryer Operation There are 3 dryer speed settings. The control to adjust the speed is located on the control module LCD control panel. To change the speed, the Control Module must be powered up (The fan does not need to be operating). -
Page 31: Advanced Adjustment
IR sensor trigger or activation length. Warning! Incorrect alterations to the default hand wash settings may result in malfunctions or possible unit damage. If in any doubt, contact “Wallgate after- sales service” for advice & information. -
Page 32: Hygiene Purge Adjustment
Instructions can be downloaded from the Wallgate web site or contact Wallgate Ltd ✓ Restore the unit to factory default settings. ✓ Instructions to change the cycle sequence of soap – water – hand dryer. -
Page 33: Care, Routine Maintenance, Service And Repair
If you need any further information or advice, please contact Wallgate Customer Services. 9.1. Care and Cleaning The Thrii Tap+ should be cleaned daily. Follow these 3 steps to ensure the unit performs to its best and remains hygienic. -
Page 34: Routine Maintenance
• Foaming ingredients • Bleach or abrasive cleaners Contact us for more information: 01722 744594 www.wallgate.com. 9.2. Routine Maintenance The following routine regular maintenance in between service intervals will help to prevent premature parts failure: • Flush the soap pump system with warm water to remove congealed soap within the pump, tube &... -
Page 35: Service And Repair
Any service or repair work must be done by a qualified engineer. During the warranty period, the service or repair must only be done by a Wallgate engineer or appointed service agent. Refer to the Wallgate terms and conditions for warranty information. - Page 36 Wallgate Ltd. Crow Lane, Wilton, Salisbury, Wiltshire, SP2 0HB, England tel: +44 (0) 1722 744594 fax: +44 (0) 1722 742096 email: service@wallgate.com web: www.wallgate.com...
