Keiser 1021 Operator's Manual

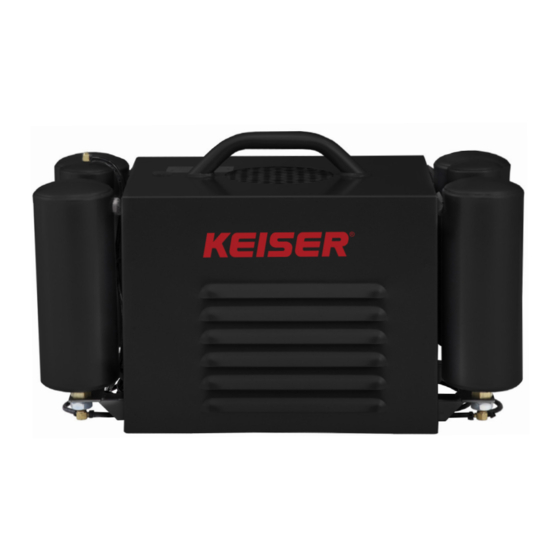

Small air compressor
Hide thumbs
Table of Contents

Advertisement

Quick Links

READ CAREFULLY. KEEP THESE INSTRUCTIONS.
PRODUCT USE CRITERIA:
•
Operate at 32ºF - 104ºF (0ºC - 40ºC).
•
For indoor use only. Protect unit from dirt & moisture.
•
Pump only clean, dry air.
•
Do not pump flammable or explosive gases or use in an atmosphere that contains such gases.
•
Protect all surrounding items from exhaust air. This exhaust air can become very hot.
Note to Installer:
Note to Customer:
Skill level:
Product failure due to improper installation is not covered under warranty.
CUSTOMER SUPPORT
If you have any questions regarding the operation or installation of the air compressor after reading this manual, contact
Keiser Customer Support:
1 559 256 8000
service@keiser.com
keiser.com/support
Telephone and Live Chat
Monday—Friday 9 am to 5 pm PST
SMALL AIR COMPRESSOR
OPERATOR MANUAL
MODELS: 1021 & 1022
Be sure to leave Operator Manual with the customer.
Keep Operator Manual for future reference.
Professional installation is required by qualified personnel.
KEISER CORPORATION
2470 S. Cherry Ave.
Fresno, CA 93706

Advertisement

Table of Contents
loading

Related Manuals for Keiser 1021

Summary of Contents for Keiser 1021

  • Page 1 SMALL AIR COMPRESSOR OPERATOR MANUAL MODELS: 1021 & 1022 READ CAREFULLY. KEEP THESE INSTRUCTIONS. PRODUCT USE CRITERIA: • Operate at 32ºF - 104ºF (0ºC - 40ºC). • For indoor use only. Protect unit from dirt & moisture. • Pump only clean, dry air.

  • Page 2: Table Of Contents

    Distribution and copying of this document, use and communication of its contents is not permitted without written authorization from Keiser Corporation. The content of this document is furnished for informational use only, may be subject to change without notice, and should not be construed as a commitment by Keiser Corporation.

  • Page 3: Important Safety Information

    1021 | 1022 SMALL AIR COMPRESSOR IMPORTANT SAFETY INFORMATION It is the sole responsibility of the purchaser of Keiser Corporation 11. Maintain adequate air flow, minimum 3-inch (76 mm) equipment to instruct all individuals, whether they are the obstacle-free perimeter required.

  • Page 4: Equipment Specifications

    • Motor: 3/4 HP • Air Storage Tank Capacity: 2.5 gallons (9.5 L) • Equipment Capacity: Up to 8 Keiser pneumatic machines Based on normal operating conditions • Pressurized Air Delivery Range: 100–120 psig (6.89–8.27 bar) • Lubrication Type: Oil-less (requires no lubrication) •...

  • Page 5: Setup

    1021 | 1022 SMALL AIR COMPRESSOR SETUP LOCATION AND PLACEMENT PRODUCT OVERVIEW WARNING FIRE HAZARD • It is normal for the air compressor motor and pressure switch to produce sparks while operating. If sparks come in contact with vapors from solvents or gasoline, they may ignite and cause a fire or explosion.

  • Page 6: 06_Test Run

    ASSEMBLY cover for contact information). Plumbing: Connect a 1/4-inch quick-disconnect (QD) from the Keiser equipment to any one of the five QD ports. Air compressor maintenance shall only be performed by A 3/8-inch compression fitting port is also available for Keiser-certified technicians.

  • Page 7: Daily Operation

    Make note of any error code and contact Keiser Customer Support for service and corrective action. All repairs and maintenance shall only be performed by Keiser- certified technicians. Do not open any parts or components of the air compressor or attempt to resolve any issue on your own.

  • Page 8: Troubleshooting

    The following table lists the error code descriptions, probable causes, and solutions. WARNING: Repair or maintenance shall only be performed by Keiser-certified technicians. Failure to follow these instructions can result in death, electrical shock, or fire.
  • Page 9 1021 | 1022 SMALL AIR COMPRESSOR Error Code Description/Symptoms Probable Cause Solution E r 6 Motor START signal was not Major air leak in the system. Check compressor hoses and received by the Computer fittings for leaks; connect Control System (CCS).

  • Page 10: Regulatory And Compliance Notices

    Directive 2002/96/EC of the European Union regarding the disposal of waste electrical and electronic equipment (WEEE). Contact your local dealer for procedures for recycling this equipment. WARRANTY STATEMENT For information about Keiser’s product warranty and thereto related information, refer to keiser.com/support/warranty.
  • Page 11 1021 | 1022 SMALL AIR COMPRESSOR This page is intentionally left blank.

  • Page 12: Keiser Corporation

    1021 | 1022 SMALL AIR COMPRESSOR CUSTOMER SUPPORT If you have any questions regarding the operation or installation of the air compressor after reading this manual, contact Keiser Customer Support: KEISER CORPORATION 1 559 256 8000 2470 S. Cherry Ave.
