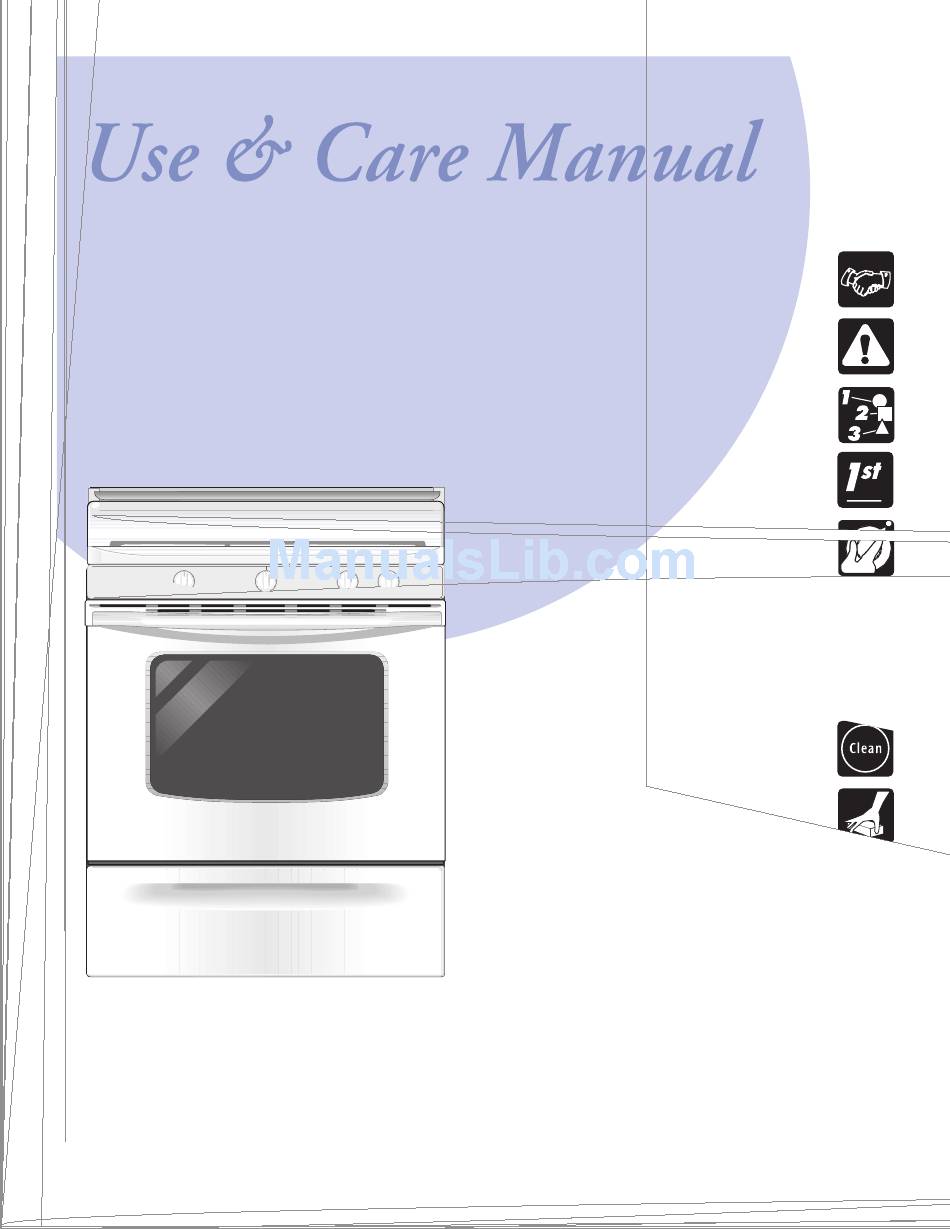

Frigidaire 316417130 Use & Care Manual

Es340 control, self-cleaning oven with sealed gas burners
Hide thumbs
Table of Contents

Advertisement

Quick Links

Visit the Frigidaire Web Site at:
Gas
http://www.frigidaire.com
Range
Welcome .......................................... 2
ES340 Control, Self-Cleaning Oven
with Sealed Gas Burners
Features at a Glance ...................... 5
Setting Surface Controls ............... 7
Oven Control Functions ................ 8
Setting Oven Controls .............. 9-13
Self Cleaning ........................... 14-15
Adjusting Oven Temperature ....... 18
19
Solutions to Common Problems ........................
Questions or for Service Call:
1-800-944-9044
Warranty ......................... Back Page
(U.S.)
1-800-668-4606
(Canada)
READ AND SAVE THESE INSTRUCTIONS
p/n 316417130 (0606)

Advertisement

Table of Contents
loading

Related Manuals for Frigidaire 316417130

Summary of Contents for Frigidaire 316417130

  • Page 1: Table Of Contents

    Visit the Frigidaire Web Site at: http://www.frigidaire.com Range Welcome ... 2 ES340 Control, Self-Cleaning Oven with Sealed Gas Burners Important Safety Instructions ...2-4 Features at a Glance ... 5 Before Setting Oven Controls ... 6 Setting Surface Controls ... 7 Oven Control Functions ...

  • Page 2: Welcome

    Your satisfaction is our number one priority. We know you’ll enjoy your new range and Thank You for choosing our product. We hope you consider us for future purchases.

  • Page 3: Important Safety Instructions

    Important Safety Instructions Read all instructions before using this appliance. Save these instructions for future reference. This manual contains important safety symbols and instructions. Please pay attention to these symbols and follow all instructions given. This symbol will help alert you to situations that may cause serious bodily harm, death or property damage. This symbol will help alert you to situations that may cause bodily injury or property damage.
  • Page 4 • Do Not Heat Unopened Food Containers—Buildup of pressure may cause container to burst and result in injury. • Remove the oven door from any unused range if it is to be stored or discarded. IMPORTANT—ELECTRIC IGNITION MODELS ONLY: Do not attempt to operate the oven during a power failure.

  • Page 5: Features At A Glance

    26. Broil Pan (some models). 27. Broil Pan Insert (some models). 28. Leveling Legs & Anti-tip Bracket (included). Burner Drip pans (some models). NOTE: The features of your range may vary according to model type & color. Features At A Glance...

  • Page 6: Before Setting Oven Controls

    Shelf Fig. 2 Oven Racks Your range is equipped with one or more Flat Oven Rack(s). Place the rack(s) into the positions shown in Fig. 2. See the Recommended Rack Positions in the chart above. Baking Layer Cakes with 1 or 2 Oven Racks For best results when baking cakes using 2 oven racks, place cookware on rack positions 1 &...

  • Page 7: Setting Surface Controls

    Setting Surface Controls Setting Surface Controls Your range may be equipped with different sized surface burners. The ability to heat food quicker and in larger volumes increases as the burner size increases. The SIMMER burner (some models) is best used for simmering delicate sauces, etc.

  • Page 8: Oven Control Functions

    READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become familiar with the various pad functions of the oven as described below. CLOCK PAD— Used to set the time of day. SPEED CLEAN (SELF-CLEAN) — Used to select a shorter 2 hour Self- Clean cycle time.

  • Page 9: Setting Oven Controls

    Note: The time of day must first be set in order to operate the oven. To Set the Clock When the range is first plugged in, or when the power supply to the range has been interrupted, the display will flash "12:00".
  • Page 10 To Set or Change the Temperature for Baking The oven can be programmed to bake at any temperature from 170°F to 550°F (77°C to 287°C). To Set the Controls for Baking: 1. Press . "— — —" appears in the display. 2.
  • Page 11 To Set the Timed Bake and Delay Start (Delayed Timed Bake) Features BAKE TIME and START TIME pads operate the features that will turn the oven ON and OFF at the times you select in advance. The oven can be programmed to start immediately and shut off automatically (Timed Bake) or to begin baking at a later time with a delayed start time (Delay Start).
  • Page 12 Speed Bake™ Cooking System Benefits of Speed Bake™ Cooking System: —Foods cook up to 25 to 30% faster, saving time and energy. —Multiple rack baking. —No special pans or bakeware needed. Fig. 1 General Cooking Instructions: For Baking: 1. For optimum cooking results it is recommended to preheat the oven when baking foods such as cookies, biscuits and breads. 2.

  • Page 13: Setting Oven Controls

    Setting Oven Controls To Operate the Interior Oven LightsThe interior oven lights will automatically turn ON when the oven door is opened. Press p 5 4...

  • Page 14: Self Cleaning

    Self-Cleaning...
  • Page 15 Choose a Self-Clean Cycle Time Determine which Self-Clean Cycle time as required. Your appliance comes with two choices; hour Self-Clean cycle (for lighter soils) or instructions provided below. PLEASE NOTE: The kitchen area should be well ventilated using an open window, ventitlation fan or exhaust hood during the 1st Self-Clean cycle.

  • Page 16: General Care & Cleaning

    Rinse & wipe dry with a clean cloth. Remove all cleaners or the porcelain may Double Oven become damaged during future heating. DO NOT use spray oven cleaners on the range. Oven Racks Remove racks. See "Removing & Replacing Oven Racks" under Before Setting Oven Controls.
  • Page 17 4. Replace glass shield over bulb and snap wire holder into place. 5. Turn power back on again at the main source (or plug the range back in). 6. The clock will then need to be reset. To reset, see Setting the Clock and oven light.
  • Page 18 General Care & Cleaning...

  • Page 19: Before You Call

    Place a level on the oven rack. Adjust leveling legs at base of range until the oven rack is level. (2) Be sure floor is level, strong & stable enough to adequately support range. (3) If floor is sagging or sloping, contact a carpenter to correct the situation.

  • Page 20: Warranty

    Major Appliance Warranty Information Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used and maintained in accordance with the provided instructions.
