Laser Pegs ZD 110B Quick Start Manual

Please read this manual before you begin!
ZD 110B
Failure to follow this manual's instructions may
result in damage to the Zippy Do® Power Base
MONSTER
and/or the Zippy Do® pieces. Not adhering to
these instructions will void the manufacturer's
TRUCK
warranty. The packaging must be kept because
AGES 5+
it contains important information.
6 Models+
WARNING:
Any creation you can build
CHOKING HAZARD
-
Small parts.
LIGHTED
Not for children under 3 yrs.
Do not submerge in water.
CONSTRUCTION SET INCLUDES:
• 1 Laser Pegs ®
• 66 Tinted Bricks
WARNING: STROBE LIGHTS
•Zippy Do® Power Base
MAY CAUSE SEIZURES
• Instruction Manual
DO NOT SUBMERGE IN WATER
Requires 3-LR44 Batteries
Batteries
Included EN71, RoHS COMPLIANT
This product complies to
all safety requirements
of ASTM F 963
Laser Pegs® Parts List
x1
x1
Stackable Zippy Do® Power Base
The toy is not to be connected to more than
the recommended number of power supplies
Tinted Bricks List
x2 x6
x5
x1
x2
x7
x5 x5
x2
x4 x3
x4
x4
www.LaserPegs.com
This manual is copyright and cannot be reproduced or used online without Laser
Pegs®Ventures LLC permission. Copyright 2014 © All Rights Reserved US Patent
#7,731,558 Additional Global & Multiple Patents Pending. Laser Pegs®Ventures
LLC. 8304 Consumer Ct Sarasota FL. 34240. Contact: Support@LaserPegs.com
Connecting Pegs
To construct with Laser Pegs®, slide two pieces together to form
a connection. Slide each piece on and off smoothly. (Laser Pegs®
pieces sold separately).
*To avoid short-circuits, keep metal objects and other
unauthorized materials from obstructing the peg holes.
Slide Power Switch to turn on/off/flash
Slide Power Switch to cycle through different light settings.
Power Switch
underside of Zippy Do® Power Base
This Product contains a button battery. If swallowed, it could
cause severe injury or death in just 2 hours.
Seek medical attention immediately.
Replacing Batteries
1. Remove the Phillips head screw.
2. Remove the Battery Compartment Cover.
3. Place three (3) LR44 batteries in the correct
position. (Batteries are to be inserted with the correct
polarity).
4. Replace the Battery Compartment Cover.
5. Replace the Phillips head screw.
6. Slide Power Switch to turn on!
7. Do not mix old and new batteries.
8. Do not mix alkaline, standard (carbon-
zinc), or rechargeable (nickel-cadmium, NiMH) batteries!
9. Exhausted batteries are to be removed
from the power base.
10. Batteries should be recycled or disposed of as per
state and local guidelines.
11. Non-rechargeable batteries are not to be recharged.
12. Rechargeable batteries are only to be recharged under
adult supervision.
13. Rechargeable batteries are to be removed from the
toy before being recharged.
14. The supply terminals are not to be short-circuited.
15. Do NOT throw batteries into fire!
x7
Remove the Phillips head
x2
screw with a 4mm screw
driver.
Screw
x3
Battery Compartment
Cover
x4
Power Switch
Battery
Compartment
BATTERIES ARE TO BE INSERTED
INTO THE TOY BY AN ADULT ONLY!
ONLY ADULTS SHOULD INSTALL THE BATTERIES

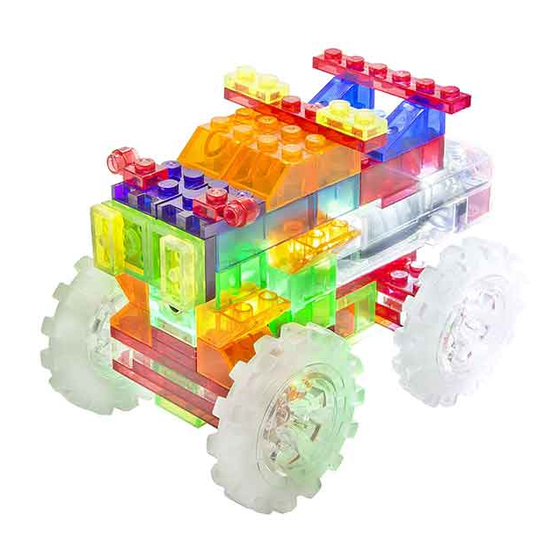

MONSTER TRUCK: Monster Truck shows began in the 80's, when an event promoter saw
field test footage of a truck driving over cars.
MONSTER TRUCK
Model
Difficulty
Level
A
STEP
1
STEP
2
Requires
3-LR44 Button Cell
Batteries
Environmental Phenomena
Batteries
* The unit may malfunction if subjected to radio-frequency interference. It SHOULD revert to
normal operation when the interference stops. If not, it may become necessary to turn the power
off and back on, or remove and reinstall the batteries.
* In the unlikely event of an electrostatic discharge, the unit may malfunction and lose memory,
requiring the user to reset the devise by removing and reinstalling the batteries.
Connects to other
Laser Pegs® pieces
COMBINE
PARTS
STEP
3
STEP
4
STEP
5
STEP
6
FLIP MODEL
ROTATE
OVER MODEL
B
