Owner's Manual
Installation
Instructions
If you have questions, call 1.800.GE.CARES or visit our website at:
ge.com
Before You Begin
Read these instructions carefully and completely.
IMPORTANT
•
instructions for local inspector's use.
IMPORTANT
•
governing codes and ordinances.
• Note to Installer—Be sure to leave these
instructions with the consumer.
• Note to Consumer—Keep these
instructions for future reference.

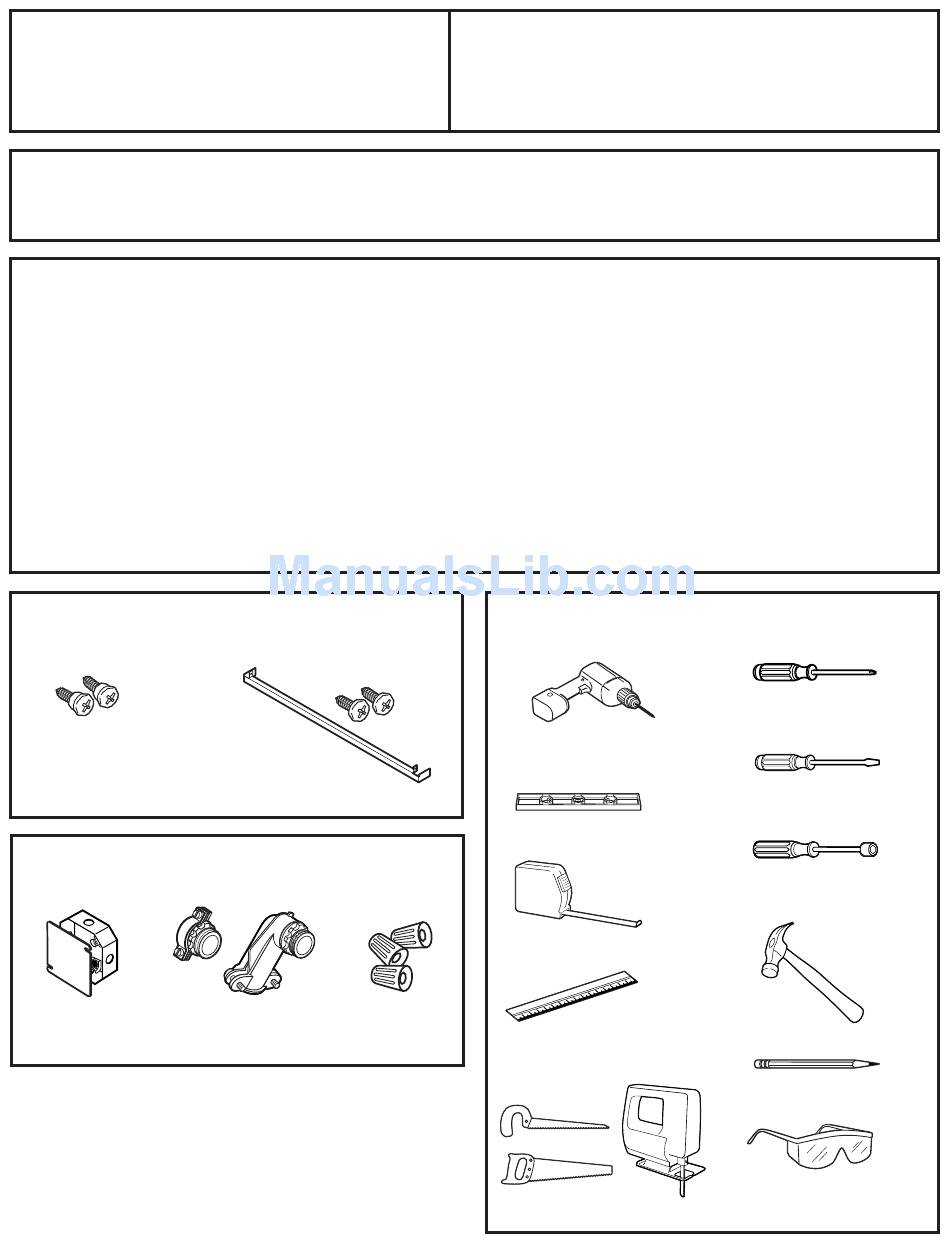

Parts Included
2 Shoulder Screws
(for stop device)
Materials Needed
Junction Box
Strain Relief Clamp
for 1/2" conduit
31-10622-1
1-07 JR
—Save these
—Observe all
Lower Trim
2 Screws
Wire Nuts
Self-Cleaning Radiant
Electric Drop-In Range
JDP47, JD968, JD900
• Proper installation is the responsibility
of the installer and product failure due
to improper installation is NOT covered
under the warranty.
• NOTE—This appliance must be properly
grounded.
ATTENTION INSTALLER
•
All electric drop-in ranges must be hard
wired (direct wired) into an approved
junction box. A plug and receptacle is NOT
permitted on these products.
Tools You Will Need
1/8" Drill Bit and
Electric or Hand Drill
Level
Tape Measure
Straight Edge
or Square
Hand or Sabre Saw
1
Phillips Screwdriver
Standard Screwdriver
Nut Driver
Hammer
Pencil
Safety Glasses
