Table of Contents

Advertisement

Quick Links

As you read this manual, you will find Information that is preceded
by a
symbol. This information is intended to help you avoid
NOTICE
damage to your vehicle, other property, or the environment.
Symbols
on labels attached to your vehicle are to remind
you to read this owner's manual for proper and safe operation of
your vehicle.
is colour-coded to indicate "danger" (red), "warning"
(orange), or "caution" (amber).
2 Safety Labels P. 87

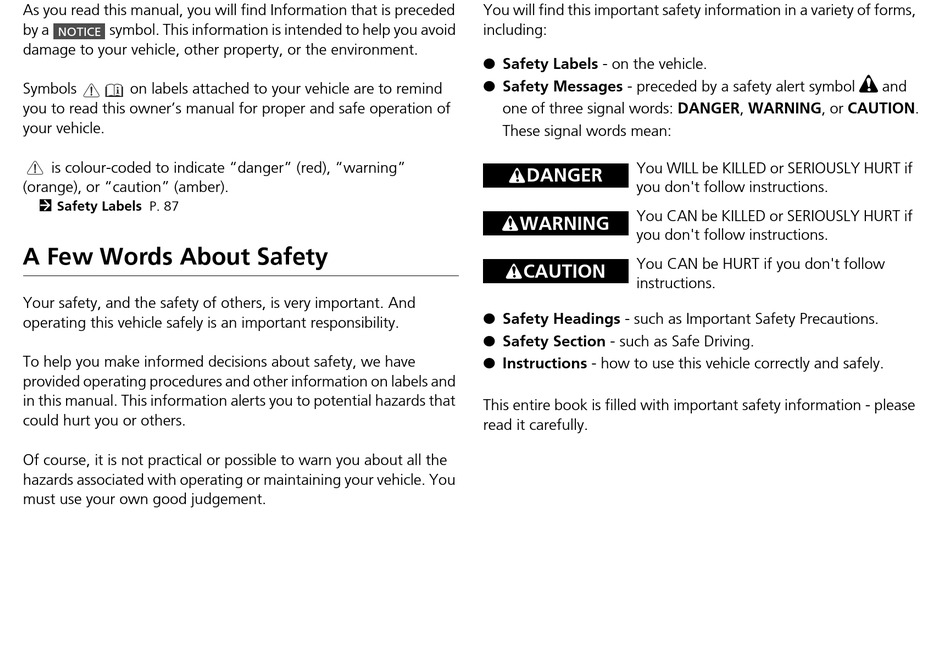

A Few Words About Safety
Your safety, and the safety of others, is very important. And
operating this vehicle safely is an important responsibility.
To help you make informed decisions about safety, we have
provided operating procedures and other information on labels and
in this manual. This information alerts you to potential hazards that
could hurt you or others.
Of course, it is not practical or possible to warn you about all the
hazards associated with operating or maintaining your vehicle. You
must use your own good judgement.
You will find this important safety information in a variety of forms,
including:
● Safety Labels - on the vehicle.
● Safety Messages - preceded by a safety alert symbol
one of three signal words: DANGER, WARNING, or CAUTION.
These signal words mean:
You WILL be KILLED or SERIOUSLY HURT if
3DANGER
you don't follow instructions.
You CAN be KILLED or SERIOUSLY HURT if
3WARNING
you don't follow instructions.
You CAN be HURT if you don't follow
3CAUTION
instructions.
● Safety Headings - such as Important Safety Precautions.
● Safety Section - such as Safe Driving.
● Instructions - how to use this vehicle correctly and safely.
This entire book is filled with important safety information - please
read it carefully.
3
and

Advertisement

Table of Contents
loading

Related Manuals for Honda CITY 2017

Summary of Contents for Honda CITY 2017

  • Page 1 As you read this manual, you will find Information that is preceded You will find this important safety information in a variety of forms, by a symbol. This information is intended to help you avoid including: NOTICE damage to your vehicle, other property, or the environment. ●...
  • Page 2 However this data may be accessed by Honda, its authorised However this data may be accessed by Honda, its authorised dealers and authorised repairers, employees, representatives and...

  • Page 3: Table Of Contents

    P. 190 The information and specifications included in this publication were General Information on the Audio System P. 246 in effect at the time of approval for printing. Honda Motor Co., Ltd. Hands-Free Telephone System /Bluetooth® HandsFreeLink® P. 262, 285 reserves the right, however, to discontinue or change specifications 2 Driving P.
  • Page 4 Contents Quick Reference Guide P. 4 Child Safety P. 60 Exhaust Gas Hazard P. 86 Safety Labels P. 87 Safe Driving P. 31 Instrument Panel P. 89 Opening and Closing the Boot P. 133 Security System P. 136 Operating the Switches Around the Steering Wheel P. 144 Interior Lights/Interior Convenience Items P.
  • Page 5 Quick Reference Guide Visual Index Left-hand Drive Type ❙ ECON Button (P332) ❙ Clock (P110) ❙ System Indicators (P90) ❙ Gauges (P103) ❙ Information Display (P104) ❙ Passenger's Front Airbag OFF Indicator (P58) ❙ Hazard Warning Button ❙ Audio System (P190) ❙...
  • Page 6 Right-hand Drive Type ❙ Audio System (P190) ❙ Hazard Warning Button ❙ Clock (P110) ❙ System Indicators (P90) ❙ Gauges (P103) ❙ Information Display (P104) ❙ ECON Button (P332) ❙ (Vehicle Stability Assist (VSA) System OFF) Button (P337) ❙ Headlight Adjuster (P156) ❙...
  • Page 7 Visual Index Except Malaysian models ❙ Headlights/Turn Signals (P149) ❙ Front Fog Lights (P153) ❙ Rear Fog Light (P153) Malaysian models ❙ Wipers/Washers (P157) ❙ Paddle Shifter (Shift Down) (P329) ❙ Brightness Control (P158) ❙ (Select/Reset) Knob (P104) ❙ Paddle Shifter (Shift Up) (P329) Except Malaysian models...
  • Page 8 Left-hand Drive Type ❙ Power Window Switches (P141) ❙ Master Door Lock Switch (P122) ❙ Driver’s Pocket (P178) ❙ Door Mirror Controls (P162) ❙ Interior Fuse Box (P443) ❙ Driver's Front Airbag (P49) ❙ Rearview Mirror (P161) ❙ Auxiliary Input Jack (P193) ❙...
  • Page 9 Visual Index Right-hand Drive Type ❙ Passenger's Front Airbag (P49) ❙ Rearview Mirror (P161) ❙ Auxiliary Input Jack (P193) ❙ Driver's Front Airbag (P49) ❙ Driver’s Pocket (P178) ❙ Door Mirror Controls (P162) ❙ Interior Fuse Box (P443) ❙ Power Window Switches (P141) ❙...
  • Page 10 ❙ Side Curtain Airbags (P56) ❙ Grab Handle ❙ Ceiling Light (P172) ❙ Sun Visors ❙ Vanity Mirrors ❙ Map Lights (P173) ❙ Side Airbags (P54) ❙ Front Seat (P164) ❙ Accessory Power Sockets (P177) ❙ Seat Belts (P36) ❙ Rear Seat (P170) ❙...
  • Page 11 Visual Index ❙ Maintenance Under the Bonnet (P372) ❙ Windscreen Wipers (P157, 394) ❙ Power Door Mirrors (P162) ❙ Side Turn Signal Lights (P149, 387) ❙ Door Lock/Unlock Control (P115) ❙ Side Turn Signal Lights (P149, 387) ❙ Headlights (P150, 382) ❙...
  • Page 12 Eco Assist System Ambient Meter Ambient Meter ● Changes colour to reflect your driving style. Green: Fuel efficient driving Blue green: Moderate acceleration/ deceleration Blue: Aggressive acceleration/ deceleration ● The ambient meter colour changes in accordance with your brake or accelerator pedal operation.

  • Page 13: Safe Driving

    Safe Driving (P31) Airbags (P47) ● Your vehicle is fitted with airbags to help to protect you and your passengers during a moderate-to-severe collision. Child Safety (P60) ● All children 12 and younger should be seated in the rear seat. ●...

  • Page 14: Instrument Panel

    Instrument Panel (P89) Gauges /Information Display /System Indicators (P103) (P104) (P90) Lights Indicators Type A System Indicators Lights On Indicator Malfunction Indicator Security System Alarm Indicator High-Beam Indicator Lamp Front Fog Light Tachometer Speedometer Low Oil Pressure Indicator Indicator Charging System Indicator Rear Fog Light Indicator Vehicle Stability Assist (VSA) System Indicator...
  • Page 15 Type B System Indicators System Indicators Security System Alarm Indicator Malfunction Indicator Middle Eastern and Lamp Southeast Asian models Low Tyre Pressure/ Low Oil Pressure Indicator Information Tachometer Speedometer Deflation Warning Display System Indicator Charging System Indicator Taiwanese models Low Tyre Pressure/TPMS Anti-lock Brake System Indicator (ABS) Indicator...
  • Page 16 Controls (P109) Clock ENGINE START/STOP Models with Display Audio system (P110) Button (P145) Models without Display Audio system Press the button to change the vehicle’s power mode. Enter the clock adjustment screen. (P111) Select to change hour. Press repeatedly until the displayed Select to change minute, time begins flashing.
  • Page 17 Turn Signals Lights Wipers and Washers (P149) (P150) (P157) Light Control Switches Except Malaysian models Turn Signal Control Lever High Beam Wiper/Washer Control Lever Right Beam Flashing Pull towards you to spray Left washer fluid MIST Malaysian models INT: Low speed with intermittent Turn Signal Control Lever LO: Low speed wipe Left...
  • Page 18 Steering Wheel Boot Power Door Mirrors (P160) (P133) ● To adjust, pull the adjustment lever (P162) towards you, adjust to the desired ● With the ignition switch in ON , move position, then lock the lever back in place. the selector switch to L or R. ●...
  • Page 19 Power Windows (P141) ● With the ignition switch in ON , open and close the power windows. ● If the power window lock button is in the off position, each passenger's window can be opened and closed with its own switch.
  • Page 20 Heating and Cooling System (P179) ● Rotate the fan control dial to adjust the fan speed. ● Turn the mode control dial to to select the vents air flows from. ● Rotate the temperature control dial to adjust the temperature. ●...
  • Page 21 Climate Control System (P183) ● Select the icon to activate the climate control system. ● Select the (ON/OFF) icon to turn the system on and off. ● Select the icon to defrost the windscreen. Air flows Air flows from Air flows from Air flows from floor floor and...
  • Page 22 Features (P189) Audio system (P190) Models with monochrome audio system Audio/Information Screen CD Slot (CD Eject) Button (Seek) Button MENU Button Selector Knob VOL/ (Volume/Power) Knob (Back) Button (Seek) Button Auxiliary Input Jack FM/AM Button (Phone) Button CD/AUX Button * Not available on all models...
  • Page 23 Audio Remote Controls Models with Display Audio system (P195) CD Slot (Day/Night) Button Button Button (Power) Button (CD Eject) Button HOME SOURCE Button ● (Volume) Button Press and release to adjust the volume up/ down. ● SOURCE Button MENU Press and release to change the audio modes: FM1 /FM2 /AM/CD/USB/iPod/...
  • Page 24 Driving (P311) Manual Transmission (P331) Paddle Shifters (P329) ● Paddle shifters allow you to shift gears much like a Continuously Variable Transmission manual transmission (1st through 5th). This is useful for (P325, 327) engine braking. ● D-paddle shift mode: The transmission will shift back to ●...
  • Page 25 VSA On and Off Cruise Control Taiwanese models (P337) (P333) Tyre Pressure Monitoring ● Cruise control allows you to maintain a ● The vehicle stability assist (VSA) system helps to stabilise the vehicle during set speed without keeping your foot on System (TPMS) (P338) cornering, and helps to maintain traction...
  • Page 26 Refueling (P352) Fuel recommendation: Pull on the fuel fill door release handle under the Unleaded petrol, research octane dashboard at the driver’s number 91 or higher side. Fuel tank capacity: 40 L Turn the fuel fill cap slowly to remove the cap. Place the cap in the holder on the fuel fill door.
  • Page 27 Maintenance (P355) Under the Bonnet (P372) ● Check engine oil, engine coolant, and window washer fluid. Add when necessary. Wiper Blades ● Check brake fluid and clutch fluid (P394) ● Check the battery condition monthly. ● Replace blades if they leave streaks across the windscreen.
  • Page 28 Handling the Unexpected (P417) Flat Tyre Engine Won't Start Overheating (P419) (P427) (P433) ● If the battery is dead, jump start using a ● Park in a safe location. If you do not see ● Park in a safe place and replace the flat booster battery.
  • Page 29 What to Do If Models without keyless access system The steering wheel ● The ignition switch does not turn from may be locked. . Why? Models without keyless access Models with keyless access system system The power mode does not change from Try to turn the ●...
  • Page 30 The rear door cannot be opened from inside Check if the the vehicle. Why? childproof lock is in the lock position. If so, open the rear door with the outside door handle. To cancel this function, slide the lever up to the unlock position.
  • Page 31 Why do I hear a screeching sound when I The brake pads may need to be replaced. Have apply the brake pedal? your vehicle inspected by a dealer.
  • Page 32 Safe Driving You can find many safety recommendations throughout this chapter, and throughout this manual. For Safe Driving Front Airbags (SRS) ......49 Safety Labels Important Safety Precautions....32 Side Airbags ........54 Label Locations ........87 Your Vehicle's Safety Features.... 34 Side Curtain Airbags ......

  • Page 33: For Safe Driving

    For Safe Driving The following pages explain your vehicle's safety features and how to use them properly. The safety precautions below are ones that we consider to be among the most important. Important Safety Precautions ■ Always wear your seat belt 1Important Safety Precautions A seat belt is your best protection in all types of collisions.
  • Page 34 uuFor Safe DrivinguImportant Safety Precautions ■ Pay appropriate attention to the task of driving safely Engaging in mobile phone conversation or other activities that keep you from paying close attention to the road, other vehicles, and pedestrians could lead to a crash. Remember, situations can change quickly, and only you can decide when it is safe to divert some attention away from driving.

  • Page 35: Your Vehicle's Safety Features

    uuFor Safe DrivinguYour Vehicle's Safety Features Your Vehicle's Safety Features 1Your Vehicle's Safety Features Your vehicle is equipped with many features that work together to help to protect you and your passengers during a crash. Some features do not require any action on your part. These include a strong steel framework that forms a safety cage around the passenger compartment, front and rear crush zones, a collapsible steering...

  • Page 36: Safety Checklist

    uuFor Safe DrivinguSafety Checklist Safety Checklist For the safety of you and your passengers, make a habit of checking these items 1Safety Checklist each time before you drive. If the door/boot open indicator is on, a door and/or • Adjust your seat to a position suitable for driving. Be sure the front seats are boot is not completely closed.

  • Page 37: Seat Belts

    Seat Belts About Your Seat Belts Seat belts are the single most effective safety device because they keep you 1About Your Seat Belts connected to the vehicle so that you can take advantage of many built-in safety WARNING features. They also help to keep you from being thrown against the inside of the vehicle, against any passengers, or out of the vehicle.
  • Page 38 uuSeat BeltsuAbout Your Seat Belts ■ Lap/shoulder seat belts 1About Your Seat Belts All seating positions (front, rear outer and centre ) are equipped with lap/shoulder Seat belts cannot completely protect you in every seat belts with emergency locking retractors. In normal driving the retractor lets you crash.
  • Page 39 uuSeat BeltsuAbout Your Seat Belts ■ Proper use of seat belts 1About Your Seat Belts Follow these guidelines for proper use: Models with lockable retractor seat belts • All occupants should sit upright, well back in the seat, and remain in that position If a rear seat passenger moves around and extends for the duration of the trip.
  • Page 40 uuSeat BeltsuAbout Your Seat Belts ■ 1Seat Belt Reminder Seat Belt Reminder Models with front passenger seat belt reminder The seat belt system includes an indicator on The indicator will also come on if a front passenger the instrument panel to remind the driver or a does not fasten their seat belt a few seconds after the front passenger or both to fasten their seat ignition switch is turned to ON...
  • Page 41 uuSeat BeltsuAbout Your Seat Belts ■ 1Automatic Seat Belt Tensioners Automatic Seat Belt Tensioners The seat belt tensioners can only operate once. The front seats are equipped with automatic seat belt tensioners to enhance safety. If a tensioner is activated, the SRS indicator will come on.

  • Page 42: Fastening A Seat Belt

    uuSeat BeltsuFastening a Seat Belt Fastening a Seat Belt After adjusting a front seat to the proper position, and while sitting upright and well 1Fastening a Seat Belt back in the seat: No one should sit in a seat with an inoperative seat 2 Adjusting the Seats P.
  • Page 43 uuSeat BeltsuFastening a Seat Belt 3. Position the lap part of the belt as low as 1Fastening a Seat Belt possible across your hips, then pull up on WARNING the shoulder part of the belt so the lap part Lap belt fits snugly.
  • Page 44 uuSeat BeltsuFastening a Seat Belt ■ Lap Belt 1. Hold the latch plate perpendicular to the Adjuster tightly-pulled belt. The belt length becomes Pull the belt adjustable. tightly Adjust to a 90 degree angle 2. Insert the latch plate into the buckle. Latch Make sure that the belt is not twisted or Plate...
  • Page 45 uuSeat BeltsuFastening a Seat Belt ■ 1Advice for Pregnant Women Advice for Pregnant Women Each time you have a checkup, ask your doctor if it is If you are pregnant, the best way to protect yourself and your unborn child when okay for you to drive.

  • Page 46: Seat Belt Inspection

    uuSeat BeltsuSeat Belt Inspection Seat Belt Inspection Regularly check the condition of your seat belts as follows: 1Seat Belt Inspection WARNING • Pull each belt out fully, and look for frays, cuts, burns, and wear. • Check that the latch plates and buckles work smoothly and the belts retract Not checking or maintaining seat belts can easily.

  • Page 47: Anchorage Points

    uuSeat BeltsuAnchorage Points Anchorage Points When replacing the seat belts, use the Front Seat anchorage points shown in the images. The front seat has a lap/shoulder belt. Models with three lap/shoulder seat belts Rear Seat The rear seat has three lap/shoulder belts. Models with lap seat belt The outer positions of the rear seat have lap/ shoulder belts.

  • Page 48: Airbags

    Airbags Airbag System Components The front, front side , and side curtain • An electronic control unit that, when the airbags are deployed according to the vehicle is on, continually monitors direction and severity of impact. The airbag information about the sensors, the airbag system includes: activators, the seat belt tensioners, and driver and front passenger seat belt.
  • Page 49 uuAirbagsuAirbag System Components ■ 1Important Facts About Your Airbags Important Facts About Your Airbags Do not attempt to deactivate your airbags. Together, Airbags can pose serious hazards. To do their job, airbags must inflate with airbags and seat belts provide the best protection. tremendous force.

  • Page 50: Types Of Airbags

    uuAirbagsuTypes of Airbags Types of Airbags Your vehicle is equipped with three types of airbags: 1Types of Airbags • Front airbags: Airbags in front of the driver's and front passenger's seats. The airbags can inflate whenever the ignition switch • Side airbags : Airbags in the driver's and front passenger's seat-backs.
  • Page 51 uuAirbagsuFront Airbags (SRS) ■ Operation Front airbags are designed to inflate during moderate-to-severe frontal collisions. When the vehicle decelerates suddenly, the sensors send information to the control unit which signals one or both front airbags to inflate. A frontal collision can be either head-on or angled between two vehicles, or when a vehicle crashes into a stationary object, such as a concrete wall.
  • Page 52 uuAirbagsuFront Airbags (SRS) ■ When front airbags should not deploy Minor frontal crashes: Front airbags were designed to supplement seat belts and help to save lives, not to prevent minor scrapes, or even broken bones that might occur during a less than moderate-to-severe frontal crash. Side impacts: Front airbags can provide protection when a sudden deceleration causes a driver or front passenger to move towards the front of the vehicle.
  • Page 53 uuAirbagsuFront Airbags (SRS) ■ 1Passenger Front Airbag Off System Passenger Front Airbag Off System WARNING If it is unavoidable to install a rear-facing child restraint system in the front passenger seat, you must manually deactivate the passenger front airbag system, using the The passenger front airbag system must be ignition key or built-in key.
  • Page 54 uuAirbagsuFront Airbags (SRS) ■ Passenger front airbag off indicator 1Passenger Front Airbag Off System When the passenger front airbag system is activated, the indicator goes off after a NOTICE few seconds when you turn the ignition switch to ON • Use your vehicle’s ignition key or built-in key to turn the passenger front airbag ON/OFF switch.

  • Page 55: Side Airbags

    uuAirbagsuSide Airbags Side Airbags The side airbags help to protect the upper torso of the driver or a front passenger 1Side Airbags during a moderate-to-severe side impact. Do not let the front passenger lean sideways with their head in the deployment path of the side airbag. ■...
  • Page 56 uuAirbagsuSide Airbags ■ 1Side Airbags Operation Do not cover or replace the front seat-back covers When the sensors detect a moderate-to- without consulting a dealer. severe side impact, the control unit signals the When Improperly replacing or covering front seat-back inflated side airbag on the impact side to immediately covers can prevent your side airbags from properly...

  • Page 57: Side Curtain Airbags

    uuAirbagsuSide Curtain Airbags Side Curtain Airbags The side curtain airbags help to protect the heads of the driver and passengers in 1Side Curtain Airbags outer seating positions during a moderate-to-severe side impact. The side curtain airbags are most effective when an occupant is wearing their seat belt properly and ■...

  • Page 58: Airbag System Indicators

    uuAirbagsuAirbag System Indicators Airbag System Indicators If a problem occurs in the airbag system, the SRS indicator will come on and a message appears on the multi-information display ■ 1SRS (Supplemental Restraint System) Indicator SRS (Supplemental Restraint System) Indicator WARNING ■...
  • Page 59 uuAirbagsuAirbag System Indicators ■ Passenger Front Airbag Off Indicator ■ When the passenger airbag off indicator comes on The indicator stays on while the passenger’s front airbag system is deactivated. When a rear-facing child restraint system is not in use in the front passenger seat, manually turn the system back on.

  • Page 60: Airbag Care

    uuAirbagsuAirbag Care Airbag Care You do not need to, and should not, perform any maintenance on or replace any 1Airbag Care airbag system components yourself. However, you should have your vehicle The removal of airbag components from the vehicle is inspected by a dealer in the following situations: prohibited.

  • Page 61: Child Safety

    Child Safety Protecting Child Passengers Each year, many children are injured or killed in vehicle crashes because they are 1Protecting Child Passengers either unrestrained or not properly restrained. In fact, vehicle accidents are the WARNING number one cause of death of children aged 12 and under. Children who are unrestrained or To reduce the number of child deaths and injuries, infants and children should be improperly restrained can be seriously...
  • Page 62 uuChild SafetyuProtecting Child Passengers Children should sit properly restrained in a rear seat. This is because: 1Protecting Child Passengers • An inflating front or side airbag can injure Models with lockable retractor or kill a child sitting in the front seat. WARNING •...
  • Page 63 uuChild SafetyuProtecting Child Passengers • Any child who is too small to wear a seat belt must be properly restrained in an 1Protecting Child Passengers approved child restraint system that is properly secured to the vehicle using the Front Passenger’s Sun Visor seat belt or the child restraint anchorage system.
  • Page 64 uuChild SafetyuProtecting Child Passengers • Do not allow children to operate the doors, windows or seat adjustments. 1Protecting Child Passengers Front Passenger's Doorjamb • Do not leave children in the vehicle unattended, especially in hot weather when For some types the inside of the vehicle can get hot enough to kill them.

  • Page 65: Safety Of Infants And Small Children

    uuChild SafetyuSafety of Infants and Small Children Safety of Infants and Small Children ■ 1Protecting Infants Protecting Infants WARNING An infant must be properly restrained in a rear-facing, reclining child restraint system until the infant reaches the restraint system manufacturer’s weight or height limit Placing a rear-facing child restraint system for the seat, and the infant is at least one year old.
  • Page 66 uuChild SafetyuSafety of Infants and Small Children When properly installed, a rear-facing child restraint system may prevent the driver 1Protecting Infants or a front passenger from moving their seat all the way back, or from locking their If the passenger’s front airbag inflates, it can hit the seat-back in the desired position.
  • Page 67 uuChild SafetyuSafety of Infants and Small Children ■ 1Protecting Smaller Children Protecting Smaller Children WARNING If a child is at least one year old and within the weight range indicated by the child restraint system manufacturer, the child should be properly restrained in a firmly Placing a front facing child restraint system secured front facing child restraint system.
  • Page 68 Proper installation is key to maximizing your child’s safety. We recommend a rear-facing or a front facing Honda genuine ISOFIX child restraint system for infants or The flexible type may not be available in your country.
  • Page 69 The particular child restraint systems listed in the system is appropriate for the vehicle, the seating position, and the child’s weight table are genuine Honda products. They are available (mass group) and size. from your dealer.
  • Page 70 uuChild SafetyuSafety of Infants and Small Children Taiwanese models 1Lower Anchorage-Compatible Child Restraint Systems ■ ISOFIX Child Restraint Systems When purchasing a child restraint systems, make sure to check the ISOFIX size class or the fixture to ensure Vehicle ISOFIX positions that the seat is compatible with your vehicle.
  • Page 71 “semiuniversal” categories. Seat position not suitable for children in this mass group. The named Child Restraint Systems (CRS) reflect Honda’s recommendations at the date of publication. You should speak to an authorised dealer for up-to-date information on our recommended CRSs.
  • Page 72 The particular child restraint systems listed in the table are genuine Honda products. They are available from your dealer. For correct installation, refer to the instructions manual that came with the child restraint system.
  • Page 73 Suitable for “universal” category restraints approved for use in this mass group. The named Child Restraint Systems (CRS) reflect Honda’s recommendations at the date of publication. You should speak to an authorised dealer for up-to-date information on our recommended CRSs. Other CRSs may also be suitable for use. Refer to the CRS manufacturer’s list of recommended vehicles for the CRS in question.
  • Page 74 A size class is specified for some child restraint systems. Make sure to check the size class as indicated on the manufacturer’s instructions, package, and labels of the child restraint. The particular child restraints in the table are Honda Genuine Parts. They are available from your dealer. For a correct installation, please refer to the Child Restraint Instruction Manual.
  • Page 75 Honda or Universal or Universal *2, *5 Universal Older than 9 months up Duo Plus Original Duo Plus Original Duo Plus Original Honda Duo Plus Original Honda to 4 years old Honda *1, *5 Honda *1, *5 or Front Facing...
  • Page 76 uuChild SafetyuSafety of Infants and Small Children ■ 1Installing a Lower Anchorage -Compatible Child Restraint Installing a Lower Anchorage -Compatible Child Restraint System System WARNING A lower anchorage-compatible child restraint system can be installed in either of the two outer rear seats. A child restraint system is attached to the lower anchorages Never attach two child restraint system to with either the rigid or flexible type of connectors.
  • Page 77 uuChild SafetyuSafety of Infants and Small Children 3. Place the child restraint system on the 1Installing a Lower Anchorage -Compatible Child Restraint vehicle seat then attach the child restraint System system to the lower anchorages according For your child's safety, when using a child restraint to the instructions that came with the child system installed using the lower anchorage system, restraint system.
  • Page 78 uuChild SafetyuSafety of Infants and Small Children Models with adjustable head restraint Straight Top 5. Raise the head restraint to its highest Tether Type position, then route the tether strap through the head restraint legs, and secure the tether strap hook to the anchorage. Anchorage Make sure the strap is not twisted.
  • Page 79 uuChild SafetyuSafety of Infants and Small Children ■ 1Installing a Child Restraint System with a Lap/Shoulder Seat Belt Installing a Child Restraint System with a Lap/Shoulder Seat Belt To check if the lap/shoulder belt is equipped with the 1. Place the child restraint system on the lockable retractor , pull the shoulder part of the lap/ vehicle seat.
  • Page 80 uuChild SafetyuSafety of Infants and Small Children 6. Grab the shoulder part of the seat belt near 1Installing a Child Restraint System with a Lap/Shoulder Seat Belt the buckle, and pull up to remove any slack A child restraint system that is not properly secured from the lap part of the belt.
  • Page 81 uuChild SafetyuSafety of Infants and Small Children All models 8. Make sure the child restraint system is firmly secured by rocking it forward and back, and side to side; little movement should be felt. 9. Make sure any unused seat belt that a child can reach is buckled.
  • Page 82 uuChild SafetyuSafety of Infants and Small Children ■ Installing a Child Restraint System with a Lap Belt 1. Place the child restraint system on the vehicle seat. 2. Route the seat belt through the child restraint system according to the child restraint system manufacturer's instructions, and insert the latch plate into the buckle.
  • Page 83 uuChild SafetyuSafety of Infants and Small Children ■ 1Adding Security with a Tether Adding Security with a Tether WARNING: Child restraint anchorages are designed A tether anchorage point is provided behind to withstand only those loads imposed by correctly each rear outer seating position. If you have a fitted child restraints.

  • Page 84: Safety Of Larger Children

    uuChild SafetyuSafety of Larger Children Safety of Larger Children ■ 1Safety of Larger Children Protecting Larger Children WARNING The following pages give instructions on how to check proper seat belt fit, what kind of booster seat to use if one is needed, and important precautions for a child who Allowing a child aged 12 or under to sit in must sit in front.
  • Page 85 uuChild SafetyuSafety of Larger Children ■ 1Booster Seats Booster Seats When installing a booster seat, make sure to read the If a lap/shoulder seat belt cannot be used instructions that came with it, and install the seat properly, position the child in a booster seat in accordingly.
  • Page 86 uuChild SafetyuSafety of Larger Children ■ Protecting Larger Children - Final Checks Your vehicle has a rear seat where children can be properly restrained. If you ever have to carry a group of children, and a child must ride in front: •...

  • Page 87: Exhaust Gas Hazard

    Exhaust Gas Hazard Carbon Monoxide Gas The engine exhaust from this vehicle contains carbon monoxide, a colourless, 1Carbon Monoxide Gas odourless, and highly toxic gas. As long as you properly maintain your vehicle, WARNING carbon monoxide gas will not get into the interior. Carbon monoxide gas is toxic.
  • Page 88 Safety Labels Label Locations These labels are in the locations shown. They warn you of potential hazards that can cause serious injury or death. Read these labels carefully. If a label comes off or becomes hard to read, contact a dealer for a replacement. Sun Visor Right-hand drive type Sun Visor...
  • Page 90 Instrument Panel This chapter describes the buttons, indicators, and gauges that are used while driving. Indicators Information Display Warning and Information Messages ....102 Gauges and Displays Gauges..........103 Information Display......104 * Not available on all models...

  • Page 91: Indicators

    Indicators Indicator Name On/Blinking Explanation Comes on for a few seconds when you turn the Comes on while driving - Make sure the ● ● ignition switch to ON , then goes off if the parking brake is released. Check the brake parking brake has been released.
  • Page 92 uuIndicatorsu Indicator Name On/Blinking Explanation Comes on when you turn the ignition switch to ON Comes on while driving - Have the ● ● , and goes off either when the engine starts or vehicle checked by a dealer. after several seconds if the engine did not start Shows the self-testing condition of the ●...
  • Page 93 uuIndicatorsu Indicator Name On/Blinking Explanation M (sequential Comes on when the sequential shift mode is ● shift mode) applied. Indicator/Gear 2 Sequential Shift Mode P. 329 Position Indicator Comes on and the beeper sounds if you are not The beeper stops and the indicator goes off ●...
  • Page 94 uuIndicatorsu Indicator Name On/Blinking Explanation Comes on when the fuel reserve is running low Comes on - Refuel your vehicle as soon as ● ● Low Fuel (approximately 6.0 Litres left). possible. Indicator Blinks if there is a problem with the fuel gauge. Blinks - Have the vehicle checked by a ●...
  • Page 95 uuIndicatorsu Indicator Name On/Blinking Explanation Both indicators come on for a few seconds when ● you turn the ignition switch to ON , then goes off after a system check up. Passenger When the passenger front airbag is active: The on Front Airbag indicator comes back on and remains on for about 2 Passenger Front Airbag Off System...
  • Page 96 uuIndicatorsu Indicator Name On/Blinking Explanation Comes on for a few seconds when you turn the Goes off when the boot and all doors are ● ● ignition switch to ON , then goes off. closed. Door/Boot Comes on if any door or the boot is not completely ●...
  • Page 97 uuIndicatorsu Indicator Name On/Blinking Explanation Comes on for a few seconds when you turn the Comes on while driving - Stop in a safe ● ● ignition switch to ON , then goes off. place, check tyre pressures, and inflate the May come on briefly if the ignition switch is turned tyre(s) if necessary.
  • Page 98 uuIndicatorsu Indicator Name On/Blinking Explanation Comes on for a few seconds when you turn the Comes on while driving - Stop in a safe ● ● ignition switch to ON w , then goes off. place, check tyre pressures, and inflate the May come on briefly if the ignition switch is turned tyre(s) if necessary.
  • Page 99 uuIndicatorsu Indicator Name On/Blinking Explanation The turn signal indicators blink when you operate Does not blink or blinks rapidly - A turn ● ● Turn Signal the turn signal lever. signal light bulb has blown. Change the and Hazard If you press the hazard warning button, both bulb immediately.
  • Page 100 uuIndicatorsu Indicator Name On/Blinking Explanation Type A Blinks when the security system alarm has been set. ● Security Indicator System Alarm 2 Security System Alarm P. 137 Type B Indicator Indicator Comes on for a few seconds when you change the •...
  • Page 101 uuIndicatorsu Indicator Name On/Blinking Explanation Comes on briefly when you turn the ignition switch Blinks - You cannot start the engine. Turn ● ● to ON , then goes off. the ignition switch to LOCK , pull the Comes on if the immobilizer system cannot key out, and then insert the key and turn it ●...
  • Page 102 uuIndicatorsu Indicator Name On/Blinking Explanation Comes on when you press the CRUISE button. ● CRUISE MAIN 2 Cruise Control P. 333 Indicator CRUISE Comes on if you have set a speed for cruise control. ● CONTROL 2 Cruise Control P. 333 Indicator Maintenance Comes on when the scheduled maintenance is due...
  • Page 103 uuIndicatorsuInformation Display Warning and Information Messages Indicator Name On/Blinking Explanation Comes on if there is a problem with the light Comes on while driving - Manually turn ● ● control system. the lights on, and have your vehicle checked by a dealer. Light Control Comes on if there is a problem with the headlights.

  • Page 104: Gauges And Displays

    Gauges and Displays Gauges Gauges include the speedometer, tachometer, fuel gauge, and related indicators. They are displayed when the ignition switch is in ON ■ Speedometer Displays your driving speed in km/h. ■ 1Fuel Gauge Fuel Gauge NOTICE Displays the amount of fuel left in the fuel tank. You should refuel when the reading approaches Running out of fuel can cause the engine to misfire, ■...
  • Page 105 uuGauges and DisplaysuInformation Display Information Display The information display shows the odometer, trip meter, and other gauges. ■ 1Switching the Display Switching the Display 2 Adjusting the Clock P. 110 Press the (select/reset) knob to change the display. Type A (Select/Reset) Knob Odometer Trip Meter...
  • Page 106 uuGauges and DisplaysuInformation Display Type B (Select/Reset) Knob Instant Fuel Economy Instant Fuel Economy Instant Fuel Economy Odometer Range Average Fuel Economy A Trip Meter A Trip Meter A Trip Meter A Outside Temperature Outside Temperature Outside Temperature Fuel Gauge Fuel Gauge Fuel Gauge Clock Setup...
  • Page 107 uuGauges and DisplaysuInformation Display ■ 1Fuel Gauge Fuel Gauge NOTICE Displays the amount of fuel left in the fuel tank. You should refuel when the reading approaches Running out of fuel can cause the engine to misfire, ■ Odometer damaging the catalytic converter. Shows the total number of kilometres that your vehicle has accumulated.
  • Page 108 uuGauges and DisplaysuInformation Display ■ Average Fuel Economy Type A Shows the estimated average fuel economy of the trip meter in l/100 km or km/l. The display is updated at set intervals. When the trip meter is reset, the average fuel economy is also reset.
  • Page 109 uuGauges and DisplaysuInformation Display ■ 1Outside Temperature Outside Temperature The temperature sensor is in the front bumper. Road Shows the outside temperature in Celsius. heat and exhaust from another vehicle can affect the If the outside temperature has been below 3°C at the time you turn the ignition temperature reading when your vehicle speed is less switch to ON , the outside temperature indicator blinks for 10 seconds.

  • Page 110: Controls

    Controls This chapter explains how to operate the various controls necessary for driving. Clock ..........110 Security System Alarm...... 137 Adjusting the Mirrors Opening and Closing the Windows ..141 Locking and Unlocking the Doors Interior Rearview Mirror ....161 Operating the Switches Around the Power Door Mirrors ......

  • Page 111: Clock

    Clock Adjusting the Clock Models without Display Audio system 1Adjusting the Clock You can adjust the time in the clock display, using the (Select/Reset) knob with Models with Display Audio system the ignition switch in ON You cannot adjust the time in the clock display. The clock display automatically changes when you adjust 1.
  • Page 112 uuClockuAdjusting the Clock Type B Models with Display Audio system 1Adjusting the Clock 1. Select Settings. Models with Display Audio system 2. Select Clock/Info. You can customize the clock display to show the 12 hour clock or 24 hour clock. 3.

  • Page 113: Locking And Unlocking The Doors

    Locking and Unlocking the Doors Key Types and Functions This vehicle comes with the following keys: 1Key Types and Functions All the keys have an immobilizer system. The ■ immobilizer system helps to protect against vehicle Keys theft. 2 Immobilizer System P. 136 Ignition Key Ignition Key with Remote Transmitter (with boot release button)
  • Page 114 uuLocking and Unlocking the DoorsuKey Types and Functions ■ Keyless remote The built-in key can be used to lock/unlock the Release Knob doors when the keyless remote battery becomes weak and the power door lock/ unlock operation is disabled. To remove the built-in key, pull it out while sliding the release knob.

  • Page 115: Low Keyless Remote Signal Strength

    uuLocking and Unlocking the DoorsuLow Keyless Remote Signal Strength Low Keyless Remote Signal Strength The vehicle transmits radio waves to locate the keyless remote when locking/ 1Low Keyless Remote Signal Strength unlocking the doors, opening the boot, or to start the engine. Communication between the keyless remote and the vehicle consumes the keyless remote’s battery.

  • Page 116: Outside

    uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside Locking/Unlocking the Doors from the Outside ■ 1Locking/Unlocking the Doors from the Outside Using the Keyless Access System If the interior light switch is in the door activated When you carry the keyless remote, you can position, the interior light comes on when you press lock/unlock the doors and open the boot.
  • Page 117 uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside ■ Unlocking the doors 1Using the Keyless Access System Except Mexican models • After locking the door, you have up to 2 seconds Grab the front door handle. during which you can pull the door handle to All the doors and the boot unlock.
  • Page 118 uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside ■ 1Using the Remote Transmitter Using the Remote Transmitter If you do not open a door within 30 seconds of ■ Locking the doors unlocking the vehicle with the remote transmitter, Press the lock button.
  • Page 119 uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside ■ Unlocking the doors 1Using the Remote Transmitter Press the unlock button. If the distance at which the remote transmitter works varies, the battery is probably low. Replace the Except Mexican models button battery as soon as possible when this occurs.
  • Page 120 uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside ■ 1Locking/Unlocking the Doors Using a Key Locking/Unlocking the Doors Using a Key Except Mexican models If the keyless remote battery or the vehicle battery is dead, use the key instead of the When you lock/unlock the driver's door with the key, keyless remote.
  • Page 121 uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside ■ 1Locking a Door Without Using a Key Locking a Door Without Using a Key When you lock the driver's door, all the other doors If you do not have the remote key on you, or if the battery of the remote key is dead, lock at the same time.

  • Page 122: Locking/Unlocking The Doors From The Inside

    uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Inside Locking/Unlocking the Doors from the Inside ■ 1Using the Lock Tab Using the Lock Tab Except Mexican models ■ Locking a door When you lock/unlock the door using the lock tab on Push the lock tab forward.
  • Page 123 uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Inside ■ 1Using the Master Door Lock Switch Using the Master Door Lock Switch When you lock/unlock the driver's door using the Press the master door lock switch in as shown master door lock switch, all the other doors lock/ To Lock to lock or unlock all doors.

  • Page 124: Childproof Door Locks

    uuLocking and Unlocking the DoorsuChildproof Door Locks Childproof Door Locks The childproof door locks prevent the rear doors from being opened from the inside 1Childproof Door Locks regardless of the position of the lock tab. To open the door from the inside when the childproof door lock is on, put the lock tab in the ■...

  • Page 125: Auto Door Locking/Unlocking

    uuLocking and Unlocking the DoorsuAuto Door Locking/Unlocking Auto Door Locking/Unlocking Your vehicle locks or unlocks all doors automatically when a certain condition is met. 1Auto Door Locking/Unlocking You can turn off or change to another auto door ■ locking/unlocking setting using the master door lock Auto Door Locking switch.

  • Page 126: Unlocking Setting

    uuLocking and Unlocking the DoorsuCustomizing the Auto Door Locking/Unlocking Setting Customizing the Auto Door Locking/Unlocking Setting You can customize the auto door locking/unlocking setting to your liking using the master door lock switch. ■ List of the Auto Door Locking/Unlocking Customizable Options Mexican models ■...
  • Page 127 uuLocking and Unlocking the DoorsuCustomizing the Auto Door Locking/Unlocking Setting Philippine models with auto door locking/unlocking ■ Auto door locking Mode Description Drive Lock Mode All doors lock when the vehicle’s speed reaches about 15 km/h. Park Lock Mode All doors lock when the shift lever is moved out of P with the brake pedal depressed.
  • Page 128 uuLocking and Unlocking the DoorsuCustomizing the Auto Door Locking/Unlocking Setting ■ Customizing Flow for Auto Door Locking Options Mexican models Steps Drive Lock Mode Apply the parking brake. Models with continuously variable transmission Move the shift lever to Close the driver’s door. Open the driver’s door.
  • Page 129 uuLocking and Unlocking the DoorsuCustomizing the Auto Door Locking/Unlocking Setting Steps Drive Lock Mode Models with continuously variable transmission — Move the shift lever to Turn the ignition switch to OFF within 20 seconds. Customization is completed. *1:Default setting *2:Models with the keyless access system have an ENGINE START/STOP button instead of an ignition switch.
  • Page 130 uuLocking and Unlocking the DoorsuCustomizing the Auto Door Locking/Unlocking Setting Philippine models with auto door locking/unlocking Steps Drive Lock Mode Park Lock Mode Apply the parking brake. Move the shift lever to Close the driver’s door. Open the driver’s door. Turn the ignition switch to ON Move the shift lever out of P with the brake...
  • Page 131 uuLocking and Unlocking the DoorsuCustomizing the Auto Door Locking/Unlocking Setting ■ Customizing Flow for Auto Door Unlocking Options Mexican models Models with continuously variable transmission Steps Driver's Door Open Mode Park Unlock Mode Apply the parking brake. Apply the parking brake. Apply the parking brake.
  • Page 132 uuLocking and Unlocking the DoorsuCustomizing the Auto Door Locking/Unlocking Setting Steps Driver's Door Open Mode Park Unlock Mode Move the shift lever to — — Turn the ignition switch to OFF within 20 seconds. Customization is completed. *1:Default setting *2:Models with the keyless access system have an ENGINE START/STOP button instead of an ignition switch. Continued...
  • Page 133 uuLocking and Unlocking the DoorsuCustomizing the Auto Door Locking/Unlocking Setting Philippine models with auto door locking/unlocking Steps Park Unlock Mode Ignition Switch Unlock Mode Apply the parking brake. Move the shift lever to Close the driver’s door. Open the driver’s door. Turn the ignition switch to ON Move the shift lever out of P with the...

  • Page 134: Opening And Closing The Boot

    Opening and Closing the Boot Precautions for Opening/Closing the Boot ■ Opening the boot Open the boot all the way. If it is not fully opened, the boot lid may begin to close under its own weight. ■ Closing the boot Keep the boot lid closed while driving to: Avoid possible damage.
  • Page 135 uuOpening and Closing the BootuUsing the Boot Release Button Using the Boot Release Button Push up the release on the boot lid after the 1Using the Boot Release Button doors are unlocked. • If you forget the remote inside, the beeper will sound and the boot will not close.
  • Page 136 uuOpening and Closing the BootuUsing the Remote Transmitter Using the Remote Transmitter Press the boot release button for approximately one second to unlock and open the boot. Boot Release Button Boot Release Button * Not available on all models...

  • Page 137: Security System

    Security System Immobilizer System The immobilizer system prevents a key that has not been pre-registered from 1Immobilizer System starting the engine. Each key contains electronic transmitters that use electronic NOTICE signals to verify the key. Leaving the key in the vehicle can result in theft or accidental movement of the vehicle.

  • Page 138: Security System Alarm

    uuSecurity SystemuSecurity System Alarm Security System Alarm Except Malaysian, Philippine, Taiwanese, Vietnamese models 1Security System Alarm The security system alarm activates when the doors, boot, or bonnet are opened Do not alter the system or add other devices to it. without the key, remote transmitter or keyless access system Doing so may damage the system and make your vehicle inoperable.
  • Page 139 uuSecurity SystemuSecurity System Alarm ■ To deactivate the security system alarm 1Security System Alarm Except Malaysian, Philippine, Taiwanese, Vietnamese models Do not set the security system alarm when someone Unlock the vehicle using the key, remote transmitter or keyless access system , or is in the vehicle or a window is open.
  • Page 140 uuSecurity SystemuSecurity System Alarm ■ To cancel the security system alarm 1Security System Alarm Except Malaysian, Philippine, Taiwanese, Vietnamese models Do not attempt to alter this system or add another The security system alarm is cancelled when the vehicle is unlocked using the key, device to it.
  • Page 141 uuSecurity SystemuSecurity System Alarm ■ Panic Mode ■ The panic button on the remote transmitter If you press the panic button for approximately one second, the following will Panic Button occur for about 30 seconds: • The horn sounds. • Some exterior lights flash. Panic Button ■...

  • Page 142: Opening And Closing The Windows

    Opening and Closing the Windows Opening/Closing the Power Windows The power windows can be opened and closed when the ignition switch is in ON 1Opening/Closing the Power Windows , using the switches on the doors. The driver's side switches can be used to WARNING open and close all of the windows.
  • Page 143 uuOpening and Closing the WindowsuOpening/Closing the Power Windows ■ 1Opening/Closing the Power Windows Opening/Closing Windows with Auto-Open/Close Function Auto Reverse ■ Automatic operation (Driver’s side If a power window senses resistance when closing only) automatically, it will stop closing and reverse To open: Push the switch down firmly.
  • Page 144 uuOpening and Closing the WindowsuOpening/Closing the Power Windows ■ Opening/Closing Windows without Auto-Open/Close Function To open: Push the switch down. Close To close: Pull the switch up. Open Release the switch when the window reaches the desired position.

  • Page 145: Ignition Switch

    Operating the Switches Around the Steering Wheel Ignition Switch 1Ignition Switch Manual transmission models WARNING LOCK: Insert and remove the key in this Removing the key from the ignition switch position. while driving locks the steering. This can cause you to lose control of the vehicle. ACCESSORY: Operate the audio system and other accessories in this position.

  • Page 146: Engine Start/Stop Button

    uuOperating the Switches Around the Steering WheeluENGINE START/STOP Button ENGINE START/STOP Button ■ 1ENGINE START/STOP Button Changing the Power Mode ENGINE START/STOP Button Operating Range Continuously Variable Transmission Manual Transmission VEHICLE OFF (LOCK) The button is off. The steering wheel is locked. The power to all electrical components is turned off.
  • Page 147 uuOperating the Switches Around the Steering WheeluENGINE START/STOP Button ■ Automatic Power Off If you leave the vehicle for 30 to 60 minutes with the shift lever in and the power mode in ACCESSORY, the vehicle automatically goes into the mode similar to VEHICLE OFF (LOCK) to avoid draining the battery.
  • Page 148 uuOperating the Switches Around the Steering WheeluENGINE START/STOP Button ■ Power Mode Reminder If you open the driver’s door when the power mode is set to ACCESSORY, a warning buzzer sounds. ■ 1Keyless Remote Reminder Keyless Remote Reminder When the keyless remote is within the system’s Warning buzzers may sound from inside or/ operational range, and the driver’s door is closed, the and outside the vehicle to remind you that the...
  • Page 149 uuOperating the Switches Around the Steering WheeluIgnition Switch and Power Mode Comparison Ignition Switch and Power Mode Comparison Ignition Switch LOCK (0) ACCESSORY (I) ON (II) START (III) Position (with/without the key) Without Keyless Engine is turned off and Engine is turned off. Normal key position Use this position to start ●...

  • Page 150: Turn Signals

    uuOperating the Switches Around the Steering WheeluTurn Signals Turn Signals The turn signals can be used when the ignition Except Malaysian models switch is in ON Right Turn ■ One-touch turn signal When you lightly push up or down and release the turn signal lever, the exterior turn signals and turn signal indicator blink three times.

  • Page 151: Light Switches

    uuOperating the Switches Around the Steering WheeluLight Switches Light Switches ■ 1Light Switches Manual Operation Models without keyless access system Rotating the light switch turns the lights on If you remove the key from the ignition switch while Low Beams and off, regardless of the position of the the lights are on, a chime sounds when the driver’s High Beams...
  • Page 152 uuOperating the Switches Around the Steering WheeluLight Switches Taiwanese models ■ Lights off Turn the lever to OFF either when: • The shift lever is moved out of P and the parking brake is released. To turn the lights on again, turn the lever to OFF to cancel the lights off mode.
  • Page 153 uuOperating the Switches Around the Steering WheeluLight Switches ■ Automatic Lighting Off Feature The headlights, all other exterior lights, and the instrument panel lights turn off 15 seconds after you remove the key, and close the driver’s door. If you turn the ignition switch to LOCK 0 with the headlight switch on, but do not open the door, the lights turn off after 10 minutes (3 minutes, if the switch is in the AUTO...

  • Page 154: Fog Lights

    uuOperating the Switches Around the Steering WheeluFog Lights Fog Lights ■ Front fog lights 1Fog Lights Except Taiwanese models When the fog lights are on, the indicator in the Can be used when the position lights or the headlights are on. instrument panel will be on.
  • Page 155 uuOperating the Switches Around the Steering WheeluFog Lights ■ Front Fog Lights ■ To turn the front fog lights on Rotate the switch to . The indicator comes on. Front Fog Light Switch ■ Rear Fog Light ■ To turn the rear fog light on Rotate the switch to .
  • Page 156 uuOperating the Switches Around the Steering WheeluDaytime Running Lights Daytime Running Lights The daytime running lights comes on when the following conditions have been met: Except Mexican and Taiwanese models • The ignition switch is in ON • The headlight switch is off. Mexican models •...
  • Page 157 uuOperating the Switches Around the Steering WheeluHeadlight Adjuster Headlight Adjuster You can adjust the vertical angle of the low beam headlights. Turn the adjustment dial to select an appropriate angle for the headlights. The larger dial number indicates the lower angle.

  • Page 158: Wipers And Washers

    uuOperating the Switches Around the Steering WheeluWipers and Washers Wipers and Washers ■ 1Wipers and Washers Windscreen Wipers/Washers NOTICE The windscreen wipers and washers can be Do not use the wipers when the windscreen is dry. used when the ignition switch is in ON The windscreen will get scratched, or the rubber blades will get damaged.

  • Page 159: Brightness Control

    uuOperating the Switches Around the Steering WheeluBrightness Control Brightness Control When the position lights are turned on and 1Brightness Control the ignition switch is in ON , you can use Instrument panel brightness varies, depending on (Select/Reset) knob to adjust interior whether the exterior lights are on or off.

  • Page 160: Rear Demister Button/Icon

    uuOperating the Switches Around the Steering WheeluRear Demister Button/Icon Rear Demister Button/Icon Press/Select the rear demister button/icon to defog the rear window when the 1Rear Demister Button/Icon ignition switch is in ON NOTICE Models with heating and cooling system When cleaning the inside of the rear window, be careful not to damage the heating wires.

  • Page 161: Adjusting The Steering Wheel

    uuOperating the Switches Around the Steering WheeluAdjusting the Steering Wheel Adjusting the Steering Wheel The steering wheel height and distance from your body can be adjusted so that you 1Adjusting the Steering Wheel can comfortably grip the steering wheel in an appropriate driving posture. WARNING 1.

  • Page 162: Adjusting The Mirrors

    Adjusting the Mirrors Interior Rearview Mirror Adjust the angle of the rearview mirror when you are sitting in the correct driving position. 1Adjusting the Mirrors Keep the inside and outside mirrors clean and ■ Rearview Mirror with Day and Night Positions adjusted for best visibility.

  • Page 163: Power Door Mirrors

    uuAdjusting the MirrorsuPower Door Mirrors Power Door Mirrors You can adjust the door mirrors when the ignition switch is in ON ■ Mirror position adjustment L/R selector switch: Select the left or right Folding mirror. After adjusting the mirror, return the Switch Selector Switch switch to the centre position.
  • Page 164 uuAdjusting the MirrorsuPower Door Mirrors ■ Automatic Folding Door Mirror Function ■ Folding in the door mirrors Press the lock button on the keyless remote twice within 10 seconds, and hold it. You can release the button once the mirrors start folding in automatically. Press the door lock button on either front door twice within 10 seconds, and hold it.

  • Page 165: Adjusting The Seats

    Adjusting the Seats Front Seat Adjust the driver's seat as far back as possible 1Adjusting the Seats Allow sufficient while allowing you to maintain full control of space. WARNING the vehicle. You should be able to sit upright, well back in the seat and be able to Sitting too close to a front airbag can result adequately press the pedals without leaning in serious injury or death if the front...
  • Page 166 uuAdjusting the SeatsuFront Seat ■ Adjusting the Seat Positions Height Adjustment (Driver side only) Pull up or push down the lever to raise or lower the seat. Seat-back Angle Adjustment Horizontal Position Adjustment Pull up the lever to Pull up on the bar to move the seat, change the angle.
  • Page 167 uuAdjusting the SeatsuFront Seat ■ 1Adjusting the Seat-Backs Adjusting the Seat-Backs WARNING Adjust the driver's seat-back to a comfortable, upright position, leaving ample space Reclining the seat-back too far can result in between your chest and the airbag cover in serious injury or death in a crash.
  • Page 168 uuAdjusting the SeatsuHead Restraints Head Restraints Your vehicle is equipped with head restraints in both front seating positions. Rear seat also has head restraints on outer and centre seating positions. ■ 1Adjusting the Front Head Restraints Adjusting the Front Head Restraints WARNING Head restraints are most effective for protection against whiplash and other rear-...
  • Page 169 uuAdjusting the SeatsuHead Restraints ■ Changing the Rear Seat Head Restraint Position A passenger sitting in the outer or centre back seating position should adjust the height of their head restraint to an appropriate position before the vehicle begins moving. To raise the head restraint: Release Pull it upward.
  • Page 170 uuAdjusting the SeatsuMaintain a Proper Sitting Position Maintain a Proper Sitting Position After all occupants have adjusted their seats and head restraints, and put on their 1Maintain a Proper Sitting Position seat belts, it is very important that they continue to sit upright, well back in their WARNING seats, with their feet on the floor, until the vehicle is safely parked and the engine is off.

  • Page 171: Rear Seats

    uuAdjusting the SeatsuRear Seats Rear Seats ■ 1Folding Down the Rear Seats Folding Down the Rear Seats The rear seat-backs can be folded down to 1. Remove the centre shoulder belt from the accommodate bulkier items in the boot. guide. Never drive with the seat-back folded down and the boot lid open.

  • Page 172: Armrest

    uuAdjusting the SeatsuArmrest Armrest ■ Using the Front Seat Armrest The console lid can be used as an armrest. ■ Using the Rear Seat Armrest Pull down the armrest in the centre seat-back. * Not available on all models...

  • Page 173: Interior Lights/Interior Convenience Items Interior Lights

    Interior Lights/Interior Convenience Items Interior Lights ■ 1Interior Light Switch Interior Light Switch In the door activated position, the interior light fades ■ out and goes off about 30 seconds after the doors The interior light comes on regardless of are closed.
  • Page 174 uuInterior Lights/Interior Convenience ItemsuInterior Lights ■ Map Lights The map lights can be turned on and off by pressing the lenses. * Not available on all models...

  • Page 175: Interior Convenience Items

    uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items Interior Convenience Items ■ 1Glove Box Glove Box WARNING Pull the handle to open the glove box. An open glove box can cause serious injury to your passenger in a crash, even if the passenger is wearing the seat belt.
  • Page 176 uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items ■ 1Beverage Holders Beverage Holders NOTICE ■ Front seat beverage holders Spilled liquids damage the upholstery, carpeting, and electrical components in the interior. Be careful when you are using the beverage holders. Hot liquid can scald you. ■...
  • Page 177 uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items ■ Door pocket beverage holders ■ Rear seat beverage holders Fold the armrest down to use the rear seat beverage holders. * Not available on all models...
  • Page 178 uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items ■ 1Accessory Power Sockets Accessory Power Sockets NOTICE The accessory power sockets can be used when the ignition switch is in ACCESSORY Do not insert an automotive type cigarette lighter q or ON element. ■...
  • Page 179 uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items ■ Driver’s Pocket Pull the lid to open the pocket.

  • Page 180: And Cooling

    Heating and Cooling Using Vents, Heating and A/C Temperature Control Dial Adjusts the interior temperature. Fan Control Dial Adjusts the fan speed. Rotate the dial all the way to OFF to turn everything off. Dashboard vents Dashboard and floor vents Floor vents Mode Control Dial Change airflow.
  • Page 181 uuHeating and Cooling uUsing Vents, Heating and A/C ■ Heating The heater uses engine coolant to warm the air. 1. Adjust the fan speed using the fan control dial. 2. Select 3. Adjust the temperature using the temperature control dial. 4.
  • Page 182 uuHeating and Cooling uUsing Vents, Heating and A/C ■ Cooling 1. Adjust the fan speed using the fan control dial. 2. Select 3. Adjust the temperature using the temperature control dial. 4. Press the A/C button (the indicator on). 5. Slide the lever to ■...
  • Page 183 uuHeating and Cooling uUsing Vents, Heating and A/C ■ 1Defrosting the Windscreen and Windows Defrosting the Windscreen and Windows For your safety, make sure you have a clear view 1. Set the fan to the high speed. through all the windows before driving. 2.

  • Page 184: Climate Control System

    Climate Control System Using Automatic Climate Control The automatic climate control system maintains the interior temperature you select. 1Using Automatic Climate Control The system also selects the proper mix of heated or cooled air that raises or lowers If any icons are selected while using the climate the interior temperature to your preference as quickly as possible.
  • Page 185 uuClimate Control System uUsing Automatic Climate Control ■ Switching between the recirculation and fresh air modes 1Using Automatic Climate Control Select the (Recirculation) icon or (Fresh air) icon and switch the mode Selecting the icon switches the climate control system between on and off. The system selects your depending on environmental conditions.
  • Page 186 uuClimate Control System uUsing Automatic Climate Control ■ 1Defrosting the Windscreen and Windows Defrosting the Windscreen and Windows For your safety, make sure you have a clear view Selecting the icon turns the air through all the windows before driving. conditioning system on.
  • Page 187 uuClimate Control System uUsing Automatic Climate Control ■ 1Turning the touch screen beep on and off Turning the touch screen beep on and off Do not press any other icon while changing the beep You can select whether to sound a beep every time you operate the climate control setting.
  • Page 188 uuClimate Control System uUsing Automatic Climate Control ■ 1Touch Panel Sensitivity Setting Touch Panel Sensitivity Setting If you touch any other icons during this procedure, You can set the level of sensitivity of the touch control panel to high, normal, or low. the setting may fail.

  • Page 189: Automatic Climate Control Sensors

    uuClimate Control System uAutomatic Climate Control Sensors Automatic Climate Control Sensors The automatic climate control system is equipped with sensors. Do not cover or spill any liquid on them. Sensor Sensor...

  • Page 190: Features

    Features This chapter describes how to operate technology features. Audio System Audio Error Messages Models with monochrome audio system Hands-Free Telephone System About Your Audio System....190 CD Player......... 243 USB Port(s) ........191 iPod/USB Flash Drive ......244 Bluetooth® HandsFreeLink® Using HFT/HFL .........

  • Page 191: Audio System

    Audio System About Your Audio System The audio system features AM/FM radio. It can also play audio CDs, WMA/MP3/AAC 1About Your Audio System files, USB flash drives, iPod, iPhone, Bluetooth®, and HDMI devices. Video CDs, DVDs, and 8-cm mini CDs are not supported.

  • Page 192: Usb Port(S)

    uuAudio System uUSB Port(s) USB Port(s) 1. Open the cover. 1USB Port(s) 2. Install the iPod USB connector or the USB • Do not leave the iPod or USB flash drive in the flash drive to the USB port. vehicle. Direct sunlight and high temperatures may damage it.

  • Page 193: Hdmi Tm Port

    uuAudio System uHDMI Port HDMI Port 1. Open the cover. 1HDMI Port 2. Install the HDMI cable to the HDMI • Do not leave the HDMI connected device in the port. vehicle. Direct sunlight and high temperatures may damage it. •...

  • Page 194: Auxiliary Input Jack

    uuAudio System uAuxiliary Input Jack Auxiliary Input Jack Use the jack to connect a standard audio device. 1Auxiliary Input Jack 1. Open the cover. To switch the mode, press any of the audio mode 2. Connect a standard audio device to the buttons.

  • Page 195: Audio System Theft Protection

    uuAudio System uAudio System Theft Protection Audio System Theft Protection The audio system is disabled when it is disconnected from the power source, such as when the battery is disconnected or goes dead. In certain conditions, the system may display a code entry screen. If this occurs, reactivate the audio system. ■...

  • Page 196: Audio Remote Controls

    uuAudio System uAudio Remote Controls Audio Remote Controls Allow you to operate the audio system while driving. 1Audio Remote Controls SOURCE Button Some modes appear only when an appropriate SOURCE Button Cycles through the audio modes as follows: device or medium is used. Models with monochrome audio system Button Depending on the Bluetooth®...
  • Page 197 uuAudio System uAudio Remote Controls Models with Display Audio system 1Audio Remote Controls Button Models with Display Audio system • When listening to the radio button is operable only when the audio Press : To display the menu items. You can select Scan, Save preset, or mode is FM, AM, CD, USB, iPod, or Bluetooth®...

  • Page 198: Audio System Basic Operation

    Audio System Basic Operation Models with monochrome audio system 1Audio System Basic Operation To use the audio system function, the ignition switch must be in ACCESSORY q or These indications are used to show how to operate the selector knob. Use the selector knob or MENU button to Rotate to select.
  • Page 199 uuAudio System Basic OperationuAdjusting the Sound Adjusting the Sound 1. Press the MENU button. 2. Rotate to select Sound Settings, then MENU press Button 3. Rotate to select the mode, then press Rotate to scroll through the following Selector Knob choices: Bass Treble...
  • Page 200 uuAudio System Basic OperationuSystem Language System Language You can change the display language on the phone mode. 1System Language 1. Press the (Phone) button. You can change the display language to English, Selector Knob 2. Rotate to select Phone Setup, then Spanish or Portuguese.
  • Page 201 uuAudio System Basic OperationuPlaying AM/FM Radio Playing AM/FM Radio VOL/ (Volume/Power) Knob Selector Knob Press to turn the audio system on and off. Turn to tune the radio frequency. Turn to adjust the volume. Press and turn to select an item, then press to set your selection.
  • Page 202 uuAudio System Basic OperationuPlaying AM/FM Radio ■ 1Playing AM/FM Radio Auto Select The selected radio frequency is shown on the centre Uses the auto select feature to scan both bands and store the strongest station in display. each preset. 1. Press the FM/AM button to switch to a mode. The ST indicator appears on the display indicating stereo FM broadcasts.
  • Page 203 uuAudio System Basic OperationuPlaying AM/FM Radio ■ Preset List Lists the preset stations on the selected band. 1. Tune to the selected station. 2. Press to switch to the preset list mode. 3. Rotate to select the preset station, then press ■...
  • Page 204 uuAudio System Basic OperationuPlaying a CD Playing a CD Your audio system supports audio CDs, CD-Rs and CD-RWs in either MP3, WMA, or format. With the CD loaded, press the CD/AUX button. Selector Knob CD Slot Turn to change tracks/folders. Insert a CD about halfway into the CD slot.
  • Page 205 uuAudio System Basic OperationuPlaying a CD ■ How to Select a File from a Folder with the Selector Knob 1Playing a CD (MP3/WMA/AAC) NOTICE Do not use CDs with adhesive labels. The label can 1. Press to display a folder list. cause the CD to jam in the unit.
  • Page 206 uuAudio System Basic OperationuPlaying a CD ■ 1How to Select a Play Mode How to Select a Play Mode Play Mode Menu Items You can select repeat and random modes when playing a track or file. Normal Play 1. Press the MENU button. Repeat Folder (MP3/WMA/AAC): Repeats all files in the current folder.
  • Page 207 uuAudio System Basic OperationuPlaying a CD ■ 1Scan Scan Scan Mode Menu Items You can select scan modes when playing a track or file. Scan Folders (MP3/WMA/AAC): Provides 10-second 1. Press the MENU button. sampling of the first file in each of the main folders. 2.
  • Page 208 uuAudio System Basic OperationuPlaying an iPod Playing an iPod Using your lightning connector, connect the iPod to a USB port, then press the CD/ AUX button. 2 USB Port(s) P. 191 VOL/ (Volume/Power) Knob USB Indicator Selector Knob Press to turn the audio system on Appears when an iPod is connected.
  • Page 209 uuAudio System Basic OperationuPlaying an iPod ■ 1Playing an iPod How to Select a Song from the iPod Music List with the Available operating functions vary on models or Selector Knob versions. Some functions may not be available on the 1.
  • Page 210 uuAudio System Basic OperationuPlaying an iPod ■ 1How to Select a Play Mode How to Select a Play Mode Play Mode Menu Items You can select repeat and shuffle modes when playing a song. Normal Play 1. Press the MENU button. Shuffle Off: Turns off the shuffle mode.
  • Page 211 uuAudio System Basic OperationuPlaying a USB Flash Drive Playing a USB Flash Drive Your audio system reads and plays sound files on a USB flash drive in either MP3, WMA, or AAC format. Connect your USB flash drive to the USB port, then press the CD/AUX button. 2 USB Port(s) P.
  • Page 212 uuAudio System Basic OperationuPlaying a USB Flash Drive ■ 1Playing a USB Flash Drive How to Select a File from the Folder with the Selector Knob Use a recommended USB flash drive. 1. Press to display a folder list. 2 General Information on the Audio System P.
  • Page 213 uuAudio System Basic OperationuPlaying a USB Flash Drive ■ 1How to Select a Play Mode How to Select a Play Mode Play Mode Menu Items You can select repeat and random modes when playing a file. Normal Play 1. Press the MENU button. Repeat Folder: Repeats all files in the current folder.
  • Page 214 uuAudio System Basic OperationuPlaying a USB Flash Drive ■ 1Scan Scan Scan Mode Menu Items You can select scan modes when playing a file. Scan Folders: Provides 10-second sampling of the 1. Press the MENU button. first file in each of the main folders. 2.
  • Page 215 uuAudio System Basic OperationuPlaying Bluetooth® Audio Playing Bluetooth® Audio Your audio system allows you to listen to music from your Bluetooth-compatible 1Playing Bluetooth® Audio phone. Not all Bluetooth-enabled phones with streaming This function is available when the phone is paired and connected to the vehicle's audio capabilities are compatible with the system.
  • Page 216 uuAudio System Basic OperationuPlaying Bluetooth® Audio ■ 1How to Play Bluetooth® Audio Files How to Play Bluetooth® Audio Files To play the audio files, you may need to operate your 1. Make sure that your phone is paired and phone. If so, follow the phone maker's operating connected to the system.

  • Page 217: Models With Display Audio System

    Audio System Basic Operation Models with Display Audio system 1Audio System Basic Operation To use the audio system function, the power mode must be in ACCESSORY or ON. Audio Menu Items HOME: Select to go to the home screen. 2 Station List P. 225 (Day/Night) Button 2 How to Select a File from the Music Search 2 Switching the Display P.
  • Page 218 uuAudio System Basic OperationuAudio/Information Screen Audio/Information Screen Displays the audio status and wallpaper. From this display, you can go to various setup options. ■ Switching the Display ■ Using the (display) button Press the (display) button to change the display. (Display) Button Audio/Information Screen Continued...
  • Page 219 uuAudio System Basic OperationuAudio/Information Screen ■ From the audio/information screen Home Screen Select HOME. Select Phone, Info, Audio or Settings. ■ Phone Shows the HFT/HFL information. 2 Hands-Free Telephone System /Bluetooth® HandsFreeLink® P. 285 ■ Info Shows the Trip Computer, Clock/wallpaper, or System/Device information. ■...
  • Page 220 uuAudio System Basic OperationuAudio/Information Screen ■ Settings Enters the customizing menu screen. 2 Customized Features P. 250 ■ Changing the Home Screen Icon Layout 1. Select HOME. 2. Select Settings to go to the settings screen. 3. Select System. 4. Select the Home tab. 5.
  • Page 221 uuAudio System Basic OperationuAudio/Information Screen ■ 1Wallpaper Setup Wallpaper Setup • When importing wallpaper files, the image must be You can change, store, and delete the wallpaper on the audio/information screen. in the USB flash drive’s root directory. Images in a folder cannot be imported. ■...
  • Page 222 uuAudio System Basic OperationuAudio/Information Screen ■ Select wallpaper 1Wallpaper Setup 1. Select Settings to go to the settings screen. From the pop-up menu, select Preview to see a 2. Select Clock/Info. preview at full-size screen. 3. Select Clock/Wallpaper Type, then open the Wallpaper tab. The screen changes to the wallpaper list.
  • Page 223 uuAudio System Basic OperationuAdjusting the Sound Adjusting the Sound 1. Select Settings to go to the settings screen. 1Adjusting the Sound 2. Select Audio. The SVC has four modes: Off, Low, Mid, and High. 3. Select Sound. SVC adjusts the volume level based on the vehicle speed.
  • Page 224 uuAudio System Basic OperationuDisplay Setup Display Setup You can change the brightness or colour theme of the audio/information screen. ■ 1Changing the Screen Brightness Changing the Screen Brightness You can change the Contrast and Black Level 1. Select Settings to go to the settings screen. settings in the same manner.
  • Page 225 uuAudio System Basic OperationuPlaying AM/FM Radio Playing AM/FM Radio Audio/Information Screen (Power) Button Press to turn the audio system on and off. VOL (Volume) Select to adjust the volume. Open/Close Icon Displays/hides the detailed MENU information. Select to display the menu items. BACK Select to go back to the previous display.
  • Page 226 uuAudio System Basic OperationuPlaying AM/FM Radio ■ 1Playing AM/FM Radio Preset Memory The ST indicator appears on the display indicating To store a station: stereo FM broadcasts. 1. Tune to the selected station. Stereo reproduction in AM is not available. 2.
  • Page 227 uuAudio System Basic OperationuPlaying AM/FM Radio ■ Scan Samples each of the strongest stations on the selected band for 10 seconds. 1. Select MENU. 2. Select Scan. To turn off scan, select Cancel.
  • Page 228 uuAudio System Basic OperationuPlaying a CD Playing a CD Your audio system supports audio CDs, CD-Rs and CD-RWs in either MP3, WMA, or format. With the CD loaded, select the CD mode. Audio/Information Screen (Power) Button CD Slot Press to turn the audio system on and off. Insert a CD about halfway into the CD slot.
  • Page 229 uuAudio System Basic OperationuPlaying a CD ■ 1Playing a CD How to Select a File from the Music Search List NOTICE 1. Select MENU and select Music Search. Do not use CDs with adhesive labels. The label can cause the CD to jam in the unit. WMA files protected by digital rights management (DRM) cannot be played.
  • Page 230 uuAudio System Basic OperationuPlaying a CD ■ 1How to Select a Play Mode How to Select a Play Mode Play Mode Menu Items You can select scan, repeat, and random modes when playing a track or file. Scan 1. Select MENU. Scan Folders (MP3/WMA/AAC): Provides 10-second 2.
  • Page 231 uuAudio System Basic OperationuPlaying an iPod Playing an iPod Connect the iPod using your USB connector to the USB port, then select the iPod mode. 2 USB Port(s) P. 191 Audio/Information Screen USB Indicator Appears when an iPod is connected. (Power) Button Press to turn the audio system on and off.
  • Page 232 uuAudio System Basic OperationuPlaying an iPod ■ 1Playing an iPod How to Select a Song from the Music Search List Available operating functions vary on models or 1. Select MENU and select Music Search. versions. Some functions may not be available on the vehicle's audio system.
  • Page 233 uuAudio System Basic OperationuPlaying an iPod ■ 1How to Select a Play Mode How to Select a Play Mode Play Mode Menu Items You can select repeat and shuffle modes when playing a file. Shuffle Albums: Plays all available albums in a 1.
  • Page 234 uuAudio System Basic OperationuPlaying a USB Flash Drive Playing a USB Flash Drive Your audio system reads and plays audio and video files on a USB flash drive in either MP3, WMA, AAC , or MP4 format. Connect your USB flash drive to the USB port, then select the USB mode. 2 USB Port(s) P.
  • Page 235 uuAudio System Basic OperationuPlaying a USB Flash Drive ■ 1Playing a USB Flash Drive How to Select a File from the Music Search List Use a recommended USB flash drive. 1. Select MENU and select Music Search. 2 General Information on the Audio System P.
  • Page 236 uuAudio System Basic OperationuPlaying a USB Flash Drive ■ 1How to Select a Play Mode How to Select a Play Mode Play Mode Menu Items You can select scan, repeat, and random modes when playing a file. Scan 1. Select MENU. Scan Folders: Provides 10-second sampling of the 2.
  • Page 237 uuAudio System Basic OperationuPlaying Bluetooth® Audio Playing Bluetooth® Audio Your audio system allows you to listen to music from your Bluetooth-compatible 1Playing Bluetooth® Audio phone. Not all Bluetooth-enabled phones with streaming This function is available when the phone is paired and connected to the vehicle's audio capabilities are compatible.
  • Page 238 uuAudio System Basic OperationuPlaying Bluetooth® Audio ■ 1To Play Bluetooth® Audio Files To Play Bluetooth® Audio Files To play the audio files, you may need to operate your 1. Make sure that your phone is paired and phone. If so, follow the phone maker's operating connected to the system.
  • Page 239 uuAudio System Basic OperationuPlaying a Video Using the HDMI Playing a Video Using the HDMI Your audio system allows you to play videos from an HDMI-compatible device. Connect the device, using an HDMI cable, then select the HDMI mode. 2 HDMI Port P.
  • Page 240 uuAudio System Basic OperationuPlaying a Video Using the HDMI ■ 1Playing a Video Using the HDMI Changing the Screen Aspect This feature is limited while driving. To play videos, 1. Select Settings to go to the settings screen. stop your vehicle and apply the parking brake. 2.
  • Page 241 uuAudio System Basic OperationuSmartphone Connection Smartphone Connection Some of your smartphone apps can be displayed and operated on the audio/ 1Smartphone Connection information screen when the phone is connected to the audio system. You can Park in a safe place before connecting your phone connect your phone using a cable.
  • Page 242 uuAudio System Basic OperationuSmartphone Connection ■ 1Connecting Your iPhone Connecting Your iPhone Make sure to plug in the digital AV adapter to the 1. Connect your phone to the audio system HDMI jack first. If not, smartphone connection may via Bluetooth®. not work properly.
  • Page 243 uuAudio System Basic OperationuSiri Eyes Free Siri Eyes Free You can talk to Siri using the (Talk) button on the steering wheel when your 1Siri Eyes Free iPhone is paired to the Hands-Free Telephone (HFT) System/Bluetooth® Siri is a trademark of Apple Inc. HandsFreeLink®...

  • Page 244: Cd Player

    Audio Error Messages CD Player If a disc error occurs, you may see the following error messages. Error Message Cause Solution Current track/file will be skipped. The next supported track/file ● Unplayable File Track/file format not supported plays automatically. Bad Disc Please Check Owner's Manual Press the...

  • Page 245: Ipod/Usb Flash Drive

    uuAudio Error MessagesuiPod/USB Flash Drive iPod/USB Flash Drive If an error occurs while playing an iPod or USB flash drive, you may see the following error messages. If you cannot clear the error message, contact a dealer. Error Message Solution Appears when there is a problem with the USB flash drive.
  • Page 246 uuAudio Error MessagesuiPod/USB Flash Drive Error Message Solution Appears when an unsupported device is connected. If it appears when a supported device is connected, Unsupported reconnect the device.

  • Page 247: General Information On The Audio System

    General Information on the Audio System Recommended CDs • Use only high-quality CD-R or CD-RW discs labelled for audio use. 1Recommended CDs • Use only CD-R or CD-RW discs on which the recordings are closed. A Dual-disc cannot play on this audio unit. If recorded •...
  • Page 248 uuGeneral Information on the Audio System uRecommended CDs ■ Protecting CDs 1Protecting CDs Follow these precautions when handling or storing CDs: NOTICE • Store a CD in its case when it is not being played. Do not insert a damaged CD. It may be stuck inside •...

  • Page 249: Compatible Ipod, Iphone, And Usb Flash Drives

    uuGeneral Information on the Audio SystemuCompatible iPod, iPhone, and USB Flash Drives Compatible iPod, iPhone, and USB Flash Drives ■ iPod and iPhone Model Compatibility 1iPod and iPhone Model Compatibility This system may not work with all software versions Model of these devices.
  • Page 250 uuGeneral Information on the Audio SystemuCompatible iPod, iPhone, and USB Flash Drives Models with Display Audio system ■ Recommended Devices USB Flash Drive Media Baseline Level 3 (MPEG4-AVC), Simple Level 5 (MPEG4) Profile (MP4 version) .mp4/.m4v File extension (MP4 version) Compatible audio codec MPEG4-AVC (H.264) MPEG4 (ISO/IEC 14496 Part.2)
  • Page 251 Customized Features Models with Display Audio system Use the audio/information screen to customize certain features. ■ 1How to customize How to customize While the vehicle is at a complete stop with the power mode in ON, select Settings, When you customize settings: •...
  • Page 252 uuCustomized Features ■ Customization flow Home Home screen edit order Select Settings. Brightness Display settings Display Contrast Black Level Background Colour Volume Sound/Beep Beep Volume Voice Recog. Voice Prompt Volume Phonebook Phonetic Modification System Automatic Phone Sync Clock Clock/Wallpaper Type Clock Wallpaper Clock Adjustment...
  • Page 253 uuCustomized Features Audio Sound Audio Source Pop-Up Cover Art Display adjustment Brightness Display Contrast Black Level Colour Colour Tint Aspect Ratio Adjustment Bluetooth device list Change Bluetooth Audio Device Default Clock/Info Clock Clock/Wallpaper Type Clock Wallpaper Clock Adjustment Clock Format Clock Display Clock Location Sync Clock with Smartphone...
  • Page 254 uuCustomized Features Phone Connect Phone Bluetooth device list Edit Speed Dial Ring Tone Automatic Phone Sync Default Enable Text/Email Phone Text/Email Select Account New Message Notification Camera Rear camera setting Fixed Guideline Default Bluetooth Bluetooth On/Off Status Bluetooth device list Edit pairing code Default * Not available on all models...
  • Page 255 uuCustomized Features ■ List of customizable options Setup Customizable Features Description Selectable Settings Group Home Home screen edit order Changes the home screen icon layout. — Changes the brightness of the audio/information Brightness — screen. Display Changes the contrast of the audio/information Contrast —...
  • Page 256 uuCustomized Features Setup Customizable Features Description Selectable Settings Group Analog/Digital Clock Changes the clock display type. Small Digital/Off Clock/ Wallpaper Changes the wallpaper type. ● Blank/Galaxy Type Wallpaper Imports an image file for a new wallpaper. ● Metallic Deletes an image file for a wallpaper. ●...
  • Page 257 uuCustomized Features Setup Customizable Features Description Selectable Settings Group Language Changes the display language. English/French/Spanish Keyboard Layout Selects the on-screen keyboard type. Alphabet/QWERTY Alerts you when manual control of the system Voice Command is disabled to prevent distraction while driving. /Off Tips Others...
  • Page 258 uuCustomized Features Setup Customizable Features Description Selectable Settings Group CD, iPod, USB mode Turns the cover art display on and off. /Off Cover Art Brightness Display Contrast See System on P. 254 , HDMI mode Black Level Display adjustment Changes the colour of the audio/information Colour —...
  • Page 259 uuCustomized Features Setup Customizable Features Description Selectable Settings Group Clock/ Clock Wallpaper Wallpaper Type Clock Adjustment Clock Format Clock See System on P. 255 Clock Display Clock/Info Clock Location Sync Clock with Smartphone Info Top/Info Menu/ Others Info Screen Preference Changes the information screen type.
  • Page 260 uuCustomized Features Setup Customizable Features Description Selectable Settings Group Pairs a new phone to HFT/HFL, connects or Connect Phone — disconnects a paired phone. 2 Phone Setup P. 292 Pairs a new phone to HFT/HFL, edits or deletes a paired Bluetooth device list —...
  • Page 261 uuCustomized Features Selectable Setup Customizable Features Description Group Settings Selects whether the guidelines come on the rear Fixed Guideline /Off Rear camera monitor. Camera camera Cancels/Resets all customized items in the Rear setting Default Yes/No camera setting group as default. Bluetooth On/Off Status Selects to display the Bluetooth®...
  • Page 262 uuCustomized Features uDefaulting All the Settings Models with Display Audio system Defaulting All the Settings Reset all the menu and customized settings as the factory defaults. 1Defaulting All the Settings 1. Select Settings. When you transfer the vehicle to a third party, reset 2.

  • Page 263: Hands-Free Telephone System /Bluetooth® Handsfreelink

    The Bluetooth® word mark and logos are registered Selector Knob trademarks owned by Bluetooth SIG, Inc., and any Microphone use of such marks by Honda Motor Co., Ltd., is under licence. Other trademarks and trade names are those of their respective owners. HFT/HFL Limitations An incoming call on HFT/HFL will interrupt the audio system when it is playing.
  • Page 264 uuHands-Free Telephone System /Bluetooth® HandsFreeLink® uUsing HFT/HFL (Pick-up) button : Press to go directly to the Phone screen, or to answer an incoming call. (Hang-up) button : Press to end a call. (Phone) button: Press to go directly to the Phone screen, or to answer an incoming call.

  • Page 265: Hft/Hfl Menus

    uuHands-Free Telephone System /Bluetooth® HandsFreeLink® uHFT/HFL Menus HFT/HFL Menus The ignition switch must be in ACCESSORY q or ON to use the system. 1HFT/HFL Menus To use HFT/HFL, you must first pair your Bluetooth- compatible mobile phone to the system while the vehicle is parked.
  • Page 266 uuHands-Free Telephone System /Bluetooth® HandsFreeLink® uHFT/HFL Menus Phonebook Display a stored name or number in the phonebook. Redial Redial the last number dialed. Phone Setup Bluetooth Setup Add New Device Pair a new device to the system. Connect Phone Pair a new phone and connect a paired phone to the system.
  • Page 267 uuHands-Free Telephone System /Bluetooth® HandsFreeLink® uHFT/HFL Menus Speed Dial Add New Call History Select a phone number from the call history to store as a speed dial number. Phonebook Select a phone number from the phonebook to store as a speed dial number.
  • Page 268 uuHands-Free Telephone System /Bluetooth® HandsFreeLink® uHFT/HFL Menus Call History Import Call History Import a call history entry. Delete Call History Delete a call history entry. Phonebook Import Phonebook Add a new phonebook entry. Delete Phonebook Delete a phonebook entry. Caller ID Name Priority Prioritize the caller’s name as the caller ID.
  • Page 269 uuHands-Free Telephone System /Bluetooth® HandsFreeLink® uHFT/HFL Menus ■ 1Phone Setup Phone Setup Your Bluetooth-compatible phone must be paired to ■ To pair a mobile phone (No phone has been paired to the system) the system before you can make and receive hands- 1.
  • Page 270 uuHands-Free Telephone System /Bluetooth® HandsFreeLink® uHFT/HFL Menus ■ To pair a mobile phone (when a phone has already been paired to the system) 1. Press the (Phone) button or button If a prompt appears asking to connect to a phone, select No and proceed with step 2.
  • Page 271 uuHands-Free Telephone System /Bluetooth® HandsFreeLink® uHFT/HFL Menus ■ To disconnect the paired phone 1. Press the (Phone) button or button 2. Rotate to select Phone Setup, then press 3. Rotate to select Bluetooth Setup, then press 4. Rotate to select Disconnect All, then press * Not available on all models...
  • Page 272 uuHands-Free Telephone System /Bluetooth® HandsFreeLink® uHFT/HFL Menus ■ To change the currently paired phone 1. Press the (Phone) button or button 2. Rotate to select Phone Setup, then press 3. Rotate to select Bluetooth Setup, then press 4. Rotate to select Connect Phone, then press The screen changes to a device list.
  • Page 273 uuHands-Free Telephone System /Bluetooth® HandsFreeLink® uHFT/HFL Menus ■ To change the pairing code setting 1. Press the (Phone) button or button 2. Rotate to select Phone Setup, then press 3. Rotate to select Bluetooth Setup, then press 4. Rotate to select Pairing Code, then press 5.
  • Page 274 uuHands-Free Telephone System /Bluetooth® HandsFreeLink® uHFT/HFL Menus ■ To delete a paired phone 1. Press the (Phone) button or button 2. Rotate to select Phone Setup, then press 3. Rotate to select Bluetooth Setup, then press 4. Rotate to select Delete Device, then press The screen changes to a device list.
  • Page 275 uuHands-Free Telephone System /Bluetooth® HandsFreeLink® uHFT/HFL Menus ■ 1Caller’s ID Information Caller’s ID Information Name Priority: A caller’s name is displayed if it is You can select a caller’s information to be displayed when you have an incoming stored in the phonebook. call.
  • Page 276 uuHands-Free Telephone System /Bluetooth® HandsFreeLink® uHFT/HFL Menus ■ To Clear the System All speed dial entries, all imported phonebook data, all call history data, paired phones, pairing codes, caller’s ID settings, and volume settings are reset as default. 1. Press the (Phone) button or button 2.
  • Page 277 uuHands-Free Telephone System /Bluetooth® HandsFreeLink® uHFT/HFL Menus ■ 1Cellular Phonebook Cellular Phonebook For a list of this feature capability, ask a dealer. When your phone is paired, the contents of its phonebook are manually imported to the system. ■ To import the phonebook data of the mobile phone 1.
  • Page 278 uuHands-Free Telephone System /Bluetooth® HandsFreeLink® uHFT/HFL Menus ■ 1Call History Call History For a list of this feature capability, ask a dealer. When your phone is paired, the contents of its call history are manually imported to the system. ■ To import the call history data of the mobile phone 1.
  • Page 279 uuHands-Free Telephone System /Bluetooth® HandsFreeLink® uHFT/HFL Menus ■ Speed Dial Up to 15 speed dial numbers can be stored per phone. To store a speed dial number: 1. Press the (Phone) button or button 2. Rotate to select Speed Dial, then press The screen changes to a speed dial list.
  • Page 280 uuHands-Free Telephone System /Bluetooth® HandsFreeLink® uHFT/HFL Menus ■ To edit a speed dial 1. Press the (Phone) button or button 2. Rotate to select Phone Setup, then press 3. Rotate to select Speed Dial, then press 4. Select an existing speed dial entry. 5.
  • Page 281 uuHands-Free Telephone System /Bluetooth® HandsFreeLink® uHFT/HFL Menus ■ 1Making a Call Making a Call Once a call is connected, you can hear the voice of You can make calls by using the following: the person you are calling through the audio •...
  • Page 282 uuHands-Free Telephone System /Bluetooth® HandsFreeLink® uHFT/HFL Menus ■ To make a call using the Call History 1To make a call using the Call History The call history is stored by Dialed Calls, The call history is stored the last 10 dialed, received, Received Calls, and Missed Calls.
  • Page 283 uuHands-Free Telephone System /Bluetooth® HandsFreeLink® uHFT/HFL Menus ■ To make a call using the phonebook 1To make a call using the phonebook 1. Press the (Phone) button or When your phone is paired, the contents of its button phonebook are manually imported to the system. 2.
  • Page 284 uuHands-Free Telephone System /Bluetooth® HandsFreeLink® uHFT/HFL Menus ■ To make a call using redial The latest dialed call can be redialed. 1. Press the (Phone) button or button 2. Rotate to select Redial, then press Dialing starts automatically. ■ 1Receiving a Call Receiving a Call Call Waiting When there is an incoming call, an audible...
  • Page 285 uuHands-Free Telephone System /Bluetooth® HandsFreeLink® uHFT/HFL Menus ■ 1Options During a Call Options During a Call You can select the icons on the audio/information The following options are available during a call. screen. Mute: Mute your voice. Transfer Call: Transfer a call from the system to your phone. 1.

  • Page 286: Using Hft/Hfl

    For a list of compatible phones, features as HFT does. Though images in this section represent HFT, you can use pairing procedures, and special feature capabilities, ask a dealer or your local Honda. them for reference. Except Mexican models...
  • Page 287 Bluetooth SIG, Inc., and any command, or cancel a command. use of such marks by Honda Motor Co., Ltd., is under (Talk) button: Press to call a number with a stored voice tag. licence. Other trademarks and trade names are those (Menu) button: Press to display Speed Dial, Call History, or Redial on the of their respective owners.
  • Page 288 uuHands-Free Telephone System /Bluetooth® HandsFreeLink® uUsing HFT/HFL ■ 1HFT/HFL Status Display HFT/HFL Status Display The information that appears on the audio/ The audio/information screen notifies you when there is an incoming call. information screen varies between phone models. Bluetooth Indicator You can change the system language.

  • Page 289: Hft/Hfl Menus

    uuHands-Free Telephone System /Bluetooth® HandsFreeLink® uHFT/HFL Menus HFT/HFL Menus The ignition switch must be in ACCESSORY q or ON to use the system. 1HFT/HFL Menus To use HFT/HFL, you must first pair your Bluetooth- ■ Phone settings screen compatible mobile phone to the system while the vehicle is parked.
  • Page 290 uuHands-Free Telephone System /Bluetooth® HandsFreeLink® uHFT/HFL Menus (Existing entry list) Edit Edit a previously stored speed dial number. Edit Speed Dial ● Change a name. ● Change a number. ● Create or delete a voice tag. Delete Delete a previously stored speed dial number. Enter a phone number to store as a speed Manual Input New Entry...
  • Page 291 uuHands-Free Telephone System /Bluetooth® HandsFreeLink® uHFT/HFL Menus ■ Phone Menu screen 1. Select HOME to go to the home screen. 2. Select Phone. 3. Select MENU. Dial the selected number in the speed dial list. (Existing entry list) Speed Dial Enter a phone number to store as a speed New Entry Manual Input...
  • Page 292 uuHands-Free Telephone System /Bluetooth® HandsFreeLink® uHFT/HFL Menus Select a mail or text message account. Select Account Text/Email Select a message. Message is read Read/Stop System reads received message aloud, or stop aloud. message from being read. See the previous message. Previous Next See the next message.
  • Page 293 Refresh to search again. If your phone still does not appear, select Phone Not Found and search for Bluetooth® devices using your phone. From your phone, search for Honda HFT/HandsFreeLink. 5. The system gives you a pairing code on the audio/information screen.
  • Page 294 uuHands-Free Telephone System /Bluetooth® HandsFreeLink® uHFT/HFL Menus ■ To change the currently paired phone 1To change the currently paired phone 1. Go to the phone settings screen. If no other phones are found or paired when trying to 2 Phone settings screen P. 288 switch to another phone, HFT/HFL will inform you 2.
  • Page 295 uuHands-Free Telephone System /Bluetooth® HandsFreeLink® uHFT/HFL Menus ■ To edit an already-paired phone name 1. Go to the phone settings screen. 2 Phone settings screen P. 288 2. Select Bluetooth device list. 3. Select a paired phone you want to edit. 4.
  • Page 296 uuHands-Free Telephone System /Bluetooth® HandsFreeLink® uHFT/HFL Menus ■ To delete a paired phone 1. Go to the phone settings screen. 2 Phone settings screen P. 288 2. Select Bluetooth device list. 3. Select a phone you want to delete. 4. Select Delete This Device. 5.
  • Page 297 uuHands-Free Telephone System /Bluetooth® HandsFreeLink® uHFT/HFL Menus Mexican models ■ To Set Up a Text/E-mail Message Options ■ To turn on or off the text/e-mail function 1. Go to the Phone settings screen. 2 Phone settings screen P. 288 2. Select Text/Email tab, then Enable Text/ Email.
  • Page 298 uuHands-Free Telephone System /Bluetooth® HandsFreeLink® uHFT/HFL Menus ■ 1Ring Tone Ring Tone Fixed: The fixed ring tone sounds from the speakers. You can change the ring tone setting. Mobile phone: The ring tone stored in the 1. Go to the phone settings screen. connected mobile phone sounds from the speakers.
  • Page 299 uuHands-Free Telephone System /Bluetooth® HandsFreeLink® uHFT/HFL Menus ■ 1Automatic Import of Cellular Phonebook and Call History Automatic Import of Cellular Phonebook and Call History When you select a name from the list in the cellular ■ When Automatic Phone Sync is set to phonebook, you can see up to three category icons.
  • Page 300 uuHands-Free Telephone System /Bluetooth® HandsFreeLink® uHFT/HFL Menus ■ 1Speed Dial Speed Dial When a voice tag is stored, press the button to Up to 20 speed dial numbers can be stored per phone. call the number using the voice tag. Say the voice tag To store a speed dial number: name.
  • Page 301 uuHands-Free Telephone System /Bluetooth® HandsFreeLink® uHFT/HFL Menus ■ To add a voice tag to a stored speed 1Speed Dial dial number Avoid using duplicate voice tags. 1. Go to the phone settings screen. Avoid using “home” as a voice tag. 2 Phone settings screen P.
  • Page 302 uuHands-Free Telephone System /Bluetooth® HandsFreeLink® uHFT/HFL Menus ■ To edit a speed dial 1. Go to the phone settings screen. 2 Phone settings screen P. 288 2. Select Edit Speed Dial. 3. Select an existing speed dial entry. From the pop-up menu, select Edit. 4.
  • Page 303 uuHands-Free Telephone System /Bluetooth® HandsFreeLink® uHFT/HFL Menus ■ To make a call using the imported 1To make a call using the imported phonebook phonebook This function is disabled while the vehicle is moving. 1. Go to the Phone Menu screen. However, you can call a stored voice-tagged speed dial number using voice commands.
  • Page 304 uuHands-Free Telephone System /Bluetooth® HandsFreeLink® uHFT/HFL Menus ■ To make a call using redial 1To make a call using redial 1. Go to the Phone Menu screen. Press and hold the button to redial the last 2 Phone Menu screen P. 290 number dialed.
  • Page 305 uuHands-Free Telephone System /Bluetooth® HandsFreeLink® uHFT/HFL Menus ■ 1Receiving a Call Receiving a Call Call Waiting When there is an incoming call, an audible Press the button to put the current call on hold to notification sounds (if activated) and the answer the incoming call.
  • Page 306 uuHands-Free Telephone System /Bluetooth® HandsFreeLink® uHFT/HFL Menus Mexican models ■ 1Receiving a Text/E-mail Message Receiving a Text/E-mail Message The system does not display any received messages HFL can display newly received text and e-mail messages as well as 20 of the most while you are driving.
  • Page 307 uuHands-Free Telephone System /Bluetooth® HandsFreeLink® uHFT/HFL Menus Mexican models ■ 1Selecting a Mail Account Selecting a Mail Account You can also select a mail account from the folder list If a paired phone has text or e-mail message accounts, you can select one of them screen or the message list screen.
  • Page 308 uuHands-Free Telephone System /Bluetooth® HandsFreeLink® uHFT/HFL Menus Mexican models ■ 1Displaying Messages Displaying Messages icon appears next to an unread message. ■ Displaying text messages 1. Go to the Phone menu screen. If you delete a message on the phone, the message is Message List 2 Phone Menu screen P.
  • Page 309 uuHands-Free Telephone System /Bluetooth® HandsFreeLink® uHFT/HFL Menus ■ Displaying e-mails 1. Go to the Phone menu screen. Folder List 2 Phone Menu screen P. 290 2. Select Text/Email. Select account if necessary. 3. Select a folder. 4. Select a message. The e-mail is displayed.
  • Page 310 uuHands-Free Telephone System /Bluetooth® HandsFreeLink® uHFT/HFL Menus ■ Read or stop reading a message 1. Go to the text/e-mail message screen. The system automatically starts reading the message aloud. 2 Displaying Messages P. 307 2. Select Stop to stop reading. Select Read to start reading the message from the beginning.
  • Page 311 uuHands-Free Telephone System /Bluetooth® HandsFreeLink® uHFT/HFL Menus ■ Making a call to a sender 1. Go to the text message screen. 2. Select Dial.

  • Page 312: Driving

    Driving This chapter discusses driving, refueling, and information on items such as accessories. Before Driving Emergency Stop Signal ....346 Continuously variable transmission models with paddle shifters Driving Preparation ......312 Parking Your Vehicle Load Limit ........315 When Stopped ........ 347 Shifting..........

  • Page 313: Driving Preparation

    Before Driving Driving Preparation Check the following items before you start driving. ■ 1Exterior Checks Exterior Checks NOTICE • Make sure there are no obstructions on the windows, door mirrors, exterior When doors are frozen shut, use warm water around lights, or other parts of the vehicle.
  • Page 314 uuBefore DrivinguDriving Preparation ■ 1Interior Checks Interior Checks The headlight aim is set by the factory, and does not • Store or secure all items on board properly. need to be adjusted. However, if you regularly carry Carrying too much luggage, or improperly storing it, can affect your vehicle's heavy items in the boot, have the aiming readjusted handling, stability, stopping distance, and tyres, and make it unsafe.
  • Page 315 uuBefore DrivinguDriving Preparation • Be sure items placed on the floor behind the front seats cannot roll under the seats. They can interfere with the driver's ability to operate the pedals, or the operation of the seats. • Everyone in the vehicle must fasten their seat belt. 2 Fastening a Seat Belt P.

  • Page 316: Load Limit

    uuBefore DrivinguLoad Limit Load Limit When you load luggage, the total weight of the vehicle, all passengers, and luggage 1Load Limit must not exceed the maximum permissible weight. WARNING 2 Specifications P. 452 Overloading or improper loading can affect handling and stability and cause a crash in which you can be hurt or killed.

  • Page 317: Towing A Trailer

    Towing a Trailer Your vehicle is not designed to tow a trailer. Attempting to do so can void your warranties.

  • Page 318: When Driving

    When Driving Models without keyless access system Starting the Engine 1. Make sure the parking brake is applied. 1Starting the Engine Keep your foot firmly on the brake pedal when starting the engine. The engine is harder to start in cold weather and in thinner air found at altitudes above 2,400 metres.
  • Page 319 uuWhen DrivinguStarting the Engine All models 1Starting the Engine 3. Turn the ignition switch to START Do not hold the key in START for more than 10 without depressing the accelerator pedal. seconds. • If the engine does not start right away, wait for at least 30 seconds before trying again.
  • Page 320 uuWhen DrivinguStarting the Engine ■ Hill Start Assist System 1Hill Start Assist System Hill start assist keeps the brake engaged briefly to help to prevent the vehicle from Hill start assist may not prevent the vehicle from rolling on inclines as you move your foot from the brake pedal to the accelerator. rolling downhill on a very steep or slippery slope, and does not operate on small inclines.

  • Page 321: Models With Keyless Access System

    uuWhen DrivinguStarting the Engine Models with keyless access system Starting the Engine 1. Make sure the parking brake is applied. 1Starting the Engine Keep your foot firmly on the brake pedal when starting the engine. The engine is harder to start in cold weather and in thinner air found at altitudes above 2,400 metres.
  • Page 322 uuWhen DrivinguStarting the Engine All models 1Starting the Engine 3. Press the ENGINE START/STOP button Bring the keyless remote close to the ENGINE without depressing the accelerator pedal. START/STOP button if the battery in the keyless remote is weak. 2 If the Keyless Remote Battery is Weak P. 428 The engine may not start if the keyless remote is subjected to strong radio waves.
  • Page 323 uuWhen DrivinguStarting the Engine ■ Starting to Drive Continuously variable transmission models 1. Keeping your right foot on the brake pedal, release the parking brake. Check that the parking brake indicator has gone off. 2 Parking Brake P. 342 2. Put the shift lever in D .

  • Page 324: Precautions While Driving

    uuWhen DrivinguPrecautions While Driving Precautions While Driving ■ 1Precautions While Driving In a Fog CAUTION: Do not drive on the road where water is Visibility becomes low when it is foggy. When you drive, turn on the low beam deep. Driving through deep water will cause damage headlights even during the daytime.

  • Page 325: Continuously Variable Transmission

    uuWhen DrivinguContinuously Variable Transmission ■ 1Precautions While Driving Other Precautions During the first 1,000 km of operation, avoid sudden If there is a strong impact with something under the vehicle, stop in a safe location. acceleration or full throttle operation so as to not Check the underside of the vehicle for damage or any fluid leaks.

  • Page 326: Continuously Variable Transmission Models Without Paddle Shifters

    uuWhen DrivinguShifting Continuously variable transmission models without paddle shifters Shifting Change the shift position in accordance with your driving needs. 1Shifting ■ Shift lever positions Models without keyless access system You cannot turn the ignition switch to LOCK remove the key unless the shift lever is in Models with keyless access system Park You cannot change the power mode from ON to...
  • Page 327 uuWhen DrivinguShifting ■ 1Shift Lever Operation Shift Lever Operation NOTICE When you change the shift lever from vice versa, come to a complete stop and keep the Tachometer's Red Zone brake pedal depressed. Operating the shift lever before the vehicle has come to a complete standstill can damage the transmission.

  • Page 328: Shifting

    uuWhen DrivinguShifting Continuously variable transmission models with paddle shifters Shifting Change the shift position in accordance with your driving needs. 1Shifting ■ Shift lever positions Models without keyless access system You cannot turn the ignition switch to LOCK remove the key unless the shift lever is in Park Models with keyless access system Used when parking or starting the...
  • Page 329 uuWhen DrivinguShifting ■ 1Shift Lever Operation Shift Lever Operation NOTICE When you change the shift lever from Tachometer's Red Zone vice versa, come to a complete stop and keep the brake pedal depressed. Operating the shift lever before the vehicle has come to a complete standstill can damage the transmission.
  • Page 330 uuWhen DrivinguShifting ■ Sequential Shift Mode Use the paddle shifters to change between 1st and 5th gears without removing your hands from the steering wheel. The transmission will switch to the sequential shift mode. ■ When the shift lever is in The vehicle will go into the sequential shift mode momentarily, and the gear position indicator will come on.
  • Page 331 uuWhen DrivinguShifting ■ 1Sequential Shift Mode Operation Sequential Shift Mode Operation Each paddle shift operation makes a single gear change. Paddle Shifter To change gears continuously, release the paddle Paddle Shifter (Shift up) (Shift down) shifter before pulling it again for the next gear. If the gear position indicator blinks when you try to shift up or down, this means your vehicle speed is not in its allowable gear shifting range.

  • Page 332: Manual Transmission Models

    uuWhen DrivinguShifting Manual transmission models Shifting ■ 1Shifting Shift Lever Operation NOTICE Fully depress the clutch pedal to operate the shift lever and change gears, then Do not shift to before the vehicle comes to a slowly release the pedal. complete stop.

  • Page 333: Econ Button

    uuWhen DrivinguECON Button ECON Button 1ECON Button While in ECON mode, the climate control system has greater temperature fluctuations. The ECON button turns the ECON mode on and off. The ECON mode helps you to improve your fuel economy by adjusting the performance of the engine, transmission, heating and cooling system /climate control system...

  • Page 334: Cruise Control

    uuWhen DrivinguCruise Control Cruise Control Maintains a constant vehicle speed without having to keep your foot on the 1Cruise Control accelerator. Use cruise control on motorways or open roads where you can travel at WARNING a constant speed with little acceleration or deceleration. Improper use of the cruise control can lead When to use to a crash.
  • Page 335 uuWhen DrivinguCruise Control ■ To Set the Vehicle Speed −/SET Button Press and release On when cruise control begins Take your foot off the pedal and press the −/SET button when you reach the desired speed. The moment you release the −/SET button, the set speed is fixed, and cruise control begins.
  • Page 336 uuWhen DrivinguCruise Control ■ 1To Adjust the Vehicle Speed To Adjust the Vehicle Speed You can set the vehicle speed using the −/SET button Increase or decrease the vehicle speed using the RES/+ or −/SET button on the on the steering wheel when adjusting the speed with steering wheel.

  • Page 337: Vehicle Stability Assist (Vsa) System

    uuWhen DrivinguVehicle Stability Assist (VSA) System Vehicle Stability Assist (VSA) System VSA helps to stabilize the vehicle during cornering if the vehicle turns more or less 1Vehicle Stability Assist (VSA) System than what was intended. It also assists in maintaining traction on slippery surfaces. The VSA may not function properly if tyre type and It does so by regulating engine output and selectively applying the brakes.
  • Page 338 uuWhen DrivinguVehicle Stability Assist (VSA) System ■ 1Vehicle Stability Assist (VSA) System VSA On and Off In certain unusual conditions when your vehicle gets This button is on the driver side control panel. stuck in shallow mud or fresh snow, it may be easier VSA OFF To partially disable VSA functionality/features, to free it with the VSA temporarily switched off.

  • Page 339: Tyre Pressure Monitoring System (Tpms)

    uuWhen DrivinguTyre Pressure Monitoring System (TPMS) Taiwanese models Tyre Pressure Monitoring System (TPMS) Instead of directly measuring the pressure in each tyre, the TPMS on this vehicle 1Tyre Pressure Monitoring System (TPMS) monitors and compares the rolling radius and rotational characteristics of each The system does not monitor the tyres when driving at low speed.
  • Page 340 uuWhen DrivinguTyre Pressure Monitoring System (TPMS) Press and hold the TPMS button until the low 1Tyre Pressure Monitoring System (TPMS) Low Tyre Pressure/ TPMS Indicator tyre pressure/TPMS indicator blinks twice, • TPMS cannot be calibrated if a compact spare tyre indicating the calibration process has begun.

  • Page 341: Deflation Warning System (Dws)

    uuWhen DrivinguDeflation Warning System (DWS) Cambodian, Laotian and Middle Eastern models Deflation Warning System (DWS) Instead of directly measuring the pressure in each tyre, the deflation warning system 1Deflation Warning System (DWS) on this vehicle monitors and compares the rolling radius and rotational The system does not monitor the tyres when driving at low speed.
  • Page 342 uuWhen DrivinguDeflation Warning System (DWS) Make sure: 1Deflation Warning System (DWS) • The vehicle is at a complete stop. • The calibration process requires approximately 30 minutes of cumulative driving at speeds between Manual transmission models 40−100 km/h. • The parking brake is applied. •...

  • Page 343: Brake System

    Braking Brake System ■ 1Parking Brake Parking Brake NOTICE Use the parking brake to keep the vehicle stationary when parking. Release the parking brake fully before driving. The To apply: rear brakes and axle can be damaged if you drive Pull the lever fully up without pressing the with the parking brake applied.
  • Page 344 uuBrakinguBrake System ■ 1Foot Brake Foot Brake Check the brakes after driving through deep water, Your vehicle is equipped with disc brakes at the front, and drum brakes in the rear or if there is a buildup of road surface water. If wheels.

  • Page 345: Anti-Lock Brake System (Abs)

    uuBrakinguAnti-lock Brake System (ABS) Anti-lock Brake System (ABS) ■ 1Anti-lock Brake System (ABS) NOTICE Helps to prevent the wheels from locking up, and helps you to retain steering The ABS may not function correctly if you use a tyre control by pumping the brakes rapidly, much faster than you. of the wrong size or type.

  • Page 346: Brake Assist System

    uuBrakinguBrake Assist System Models with Vehicle Stability Assist (VSA) System Brake Assist System ■ Brake Assist System Is designed to assist the driver by generating greater braking force when you depress the brake pedal hard during emergency braking. ■ Brake assist system operation Press the brake pedal firmly for more powerful braking.

  • Page 347: Emergency Stop Signal

    uuBrakinguEmergency Stop Signal Models with Vehicle Stability Assist (VSA) System Emergency Stop Signal Activates when you brake hard while driving at 60 km/h or above to alert drivers 1Emergency Stop Signal behind you about sudden braking by rapidly flashing hazard warning lights. This The emergency stop signal is not a system that can may help to alert drivers behind you to take appropriate means to avoid a possible prevent a possible rear-end collision caused by your...

  • Page 348: Parking Your Vehicle

    Parking Your Vehicle When Stopped 1. Depress the brake pedal firmly. 1Parking Your Vehicle 2. Firmly apply the parking brake. Do not park your vehicle near flammable objects, such as dry grass, oil, or timber. Continuously variable transmission models Heat from the exhaust can cause a fire. 3.

  • Page 349: Parking Sensor System

    uuParking Your VehicleuParking Sensor System Parking Sensor System The rear corner and centre sensors monitor obstacles behind your vehicle, and the 1Parking Sensor System beeper lets you know the approximate distance between your vehicle and the Even the system is on, always confirm if there is no obstacle.
  • Page 350 uuParking Your VehicleuParking Sensor System ■ 1Parking Sensor System On and Off Parking Sensor System On and Off When you turn the ignition switch is ON , the With the ignition switch is ON , press the system will be in the previously selected condition. parking sensor system button to turn on or off the system.
  • Page 351 uuParking Your VehicleuParking Sensor System ■ When the distance between your vehicle and obstacles behind becomes shorter Distance between the Bumper and Obstacle Length of the intermittent beep Corner Sensors Centre Sensors Moderate — About 110-60 cm Short About 60-45 cm About 60-45 cm Very short About 45-35 cm...

  • Page 352: Multi-View Rear Camera

    Multi-View Rear Camera About Your Multi-View Rear Camera The audio/information screen can display your vehicle’s rear view. The display 1About Your Multi-View Rear Camera automatically changes to the rear view when the shift lever is moved to The rear camera view is restricted. You cannot see the corner ends of the bumper or what is underneath ■...

  • Page 353: Fuel Information

    Refueling Fuel Information ■ Fuel recommendation 1Fuel Information Unleaded petrol, research octane number 91 or higher NOTICE Use of petrol that contains lead presents the Use of lower octane petrol can cause a persistent, heavy metallic knocking noise that following risks: can lead to engine damage.

  • Page 354: How To Refuel

    uuRefuelinguHow to Refuel How to Refuel 1. Stop your vehicle with the service station 1How to Refuel pump on the left side of the vehicle in the WARNING rear. Pull 2. Turn off the engine. Petrol is highly flammable and explosive. 3.

  • Page 355: Fuel Economy And Co Emissions

    Fuel Economy and CO Emissions Improving Fuel Economy and Reducing CO Emissions Achieving fuel economy and reducing CO emissions is dependent on several 1Improving Fuel Economy and Reducing CO Emissions factors, including driving conditions, load weight, idling time, driving habits, and Direct calculation is the recommended method to vehicle condition.

  • Page 356: Maintenance

    Maintenance This chapter discusses basic maintenance. Before Performing Maintenance Engine Coolant ........ 377 Tyre Rotation ........400 Inspection and Maintenance .... 356 Transmission Fluid......379 Snow Traction Devices ..... 401 Brake/Clutch Fluid ......380 Battery..........403 Safety When Performing Maintenance ..357 Remote Transmitter Care Parts and Fluids Used in Maintenance Refilling Window Washer Fluid..

  • Page 357: Inspection And Maintenance

    Before Performing Maintenance Inspection and Maintenance For your safety, perform all listed inspections and maintenance to keep your vehicle in good condition. If you become aware of any abnormality (noise, smell, insufficient brake fluid, oil residue on the ground, etc.), have your vehicle inspected by a dealer. Refer to the maintenance schedule in this owner’s manual for detailed maintenance and inspection information.

  • Page 358: Safety When Performing Maintenance

    uuBefore Performing MaintenanceuSafety When Performing Maintenance Safety When Performing Maintenance Some of the most important safety precautions are given here. 1Safety When Performing Maintenance However, we cannot warn you of every conceivable hazard that can arise in WARNING performing maintenance. Only you can decide whether you should perform a given task.

  • Page 359: Parts And Fluids Used In Maintenance Service

    Performing MaintenanceuParts and Fluids Used in Maintenance Service Parts and Fluids Used in Maintenance Service The use of Honda genuine parts and fluids is recommended when maintaining and servicing your vehicle. Honda genuine parts are manufactured according to the...

  • Page 360: Maintenance Reminder

    Maintenance Reminder Mexican models only When your vehicle’s travel distance has been accumulated, you will see a message that reminds you it is time to take your vehicle in for scheduled maintenance. 2 Maintenance Schedule P. 361 When Required Maintenance Approaches The maintenance required indicator flashes or stays on every time you turn the ignition switch to ON ■...
  • Page 361 uuMaintenance Reminder uWhen Required Maintenance Approaches ■ 1Resetting the Indicator Resetting the Indicator The dealer will reset the maintenance required 1. Turn the ignition switch to LOCK indicator after completing the scheduled Select/Reset Knob ACCESSORY maintenance services. If someone other than a dealer 2.

  • Page 362: Maintenance Schedule

    Maintenance Schedule If your vehicle comes with the service book, the maintenance schedule for your vehicle is available in the book. For vehicles without the service book, refer to the following maintenance schedules. The maintenance schedule outlines the minimum required maintenance that you should perform to ensure the troublefree operation of your vehicle.
  • Page 363 uuMaintenance Scheduleu km x 1,000 Service at the indicated distance or time - whichever comes first. months Replace spark plugs Every 100,000 km Inspect drive belts • • • • • At 200,000 km or 10 years, Replace engine coolant thereafter every 100,000 km or 5 years Replace transmission fluid MT Normal...
  • Page 364 uuMaintenance Scheduleu km x 1,000 Service at the indicated distance or time - whichever comes first. months Visually inspect the following items: Tie rod ends, steering gear box, and boots Suspension components Every 10,000 km or 6 months Driveshaft boots Brake hoses and lines (including ABS) All fluid levels and condition of fluid •...
  • Page 365 uuMaintenance Scheduleu If you drive your vehicle under severe conditions, you must have the following items 1Maintenance Schedule served to the maintenance schedule indicated as Severe. The condition is considered as severe when you drive: A. less than 8 km, or less than 16 km in freezing Items Condition temperatures per trip.
  • Page 366 uuMaintenance Scheduleu Bahraini, Kuwaiti, Omani, Qatari, Saudi Arabian and United Arab Emirates models km x 1,000 Service at the indicated distance or time - whichever comes first. months Replace engine oil Normal Every 10,000 km or 1 year Severe Every 5,000 km or 6 months Replace engine oil filter Normal Every 20,000 km or 2 years...
  • Page 367 uuMaintenance Scheduleu km x 1,000 Service at the indicated distance or time - whichever comes first. months Inspect front and rear brakes Every 10,000 km or 6 months Replace brake fluid Every 3 years Check parking brake adjustment • • •...
  • Page 368 uuMaintenance Scheduleu If you drive your vehicle under severe conditions, you must have the following items 1Maintenance Schedule served to the maintenance schedule indicated as Severe. The condition is considered as severe when you drive: A. less than 8 km, or less than 16 km in freezing Items Condition temperatures per trip.
  • Page 369 uuMaintenance Scheduleu Mexican models km x 1,000 Service at the indicated distance or time - whichever comes first. months Replace engine oil Normal Every 10,000 km or 1 year Severe Every 5,000 km or 6 months Replace engine oil filter Normal Every 20,000 km or 2 years Severe...
  • Page 370 uuMaintenance Scheduleu km x 1,000 Service at the indicated distance or time - whichever comes first. months Inspect front and rear brakes Every 10,000 km or 6 months Replace brake fluid Every 3 years Check parking brake adjustment • • •...
  • Page 371 uuMaintenance Scheduleu If you drive your vehicle under severe conditions, you must have the following items 1Maintenance Schedule served to the maintenance schedule indicated as Severe. The condition is considered as severe when you drive: A. less than 8 km, or less than 16 km in freezing Items Condition temperatures per trip.
  • Page 372 uuMaintenance ScheduleuMaintenance Record (On Vehicles without Service Book) Maintenance Record (On Vehicles without Service Book) Have your servicing dealer record all required maintenance below. Keep receipts for all work done on your vehicle. Km or Month Date Sign or Stamp 20,000 km (or 12 Mo.) 40,000 km...

  • Page 373: Maintenance Under The Bonnet

    Maintenance Under the Bonnet Maintenance Items Under the Bonnet Left-hand drive models with Continuously variable transmission Brake Fluid (Black Cap) Left-hand drive models Right-hand drive models with Manual transmission Brake Fluid (Black Cap) Brake/Clutch Fluid (Black Cap) Engine Oil Fill Cap Battery Engine Oil Dipstick (Orange)

  • Page 374: Opening The Bonnet

    uuMaintenance Under the BonnetuOpening the Bonnet Opening the Bonnet 1. Park the vehicle on a level surface, and set 1Opening the Bonnet Bonnet Release Handle the parking brake. NOTICE 2. Pull the bonnet release handle under the Do not open the bonnet when the wiper arms are driver’s side lower outside corner of the raised.

  • Page 375: Recommended Engine Oil

    Genuine Honda Motor Oil ● and durability. API service SM or higher grade fuel-efficient oil ● Use a Genuine Honda Motor oil or another commercial engine oil of suitable viscosity for the ambient temperature as shown. 0W-20, 0W-30, 5W-30 10W-30 0W-20 oil is formulated to improve fuel economy.

  • Page 376: Oil Check

    uuMaintenance Under the BonnetuOil Check Oil Check We recommend that you check the engine oil level every time you refuel. 1Oil Check Park the vehicle on level ground. If the oil level is near or below the lower mark, slowly Wait approximately three minutes after turning the engine off before you check the add oil being careful not to overfill.

  • Page 377: Adding Engine Oil

    uuMaintenance Under the BonnetuAdding Engine Oil Adding Engine Oil 1. Unscrew and remove the engine oil fill cap. 1Adding Engine Oil 2. Add oil slowly. NOTICE 3. Reinstall the engine oil fill cap, and tighten Do not fill the engine oil above the upper mark. it securely.

  • Page 378: Engine Coolant

    Under the BonnetuEngine Coolant Engine Coolant 1Engine Coolant Specified coolant: Honda All Season Antifreeze/Coolant Type 2 WARNING This coolant is premixed with 50% antifreeze and 50% water. Do not add any straight antifreeze or water. Removing the radiator cap while the We recommend you check the engine coolant level every time you refuel.
  • Page 379 uuMaintenance Under the BonnetuEngine Coolant ■ 1Radiator Radiator NOTICE 1. Make sure the engine and radiator are cool. Pour the fluid slowly and carefully so you do not spill 2. Turn the radiator cap 1/8 turn anticlockwise any. Clean up any spills immediately; they can Radiator Cap and relieve any pressure in the coolant damage components in the engine compartment.

  • Page 380: Transmission Fluid

    Honda's new vehicle limited warranty. ■ 1Manual Transmission Fluid Manual Transmission Fluid If Honda MTF is not available, you may use the API Specified fluid: Honda Manual Transmission Fluid (MTF) certificated SAE 0 W-20 or 5 W-20 viscosity motor oil as a temporary measure.

  • Page 381: Fluid

    uuMaintenance Under the BonnetuBrake/Clutch Fluid Brake/Clutch Fluid 1Brake/Clutch Fluid Specified fluid: Brake Fluid with DOT 3 or DOT 4 NOTICE Use the same fluid for both the brakes and clutch. Brake fluid marked DOT 5 is not compatible with your vehicle's braking system and can cause extensive ■...

  • Page 382: Refilling Window Washer Fluid

    uuMaintenance Under the BonnetuRefilling Window Washer Fluid Refilling Window Washer Fluid Check the amount of window washer fluid by looking at the reservoir. 1Refilling Window Washer Fluid If the level is low, fill the washer reservoir. NOTICE Reserve Tank Do not use engine antifreeze or a vinegar/water Pour the washer fluid carefully.

  • Page 383: Replacing Light Bulbs

    Models with LED headlights Holding Clip High beam and low beam headlights are LED type. Have an authorised Honda dealer inspect and replace Both sides the light assembly. 2. Push the tab to remove the coupler.
  • Page 384 uuReplacing Light BulbsuHeadlight Bulbs ■ 1Headlight Bulbs Low Beam Headlight Holding clip Models with halogen headlights Insert a flat-tip screwdriver, lift and remove the centre 1. Push the tab to remove the coupler. pin to remove the clip. 2. Rotate the old bulb to the left to remove. 3.
  • Page 385 Models with LED fog lights Holding Front fog lights are LED type. Have an authorised Clip Honda dealer inspect and replace the light assembly. Holding clip Insert a flat-tip screwdriver, lift and remove the centre pin to remove the clip.
  • Page 386 uuReplacing Light BulbsuFront Fog Light Bulbs 3. Push the tab to remove the coupler. 1Front Fog Light Bulbs 4. Rotate the old bulb to the left to remove. Insert the clip with the centre pin raised, and push Bulb 5. Insert a new bulb into the fog light until it is flat.
  • Page 387 2. Remove the old bulb and insert a new bulb. Socket Daytime Running Lights Daytime running lights are LED type. Have an authorized Honda dealer inspect and replace the light assembly. Position Lights Position lights are LED type. Have an authorized Honda dealer inspect and replace...
  • Page 388 2. Turn the socket to the left and remove it. 3. Remove the old bulb and insert a new bulb. Bulb Door mirror type Side turn lights are LED type. Have an authorized Honda dealer inspect and replace the light assembly.
  • Page 389 LED Type Models with LED brake/taillights Brake/taillights are LED type. Have an authorised Rear Side Marker Light: LED Type Honda dealer inspect and replace the light assembly. Rear Turn Signal Light: 21W 21W (Amber) Models with LED rear side marker lights Rear side marker lights are LED type.
  • Page 390 When replacing, use the following bulbs. 1Back-Up Light, Taillight and Rear Fog Light Bulbs Back-Up Light: 16 W Models with LED taillights Taillights are LED type. Have an authorised Honda Taillight: dealer inspect and replace the light assembly. LED Type Rear Fog Light: 21 W...
  • Page 391 uuReplacing Light BulbsuRear Licence Plate Light Bulbs Rear Licence Plate Light Bulbs When replacing, use the following bulb. Rear Licence Plate Light: 5 W Models with boot lid lining Lining 1. Remove each screw from the centre of its fastener using a Phillips-head screwdriver, then pull the lining back.
  • Page 392 High-Mount Brake Light: 21 W Models with LED high-mount brake light High-mount brake light is LED type. Have an LED Type authorised Honda dealer inspect and replace the light assembly. 1. Open the boot. 2. Turn the socket to the left and remove it.
  • Page 393 uuReplacing Light BulbsuOther Light Bulbs Other Light Bulbs ■ ■ ■ Ceiling Light Bulb Ceiling Light Bulb Map Light Bulbs When replacing, use the following bulb. When replacing, use the following bulb. When replacing, use the following bulbs. Ceiling Light: 8 W Ceiling Light: 8 W Map Light: 8 W 1.
  • Page 394 uuReplacing Light BulbsuOther Light Bulbs ■ Boot Light Bulb When replacing, use the following bulb. Boot Light: 5 W Bulb 2. Remove the old bulb and insert a new bulb. 1. Pry on the edge of the cover using a flat- tip screwdriver to remove the cover.

  • Page 395: Checking And Maintaining Wiper Blades

    Checking and Maintaining Wiper Blades Checking Wiper Blades If the wiper blade rubber has deteriorated, it will leave streaks and the hard surfaces of the blade may scratch the window glass. Changing the Wiper Blade Rubber 1. Lift the driver side wiper arm first, then the 1Changing the Wiper Blade Rubber passenger side.

  • Page 396: Blades

    uuChecking and Maintaining Wiper BladesuChanging the Wiper Blade Rubber 3. Slide the wiper blade out of the holder by pulling the tabbed end out. Blade 4. Remove the retainers from the wiper blade that has been removed, and mount to a new wiper blade.

  • Page 397: Checking Tyres

    Checking and Maintaining Tyres Checking Tyres To safely operate your vehicle, your tyres must be of the proper type and size, in 1Checking Tyres good condition with adequate tread, and properly inflated. WARNING ■ Inflation guidelines Using tyres that are excessively worn or Properly inflated tyres provide the best combination of handling, tread life, and improperly inflated can cause a crash in comfort.
  • Page 398 uuChecking and Maintaining TyresuChecking Tyres ■ Inspection guidelines 1Checking Tyres Every time you check inflation, also examine the tyres and valve stems. Taiwanese models Look for: Whenever tyre pressure is adjusted, you must • Bumps or bulges on the side or in the tread. Replace the tyre if you find any cuts, calibrate the TPMS.

  • Page 399: Wear Indicators

    uuChecking and Maintaining TyresuWear Indicators Wear Indicators The groove where the wear indicator is located is 1.6 mm shallower than elsewhere Example of a Wear Indicator mark on the tyre. If the tread has worn so that the indicator is exposed, replace the tyre. Worn out tyres have poor traction on wet roads.

  • Page 400: Tyre And Wheel Replacement

    uuChecking and Maintaining TyresuTyre and Wheel Replacement Tyre and Wheel Replacement Replace your tyres with radials of the same size, load range, speed rating, and 1Tyre and Wheel Replacement maximum cold tyre pressure rating (as shown on the tyre‘s sidewall). Using tyres of WARNING a different size or construction can cause certain vehicle systems such as the ABS and Vehicle Stability Assist (VSA)

  • Page 401: Tyre Rotation

    uuChecking and Maintaining TyresuTyre Rotation Tyre Rotation Rotating tyres according to the maintenance schedule helps to distribute wear more 1Tyre Rotation evenly and increase tyre life. Tyres with directional tread patterns should only be rotated front to back (not from one side to the other). ■...

  • Page 402: Snow Traction Devices

    uuChecking and Maintaining TyresuSnow Traction Devices Snow Traction Devices If driving on snowy or frozen roads, mount winter tyres, or tyre chains; reduce 1Snow Traction Devices speed; and maintain sufficient distance between vehicles when driving. WARNING Be particularly careful when operating the steering wheel or brakes to prevent Using the wrong chains, or not properly skidding.
  • Page 403 uuChecking and Maintaining TyresuSnow Traction Devices • Follow the chain manufacturer's instruction when installing. Mount them as 1Snow Traction Devices tightly as you can. If your vehicle is equipped with summer tyres, be • Check that the chains do not touch the brake lines or suspension. aware that these tyres are not designed for winter •...

  • Page 404: Battery

    Battery Checking the Battery 1Battery Models with test indicator window on the battery Test Indicator Window Check the battery condition monthly. Look at WARNING the test indicator window. The battery gives off explosive hydrogen gas during normal operation. Models without test indicator window on the battery A spark or open flame can cause the Check the battery condition by looking at the...
  • Page 405 uuBatteryuCharging the Battery Charging the Battery Disconnect both battery cables to prevent damaging your vehicle's electrical system. 1Battery Always disconnect the negative (-) cable first, and reconnect it last. Models with test indicator window on the battery The test indicator’s colour information is on the battery. The location of the test indicator window may vary depending on the model.
  • Page 406 uuBatteryuBattery Label Battery Label 1Battery Label DANGER • Keep flames and sparks away from the battery. The battery produces explosive gas that can cause an explosion. • Wear eye protection and rubber gloves when handling the battery to avoid risk of burns or loss of eyesight if exposed to battery electrolyte.

  • Page 407: Remote Transmitter Care

    Remote Transmitter Care Replacing the Button Battery If the indicator does not come on when the button is pressed, replace the battery. 1Replacing the Button Battery WARNING ■ Ignition Keys with Remote Transmitter CHEMICAL BURN HAZARD Battery type: CR1620 Screw The battery that powers the remote transmitter can cause severe internal burns 1.
  • Page 408 uuRemote Transmitter CareuReplacing the Button Battery ■ Keyless Remote Battery type: CR2032 1. Remove the built-in key. 2. Remove the upper half by carefully prying on the edge with a coin. Battery Wrap a coin with a cloth to prevent scratching the keyless remote.

  • Page 409: Heating And Cooling System /Climate Control System Maintenance

    Heating and Cooling System /Climate Control System Maintenance Dust and Pollen Filter ■ 1Dust and Pollen Filter When to Replace the Dust and Pollen Filter If the airflow from the heating and cooling system Replace the dust and pollen filter according to your vehicle’s recommended climate control system deteriorates noticeably, and maintenance schedule.
  • Page 410 uuHeating and Cooling System /Climate Control System MaintenanceuDust and Pollen Filter 4. Push in the tabs on the corners of the filter 1Dust and Pollen Filter Tabs case cover, and remove it. If you are not sure how to replace the dust and pollen filter, have it replaced by a dealer.

  • Page 411: Interior Care

    Cleaning Interior Care Use a vacuum cleaner to remove dust before using a cloth. 1Interior Care Use a damp cloth with a mixture of mild detergent and warm water to remove dirt. Do not spill liquids inside the vehicle. Use a clean cloth to remove detergent residue. Electrical devices and systems may malfunction if liquids are splashed on them.
  • Page 412 uuCleaninguInterior Care ■ 1Floor Mats Floor Mats If you use any floor mats that were not originally The driver’s floor mat hook over floor anchors, which keep them from sliding provided with your vehicle, make sure they are forward. To remove a mat for cleaning, turn the anchor knobs to the unlock designed for your specific vehicle, fit correctly, and position.

  • Page 413: Exterior Care

    uuCleaninguExterior Care Exterior Care Dust off the vehicle body after you drive. Regularly inspect your vehicle for scratches on painted surfaces. A scratch on a painted surface can result in body rust. If you find a scratch, promptly repair it. ■...
  • Page 414 uuCleaninguExterior Care ■ 1Applying Wax Applying Wax NOTICE A good coat of automotive body wax helps to protect your vehicle’s paint from the Chemical solvents and strong cleaners can damage elements. Wax will wear off over time and expose your vehicle’s paint to the the paint, metal, and plastic on your vehicle.
  • Page 415 uuCleaninguExterior Care ■ Fogged Exterior Light Lenses The inside lenses of exterior lights (headlights, brake lights, etc.) may fog temporarily if you have driven in the rain, or after the vehicle has been run through a car wash. Dew condensation also may build up inside the lenses when there is a significant enough difference between the ambient and inside lens temperatures (similar to vehicle windows fogging up in rainy conditions).

  • Page 416: Accessories And Modifications

    Do not modify your vehicle in a manner that may affect its handling, stability, or reliability, or install non-genuine Honda parts or accessories that may have a similar Honda Genuine accessories are recommended to effect.

  • Page 418: Handling The Unexpected

    Handling the Unexpected This chapter explains how to handle unexpected troubles. Tools Overheating Middle Eastern and Southeast Asian models Types of Tools ........418 How to Handle Overheating..... 433 If the Low Tyre Pressure/Deflation If a Tyre Goes Flat Indicator, Coming On/Blinking Warning System Indicator Comes On If the Low Oil Pressure Indicator Comes Changing a Flat Tyre ......

  • Page 419: Types Of Tools

    Tools Types of Tools 1Types of Tools The tools are stored in the boot. Wheel Nut Wrench/ Grip Flat-tip Screwdriver Jack Handle Detachable Towing Hook Jack Handle Bar Jack Tool Kit Jack * Not available on all models...

  • Page 420: If A Tyre Goes Flat

    If a Tyre Goes Flat Changing a Flat Tyre If a tyre goes flat while driving, grasp the steering wheel firmly, and brake gradually 1Changing a Flat Tyre to reduce speed. Then, stop in a safe place. Replace the flat tyre with a compact Follow compact/temporary spare precautions: spare tyre...
  • Page 421 uuIf a Tyre Goes FlatuChanging a Flat Tyre ■ 1Changing a Flat Tyre Getting Ready to Replace the Flat Tyre WARNING: The jack can only be used for helping an 1. Open the boot floor lid. emergency vehicle breakdown, not for changing the Spare Tyre Boot Floor Lid regular seasonal tyre or any other normal...
  • Page 422 uuIf a Tyre Goes FlatuChanging a Flat Tyre 5. Place the spare tyre (wheel side up) under 1Changing a Flat Tyre the vehicle body, near the tyre that needs to NOTICE be replaced. Do not use the jack if it doesn’t work properly. Call your dealer or a professional towing service.
  • Page 423 uuIf a Tyre Goes FlatuChanging a Flat Tyre ■ 1How to Set Up the Jack How to Set Up the Jack WARNING 1. Place the jack under the jacking point closest to the tyre to be changed. The vehicle can easily roll off the jack, seriously injuring anyone underneath.
  • Page 424 uuIf a Tyre Goes FlatuChanging a Flat Tyre 3. Raise the vehicle, using the jack handle bar 1How to Set Up the Jack Jack Handle and the jack handle, until the tyre is off the Do not use the jack with people or luggage in the ground.
  • Page 425 uuIf a Tyre Goes FlatuChanging a Flat Tyre ■ 1Replacing the Flat Tyre Replacing the Flat Tyre Do not over tighten the wheel nuts by applying extra 1. Remove the wheel nuts and flat tyre. torque using your foot or a pipe. Models with wheel cover Do not attempt to forcibly pry the wheel cover off with a screwdriver or other tool.
  • Page 426 uuIf a Tyre Goes FlatuChanging a Flat Tyre 5. Lower the vehicle and remove the jack. 1Replacing the Flat Tyre Tighten the wheel nuts in the order Models with wheel cover and full-size spare tyre indicated in the image. Go around, Align the valve mark on the wheel cover to the tyre tightening the nuts, two to three times in valve on the wheel, then install the wheel cover.
  • Page 427 uuIf a Tyre Goes FlatuChanging a Flat Tyre ■ 1Storing the Flat Tyre Storing the Flat Tyre WARNING Models with aluminium wheel For full-size tyre Wing 1. Remove the centre cap. Loose items can fly around the interior in a Bolt Models with compact spare tyre crash and can seriously injure the...

  • Page 428: Engine Does Not Start

    Engine Does Not Start Checking the Engine 1Checking the Engine If the engine does not start, check the starter. If you must start the vehicle immediately, use an assisting vehicle to jump start it. 2 Jump Starting P. 430 Starter condition Checklist Starter doesn’t turn or turns Check brightness of the interior lights.

  • Page 429: If The Keyless Remote Battery Is Weak

    uuEngine Does Not StartuIf the Keyless Remote Battery is Weak Models with keyless access system If the Keyless Remote Battery is Weak If the beeper sounds, the KEY BATT message appears on the information display, the ENGINE START/STOP button flashes, and the engine won't start, start the engine as follows.

  • Page 430: Emergency Engine Stop

    uuEngine Does Not StartuEmergency Engine Stop Models with keyless access system Emergency Engine Stop The ENGINE START/STOP button may be used to stop the engine due to an 1Emergency Engine Stop emergency situation even while driving. If you must stop the engine, do either of the Do not press the button while driving unless it is following operations: absolutely necessary for the engine to be turned off.

  • Page 431: Jump Starting

    Jump Starting ■ 1Jump Starting Jump Starting Procedure WARNING Turn off the power to electric devices, such as audio and lights. Turn off the engine, then open the bonnet. A battery can explode if you do not follow 1. Connect the first jumper cable to your the correct procedure, seriously injuring vehicle's + terminal.
  • Page 432 uuJump Startingu ■ What to Do After the Engine Starts Once your vehicle's engine has started, remove the jumper cables in the following order. 1. Disconnect the jumper cable from your vehicle's ground. 2. Disconnect the other end of the jumper cable from the booster battery - terminal.

  • Page 433: Shift Lever Does Not Move

    Shift Lever Does Not Move Continuously variable transmission models Follow the procedure below if you cannot move the shift lever out of the position. ■ Releasing the Lock 1. Set the parking brake. Models without keyless access system 2. Remove the key from the ignition switch. Models with keyless access system 2.

  • Page 434: Overheating

    Overheating How to Handle Overheating Overheating symptoms are as follows: 1How to Handle Overheating • The high temperature indicator comes on or the engine suddenly loses power. WARNING • Steam or spray comes out of the engine compartment. Steam and spray from an overheated ■...
  • Page 435 uuOverheatinguHow to Handle Overheating ■ Next thing to do 1How to Handle Overheating 1. Check that the cooling fan is operating and WARNING stop the engine once the high temperature indicator goes off. Removing the radiator cap while the If the cooling fan is not operating, engine is hot can cause the coolant to spray immediately stop the engine.

  • Page 436: Indicator, Coming On/Blinking

    Indicator, Coming On/Blinking If the Low Oil Pressure Indicator Comes On ■ Reasons for the indicator to come on 1If the Low Oil Pressure Indicator Comes On Comes on when the engine oil pressure is low. NOTICE ■ What to do as soon as the indicator comes on Running the engine with low oil pressure can cause 1.

  • Page 437: If The Malfunction Indicator Lamp Comes On Or Blinks

    uuIndicator, Coming On/BlinkinguIf the Malfunction Indicator Lamp Comes On or Blinks If the Malfunction Indicator Lamp Comes On or Blinks ■ Reasons for the indicator lamp to come on or blink 1If the Malfunction Indicator Lamp Comes On or Blinks •...

  • Page 438: If The Electric Power Steering (Eps) System Indicator Comes On

    uuIndicator, Coming On/BlinkinguIf the Electric Power Steering (EPS) System Indicator Comes On If the Electric Power Steering (EPS) System Indicator Comes On ■ Reasons for the indicator to come on • Comes on when there is a problem with EPS system. •...

  • Page 439: If The Low Tyre Pressure/Deflation Warning System Indicator Comes On Or Blinks

    uuIndicator, Coming On/BlinkinguIf the Low Tyre Pressure/Deflation Warning System Indicator Comes On or Blinks Middle Eastern and Southeast Asian models If the Low Tyre Pressure/Deflation Warning System Indicator Comes On or Blinks ■ Reasons for the indicator to come on or blink 1If the Low Tyre Pressure/Deflation Warning System Indicator A tyre pressure is significantly low, or the deflation warning system has Comes On or Blinks...

  • Page 440: Taiwanese Models

    uuIndicator, Coming On/BlinkinguIf the Low Tyre Pressure/TPMS Indicator Comes On or Blinks Taiwanese models If the Low Tyre Pressure/TPMS Indicator Comes On or Blinks ■ Reasons for the indicator to come on or blink 1If the Low Tyre Pressure/TPMS Indicator Comes On or Blinks A tyre pressure is significantly low, or the TPMS has not been calibrated.

  • Page 441: Fuse Locations

    Fuses Fuse Locations If any electrical devices are not working, turn the ignition switch to LOCK check to see if any applicable fuse is blown. There are two fuse boxes in the engine compartment. ■ Engine Compartment Fuse Box (Type A) Located near the + terminal on the battery.
  • Page 442 uuFusesuFuse Locations ■ Circuit protected and fuse rating Circuit Protected Amps MAIN 100 A RB MAIN 1 70 A RB MAIN 2 80 A CAP MAIN 70 A b c d Continued...
  • Page 443 uuFusesuFuse Locations ■ Circuit protected and fuse rating ■ Engine Compartment Fuse Box Circuit Protected Amps (Type B) Circuit Protected Amps BUCKUP MAIN 15 A Headlight Low Interior Lights (7.5 A) Located in the back of the engine 20 A Beam Main compartment on the left side.
  • Page 444 uuFusesuFuse Locations ■ Circuit protected and fuse rating ■ Interior Fuse Box Circuit Protected Amps Accessory Power Circuit Protected Amps Located under the dashboard. Socket (Console (20 A) FR FOG LT RLY OUT (7.5 A) Compartment) − − − Fuse Box −...
  • Page 445 uuFusesuFuse Locations Circuit Protected Amps Circuit Protected Amps Circuit Protected Amps Power Window 7.5 A VSA/ABS (7.5 A) 40 A Main Accessory Power (10 A) 20 A Socket (Front) IG Main 30 A Fuel Pump (15 A) Rear Left Power IG Main 50 A 20 A...
  • Page 446 uuFusesuFuse Locations ■ Circuit protected and fuse rating ■ Interior Fuse Box Circuit Protected Amps Washer 15 A Circuit Protected Amps Located under the dashboard. − (10 A) Door Lock 20 A Upper fuse box 7.5 A − − − Daytime Running Smart (10 A)
  • Page 447 uuFusesuFuse Locations ■ Circuit protected and fuse rating Lower fuse box Circuit Protected Amps Fuse Box ACC SOCKET Circuit Protected Amps (20 A) (CONSOLE) 60 A 40 A IG MAIN *1, *2 50 A RR DEF 30 A IG MAIN 30 A −...

  • Page 448: Inspecting And Changing Fuses

    uuFusesuInspecting and Changing Fuses Inspecting and Changing Fuses 1. Turn the ignition switch to LOCK . Turn 1Inspecting and Changing Fuses headlights and all accessories off. NOTICE Blown Fuse 2. Remove the fuse box cover. Replacing a fuse with one that has a higher rating 3.

  • Page 449: Emergency Towing

    Emergency Towing Call a professional towing service if you need to tow your vehicle. 1Emergency Towing NOTICE ■ Flat bed equipment Trying to lift or tow your vehicle by the bumpers will The operator loads your vehicle on the back of a truck. cause serious damage.
  • Page 450 uuEmergency Towingu Except Mexican models ■ If your vehicle must be towed with the front wheels on the ground: 1If your vehicle must be towed with the front wheels on the 1. Check the ground underneath the vehicle around where the transmission ground: housing is for a fluid leak.
  • Page 451 uuEmergency Towingu 5. Hook the towing device to the towing hook. 1If your vehicle must be towed with the front wheels on the 6. Start the engine. ground: If it is difficult to turn on the engine, put the ignition switch in ACCESSORY NOTICE or ON Continuously variable transmission models...

  • Page 452: Information

    Information This chapter includes your vehicle's specifications, locations of identification numbers, and other information required by regulation. Specifications........452 Identification Numbers Vehicle Identification Number (VIN), Engine Number and Transmission Number ......... 455 Utility Compliance Devices that Emit Radio Waves ..456 Environmental Protection Regulation ..458 * Not available on all models...

  • Page 453: Specifications

    Specifications ■ ■ ■ Vehicle Specifications Engine Specifications Light Bulbs Model CITY Water cooled 4-stroke 60 W (HB3) High beam Type SOHC i-VTEC in line, 1,074 kg Headlights 4-cylinder petrol engine 1,075-1,080 kg 55 W (H11) Low beam 73.0 x 89.0 mm 1,075-1,102 kg Bore x Stroke 73.0 x 89.4 mm...
  • Page 454 Fluid Engine Coolant Engine Oil Specified Brake Fluid with DOT 3 or DOT 4 Specified Honda All Season Antifreeze/Coolant Type2 Genuine Honda Motor Oil Recommended API service SM or higher grade Ratio 50/50 with distilled water 0W-20, 0W-30, 5W-30, 10W-30 4.41 L (change including the remaining...
  • Page 455 uuSpecificationsu ■ ■ ■ Tyre Brake Vehicle Dimensions 175/65R15 84T Type Power assisted 4,440 mm *3, *4, *5 Size 185/55R16 83H Front Ventilated disc Length 4,442 mm Regular See the label on driver’s Rear Drum 4,455 mm Pressure doorjamb. Parking Mechanical 1,694 mm *3, *4, *6, *8...

  • Page 456: Identification Numbers

    Identification Numbers Vehicle Identification Number (VIN), Engine Number and Transmission Number Your vehicle has a 17-digit vehicle identification number (VIN) used to register your 1Vehicle Identification Number (VIN), Engine Number and vehicle for warranty purposes, and for licensing and insuring your vehicle. Transmission Number The locations of your vehicle’s VIN, engine number and transmission number are The interior vehicle identification number (VIN) is...

  • Page 457: Utility Compliance

    Utility Compliance Devices that Emit Radio Waves The following products and systems on your vehicle emit radio waves when in 1Utility Compliance operation. Models under the FCC regulations As required by the FCC: Remote Hands-Free This device complies with Part 15 of the FCC rules. Immobilizer Keyless Access Transmitter...
  • Page 458 uuUtility Compliance uDevices that Emit Radio Waves Vietnamese models Keyless Access System...

  • Page 459: Environmental Protection Regulation

    uuUtility Compliance uEnvironmental Protection Regulation Environmental Protection Regulation Taiwanese models NOTICE Used batteries to be disposed of shall be collected in conformity with the regulations of Environmental Protection Administration.
  • Page 460 Index Index Dust and Pollen Filter ....... 408 Audio System Theft Protection ....194 Heating ........... 180 Auto Door Locking/Unlocking....124 ABS (Anti-lock Brake System)....344 Air Pressure ..........454 Automatic Lighting ........151 Accessories and Modifications ....415 Airbags ............47 Auxiliary Input Jack........
  • Page 461 Brake/Taillight and Rear Turn Signal Light Cleaning the Exterior ....... 412 Creeping (Continuously Variable Bulbs ............. 388 Cleaning the Interior........ 410 Transmission).......... 324 Ceiling Light ..........392 Climate Control System......183 Cruise Control .......... 333 Fog Lights..........384 Changing the Mode ........ 183 Indicator ..........
  • Page 462 Locking/Unlocking the Doors from the Overheating ..........433 Fuel............25, 352 Outside ..........115 Engine Oil ..........374 Fuel Economy and CO Emissions .... 354 Lockout Prevention System ..... 120 Adding ............ 376 Gauge..........103, 106 Driving ............311 Checking ..........375 Instant Fuel Economy ......
  • Page 463 Heating and Cooling System ....179 High Beam..........98 Cooling ........... 181 High Temperature ........94 Halogen Bulbs........382, 384 Defrosting the Windscreen and Immobilizer System ......... 100 Hands-Free Telephone (HFT) System/ Windows..........182 Keyless Access System....... 99 Bluetooth® HandsFreeLink® Dust and Pollen Filter.......
  • Page 464 Interior Convenience Items ..... 141 Lights On Indicator ........98 Climate Control........408 Interior Lights........... 172 Turn Signals..........149 Coolant........... 377 Interior Rearview Mirror ......161 Load Limits ..........315 Heating and Cooling System ....408 Locking/Unlocking ........112 Oil............375 Auto Door Locking/Unlocking ....
  • Page 465 Petrol..........25, 352 Wiper Blade Rubber ........ 394 Fuel Economy and CO Emissions .... 354 Resetting a Trip Meter......106 Numbers (Identification) ......455 Gauge..........103, 106 Information ..........352 Instant Fuel Economy ......106 Safe Driving..........31 Low Fuel Indicator ........93 Odometer..........
  • Page 466 Shift Lever ........ 325, 327, 331 Overheating ..........433 Operation ....... 325, 327, 331 Puncture/Flat Tyre........419 Tachometer ..........103 Releasing ..........432 Rear Door Won’t Open......29 Temperature Shift Lever Position Indicator Shift Lever Won’t Move......432 High Temperature Indicator ....... 94 (Transmission Indicator)....
  • Page 467 Winter Tyres ..........401 Tyre Chains ..........401 Vanity Mirrors ..........9 Wipers and Washers......... 157 Vehicle Identification Number....455 Checking and Replacing Wiper Blades ..394 Vehicle Stability Assist (VSA)....336 WMA ......... 203, 210, 227, 233 Off Button ..........337 Worn Tyres..........

This manual is also suitable for:

City 2021

Table of Contents
