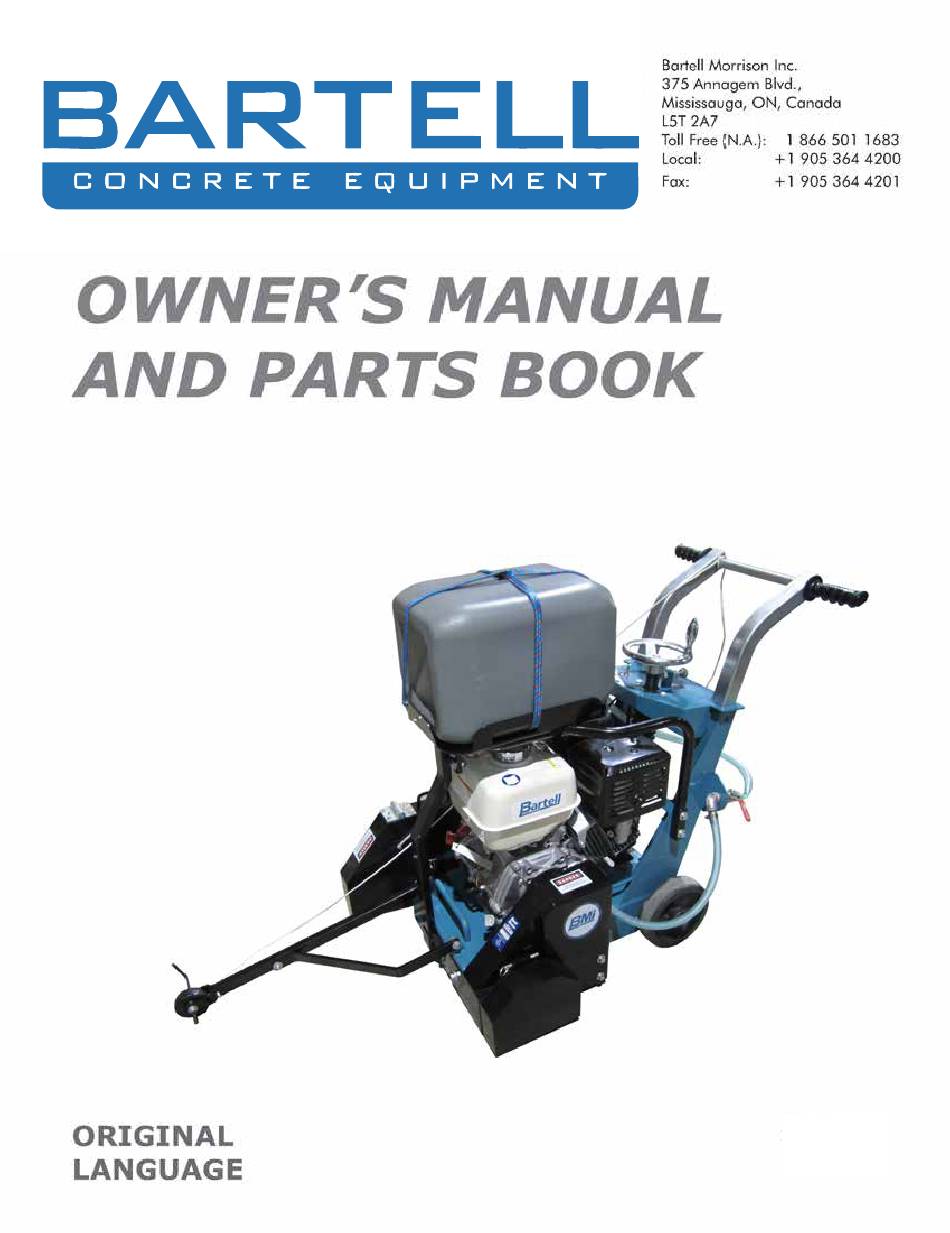

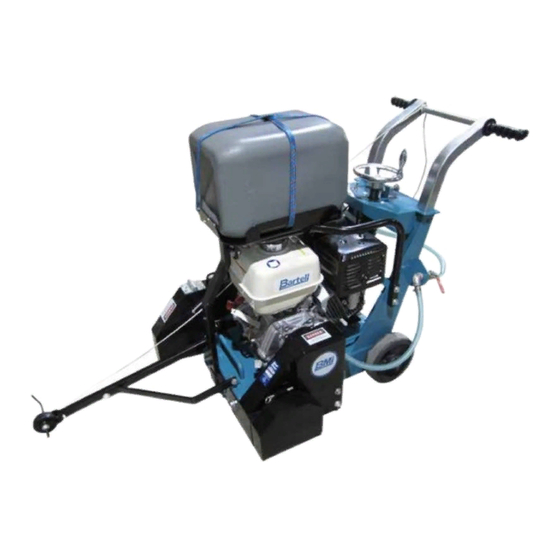

- Page 1 All manuals and user guides at all-guides.com STREET SAW BSS1813 BSS1813W Doc. # OI-B09041 Orig. Rel. - 05-2013 Curr. Rev. - 03 Rev. Date - 12-2013...
- Page 2 WALK-BEHIND POWER TROWEL WARRANTY • All products sold by Bartell Morrison Inc. and Bartell Morrison (USA) LLC (the “Company”) are warranted against defects in materials and/or worksmanship; excluding the normal wear on wearing components covered by a separate original manufacturing warranty, for a period of 12 months for machine except 36 months for gearbox from the date of sale to the original end user purchaser that certain conditions have been met.
-
Page 3: Safety Warnings
All manuals and user guides at all-guides.com STREET SAW INSTRUCTION MANUAL SAFETY WARNINGS PERSONAL SAFETY Warning：Read and understand instructions before operating saw！ • Always wear safety approved hearing eye head respiratory protection. • Sturdy boots with nonslip soles providing proper footing. steel-toed safety boots are... -
Page 4: General Saw Safety
All manuals and user guides at all-guides.com STREET SAW INSTRUCTION MANUAL GENERAL SAW SAFETY • Saw must not be left unattended while the engine is running • Always remember to keep both hands on handles when the engine running. • operate machine if there is a fuel... -
Page 5: General Instructions
All manuals and user guides at all-guides.com STREET SAW INSTRUCTION MANUAL GENERAL INSTRUCTIONS 1. Be certain you have the correct diamond or abrasive blade. Contact your authorized servicing dealer for the correct specification. Getting the correct blade will make a tremendous difference in your blade costs and performance. -
Page 6: To Start Sawing
All manuals and user guides at all-guides.com STREET SAW INSTRUCTION MANUAL TO STARTSAW Fill the fuel tank and check the engine oil level.Refer to the engine manual details 2. Start engine. Follow procedure in engine manual Let engine warm up half throttle. -
Page 7: Maintenance Instructions
All manuals and user guides at all-guides.com STREET SAW INSTRUCTION MANUAL FINISH OF CUT 1. Bring the blade out of the by method explained under " To Maneuver Saw". Raise blade high enough to clear the pavement when maneuvering the saw. 2. - Page 8 All manuals and user guides at all-guides.com STREET SAW INSTRUCTION MANUAL Tighten fasteners regularly. Nuts and bolts may become loose particularly after first few hours of operation. On some models care must be taken select the proper tools and fasteners (Metric or English).
- Page 9 All manuals and user guides at all-guides.com STREET SAW INSTRUCTION MANUAL 1813 STREET SAW ASSEMBLY DRAWINGS AND PARTS LIST 375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA L5T 3A7, 905-364-4200 FAX 905-364-4201...
- Page 10 All manuals and user guides at all-guides.com STREET SAW INSTRUCTION MANUAL 375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA L5T 3A7, 905-364-4200 FAX 905-364-4201...
- Page 11 All manuals and user guides at all-guides.com STREET SAW INSTRUCTION MANUAL Ref. No. Parts No. Description CC12-002 basemnet GB/T7180-1995 bearing SKFFL207 GB/T7810-1995 bearing UFCL204 CC12-038 washer of bearing CC12-015 wheel welding assy. CC12-031 smallwheel GB/T276-1994 bearing 6303-2RS CC12-027 small retainer CC12-030 bog wheel CC12-025...
- Page 12 All manuals and user guides at all-guides.com STREET SAW INSTRUCTION MANUAL Ref. No. Parts No. Description CC12-009 slider CC12-011 spring CC12-033 pulley CC12-033A pulley (PJ type) CC12-005 engine pulley CC12-005A engine pulley (PJ type) CC12-043 rear blade cover CC12-042 front blade cover CC12-050 rubber protect CC12-049...
- Page 13 All manuals and user guides at all-guides.com STREET SAW INSTRUCTION MANUAL Ref. No. Parts No. Description GB/T77-2000 M18X10 screw GB/T276-1994 bearing 6204-2RS GB/T95-1985 M4 plate washer GB/T70.1-2000 M4X12 screw GB/T77-2000 M6X10 screw GB1096-79 5X35 keyway GB/T894.1-1986 M10 shaft lock GB/T91-2000 pin 2.2X32 GB/T41-1998 M12X45 bolt...
