- Page 1 HDMI 2.0 to 4K@30Hz USB-C Capture GRA-H01C01 User Manual (210520 v.1) www.partilink.com...
-
Page 2: Table Of Contents
Contents Overview ----------------------------------------------------------------------------- 03 Features ------------------------------------------------------------------------------ 03 Specification ------------------------------------------------------------------------ 04 System Requirements ------------------------------------------------------------ 05 Installation --------------------------------------------------------------------------- 05 Capture Operation for Windows OS with OBS ---------------------------- 06 Video Setting -------------------------------------------------------------- 07 Audio Setting --------------------------------------------------------------- 08 Capture Operation for Mac OS with OBS ----------------------------------- 11 Video Setting -------------------------------------------------------------- 11 Audio Setting --------------------------------------------------------------- 13... -
Page 3: Overview

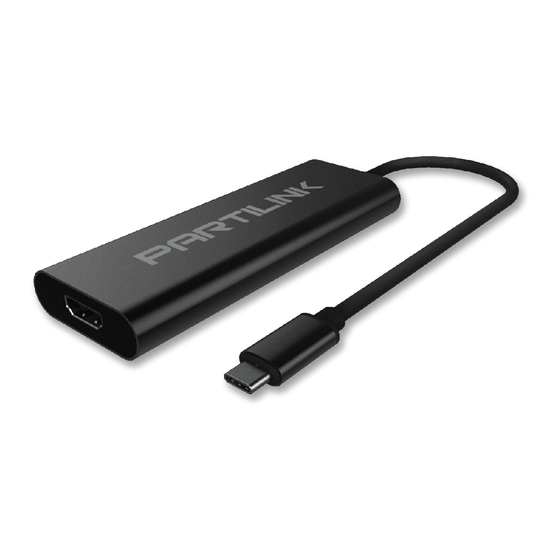

1. Overview Partilink GRA-HU2HU3, HDMI 2.0 to 4K@30Hz USB-C Capture Pro, is designed to capture 4K@60Hz HDMI video then uplink 4K@30Hz data to the connected computer via USB-C. It allows the user to capture video from HDMI sources such as PS4, XBOX, Switch, camera … etc. for filing, re-editing and streaming on connected PC, laptop and tablet. -
Page 4: Specification
3. Specification MODEL NO. GRA-H01C01 INPUT INTERFACE 1 x HDMI 2.0 type A 3840x2160p 60/50/30/25/24Hz 16:9 1920x1080p 120/60/50/30/25/24Hz 16:9 1920x1080i 60/50Hz 16:9 2560x1440p 60Hz 16:9 1280x720p 60/50Hz 16:9 720x576p 50Hz 16:9 INPUT RESOLUTION 720x576p 50Hz 4:3 720x480p 60Hz 16:9 720x480p 60Hz 4:3... -
Page 5: System Requirements
Microsoft Windows 8.1/10 MacOS (10.13 and above) 5. Installation • Connect the Partilink GRA-H01C01 HDMI 2.0 to 4K@30Hz USB-C Capture into the computer USB-C port. • Plug-in the HDMI device (such as PS4 Pro, Xbox One X, Camcorder...etc.) with HDMI... -
Page 6: Capture Operation For Windows Os With Obs
6. Capture Operation for Windows OS with OBS (a) After plugging in your device, go to [Windows Settings] and then go under [BT and Other Devices] and make sure Partilink GRA-H01C01 “4K Grabber” is detected (b) Download OBS Studio https://obsproject.com/... -
Page 7: Video Setting
(c) Open OBS Studio. (version 25.0.8) Video Setting Add and select “Video Capture Device” Select “4K Grabber” as your device... -
Page 8: Audio Setting
Parameter setting references as indication below • Resolution/FPS Type: Custom • Resolution: 3840x2160 • FPS: Match Output FPS (auto select: 30) • Video Format: NV12 • Audio Device: HDMI (Partilink 4K Capture) Audio Setting Click on the audio setting icon as indication below... - Page 9 Select “Properties” Under “Properties”: Select “HDMI (4K Grabber)” as your device...
- Page 10 Under the “Audio Setting” icon: Select “Advanced Audio properties” Under the “Advanced Audio Properties”: Adjust your audio source to the suggested Microphone and speaker into “Monitor preferences. Please change the setting of and Output”. f) OBS Setting completed...
-
Page 11: Capture Operation For Mac Os With Obs
Capture Operation for Mac OS with OBS Video Setting Under “Sources”, please click on the “+” icon and select “Video Capture Device” Rename the input source and click “OK”... - Page 12 C) Under “Properties”: Select “4K Grabber” in “Device” Under “Properties”: Select “4K Grabber Pro” in “Device”...
-
Page 13: Audio Setting
Note: Do not click “Use Preset” and customize the configuration. Resolution: select the best resolution possible 3840 x 2160 FPS: simple FPS Values 30 Input Format: NV12. Audio Setting a) Click on the audio setting icon as indication below b) Select “Properties”... -
Page 14: Package Contents
