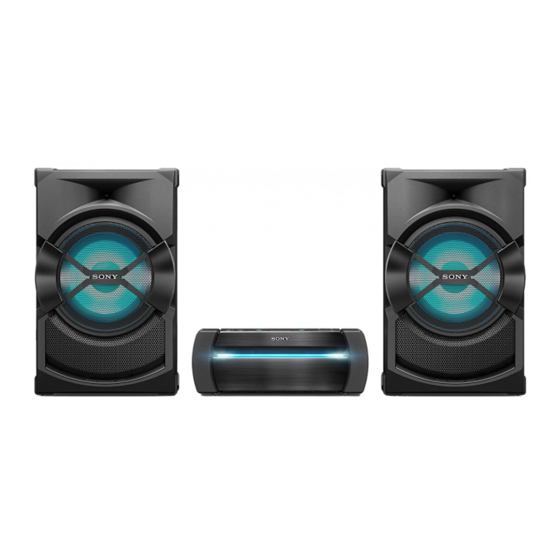

- Page 1 Home Audio System Operating Instructions Mode d’emploi Manual de instrucciones SHAKE-X30/SHAKE-X10...
- Page 2 The model and serial numbers are located on the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your Sony dealer regarding this product. This appliance is classified as a CLASS 1 Model No.
- Page 3 Important Safety Instructions 13) Unplug this apparatus during lightning storms or when unused 1) Read these instructions. for long periods of time. 2) Keep these instructions. 14) Refer all servicing to qualified 3) Heed all warnings. service personnel. Servicing is 4) Follow all instructions.
- Page 4 Properly shielded and grounded owned by Bluetooth SIG, Inc. and cables and connectors must be used any use of such marks by Sony for connection to host computers Corporation is under license. Other and/or peripherals. trademarks and trade names are This device complies with Industry those of their respective owners.
-
Page 5: About This Manual
• In this manual, ™ and ® marks are not specified. About this manual The instructions in this manual • • are for models SHAKE-X30 and SHAKE-X10. In this manual, the SHAKE-X30 is used for illustration purpose unless stated otherwise. This manual mainly explains •... -
Page 6: Table Of Contents
Table of Contents About this manual ....5 Tuner Unpacking ......8 Listening to the radio ... 24 Playable discs or files on discs/USB device ....8 BLUETOOTH Websites for compatible About the BLUETOOTH devices ......... 10 wireless technology ..... 25 Guide to parts and Pairing this system with a controls ......... - Page 7 Other Operations Using the Party Chain function ........ 34 Singing along: Karaoke ..37 Using the Voice Guidance ..38 Enjoying sound from a guitar ........38 Enjoying music with the Party Light and Speaker Light ........39 Using the Sleep Timer ..39 Using optional equipment ...
-
Page 8: Unpacking
AC power cord (mains lead) (1) MP3 (MPEG 1 Audio Layer 3) is a • • standard format defined by ISO/ MPEG for compressed audio data. MP3 SHAKE-X30 only files must be in MPEG 1 Audio Layer 3 Unit: HCD–SHAKE30 (1) • • format. - Page 9 • — Files with DRM (Digital Rights Notes on playable files Management) copyright Playback may take a longer time • • protection. to start when: The MP3 PRO audio file can be • • • — a DATA CD/USB device is played back as MP3 file.
-
Page 10: Websites For Compatible Devices
Check the websites below for the latest information about compatible USB and BLUETOOTH devices. For customers in the United States: <https://esupport.sony.com/US/> For customers in Canada: <http://esupport.sony.com/CA/> Compatible iPhone/iPod models The compatible iPhone/iPod models are as follows. Update your iPhone/ iPod with the latest software before using with the system. -
Page 11: Guide To Parts And Controls
Guide to parts and controls You can lock the keys except (power) on the unit to prevent them from being operated by mistake (page 39). Unit (Top) Unit (Front) ... - Page 12 (USB) (REC/PLAY) port (power) Use to connect a USB device. Turns on the system, or sets it to This port can be used for both standby mode. playback and music transfer. (stop) FUNCTION — Stops playback. When pressed twice, resume Selects a function.
- Page 13 MIC/GUITAR LEVEL knob Speaker (Rear) (page 37, 38) Example: +/– (select folder) Selects a folder on a data disc or a USB device. S1, S2, S3, S4 (page 33) (open/close) Opens or closes the disc tray. / (go backward/go forward) (page 20) TUNING+/–...
- Page 14 (power) (play)* Turns on the system, or sets it to Starts playback. standby mode. / (go backward/go forward) (page 20) PLAY MODE (page 20, 22) PRESET+/– (page 25) REPEAT/FM MODE (page 21, 24) (pause) Pauses playback. To resume PARTY LIGHT (page 19, 39) playback, press .
-
Page 15: Getting Started
Getting Started Hooking up the system securely Unit (Rear) Audio input and output jacks Use an audio cable (not supplied) to make either connection as follows: AUDIO/PARTY CHAIN IN L/R jacks • • • —... - Page 16 Speakers PARTY LIGHT L/R terminals • • Connect the Party Light connector of the speaker to this terminal. The lighting on the speakers will react according to the music source. You can select the Party Light and Speaker Light according to your preference (page 39).
-
Page 17: Deactivating The Demonstration
Deactivating the Positioning the demonstration speakers To deactivate the demonstration To obtain optimum performance while the system is turned off, press from the system, we recommend DISPLAY repeatedly to select the no you to place the speakers as shown display mode (Power Saving Mode) below. -
Page 18: Listening To Tv Sound Via The System
Listening to TV sound via the system Before connecting cables, be sure to disconnect the AC power cord (mains lead). AUDIO OUT Audio cable (not supplied) To listen to TV sound, press FUNCTION repeatedly to select “AUDIO IN”. Hint • • You can also enjoy the sound of external equipment (DVD players, etc.) via the system by connecting to the AUDIO/PARTY CHAIN IN jacks. -
Page 19: Changing The Display Mode
Disc/USB Playback Changing the display mode Before using the USB device Press DISPLAY repeatedly while the system is turned off. For compatible USB devices, see Each time you press the button, the “Websites for compatible devices” display mode changes as follows. (page 10). -
Page 20: Using Play Mode
For USB function: Using play mode Connect a USB device to the (USB) port. Note You can use a USB adaptor (not Playing in sequential order supplied) to connect the USB device (Normal Play) to the unit if the USB device cannot be plugged into the (USB) port. -
Page 21: Viewing Information On The Display
USB Transfer Playing repeatedly (Repeat Play) Before using the USB Press REPEAT repeatedly. device The following indicators light up on the display. “ ”: repeats all tracks or audio • • For compatible USB devices, see files on a folder/disc/USB device. “Websites for compatible devices”... - Page 22 Press / repeatedly to select Prepare the sound source. “BIT RATE”, then press Synchronized Transfer: Press / repeatedly to select If the system starts playback automatically, press twice to stop the bit rate you want, then press the playback fully. When playback is stopped, press “128 KBPS”: encoded MP3 files •...
- Page 23 The transfer stops automatically if: Synchronized Transfer • • — the USB device runs out of space When transferring CD-DA tracks during transfer. — the number of audio files or folders from an AUDIO CD on the USB device reaches the limit Folder name: “CDDA0001”* that the system can recognize.
-
Page 24: Tuner
Press / repeatedly to select Tuner an audio file you want to erase, then press Listening to the radio If you want to erase all the audio files in the folder, select “ALL TRACKS”. Press FUNCTION repeatedly to “FLDR ERASE” or “TRK ERASE” and select “TUNER FM”. -
Page 25: Bluetooth
Press / repeatedly to select BLUETOOTH the preset number you want, then press About the BLUETOOTH “COMPLETE” appears on the display and the station is stored. wireless technology If another station is already assigned to the selected preset BLUETOOTH wireless technology is number, that station is replaced by a short-range wireless technology the new one. -
Page 26: Pairing This System With A Bluetooth Device
For details, refer to the operating instructions of your BLUETOOTH device device. Select the system’s name (for Pairing is an operation where example, “SHAKE-X30”) on the BLUETOOTH devices register with display of the BLUETOOTH each other beforehand. Once a device. pairing operation is performed, it... -
Page 27: Listening To Music On A Bluetooth Device
To erase pairing information Establish connection with the BLUETOOTH device. Use the buttons on the unit to perform this operation. Press BLUETOOTH on the unit to connect to the last connected Press BLUETOOTH to select BLUETOOTH device. BLUETOOTH function. Perform the BLUETOOTH connection “BLUETOOTH”... -
Page 28: One Touch Bluetooth Connection By Nfc
Touch the smartphone to the One Touch BLUETOOTH N-Mark on the unit until the Connection by NFC smartphone vibrates. NFC (Near Field Communication) is a technology enabling short- range wireless communication between various devices, such as smartphones and IC tags. When you touch the system with an NFC-compatible smartphone, the system automatically:... -
Page 29: Setting The Bluetooth Audio Codecs
Hint Setting the BLUETOOTH LDAC is an audio coding technology audio codecs developed by Sony that enables the transmission of High-Resolution (Hi-Res) Audio content, even over a BLUETOOTH You can enable AAC, LDAC or SBC connection. Unlike other BLUETOOTH codec reception from BLUETOOTH compatible coding technologies device. -
Page 30: Turning On Or Off The Bluetooth Signal
BLUETOOTH signal is turned on by operating “SongPal”-compatible default. audio devices manufactured by Sony using a smartphone or tablet. Hold down ENTER and on the Search for “SongPal” on Google unit for about 3 seconds. Play™ or App Store and download it “BT ON”... -
Page 31: Getting Frenzied Parties With The "Fiestable" App
URL. http://info.songpal.sony.net/help/ parties with the “Fiestable” app You can control the party features of Sony’s Home Audio System with intuitive and fancy user interface with the “Fiestable” app. “Fiestable” allows you to control features such as DJ Effect, illumination and Karaoke. -
Page 32: Sound Adjustment
Press FOOTBALL on the unit Sound Adjustment repeatedly while watching a football match broadcast. Adjusting the sound “ON NARRATION”: You can enjoy an • • immersive feeling of being in a football stadium through enhanced Do this stadium cheers. Reinforce bass Press MEGA BASS “OFF NARRATION”: You can enjoy a •... -
Page 33: Creating A Party Atmosphere (Dj Effect)
Repeat step 3 to adjust the level To turn off the effect of other frequency bands and Press DJ OFF. • • surround effect. Press the selected effect button • • again (for FLANGER and ISOLATOR To exit the options menu, press OPTIONS. -
Page 34: Other Operations
Other Operations Using the Party Chain function You can connect multiple audio systems in a chain to create a more interesting party environment and to produce higher sound output. An activated system in the chain will be the “Party Host” and share the music. Other systems will become “Party Guests”... - Page 35 You can change the Party Host to another system in the chain. For details, • • see “To select a new Party Host (when all the systems are equipped with Party Chain function)” (page 36). If one of the systems is not equipped with Party Chain function Example: When connecting using this system as the first system First system Continue the...
- Page 36 • • When one of the systems in the chain Enjoying the Party Chain is performing USB transfer, wait for the system to complete or stop the transfer before you activate the Party Chain Plug in the AC power cord function.
-
Page 37: Singing Along: Karaoke
You cannot adjust the microphone • • Singing along: Karaoke volume level using the VOLUME/DJ CONTROL knob on the unit or VOL +/− button on the remote control. Turn MIC/GUITAR LEVEL knob on the unit Preparing for Karaoke clockwise or anticlockwise to adjust the microphone volume level. -
Page 38: Using The Voice Guidance
Using the Voice Enjoying sound from a Guidance guitar You can hear English Voice Guidance You can listen to the sound from the on the following situations via the guitar by connecting a guitar to the system. MIC2/GUITAR jack on the unit. •... -
Page 39: Enjoying Music With The Party Light And Speaker Light
Enjoying music with the Using optional Party Light and Speaker equipment Light Press VOL – repeatedly until “VOLUME MIN” appears on the Press PARTY LIGHT repeatedly display. to select “LED ON”. Connect an optional equipment Press LIGHT MODE repeatedly to (page 15). -
Page 40: Setting The Automatic Standby Function
AC power cord (mains lead). Child Lock function cannot be activated • • For customers in the United States: when you open the disc tray. <https://esupport.sony.com/US/> For customers in Canada: <http://esupport.sony.com/CA/> Setting the automatic standby function The system enters standby mode... -
Page 41: Additional Information Troubleshooting
Check the speaker connections • • If the problem persists, consult your (page 16). nearest Sony dealer. Check the connection of the • • Note that if the service personnel optional equipment, if any changes some parts during repair, (page 15). - Page 42 The disc tray does not open and unit’s sensor (page 17). “LOCKED” appears on the display. Replace the batteries (R03/size • • Consult your nearest Sony dealer • • AAA). or local authorized Sony service Move the unit away from the •...
- Page 43 Playback does not start from the Turn off the system and remove • • first track. the USB device. If the USB device has a power switch, turn the USB Set the play mode to Normal Play • • device off and on again after (page 20).
- Page 44 USB device, then turn on the there is no problem with the USB system. device. If this display pattern The music data itself contains persists, contact your nearest Sony • • dealer. noise, or the sound is distorted. Noise may have entered during Erroneous display.
- Page 45 Files cannot be played back. Connection is not possible. USB devices formatted with file The BLUETOOTH device you • • • • systems other than FAT16 or FAT32 attempted to connect does not are unsupported.* support the A2DP profile, and If you use a partitioned USB cannot be connected with the •...
- Page 46 If there is equipment that • • Hold down DJ OFF and for generates electromagnetic about 3 seconds. radiation, such as a wireless LAN, “RESET” appears on the display. other BLUETOOTH device, or a After the reset completes, the microwave oven nearby, move system automatically reboots.
-
Page 47: Precautions
GUEST REC ERROR The system has become a Party The transfer did not start, stopped Guest as the Party Chain function partway, or otherwise could not be has been activated by a Party Host. performed. HOST TRACK FULL The system activated the Party You cannot transfer onto the USB Chain function and has become a device because the number of files... - Page 48 On safety On the speaker system Completely disconnect the AC power The speaker system is not magnetically • • cord (mains lead) from the wall outlet shielded, and the picture on nearby TV (mains) if it is not going to be used sets may become magnetically distorted.
-
Page 49: Specifications
150 Hz – 20,000 Hz; rated BLUETOOTH technology. 80 watts per channel minimum RMS • • Sony cannot be held liable in any way for damages or other loss resulting power, with no more than 0.7% total from information leaks during... - Page 50 Disc player section Compatible BLUETOOTH profiles* A2DP (Advanced Audio System: Distribution Profile) Compact disc and digital audio AVRCP (Audio Video Remote system Control Profile) Laser Diode Properties SPP (Serial Port Profile) Emission Duration: Continuous Supported codecs: Laser Output*: Less than 44.6 μW SBC (Subband Codec) * This output is the value AAC (Advanced Audio Coding)
