Parksafe FHD 360 Operating Instructions Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Operating Instructions

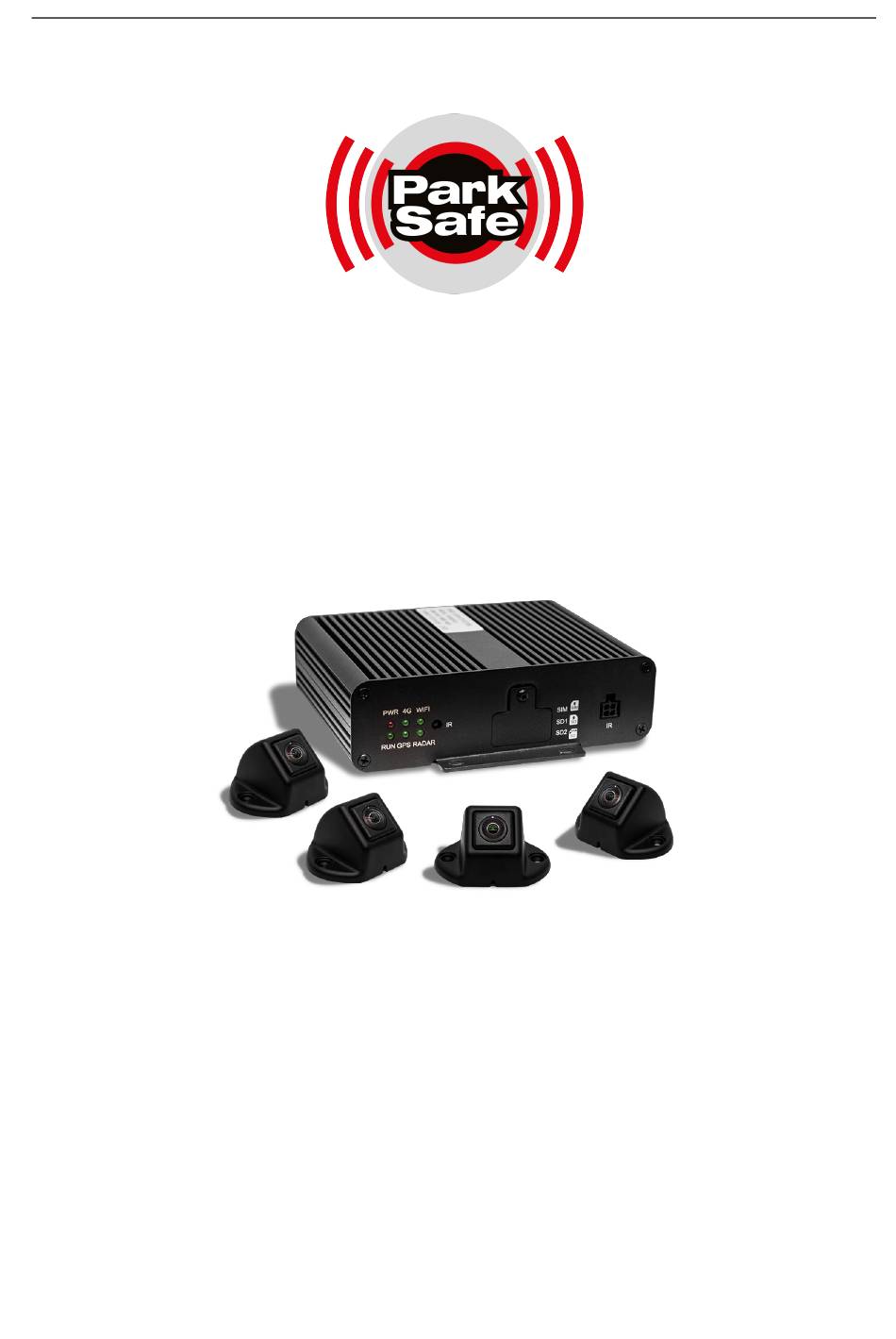

FHD 360° Vision System

www.parksafegroup.com

Please read this manual thoroughly before operating the unit,

and keep it for future reference.

V1.0

Table of Contents

Summary of Contents for Parksafe FHD 360

Page 1 Operating Instructions FHD 360° Vision System www.parksafegroup.com Please read this manual thoroughly before operating the unit, and keep it for future reference. V1.0...
Page 2 www.parksafegroup.com Please read this manual thoroughly before operating the unit, and keep it for future reference. V1.0...
Page 3: Table Of Contents
www.parksafegroup.com Contents 1. Precautions .................... 1 2. Product Features ................... 3 2.1 Basic Features ................3 2.2 Application..................4 2.3 Features ..................4 2.4 Standard Configuration ..............5 2.5 Wiring Diagram ................5 3. Specification ................... 6 3.1 Main Control Box Video Parameter ..........6 3.2 Main Control Box Working Environment Parameter ......
Page 4: Precautions
www.parksafegroup.com 1. Precautions ● Storage and Keeping Do not expose the System to excessive heat or cold. The storage temperature of this device is -40℃ ~ +85℃, and the operating temperature is -20℃ ~ +70℃. The humidity is RH90%. 2） Never use this device near a bathtub, wash basin, kitchen, damp basement, swimming pool or similar places.
Page 5 www.parksafegroup.com ● Maintenance Remove all the cable connections from the control box before cleaning the device. Use a mild household detergent and clean the unit with a slightly damp, soft cloth. Never use strong solvents such as thinner or benzine, as they might damage the finish of the device.
Page 6: Product Features
www.parksafegroup.com Product Features 2.1 Basic Features ° FHD 1080P Support 4pcs 190 wide-angle fisheye cameras inputs Techniques of dual-core ARM Cotex-A53 and SOC development of built-in high-performance H.264 video encoding / decoding engineer core make it efficient to composite high accuracy seamless images.
Page 7: Application
www.parksafegroup.com 2.2 Application Reverse Parking Side Parking Narrow Road Diversion Assistance Congested Road Blind Area Steep slope Driving Record Road Trap 2.3 Features 1) Panoramic image. 2) Blending seamless stitching. 3) 360° view. 4) Wide surrounding field of vision. 5) Auto switch to reversing image when reverse wire is triggered. 6) Auto switch to left / right image when left / right wire is triggered.
Page 8: Standard Configuration
www.parksafegroup.com 2.4 Standard Configuration Item Configuration Quantity Control box FHD Eye-fish vamera 34-button remote control Power cable Harness for cameras Video signal cable and trigger harness 20M extension cable Wi-Fi extension cable 2.5 Wiring Diagram...
Page 9: Specification
www.parksafegroup.com 3. Specification 3.1 Main Control Box Video Parameter Item Parameter Performance Index Input Video Max.4CH×1080P@25/1080P@30 Display Mode 2D/3D Panoramic Video High Definition Resolution 1080P Parameter Refresh 25/30 Rate Storage Max 2×128G SD card Recorder Compressed Encoding Max 4CH×1080P H.264 recode Parameter Video Stream 4M/2M...
Page 10 www.parksafegroup.com Video Output 1.0Vp-p, 75Ohm White Balance Auto Viewing Angle >190(H) Power Supply Working Temperature Range –20℃ ~ 70℃, RH95%MAX. Storage Temperature –40℃ ~ 85℃, RH95%MAX. Waterproof Rating IP69K...
Page 11: Operation Instruction Of Remote Control
www.parksafegroup.com 4. Operation Instruction of Remote Control ➢ ENTER: Menu confirmation button. Enter the main menu or confirm menu selection. ➢ ESC： Return button. Exit the main menu/ return to the last menu interface. ◀ ▶ ： ➢ Left / Right button. Plus / Minus button. Shift image channel to left / right single-view in main interface;...
Page 12: Operation Instruction Of Main Menu Interface
www.parksafegroup.com 5. Operation Instruction of Main Menu Interface User Administration Login Feature Description： Input password（default password is 88888888）： Login confirmation. ： Modify password. ：ESC key, return to the last menu. Modify Password...
Page 13: Main Menu Interface
www.parksafegroup.com Password modification instructions: Input old password once, then input new password twice, click “Save” button to save password. ： Input old password. ： Input new password. ： Confirm new password. ： Save password. ： ESC key（Click to discard password modification） Main Menu Interface：...
Page 14 www.parksafegroup.com Information: Information data, to check and upgrade the version of CPU and MCU 5.3.1 User Setup Interface, as shown below: 2D Mode： 3D Mode： Feature Description： Basic Setup： Basic setup interface Time： Time setting interface DVR： Basic recording setting and recording event setting interface.
Page 15 www.parksafegroup.com Display： Display mode setting interface. Network： Network setting interface. Radar: Radar setting interface. Trigger： Trigger line setting interface (In 3D mode). 1) Basic Setup： Basic setup interface, as shown below: ➢ AV： System setting, NTSC / PAL system selectable. ➢...
Page 16 www.parksafegroup.com 2) Time： Time setting interface, as shown below： ➢ System Time: Time setting, caution; after modifying the time, user needs to press the "Set Time" button to save the time. Switch： ➢ GPS timing setting. ON/OFF switchable. When set to ON, the system turns on automatic timing. UTC：...
Page 17 www.parksafegroup.com Compression： Video definition setting, 4Mbps (high definition) and 2Mbps (low definition) can be set. ➢ ➢ Auto Record： Automatic recording switch. Set to ON, the video recording will start automatically after booting; set to OFF, the video recording will not start under any circumstances after booting. Duration：...
Page 18 www.parksafegroup.com Compatibility Mode： Compatibility mode settings. When set to ON, the compatibility of all screens is better; ➢ when set to OFF, the screen display effect is better; (High mode is temporarily unavailable). Quick Display： ➢ Quick image output setting. When set to ON, the rear view can be output quickly in 3 seconds. Default Vie：...
Page 19 www.parksafegroup.com ➢ Category： When the radar switch setting is set to Ultrasonic (as shown in the figure below), the priority of the Radar Left/Right/Front/Back configuration items of the radar can be set. (24GHz 1T1R, 24GHz 1T2R, 77GHz 2T4R are currently unavailable). Beeping Output：...
Page 20 www.parksafegroup.com Location： ➢ User can select sensors L1-L4, R1-R4, F1-F4 and B1-B4. Unit： ➢ Sensor ID setting, OFF / 1-12 selectable. Danger： ➢ Dangerous distance setting. Warning： ➢ Warning distance setting. Setup： ➢ Update the setting parameters. Reset： ➢ Reset radar parameters. Trigger：...
Page 21 www.parksafegroup.com White： White trigger line setting, Dual+Left, Dual+Right, Dual+Front, Dual+Back, Scan, Dual+3D Left, ➢ Dual+3D Right, Quad, Fual Dual, IPC selectable. Brown： ➢ Brown trigger line setting, Dual+Left, Dual+Right, Dual+Front, Dual+Back, Scan, Dual+3D Left, Dual+3D Right, Quad, Fual Dual, IPC selectable. Red：...
Page 22 www.parksafegroup.com AVM Interface 2D Mode： 3D Mode： Feature Description： Automatic Calibration: ➢ Automatic Calibration. Calibration File: ➢ Export calibration picture resources and import calibration files. Vehicle Type: ➢ Change the car model type page. Surround View: ➢ Overlap angle and surrounding visual range setting.
Page 23 www.parksafegroup.com ➢ Parking Line： Reversing cursor adjustment. ➢ 3D Perspective： 3D perspective view point setting. Back View Perspective： ➢ 3D rear view view point setting. 3D Display Adjust： ➢ 3D display setting. Automatic Calibration: Automatic calibration page, as shown below： 1）...
Page 24 www.parksafegroup.com Feature Description： Vehicle Type: ➢ Used to modify the type of car model (note that the car model here is only for auxiliary calibration reference and does not need to be saved) Precision: ➢ Accuracy adjustment of vehicle length, width and model movement (optional values 1, 5, 10, 15 pixels).
Page 25 www.parksafegroup.com Caution: This page will not refresh the USB resources in real time. User must first access the USB before entering this page. ➢ Export: Export the calibration picture file to USB, the resources include: 4-channel image + xml file. ➢...
Page 26 www.parksafegroup.com Feature Description：： ➢ Overlap angle setting, user can set the overlap angle of upper left, lower 0-90. left, upper right, and lower right, and the value can be set in the range of ： ➢ Unit setting, inch/cm selectable. Left View/Right View/Front View/Back View: ➢...
Page 27 www.parksafegroup.com Move： The reversing cursor moves up, down, left and right. ➢ Width Scale/Height Scale： ➢ Adjust the width/height of the reversing cursor. 3D Perspective： 3D view viewpoint setting page Feature Description： Vehicle Transparency： ➢ Car model transparency setting (range: 0.1-1). Camera Z-Position：...
Page 28 www.parksafegroup.com Position： Adjust the precision settings. 0.01-0.1 is optional. ➢ Camera Z-Position： ➢ 3D rear view zoom setting. Camera Y-Rotate： ➢ 3D rear view view up/down rotation setting. 3D Display Adjust： 3D display setting interface Feature Description： Display Mode： ➢ 3D / Supper View selectable.
Page 29 www.parksafegroup.com ➢ Vehicle Floor Region： Same as above. Plane Radius： ➢ Same as above Stereoscopic Effect： ➢ Object 3D effect setting. Distortion correction Y-axis： ➢ The Y direction offset setting of the virtual projection camera. ➢ Distortion correction Z-axis： The height offset setting of the virtual projection camera. 5.
Page 30 www.parksafegroup.com ➢ Video management can only process videos that last for three months, which are this month and one month before and after. ： Toggle month button. ➢ If there is the date or time period when the video file was recorded, the color will be displayed in green.
Page 31 www.parksafegroup.com ：Exit and return key. Note：Click the CLEAR button of the remote control to hide the entire progress bar. 5.3.4 Information： Information data management page, as shown below: Feature Description： ➢ Current Version CPU： Current CPU flash version information. MCU： Current MCU version information.
Page 32 www.parksafegroup.com...
