SyncMaster 323T,403T

Advertisement

loading

Related Manuals for Samsung SyncMaster 323T

Summary of Contents for Samsung SyncMaster 323T

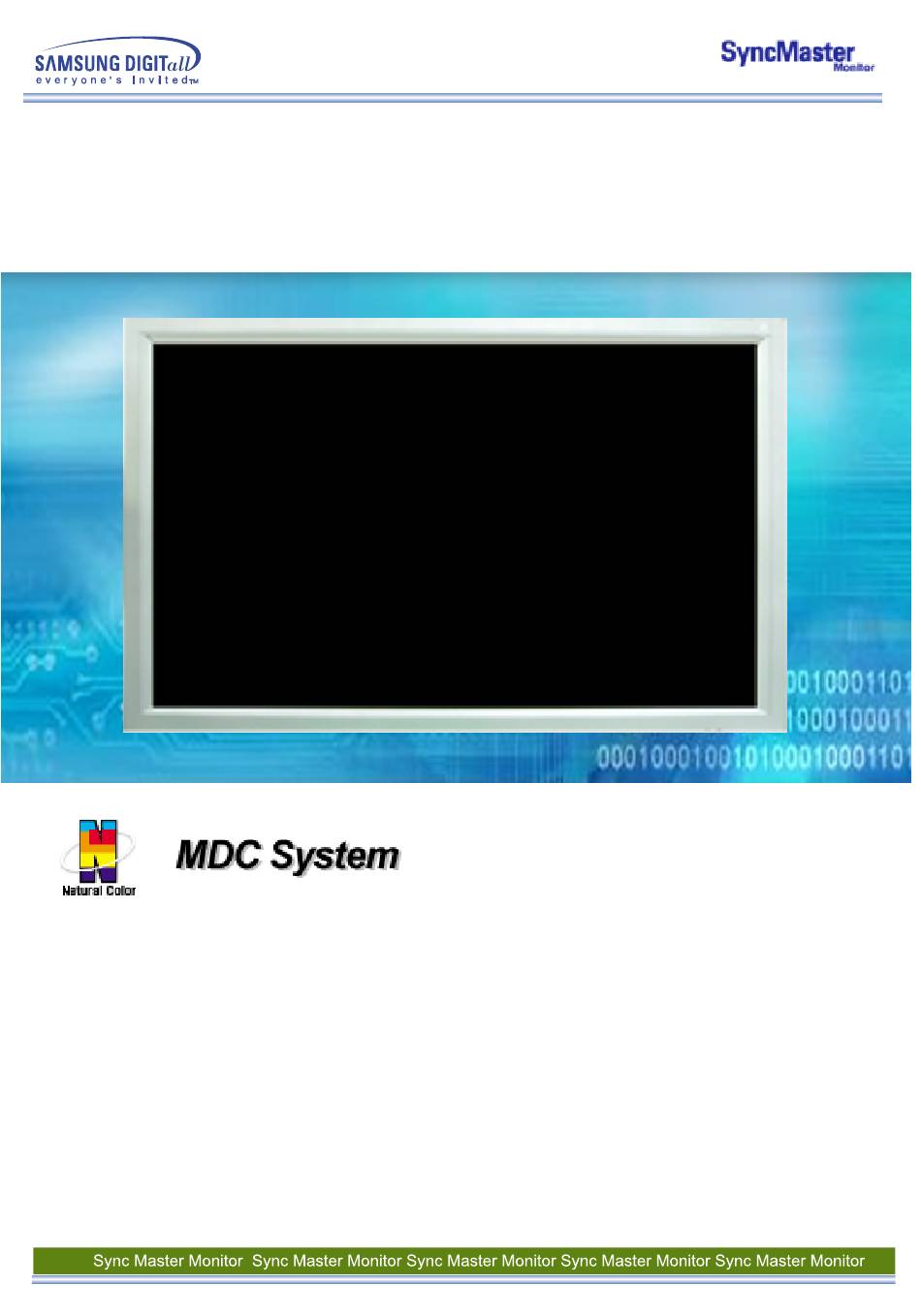

  • Page 1 SyncMaster 323T,403T...
  • Page 2 INDEX Adjusting Your LCD Monitor Main Page User control buttons OSD Functions Safety Instructions Notational Troubleshooting Power Check before Calling for Service Installation Problems and Solutions Cleaning Q & A Other Introduction Specifications Unpacking General Specifications Front PowerSaver Rear Preset Timing Modes Remote Control Mechanical Lay-out Information...
  • Page 3 Notational Failure to follow directions noted by this symbol could result in bodily harm or damage to equipment. Prohibited Important to read and understand at all times Do not disassemble Disconnect the plug from the outlet Do not touch Grounding to prevent an electric shock...
  • Page 4 Power When not used for extended periods of time, set your PC to DPMS. If using a screen saver, set it to the active screen mode. Do not use a damaged or loose plug. This may cause an electric shock or fire. Do not pull the plug out by the wire nor touch the plug with wet hands.

  • Page 5: Installation

    Installation Do not cover the vents on the monitor cabinet. Bad ventilation may cause a breakdown or fire. Put your monitor in a location with low humidity and a minimum of dust. An electric shock or fire could result inside the monitor. Do not drop the monitor when moving it.
  • Page 6 Cleaning When cleaning the monitor case or the surface of the TFT-LCD, wipe with a slightly moistened, soft fabric. Do not spray detergent directly on the monitor. Use the recommended detergent with a smooth cloth. If the connector between the plug and the pin is dusty or dirty, clean it properly with a dry cloth.
  • Page 7 Other Do not remove cover(or back). No user serviceable parts inside. This may cause an electric shock or a fire. Refer servicing to qualified service personnel. If your monitor does not operate normally - in particular, if there are any unusual sounds or smells coming from it - unplug it immediately and contact an authorized dealer or service.
  • Page 8 RS232C CABLE Batteries (AAA X 2) Warranty Card User's Guide CD (Not available in all locations) Temporary Stand Sold separately Wall Mount KIT Speaker Set Stand Kit PIVOT Installation CD Contact a local Samsung Electronics service center to buy optional items.
  • Page 9 Front For detailed information concerning the monitor functions, refer to User Controls under Adjusting Your Monitor. The monitor's front configuration may vary slightly depending on the monitor model. 1. Auto button 6. Menu button 2. Source button 7. Power button 3.
  • Page 10 SyncMaster 403T Rear For detailed information concerning cable connections, refer to Connecting Cables under Setup. The monitor's rear configuration may vary slightly depending on the monitor model. Power On/Off Switch Power port EXTERNAL CONTROL (RS232C Serial PORT) : MDC(Multiple Device Control) Program Port PC Video Connection Terminal : Using D-Sub Cable (15 pin D-Sub) - RGB 1 mode (Analog PC) PC Video Connection Terminal...
  • Page 11 Rear PC Video Connection Terminal / Component Connection Terminal : BNC cable (Input) - RGB 3 (Analog PC) Connection : connecting B, G, R, H, V port - Component Connection : connecting Pb, Y, Pr port PC Video Loopout Connection Terminal (RGB 3 (Analog PC)) / Component Loopout Connection Terminal (Component) - BNC cable(Output) CVBS Video Connection Terminal : Video 1 mode (Input) CVBS Video Loopout Connection Terminal (Output)
  • Page 12 SyncMaster 323T Rear For detailed information concerning cable connections, refer to Connecting Cables under Setup. The monitor's rear configuration may vary slightly depending on the monitor model. Power On/Off Switch Power port EXTERNAL CONTROL (RS232C Serial PORT) : MDC(Multiple Device Control) Program Port...
  • Page 13 Rear PC Video Connection Terminal / Component Connection Terminal : BNC cable (Input) - RGB 3 (Analog PC) Connection : connecting B, G, R, H, V port - Component Connection : connecting Pb, Y, Pr port PC Video Loopout Connection Terminal (RGB 3 (Analog PC)) / Component Loopout Connection Terminal (Component) - BNC cable(Output) CVBS Video Connection Terminal : Video 1 mode (Input) CVBS Video Loopout Connection Terminal (Output)

  • Page 14: Remote Control

    Remote Control For detailed information of the Remote Control Unit functions, refer to Adjusting Your Monitor > User Controls > User Control Buttons > Remote Control buttons. The remote control's configuration may vary slightly depending on the monitor model. The Remote control may function within a range of 0.23 to 33 feet (7cm to 10m) and 30 degrees to the left and right of the monitor's Remote Control Reception sensor.

  • Page 15: Mechanical Layout

    SyncMaster 403T Mechanical Lay-out 1. Mechanical Lay-out 2. Monitor Head...
  • Page 16 Mechanical Lay-out 3. Stand 4. Speaker...
  • Page 17 Mechanical Lay-out 5. Mounting Bracket...
  • Page 18 SyncMaster 323T Mechanical Lay-out 1. Mechanical Lay-out 2. Monitor Head...
  • Page 19 Mechanical Lay-out 3. Stand 4. Speaker...
  • Page 20 Mechanical Lay-out 5. Mounting Bracket...
