3. SETUP AND CONNECTIONS

3-8. Remote Control RF Antenna Connection

ANT IN
CABLE IN
OUT TO TV
The DIRECTV ® HD Receiver can be used with the supplied remote control RF (radio frequency) antenna and
remote control that allow you to control your receiver from outside a cabinet or from another room within your
home.

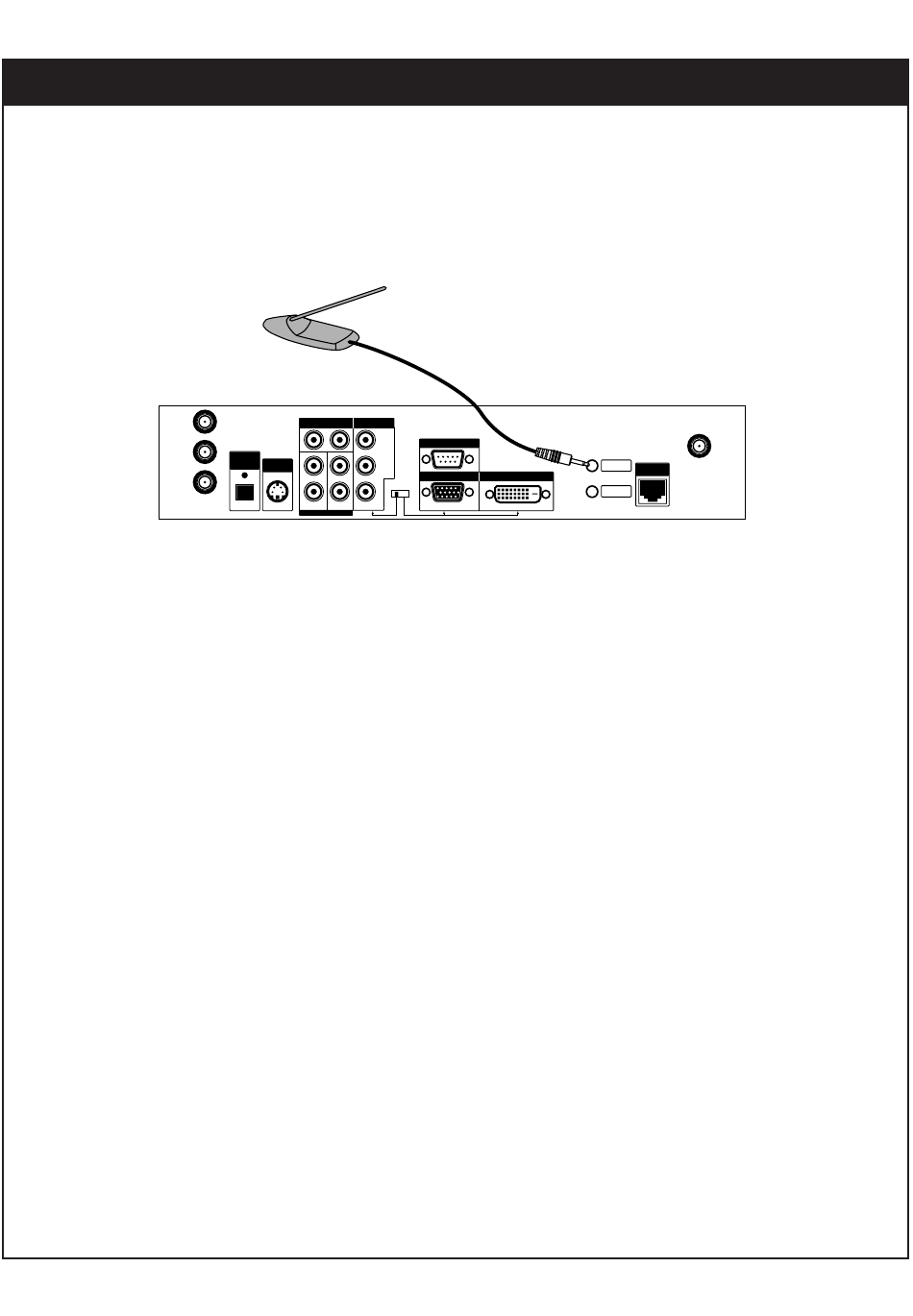

RF Antenna connection
1. Plug the remote control RF cable into the RF REMOTE connector on the DIRECTV Receiver rear panel.
2. Extend the cable and place the antenna in the desired location
To achieve the best operating range from the remote control, position the antenna as high and as far away
from metal objects as possible.
3. Before using the Remote Control RF Antenna, the Remote Control Setup menu must be set to "RF Type" (see
section 8-24).
Note : Do not place the RF antenna directly on top of the DIRECTV HD Receiver or any other metal object. For
best results, place the RF antenna in a visible location.
35
Remote Control RF Antenna
COMPONENT OUT
VIDEO OUT
(1080i i /720p/480p/480i i )
1 2
Y
DIGITAL
AUDIO
S VIDEO
OUT
OUT
Pb
L1 L2
TYPE
R1 R2 Pr
OPTICAL
AUDIO OUT
DATA PORT
RGB OUT DVI-HDTV OUT
CONTROL
(1080i/720p/480p) (1080i/720p/480p) (1080i i /720p/480p/480i i )
RF SATELLITE
PHONE IN
REMOTE
JACK
VCR
