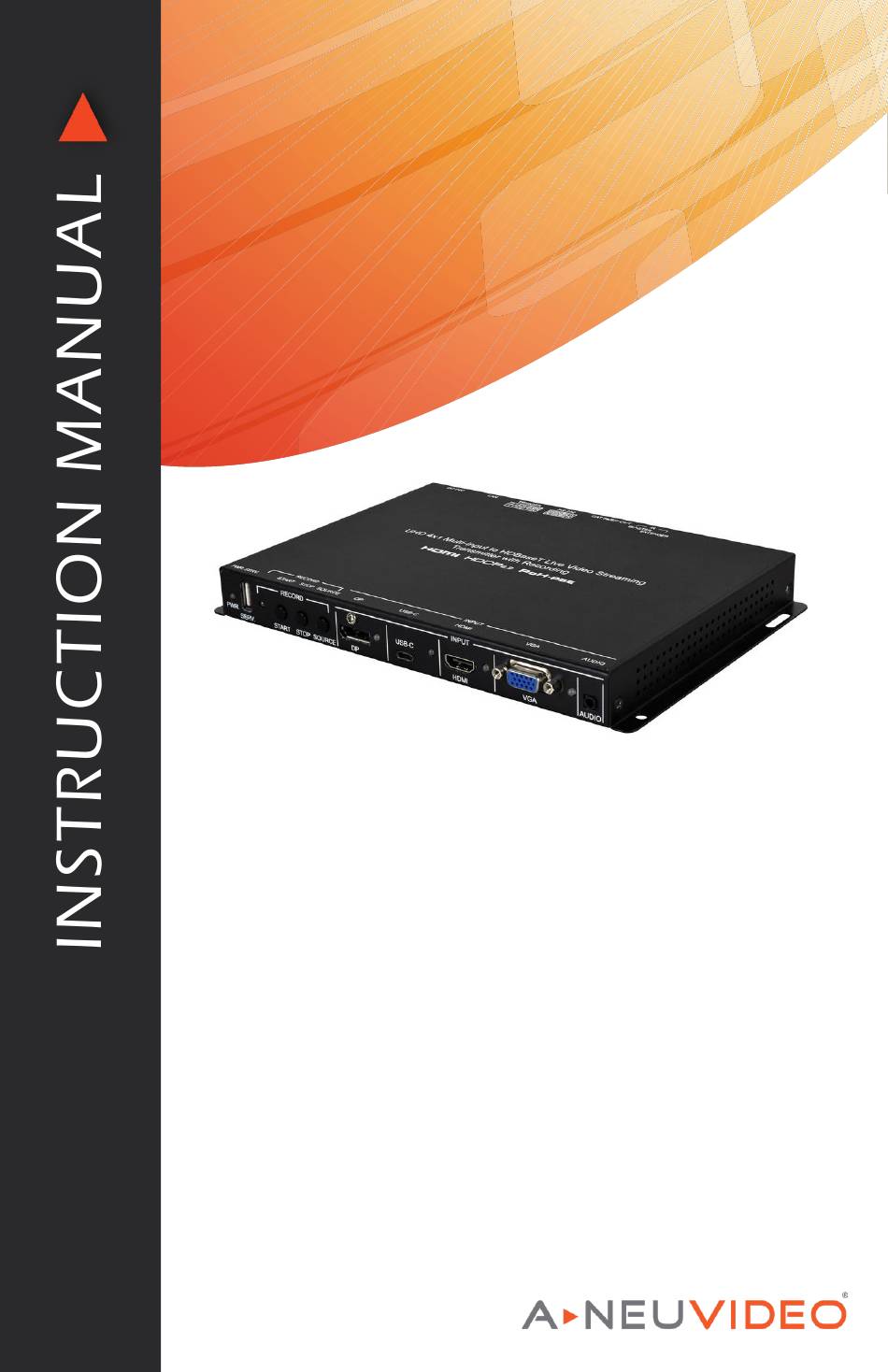

- Page 1 ANI-41STREAM 4x1 Multi-Input to HDBT Live Video Streaming Transmitter w/ Recording AUDIO / VIDEO MANUFACTURER A-NeuVideo.com Frisco, Texas 75036...
- Page 2 SAFETY INFORMATION 1. To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. 2. Follow all instructions printed on unit chassis for proper operation. 3.
- Page 3 NEUVIDEO SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. •...
-
Page 4: Table Of Contents
HDBASET™ FEATURES.........................39 INTRODUCTION The ANI-41STREAM Video Streaming Transmitter with Recording makes online broadcasting of live video, with a locally stored archive, an easy and simple process. Video sources from cameras, PCs, video game consoles, etc. are a breeze to connect for immediate broadcast and recording. -
Page 5: Package Contents / Applications / System Requirements
Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton: • ANI-41STREAM 4x1 Multi-Input to HDBT Live Video Streaming Transmitter w/ Recording • 24V/3.75A DC Power Adapter • AC Power Cord •... -
Page 6: Features
FEATURES • (4) inputs (HDMI, DisplayPort, USB-C, and VGA) • (1) HDBaseT™ output • Digital inputs are HDCP 1.x and HDCP 2.2 compliant Note: HDCP encrypted sources cannot be streamed over the Internet or recorded and will be blacked out •... -
Page 7: Specifications
SPECIFICATIONS • HDMI Bandwidth: 10.2Gbps • DisplayPort Bandwidth: 10.2Gbps • USB-C Bandwidth: 10.2Gbps • VGA Bandwidth: 165MHz • HDBaseT™ Bandwidth: 10.2Gbps • Input Ports: • HDMI (Type-A) • DisplayPort • USB (Type-C) • VGA (HD-15) • Analog Stereo (3.5mm) • Output Port: HDBaseT™ (RJ-45) •... -
Page 8: Operation Controls & Functions
OPERATION CONTROLS & FUNCTIONS Front Panel q PWR. LED: This LED will illuminate to indicate the unit is on and receiving power. w SERV. Port: Attach a standard USB thumb drive or external hard drive for storage of recorded video. (Optional) Note: Storage media must be formatted as FAT32 or exFAT. - Page 9 OPERATION CONTROLS & FUNCTIONS Rear PaneL q IR EXTENDER PORT: Connect to an IR Extender to receive IR control signals and extend them to devices connected to the other end of the HDBaseT™ connection. Ensure that the remote being used is within direct line-of-sight of the IR Extender. IR BLASTER PORT: Connect to an IR Blaster to transmit IR signals from the other end of the HDBaseT™...
-
Page 10: Rs-232 Pinout & Defaults
IR Cable Pinouts / RS-232 Pinout & Defaults IR Cable Pinouts RS-232 Pinout & Defaults Serial Port Default Settings (Unit Control) Baud Rate 19200 Data Bits Parity Bits None Stop Bits 1 Flow Control None RS-232 PORT 1 (UNIT CONTROL) RS-232 PORT 2 (BYPASS) -
Page 11: Webgui Control
WebGUI Control Device Discovery Please obtain the “Device Discovery” software from your authorized dealer and save it in a directory where you can easily find it. Connect the unit and your PC/Laptop to the same active network and execute the “Device Discovery”... - Page 12 WebGUI Control On the left side of the browser you will see the following menu tabs where all primary functions of the unit are controllable via the built in WebGUI. The individual functions will be introduced in the following sections. Clicking the red “Logout”...
- Page 13 WebGUI Control 1. Source Select: Select the video input (DisplayPort, USB-C, HDMI or VGA) to stream. Note: Changing the input here will change it globally across the unit. 2. Video Codec: Indicates the video codec used for the video stream. Note: Currently, only H.264 is supported.
- Page 14 WebGUI Control 3. Video Switch: To assign a new video route, please click the output button and then click on the button of the preferred input port to route. As you select each button they will change their color to orange.
- Page 15 WebGUI Control EDID Setting Tab This tab provides the option of four standard EDIDs, one sink sourced EDID and four customer uploaded EDIDs that can be assigned to the digital input ports. The names of the four customer uploaded EDIDs can changed if desired. Note: The EDID used by the VGA port is fixed, and cannot be changed.
- Page 16 WebGUI Control This unit provides the following 4 default EDIDs: Unit’s Default EDIDs FHD 2CH 1920x1080p@60Hz (4.95Gbps) & 8-bit color, LPCM 2.0 FHD MCH 1920x1080p@60Hz (4.95Gbps) & 8-bit color, LPCM 7.1 & Bitstream 4K UHD 2CH 3840x2160p@30Hz (10.2Gbps) & Deep Color (8/10/12-bit), LPCM 2.0 4K UHD MCH 3840x2160p@30Hz (10.2Gbps) &...
- Page 17 WebGUI Control 1. Record: Enable or disable recording the channel 1 video stream. When enabled, recording will begin immediately to the selected storage location. Note: HDCP encrypted sources cannot be recorded. 2. Storage: Use the drop-down to select the storage target to use when recording. Available choices are: Auto, USB (USB storage), NFS (NFS based network storage), and CIFS (CIFS based network storage).
- Page 18 WebGUI Control Note: The target folder on the CIFS server must, at a minimum, provide read, write and delete permissions for the designated user. • Username/Password: Enter the user name and password required for access to the specified server. After entering both items, press the “Save” button. 9.
- Page 19 WebGUI Control 2. Time Configuration: • Date & Time: The unit’s time and date can be manually configured here if an internet connection, or NTP server is not available. Click on the calendar icon ( ) to open the time and date configuration screen and select the preferred values.
- Page 20 WebGUI Control AVAILABLE TRIGGER ACTIONS Transmitter Video Mute Off Transmitter Record Start Transmitter Record Stop Transmitter Follow Output EDID User Config Tab The WebGUI and Telnet username/password are set on this page. Two management levels are available: “Administrator” and “General User”. The administrator username (“admin”) cannot be changed.
- Page 21 WebGUI Control 4. Restore Configuration: Previously saved system configurations may be restored from a saved XML file. Click the “Choose File” button to locate the saved XML file, then click the “Restore” button. 5. Reset to Default: Press the “ALL Reset” button to reset the unit to its factory default state. After the reset is complete, the unit will reboot automatically.
-
Page 22: Telnet Control
Telnet Control Before attempting to use Telnet control, please ensure that both the unit and the PC/laptop are connected to the same active network. To Access Telnet Windows 7 Click START, type “cmd” in the search field and press ENTER. Windows 10 1. - Page 23 Serial & Telnet Commands COMMAND DESCRIPTION AND PARAMETERS HELP Show the full command list. ? Show the full command list. SET FACTORY DEFAULT Reset the unit to the factory defaults. SET FACTORY IPCONFIG Reset the unit’s network settings to the factory defaults. DEFAULT ...
- Page 24 Serial & Telnet Commands COMMAND DESCRIPTION AND PARAMETERS Set the IP address assignment mode. SET IP MODE N1 Available values for N1: 0 [Static IP] 1 [DHCP] GET IP MODE Show the current IP address assignment mode. GET IPCONFIG Show the unit’s current IP configuration information.
- Page 25 Serial & Telnet Commands COMMAND DESCRIPTION AND PARAMETERS Show the current name of the specified input. GET IN N1 NAME Available values for N1: 1 [DisplayPort input] 2 [USB-C input] 3 [HDMI input] 4 [VGA input] GET IN NAME LIST List the names of all inputs on the unit.
- Page 26 Serial & Telnet Commands COMMAND DESCRIPTION GET IN N1 VACTIVE Show the vertical active pixel value of the specified input’s current video source. Available values for N1: 1 [DisplayPort input] 2 [USB-C input] 3 [HDMI input] 4 [VGA input] GET IN N1 REFRESH RATE Show the refresh rate of the specified input’s current video source.
- Page 27 Serial & Telnet Commands COMMAND DESCRIPTION GET IN N1 UNI TIMING Show the index number of the current resolution detected on the specified input. (Universal index number) Available values for N1: 1 [DisplayPort input] 2 [USB-C input] 3 [HDMI input] 4 [VGA input] GET IN N1 TYPE LIST ...
- Page 28 Serial & Telnet Commands COMMAND DESCRIPTION GET OUT A HDCP ABILITY Show the HDCP compliance level of the display device connected to the specified output. GET IN N1 HDCP ABILITY Show the HDCP compliance level of the source connected to the specified input.
- Page 29 Serial & Telnet Commands COMMAND DESCRIPTION GET OUT BANNER FONT List all available font colors for the OSD banner. COLOR LIST SET OUT A BANNER FONT Set the text transparency level for the OSD banner. TRANSPARENCY LEVEL N1 = 1~8 [Transparency level] N1 ...
- Page 30 Serial & Telnet Commands COMMAND DESCRIPTION SET ALL IN EDID MODE Select the EDID management mode to use (All or Appoint) for all N1 inputs. Available values for N1: ON [All mode] OFF [Appoint mode] GET ALL IN EDID MODE Show the current EDID management mode used by all inputs.
- Page 31 Serial & Telnet Commands COMMAND DESCRIPTION GET ALL IN EDID Show the current EDID used by the “All” EDID mode. GET SINK A EDID INFO Show English readable details from the EDID of the display connected to the output. SET IN N1 EDID N2 ...
- Page 32 Serial & Telnet Commands COMMAND DESCRIPTION SET USER N1 EDID DATA Upload a new EDID (in hex format) for use as the specified User N2 EDID. Available values for N1: 1~4 [User EDID number] N2 = {EDID data} [Comma delimited hex pairs] GET USER N1 EDID DATA ...
- Page 33 Serial & Telnet Commands COMMAND DESCRIPTION GET SCHEDULE RECORD Show the current state of scheduled recording support. MODE SET RECORD Set the resolution to use when recording (streaming channel 1). RESOLUTION N1 Available values for N1: 320x240 [QVGA] 640x480 [VGA] 1920x720...
-
Page 34: Connection Diagram
CONNECTION DIAGRAM... -
Page 35: Video Specifications
Video Specifications Video Inputs INPUT SUPPORTED RESOLUTIONS (HZ) HDMI USB-C 320x240@25/30/50/60 720x400p@70/85 640x480p@25/30/50 640x480p@60/72/75/85 720x480i@60 720x480p@60 720x576i@50 720x576p@50 800x600p@56/60/72/75/85 848x480p@60 ... - Page 36 Video Specifications INPUT SUPPORTED RESOLUTIONS (HZ) HDMI USB-C 1920x1080p@50/60 1920x1200p@60RB 2560x1440p@60RB 2560x1600p@60RB 2048x1080p@24/25/30 2048x1080p@50/60 3840x2160p@24/25/30 3840x2160p@50/60 (4:2:0) 3840x2160p@24, HDR10 3840x2160p@50/60 (4:2:0), HDR10 3840x2160p@50/60 ...
- Page 37 Video Specifications Video Outputs OUTPUT SUPPORTED RESOLUTIONS (HZ) HDBASET™ H.264 STREAM 320x240@25/30/50/60 720x400p@70/85 640x480p@25/30/50 640x480p@60/72/75/85 720x480i@60 720x480p@60 720x576i@50 720x576p@50 800x600p@56/60/72/75/85 848x480p@60 1024x768p@60/70/75/85 1152x864p@75 1280x720p@25/30 ...
- Page 38 Video Specifications OUTPUT SUPPORTED RESOLUTIONS (HZ) HDBASET™ H.264 STREAM 1920x1080p@50/60 1920x1200p@60RB 2560x1440p@60RB 2560x1600p@60RB 2048x1080p@24/25/30 2048x1080p@50/60 3840x2160p@24/25/30 3840x2160p@50/60 (4:2:0) 3840x2160p@24, HDR10 3840x2160p@50/60 (4:2:0), HDR10 3840x2160p@50/60 4096x2160p@24/25/30 4096x2160p@50/60 (4:2:0) 4096x2160p@24, HDR10 4096x2160p@50/60 (4:2:0), HDR10 4096x2160p@50/60...
-
Page 39: Audio Specifications
Audio Specifications Digital Audio HDMI, DISPLAYPORT, USB-C INPUT / HDBASET™ OUTPUT LPCM Max Channels 8 Channels Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 BITSTREAM (HDBASET™ BYPASS ONLY) Supported Formats Standard & High-Definition STREAMING OUTPUT LPCM Max Channels 2 Channels Sampling Rate (kHz) 44.1, 48... -
Page 40: Cable Specifications
Cable Specifications 1080P 4K30 4K60 CABLE LENGTH 8-BIT 12-BIT (4:4:4) 8-BIT (4:4:4) 8-BIT High Speed HDMI Cable HDMI Input DisplayPort Cable DisplayPort Input USB-C Cable USB-C Input VGA Cable VGA Input Ethernet Cable CAT5e/6 CAT6A/7 Bandwidth Category Examples: 1080p (FHD Video) •... -
Page 41: Hdbaset™ Features
HDBaseT™ Features HDBASET™ FEATURE SET TRANSMITTER Video & Audio Extension Supported LAN Extension Unsupported Send power to Receiver Supported (PoH) Accept power from Receiver Unsupported IR Extension Supported RS-232 Extension Supported USB 2.0 Extension Unsupported... - Page 42 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 43 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 44 THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-NeuVideo, Inc. at the return address set forth on the Product’s packing label at your expense.
