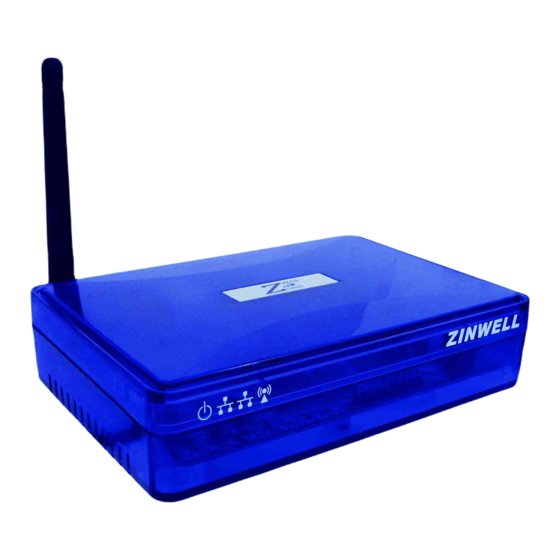

- Page 1 Wireless LAN Device Series Multi-Mode AP ZWA-G220 User’s Manual Version. 1.4.3b (2007.07.31)
-
Page 2: Table Of Contents
TABLE OF CONTENTS NOTICE ..............................3 PREFACE ......................錯誤! 尚未定義書籤。 CH 1. ZWA-G220 INSTALLATION....................6 ............................6 ACKING .........................6 ACK PANEL CONNECTIONS ........................7 ARDWARE NSTALLATION CH 2. FIRST TIME CONFIGURATION ....................8 ......................8 EFORE TART TO ONFIGURE ....................8 NOWING THE ETWORK PPLICATION ..........................28 ASIC ETTINGS .........................31... - Page 3 ........................60 ANDWIDTH ONTROL S (Q ).......................60 UALITY OF ERVICE .........................64 TATIC OUTE ETUP ........................65 YNAMIC OUTE ETUP VPN P ..........................66 THROUGH CLI M ..........................66 SING ......................68 YSTEM ANAGEMENT SNMP A ............................68 GENT ........................71 ISCELLANEOUS ETTINGS ..........................72 ATCH .............................73 IMING ........................74 ONNECTING ROFILE .........................75...
-
Page 4: Notice
Notice FCC Warning Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions：... - Page 5 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 6 CE Statement Hereby, ZINWELL, declares that this device is in compliance with the essential requirement and other relevant provisions of the R&TTE Directive 1999/5/EC. This device will be sold in the following EEA countries：Austria, Italy, Belgium, Liechtenstein, Denmark, Luxembourg, Finland, Netherlands, France, Norway,...
-
Page 7: 1. Zwa-G220 Installation
Ch 1. ZWA-G220 Installation Packing List Before you start to install the device, make sure the package contains the following items： ● ZWA-G220 Multi-Mode AP unit * 1 ● Power Adapter * 1 ● RJ-45 Cable * 1 Multi-Mode AP... -
Page 8: Hardware Installation
5V and 2A WAN/LAN: This port could be WAN or LAN port depending on the configuration. It will be WAN port in router mode and LAN port in bridge mode. LAN: This port is always LAN in ZW-220. In Bridge mode, it bridges to WLAN and “WAN/LAN”... -
Page 9: 2. First Time Configuration
Ch 2. First Time Configuration Before Start to Configure There are two ways to configure the device, one is through web-browser, and the other is through Secure Shell CLI interface. To access the configuration interfaces, make sure you are using a computer connected to the same network as the device. - Page 10 device can act as AP/Client/WDS. The operation mode is about the communication mechanism between the wired Ethernet NIC and wireless NIC, the following is the types of operation mode. Router The wired Ethernet (WAN) port is used to connect with ADSL/Cable modem and the wireless NIC is used for your private WLAN.
- Page 11 WDS (Wireless Distribution System) This mode combines up to 8 AP to a single wireless network; the device forwards the packets to another AP with WDS function. When this mode is selected, all the wireless clients can’t survey and connect to the device. The device only allows the WDS connection.
- Page 12 Examples of Configuration This example demonstrates how to set up a network with different device configurations. There are 2 DHCP servers (DEV1/DEV4) in the network to control the IP configuration of 2 domains (192.168.2.x/192.168.3.x). Once the setting is done, all the PCs can visit Internet through DEV1. We assume all the devices keep the factory default setting.
- Page 13 Press “Next>>” button then set the “Operation Mode” to “Router” mode. Press “Next>>” button then disable “Time Zone” function. Press “Next>>” button then set the IP address of LAN interface. Press “Next>>” button then select the “PPPoE” for “WAN Access Type” and fill in the “User Name”...
- Page 14 Press “Next>>” button then select the “AP+WDS” for “mode” and change the SSID to “DEV1”. Press “Next>>” button then select “None” for “Encryption” then press “Finished” button. 10. Wait for refreshing web page. 11. Use “WDS Settings” page to configure WDS.
- Page 15 12. Enable WDS function and add the BSSID of DEV2 to “Current WDS AP List”. 13. Since we access the device by wireless connection, it may temporarily disconnect when applying the WDS setting. After re-connecting to the device, use the “Status” page to check the settings.
- Page 16 Configure DEV2: Access the web server (http://192.168.2.254) of device from the Ethernet port. Caution If you configure multiple devices in the same PC, since the devices have the same default IP address but different MAC addresses, it may cause you not able to access the web server of device. If the situation happens, please try to clean the ARP table of your PC by DOS command “arp –d”...
- Page 17 Press “Next>>” button then set the IP address of LAN interface. Press “Next>>” button then select the “AP+WDS” for “mode” and change the SSID to “DEV2”. Press “Next>>” button then select “None” for “Encryption” then press “Finished” button. Wait for refreshing web page.
- Page 18 Access the web server by new IP address “192.168.2.202” then use “LAN Interface” page to disable DHCP Server. 10. Wait for refreshing web page. 11. Use “WDS Settings” page to configure WDS.
- Page 19 12. Enable WDS function and add the BSSID of DEV1 to “Current WDS AP List”. 13. Use the “Status” page to check the settings.
- Page 20 Configure DEV3: Access the web server (http://192.168.2.254) of device from the Ethernet port. Caution If you configure multiple devices in the same PC, since the devices have the same default IP address but different MAC addresses, it may cause you not able to access the web server of device. If the situation happens, please try to clean the ARP table of your PC by DOS command “arp –d”...
- Page 21 Access the web server by new IP address “192.168.2.203” then use “Basic Settings” page to change SSID and CHANNEL. Use the “Status” page to check the settings.
- Page 22 Configure DEV4: Access the web server (http://192.168.2.254) of device from the Ethernet port. Caution If you configure multiple devices in the same PC, since the devices have the same default IP address but different MAC addresses, it may cause you unable to access the web server of device. If the situation happens, please try to clean the ARP table of your PC by DOS command “arp –d”...
- Page 23 Press “Next>>” button then set the IP address of LAN interface. Press “Next>>” button then select the “DHCP Client” for “WAN Access Type”. Press “Next>>” button then select the “Client” for “mode” and change the SSID to “DEV4”. Press “Next>>” button then select “None” for “Encryption” then press “Finished”...
- Page 24 Wait for refreshing web page. 10. Change the IP address of your PC to 192.168.3.x then access the web server by the new IP address “192.168.3.1” and use “Status” page check the setting. 11. If the “State” of “Wireless Configuration” is not “Connected” or you want to refresh the “RSSI “, please use “Site Survey”...
- Page 25 Configure DEV5: Access the web server (http://192.168.2.254) of device from the Ethernet port. Caution If you configure multiple devices in the same PC, since the devices have the same default IP address but different MAC addresses, it may cause you unable to access the web server of device. If the situation happens, please try to clean the ARP table of your PC by DOS command “arp –d”...
- Page 26 Press “Next>>” button then set the IP address of LAN interface. Press “Next>>” button then select the “Client” for “mode” and change the SSID to “DEV5”. Press “Next>>” button then select “None” for “Encryption” then press “Finished” button. Wait for refreshing web page.
- Page 27 Access the web server by the new IP address “192.168.2.205” and use “LAN Interface” page to disable DHCP Server. 10. Wait for refreshing webpage. 11. Use “State” page to check setting.
- Page 28 12. If the “State” of “Wireless Configuration” is not “Connected” or you want to refresh the “RSSI “, please use “Site Survey” page to re-connect a...
-
Page 29: Basic Settings
Basic Settings Disable Wireless LAN Interface Disable the wireless interface of device Band: The device supports 2.4GHz(B), 2.4GHz(G) and 2.4GHz(B+G) mixed modes. Mode: The radio of device supports different modes as following: 1. AP The radio of device acts as an Access Point to serves all wireless clients to join a wireless local network. - Page 30 Infrastructure: This type requires the presence of 802.11b/g Access Point. All communication is done via the Access Point. Ethernet AP Client #1 AP Client #2 Ad Hoc: This type provides a peer-to-peer communication between wireless stations. All the communication is done from Client to Client without any Access Point involved.
- Page 31 Channel Number The following table is the available frequencies (in MHz) for the 2.4-GHz radio: Channel No. Frequency Country Domain 2412 Americas, EMEA, Japan, and China 2417 Americas, EMEA, Japan, and China 2422 Americas, EMEA, Japan, Israel, and China 2427 Americas, EMEA, Japan, Israel, and China 2432 Americas, EMEA, Japan, Israel, and China...
-
Page 32: Advanced Settings
Advanced Settings These settings are only for more technically advanced users who have sufficient knowledge about wireless LAN. These settings should not be changed unless you know what effect the changes will have on your device. The default setting is optimized for the normal operation. For specific application, setting configuration will required highly attention to reach optimistic condition. - Page 33 RTS Threshold The RTS threshold determines the packet size at which the radio issues a request to send (RTS) before sending the packet. A low RTS Threshold setting can be useful in areas where many client devices are associating with the device, or in areas where the clients are far apart and can detect only the device and not each other.
- Page 34 SSID in your client settings. IAPP (Inter-Access Point Protocol) This function will let Wireless Stations roam among a network environment with multiple devices. Wireless Stations are able to switch from one device to another as they move between the coverage areas. Users can have more wireless working range.
-
Page 35: Configuring Wireless Security
Configuring Wireless Security This device provides complete wireless security function include WEP, 802.1x, WPA-TKIP, WPA2-AES and WPA2-Mixed in different mode (see the Security Support Table). The default security setting of the encryption function is disabled. Choose your preferred security setting depending on what security function you need. WEP Encryption Setting Wired Equivalent Privacy (WEP) is implemented in this device to prevent unauthorized access to your wireless network. - Page 36 64-bit WEP Encryption：64-bit WEP keys are as same as the encryption method of 40-bit WEP. You can input 10 hexadecimal digits (0~9, a~f or A~F) or 5 ACSII chars. 128-bit WEP Encryption ： 128-bit WEP keys are as same as the encryption method of 104-bit WEP.
- Page 37 WPA Encryption Setting WPA feature provides a high level of assurance for end-users and administrators that their data will remain private and access to their network restricted to authorized users. You can choose the WPA encryption and select the Authentication Mode. WPA Authentication Mode This device supports two WPA modes.
-
Page 38: Configuring As Wlan Client Adapter
Configuring as WLAN Client Adapter This device can be configured as a wireless Ethernet adapter. In this mode, the device can connect to the other wireless stations (Ad-Hoc network type) or Access Point (Infrastructure network type) and you don’t need to install any driver. - Page 39 The alternative way to configure as following: Step 1. In “Wireless Site Survey” page, select one of the SSIDs you want to connect and then press “Connect” button to establish the link. Step 2. If the linking is established successfully. It will show the message “Connect successfully”.
-
Page 40: Mac Clone For Single Ethernet Client
Note ： If the available network requires authentication and data encryption, you need to setup the authentication and encryption before step1 and all the settings must be as same as the Access Point or Station. About the detail authentication and data encryption settings, please refer the security section. Authentication Type In client mode, the device also supports two Authentication Types “Open system”...
