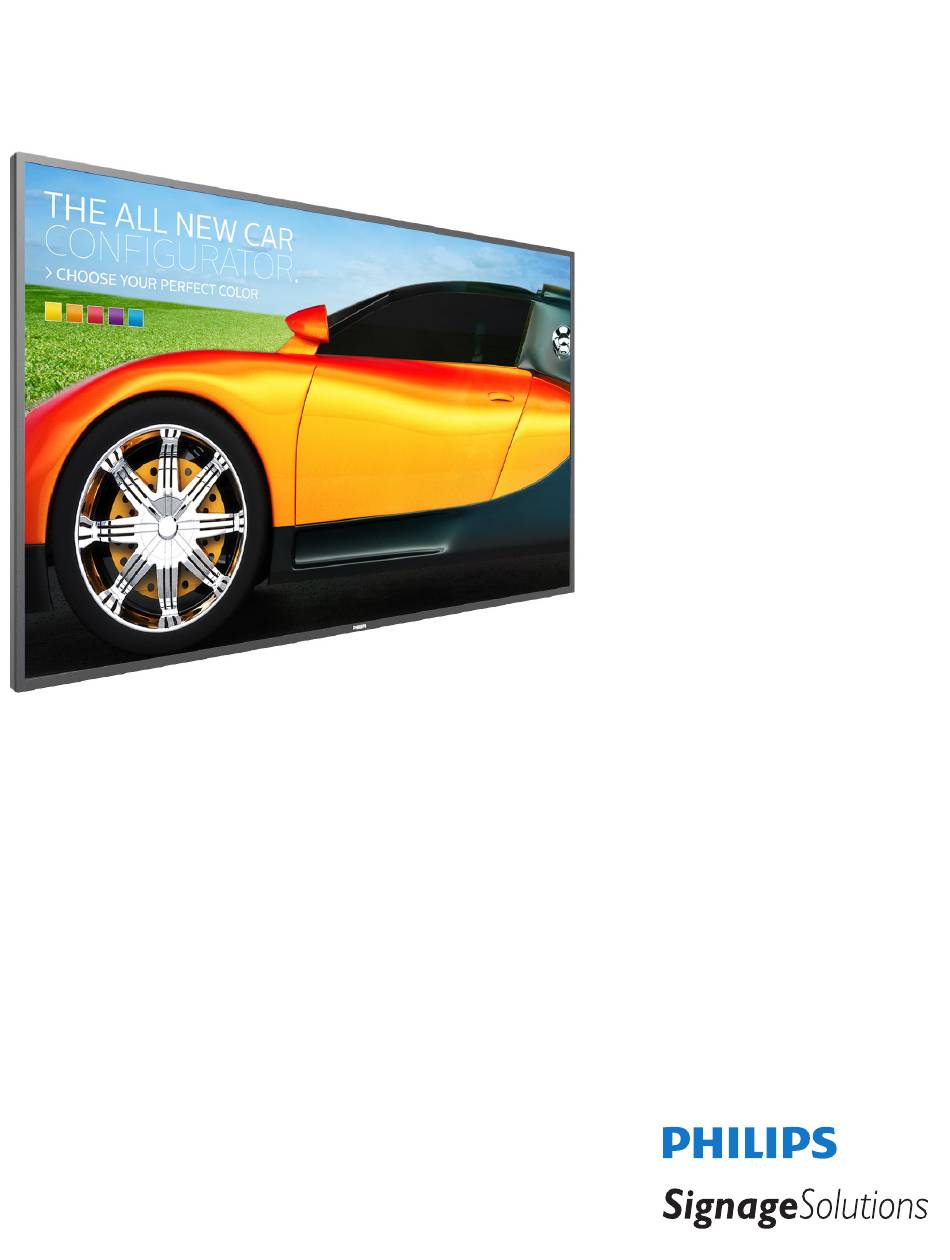

- Page 1 32BDL3010Q V1.00 www.philips.com/welcome User Manual (English)
- Page 2 Safety Instructions • To avoid the risk of shock or permanent damage to the set do not expose the display to rain or excessive moisture. • When positioning the display, make sure the power plug and outlet are Warnings and Precautions easily accessible.
- Page 3 Important Safety Instructions WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation 1. Read these instructions. instructions. 2. Keep these instructions. WARNING: The Class I apparatus shall be connected to a mains socket 3.
- Page 4 IMPORTANT INFORMATION Federal Communications Commission (FCC) Notice (U.S. Only) If a television is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, Note: This equipment has been tested and found to can be avoided by taking simple precautions such as: comply with the limits for a Class A digital •...
- Page 5 If the fitted plug is not suitable for your socket outlets, it should be cut off and an appropriate 3-pin plug fitted in its place. If the mains plug contains a fuse, this should have a value of 5A. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 5A.
- Page 6 China RoHS 根据中国大陆 《电子电气产品有害物质限制使用标识要求》 ， 以下部分 仅适用于非热带气候条件下安全使用 : 列出了本产品中可能包含的有害物质的名称和含量。 汉 文 仅适用于非热带气候条件下安全使用。 有害物质 蒙古文 六价铬 多溴 多溴二 零部件名称 铅 汞 镉 藏 文 联苯 苯醚 (Pb) (Hg) (Cd) (VI)) (PBB) (PBDE) 维 文 外壳 ○ ○ ○ ○ ○ ○ Dan hab yungh youq gij dienheiq diuzgen mbouj dwg 壮...
- Page 7 For more information End-of-Life Disposal about E -waste please visit http://www.india.philips. com/about/sustainability/recycling/index.page Your new Public Information Display contains materials that can be and to know where you can drop off your waste recycled and reused.
- Page 8 Após o uso, as pilhas e/ou baterias deverão ser entregues ao estabelecimento comercial ou rede de assistência técnica autorizada. Turkey RoHS: Türkiye Cumhuriyeti: EEE Yönetmeliğine Uygundur Ukraine RoHS: Обладнання відповідає вимогам Технічного регламенту щодо обмеження використання деяких небезпечних речовин в електричному та...
-
Page 9: Table Of Contents
Table Of Contents Unpacking and Installation ............1 1.1. Unpacking ..................1 1.2. Package Contents ................1 1.3. Installation Notes .................1 1.4. Mounting on a Wall ..............2 Parts and Functions ..............3 2.1. Control Panel .................3 2.2. Input/Output Terminals .............4 2.3. Using the remote sensor and power indicator ..6 2.4. -
Page 10: Unpacking And Installation
Unpacking and Installation 1.1. Unpacking • This product is packed in a carton, together with the standard accessories. • Any other optional accessories will be packed separately. • Due to the size and weight of this display it is recommended for two people to move it. •... -
Page 11: Mounting On A Wall
1.4. Mounting on a Wall To mount this display on a wall, a standard wall-mounting kit (commercially available) is required. It is recommended that you use a mounting interface that complied with TUV-GS and /or UL1678 standard in North America. Protective Sheet VESA Grid Table... -
Page 12: Parts And Functions
Parts and Functions 2.1. Control Panel MUTE INPUT MENU [ ] button Remote control sensor and power status indicator Turn the display On or turn the display to standby mode. • Receives command signals from the remote control. • Indicates the operating status of the display without OPS: [MUTE] button - Lights green when the display is turned On Mute the sound or reactivate sound. -
Page 13: Input/Output Terminals
2.2. Input/Output Terminals USB 2.0 RJ45 PC LINE IN AUDIO OUT IR-OUT IR-IN RS232 OUT RS232 IN HDMI 2 IN HDMI 1 IN DVI-I AC IN SECURITY LOCK AC power input from the wall outlet. Used for protecting the product from stealing. MAIN POWER SWITCH Switch the main power between on and off. - Page 14 2.2.1. Inserting the batteries in the remote control The remote control is powered by two 1.5V AAA batteries. To install or replace the batteries: 1. Press and then slide the cover to open it. 2. Insert the batteries with the correct polarity (+) and (-). 3.
-
Page 15: Using The Remote Sensor And Power Indicator
2.3. Using the remote sensor and power indicator 1. Push down the lens to have better remote control performance and make it easy to observe the power status. 2. Pull up the lens before mounting the display for video wall application. 3. -
Page 16: Usb Cover
2.4. USB Cover • Use the USB cover and screws to cover the USB stick and Micro SD card. USB 2.0 RJ45 • Maximum USB stick size recommended: USB: 20(W)x10(H)x60(L) mm... -
Page 17: Remote Control
2.5. Remote Control [ ][ ][ ]NAVIGATION buttons Navigate through the menus and select an item. 2.5.1. General functions ] button Confirm an entry or selection. [ ] ADJUST button Go to Auto Adjust OSD for VGA only. ] MUTE button Sound mute on or off. - Page 18 2.5.2. ID Remote Control Press the [ID] button and the red LED blinks twice. 1. Press the [ID SET] button for more than 1 second to enter the ID Set remote control ID number when using several displays. mode. The red LED lights up. Press the [ID SET] button again to exit from the ID mode.
-
Page 19: Connecting External Equipment
Connecting External Equipment 3.1. Connecting External Equipment (DVD/VCR/VCD) 3.1.1. Using HDMI video input DVD / VCR / VCD HDMI Out HDMI 2 IN HDMI 1 IN [HDMI IN] 3.2. Connecting a PC 3.2.1. Using DVI input RJ45 [AUDIO IN] Audio Out PC LINE IN AUDIO OUT DVI Out... -
Page 20: Connecting Audio Equipment
3.3. Connecting Audio Equipment 3.3.1. Connecting an external audio device [AUDIO OUT] Audio In AUDIO OUT Stereo Amplifier 3.4. Connecting Multiple Displays in a Daisy-chain Configuration You can interconnect multiple displays to create a daisy-chain configuration for applications such as a menu board. 3.4.1. -
Page 21: Ir Connection
3.5. IR connection External IR Receiver DISPLAY 1 DISPLAY 2 [IR IN] [IR IN] [IR OUT] DISPLAY 1 DISPLAY 2 [RS-232C OUT] [RS-232C IN] NOTES: 1. The remote control sensor of this display will stop working if the [IR IN] is connected. 2. -
Page 22: Operation
Operation 1 / 2 NOTE: The control button described in this section is mainly on the remote control unless specified otherwise. 4.1. Play multimedia files from USB device Return aaa1 aaa2 aaa3 1. Connect your USB device to the USB port on the display. xxx1 xxx2 xxx3... -
Page 23: Osd Menu
OSD Menu 5.2. OSD Menu Overview An overview of the On-Screen Display (OSD) structure is shown 5.2.1. Picture below. You can use it as a reference for further adjustment of your display. PICTURE Picture Mode Standard 5.1. Navigating the OSD Menu AUDIO Brightness TILING... - Page 24 Zoom mode Maximum volume VGA/DVI-I/HDMI1/HDMI2: {Full} / {4:3} / {Real} / {16:9}. Adjust your own limitation for the maximum volume setting. This stops USB: {Full} / {4:3} / {16:9} the volume at the sound level you set. Zoom Mode will be “Full” when tiling. Minimum volume Adjust your own limitation for the minimum volume setting.
- Page 25 5.2.4. Network Example: 5 x 5 screen matrix (25 displays) H monitors = 5 displays V monitors = 5 displays PICTURE DHCP H monitors IP address AUDIO TILING Netmask NETWORK Gateway Position OPTION DHCP Frame comp. Select how this display should assign address to the network resource. Turn the frame compensation function On or Off.
- Page 26 Failover 7: User-defined setting. Default:HDMI 1. Schedule Date and time Schedule 1 Status Set the current date and time for the display’s internal clock. Schedule 2 Source HDMI1 NOTES: Schedule 3 On Time -- : -- Schedule 4 Off Time -- : -- The definition and behavior of the Daylight saving time: Schedule 5...
- Page 27 Network control port. Select from: {RS232} / {LAN}. Boot on source Select the input source when booting. Input: select the input source when booting. No failover function, the system will keep the source even the source has no signal input. Monitor information Show information about your display, including Input source, Resolution, Model name, SW version, Serial number and MAC address.
-
Page 28: Supported Media Formats
Supported Media Formats USB Multimedia Formats Video format Video Codec Resolution Bit Rate MPEG1/2 1080P@30fps 40Mbps H.264 1080P@30fps 50Mbps WMV3 1080P@30fps 40Mbps Motion JPEG 640x480@30fps 40Mbps Audio format Audio Codec Sampling Rate: Channel Bit Rate MPEG1/2 Layer1 16KHz~48KHz Up to 2 32Kbps~448Kbps MPEG1/2 Layer2 16KHz~48KHz... -
Page 29: Input Mode
Input Mode Timing support: Item Resolution H.Freq. (KHz) V.Freq. (Hz) 720×400 @70Hz DOS 31.469 70.087 640×480 @60Hz DMT 31.469 59.94 640×480 @67Hz MAC 66.667 640×480 @72Hz DMT 37.861 72.809 640×480 @75Hz DMT 37.5 800×600 @56Hz DMT 35.156 56.25 800×600 @60Hz DMT 37.879 60.317 800×600 @72Hz DMT... -
Page 30: Cleaning And Troubleshooting
Cleaning and Troubleshooting 8.1. Cleaning Caution When Using the Display • Do not bring your hands, face or objects close to the ventilation holes of the display. The top of the display is usually very hot due to the high temperature of exhaust air being released through the ventilation holes. -
Page 31: Troubleshooting
8.2. Troubleshooting Symptom Possible Cause Remedy No picture is displayed 1. The power cord is disconnected. 1. Plug in the power cord. 2. The main power switch on the back of the 2. Make sure that the power switch is switched display is not switched on. - Page 32 How to setup the settings in the menu to Daisy chained by RS232 and no IR cable 1. The first display sets as “Primary” on OSD control all the monitors at the same time and (Advanced option/IR control item), others set as individually via RC? “Secondary”.
-
Page 33: Technical Specifications
Technical Specifications Display: Item Specifications Screen Size (Active Area) 800 mm / 31.5 inch Aspect Ratio 16:9 Number of pixels 1920 (H) x 1080 (V) Pixel pitch 0.36375 (H) x 0.36375 (V) [mm] Displayable colors 8 bit, 16.7M colors Brightness (typical) 350 cd/m Contrast ratio (typical) 1200:1... - Page 34 Environmental Condition: Item Specifications Temperature Operational 0 ~ 35°C Storage -20 ~ 60°C Humidity Operational 20 ~ 80% RH (No condensation) Storage 5 ~ 95% RH (No condensation) Altitude Operational 0 ~ 3,000 m Storage / Shipment 0 ~ 9,000 m...
