Honeywell W8600B Installation Instructions

APPLICATION
The W8600F Air Cleaner Monitor is an option available for
use with the F50F and F52F Honeywell Electronic Air
Cleaners (EAC). The series two F50F and F52F require a
solid state power supply that is compatible with the
W8600F driver board. Any series one F50E, F or F52F
can be upgraded to use the W8600F when the power
supply is replaced and the driver board (included in
W8600F kit) is installed.
The W8600F function indicator panel has four liquid crystal
display (LCD) arrowheads that point to ON, BATTERY,
SERVICE or FAULT. See Fig. 1. The arrowheads darken
to indicate the existing EAC condition. See Table 1.
INSTALLATION
When Installing this Product..
1. Read these instructions carefully. Failure to follow
the instructions could damage the product or cause
a hazardous condition.
2. Check the ratings given in the instructions and on
the product to make sure the product is suitable for
your application
3. Installer must be a trained, experienced service
technician.
4. After completing the installation, use these instruc-
tions to check out the product operation.
Location
The styling of the W8600F is designed to blend with the
latest T8600 family of Honeywell Chronotherm® IV Deluxe
Programmable Thermostats. A special mounting template
is included for mounting next to the T8600. The W8600F
can also be mounted at any other convenient location in
the living area or equipment room. See Fig. 2.
NOTE: The W8600F shares no common electrical
connections with the thermostat.
®U.S. Registered Trademark
Copyright © 1998 Honeywell Inc. • All Rights Reserved
Air Cleaner Monitor
INSTALLATION INSTRUCTIONS
ON
BATTERY
SERVICE
FAULT
Air Cleaner Monitor

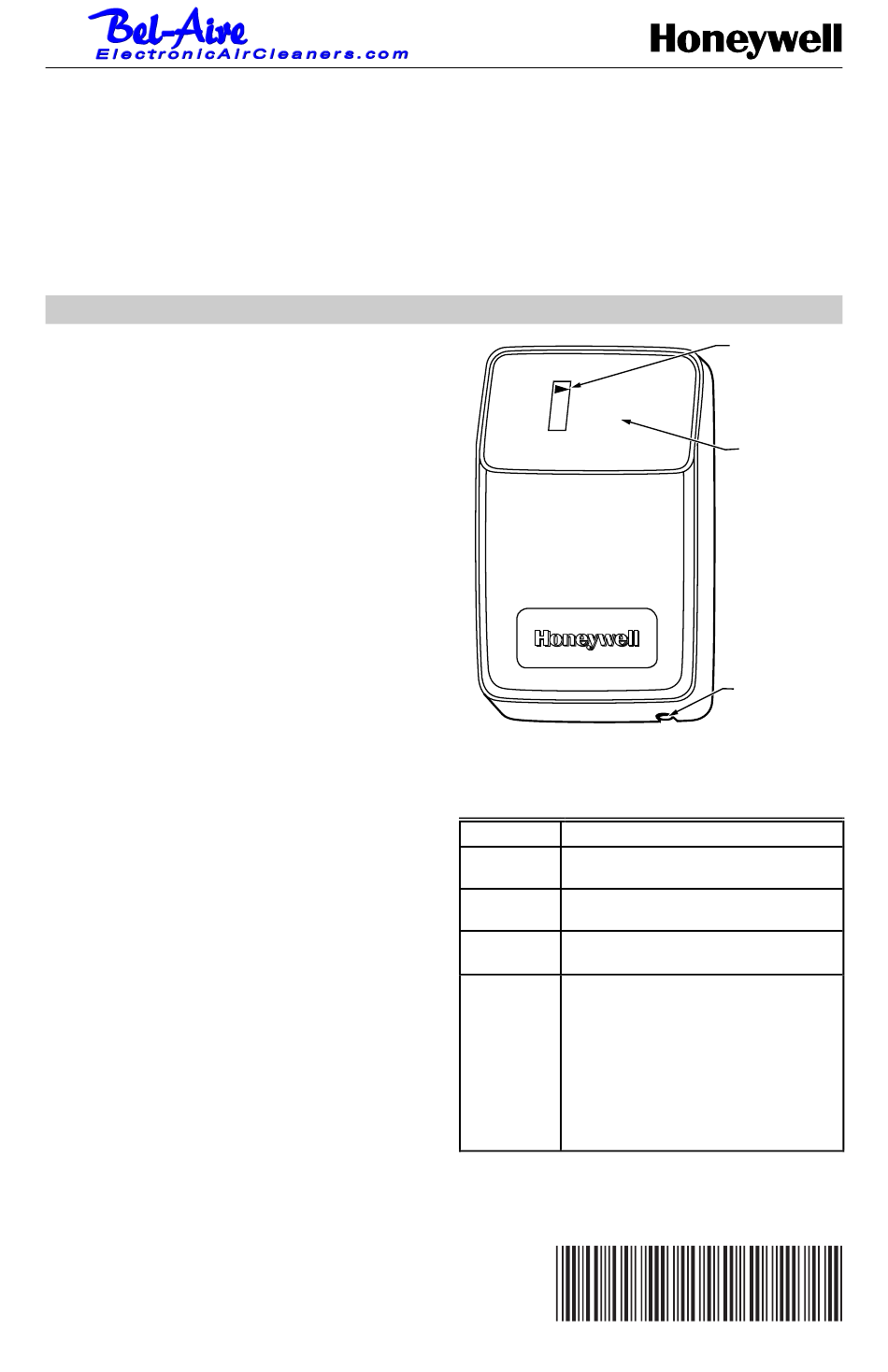

Fig. 1. W8600F Air Cleaner Monitor features.
Table 1.Description of W8600F
Function Indicator Panel.
Indicators
ON EAC is powered and system blower is
running.
BATTERY Battery that maintains W8600F memory
is low and needs to be replaced.
SERVICE EAC prefilter and cells need to be
a .
washed
FAULT • Shorting of collector plates.
• Continuous ionizer or collector plate
arcing.
• Power supply failure.
• Excessive current.
• Major reduction in high voltage.
• EAC prefilter and cells are past
SERVICE level of dirt and need to be
washed immediately.
Call a service technician.
a
The reset button is located on the bottom of W8600F.
After the prefilters and cells are cleaned and reinstalled,
press this button to turn off the SERVICE indicator and
reset the wash frequency timer.
X-XX UL
W8600F
LCD
FUNCTION
INDICATOR
PANEL
RESET BUTTON
M11965
Condition
