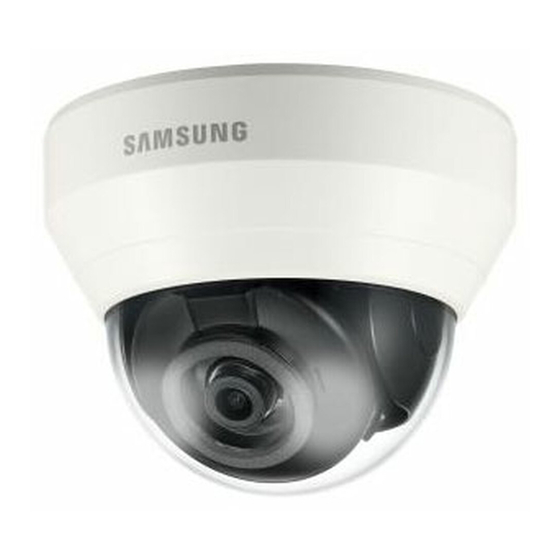

- Page 1 NETWORK CAMERA SND-L6013/SND-L6013R/ SNO-L6013R/SND-L6083R/ User Manual SNO-L6083R/SNV-L6083R...
- Page 2 Disclaimer Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user’s own responsibility.
-
Page 3: Important Safety Instructions
overview important Safety inStructionS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings, Install in accordance with the manufacturer’s instructions. -
Page 4: Explanation Of Graphical Symbols
overview warninG TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS ON THE EQUIPMENT. Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus. - Page 5 Battery Batteries(battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like. Disconnection Device Disconnect the main plug from the apparatus, if it’s defected. And please call a repair man in your location. when used outside of the u.S., it may be used Har code with fittings of an approved agency is employed.
- Page 6 overview Please read the following recommended safety precautions carefully. y Do not place this apparatus on an uneven surface. y Do not install on a surface where it is exposed to direct sunlight, near heating equipment or heavy cold area. y Do not place this apparatus near conductive material.
- Page 7 Product Features Recommended PC Specifications Recommended Micro SD/SDHC Memory Card Specifications NAS recommended specs What’s Included At a Glance (SND-L6013) At a Glance (SND-L6013R) At a Glance (SND-L6083R) At a Glance (SNO-L6013R) At a Glance (SNO-L6083R) At a Glance (SNV-L6083R) iNSTALLATioN &...
-
Page 8: Web Viewer
overview NeTwoRk CoNNeCTioN Buttons used in IP Installer AND SeTup Static IP Setup Dynamic IP Setup Port Range Forward (Port Mapping) Setup Connecting to the Camera from a Shared Local PC Connecting to the Camera from a Remote PC via the Internet web vieweR Connecting to the Camera Password setting... -
Page 9: Product Features
proDuct featureS • Dustproof/waterproof (ip66) (Sno-L6013r/Sno-L6083r/Snv-L6083r) The dustproof and waterproof design makes you feel at ease when installing the product outdoors or exposing it to rain. • ir mode (SnD-L6013r/Sno-L6013r/SnD-L6083r/Sno-L6083r/Snv-L6083r) If the IR indicator turns on, the product switches to the IR mode for preventing an object from being too bright, which helps you identify the object in near distance. -
Page 10: Recommended Pc Specifications
overview recommenDeD pc SpecificationS • CPU : Intel Core 2 Duo 2.4 GHz or higher (for using 1920x1080 30 fps) Web Plug-in is optimized to SSE 4.1 Instruction Set. • Resolution : 1280X1024 pixels or higher (32 bit color) • RAM : 2GB or higher •... - Page 11 recommenDeD micro SD/SDHc memory carD SpecificationS • Recommended capacity : 4GB ~ 32GB • For your camera, we recommend you use a memory card from the following manufacturers: Micro SD/SDHC Memory Card : Sandisk, Transcend • Memory cards with a specification of Class 10 + UHS-1 or higher are recommended. naS recommenDeD SpecS •...
-
Page 12: What's Included
Please check if your camera and accessories are all included in the product package. Appearance Item Name Quantity Description Model Name SND-L6013 or SND-L6013R or SNO-L6013R or Camera SND-L6083R or SNO-L6083R or SNV-L6083R SND-L6013/ SND-L6013R/ Instruction book,... - Page 13 Appearance Item Name Quantity Description Model Name SND-L6013/ SND-L6013R/ Quick Guide SNO-L6013R/ (Optional) SND-L6083R/ SNO-L6083R/ SNV-L6083R SND-L6013/ SND-L6013R/ Warranty card SNO-L6013R/ (Optional) SND-L6083R/ SNO-L6083R/ SNV-L6083R SND-L6013/ SND-L6013R/ SNO-L6013R/ Template Product installation guide SND-L6083R/ SNO-L6083R/ SNV-L6083R SND-L6013/ SND-L6013R/ SND-L6083R Useful for installation on the Tapping Screw ceiling, wall, etc.
- Page 14 overview Appearance Item Name Quantity Description Model Name SNO-L6013R/ RJ45 waterproof accessory Used to install in humid places SNO-L6083R Used to control the direction of SNO-L6083R/ L Wrench the camera / Used to remove SNV-L6083R and replace the dome cover SNO-L6083R Card-type moisture Attached when installed.
- Page 15 GLance (SnD-L6013) appearance Item Description Dome cover Case cover used to protect the lens and the main unit. Camera Case Housing part that covers the camera body. English _15...
- Page 16 overview components RESET 16_ overview...
- Page 17 Item Description Internal Cover It is a cover to protect the main body. Lens Lens for the camera. The button restores all camera settings to the factory default. Press and hold for about 5 seconds to reboot the system. If you reset the camera, the network settings will be adjusted so that Reset Button DHCP can be enabled.
- Page 18 overview at a GLance (SnD-L6013r) appearance Item Description Dome cover Case cover used to protect the lens and the main unit. Camera Case Housing part that covers the camera body. 18_ overview...
- Page 19 components RESET English _19...
- Page 20 overview Item Description Internal Cover It is a cover to protect the main body. Illumination Sensor Detects incoming light to control the IR LED. IR LED These infrared LED’s are controlled by the illumination sensor. Lens Lens for the camera. The button restores all camera settings to the factory default.
