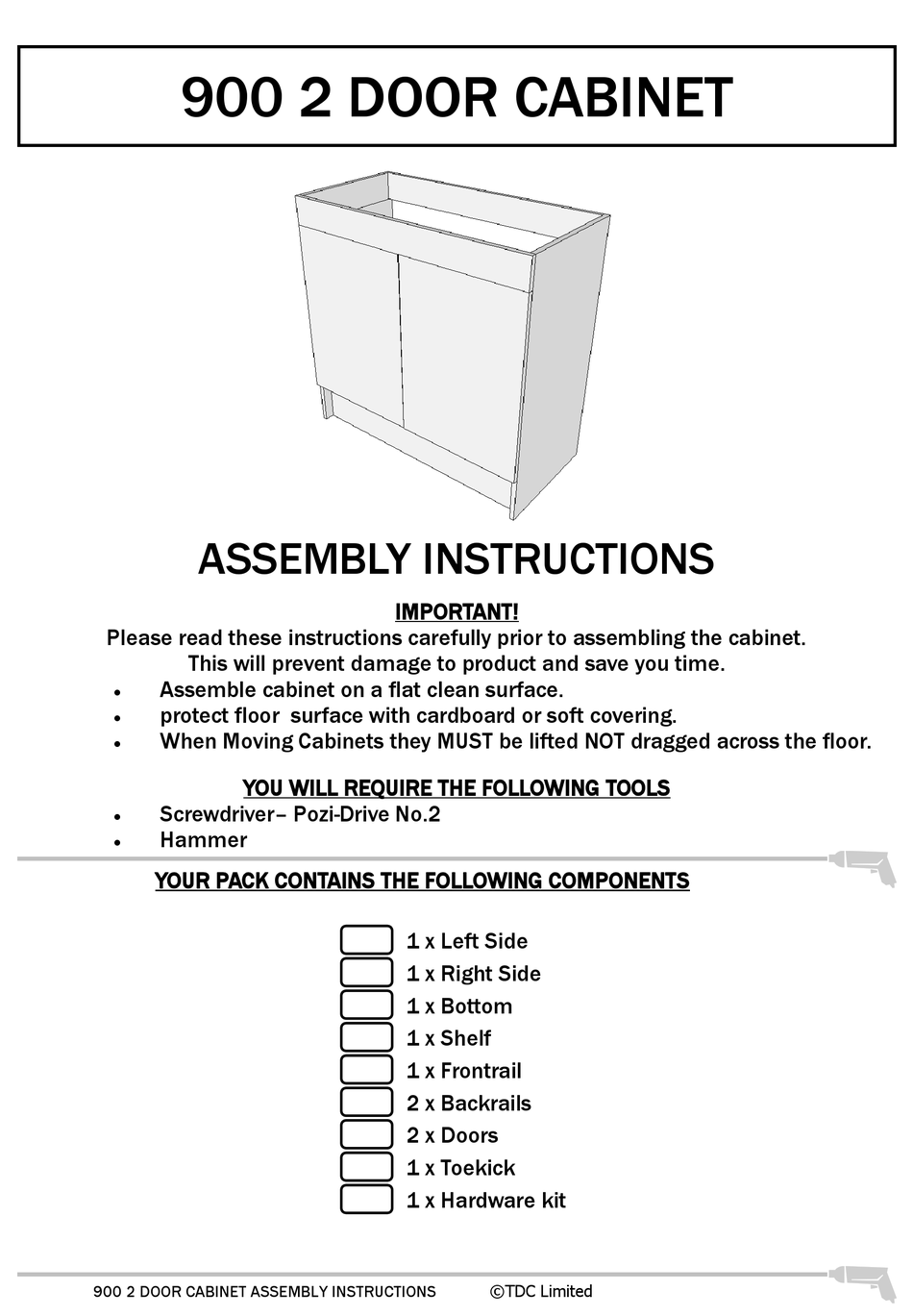

900 2 DOOR CABINET
ASSEMBLY INSTRUCTIONS
Please read these instructions carefully prior to assembling the cabinet.
This will prevent damage to product and save you time.
Assemble cabinet on a flat clean surface.
protect floor surface with cardboard or soft covering.
When Moving Cabinets they MUST be lifted NOT dragged across the floor.
YOU WILL REQUIRE THE FOLLOWING TOOLS
Screwdriver– Pozi-Drive No.2
Hammer
YOUR PACK CONTAINS THE FOLLOWING COMPONENTS
900 2 DOOR CABINET ASSEMBLY INSTRUCTIONS
IMPORTANT!
1 x Left Side
1 x Right Side
1 x Bottom
1 x Shelf
1 x Frontrail
2 x Backrails
2 x Doors
1 x Toekick
1 x Hardware kit
©TDC Limited
Advertisement
Summary of Contents for TDC 900
- Page 1 YOUR PACK CONTAINS THE FOLLOWING COMPONENTS 1 x Left Side 1 x Right Side 1 x Bottom 1 x Shelf 1 x Frontrail 2 x Backrails 2 x Doors 1 x Toekick 1 x Hardware kit ©TDC Limited 900 2 DOOR CABINET ASSEMBLY INSTRUCTIONS...
- Page 2 Place Cam Connectors into back rails and Floor Cam Connector : Arrow pointing outward Back Rails Fit Rafix CamStud to Front rail Use screw driver to screw stud in Rafix CamStud Front Rail ©TDC Limited 900 2 DOOR CABINET ASSEMBLY INSTRUCTIONS...
- Page 3 Turn cam clockwise to tighten Fit remaining side and tighten all cams : Check all Cam connectors twice to make sure they are tight. NOTE: Looking at the unit from the back ©TDC Limited 900 2 DOOR CABINET ASSEMBLY INSTRUCTIONS...
- Page 4 Place silicone around top edge of the cabinet Then carefully insert sink on top of cabinet TIP : Clean excess silicone off quickly with a clean cloth. Do not use your fingers ©TDC Limited 900 2 DOOR CABINET ASSEMBLY INSTRUCTIONS...
