Landmann LUMBERJACK Series Assembly And Use Instructions

Assembly and Use Instructions for Model:
82810
VER. 1, 7/17/2019
READ FIRST!
RULES FOR SAFE USE
• USE THE FIREWOOD RACK ONLY ON FLAT AND LEVEL
SURFACES.
• THE FIREWOOD RACK IS RECOMMENDED FOR USE ON
A HARD, STABLE SURFACE SUCH AS A CONCRETE PATIO
OR GRAVEL.
• CAUTION! IF USED ON AN UNSTABLE SURFACE, THE
FIREWOOD RACK MAY TIP OVER.
• CAUTION! DO NOT DROP OR SLAM WOOD IN THE
FIREWOOD RACK.
• CAUTION! DO NOT MOVE THE FIREWOOD RACK ONCE
WOOD HAS BEEN LOADED.
PARTS LIST
PART DESCRIPTION
A SIDE FRAME
B CURVED BOTTOM RAIL
C CROSS BAR
D M8 x 80MM BOLT
E FLAT WASHER
F M8 HEXNUT

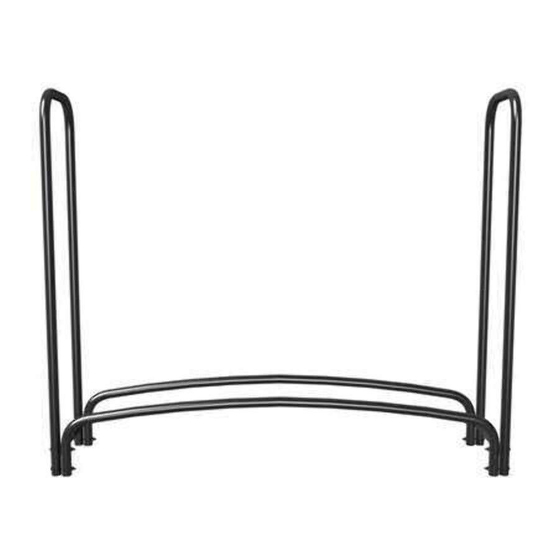

Thank you for your purchase of the Half Face Cord
Firewood Rack. At Landmann USA, we strive to provide
you with an easy to use, easy to assemble product.
Should you have questions, issues, a defective part or if
you have any questions concerning its use, please
contact us at: customerservice@landmann-usa.com
-OR-
1-800-321-3473 M-F 8-5 Eastern Time
Proof of purchase may be required.
®
QUANTITY
2
2
2
8
8
8
!
ASSEMBLY INSTRUCTIONS
For easiest assembly, follow the assembly steps in this order.
D E F
Assemble the side frames [ A ]
STEP
and (2) bottom rails [ B ] as shown
1
inserting a cross bar [ C ] between
each assembly point. Use (2)
80MM bolts [ D ], (2) flat washers
[ E ] and (2) hexnuts [ F ] at each
assembly point. Tighten bolts
securely.
WARNING: FUELS USED IN WOOD OR
CHARCOAL BURNING APPLIANCES, AND THE
PRODUCTS OF COMBUSTION OF SUCH FUELS,
CAN EXPOSE YOU TO CHEMICALS INCLUDING
CARBON BLACK, WHICH IS KNOWN TO THE
STATE OF CALIFORNIA TO CAUSE CANCER,
AND CARBON MONOXIDE, WHICH IS KNOWN
TO THE STATE OF CALIFORNIA TO CAUSE
BIRTH DEFECTS OR OTHER REPRODUCTIVE
HARM.
For more information go to:
www.P65Warnings.ca.gov
A Phillips screwdriver and an
adjustable wrench are needed
for assembly.
Assembly time: 15 minutes
B
DO NOT RETURN PRODUCT TO
THE STORE. IF YOU HAVE
TROUBLE WITH ASSEMBLY,
PLEASE CALL 1-800-321-3473
Please visit our website at:
www.landmann.com/us
Call customer service toll free at:
1-800-321-3473
Landmann® Limited
Distributed by Landmann® USA
Fairburn, GA 30213
www.landmann.com/us
© 2019 Landmann® USA
Landmann® and the Landmann
Firebird are registered trademarks of
Landmann USA. Lumberjack™ Series
A
C
QUESTIONS OR HAVE
FOR ASSISTANCE.
-OR-
Made in China
