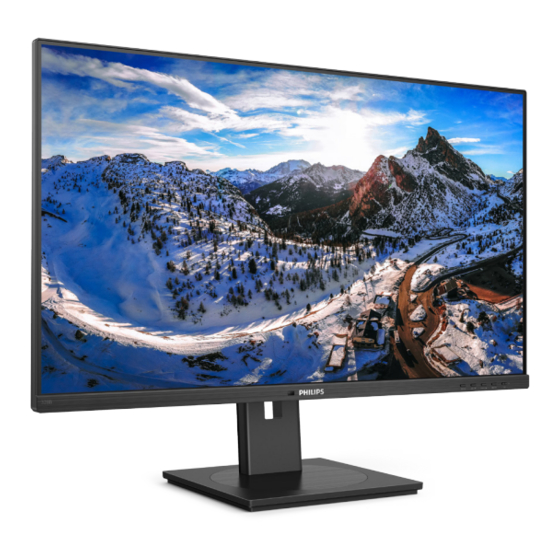

- Page 1 B Line 328B1 241B8 www.philips.com/welcome EN User manual Customer care and warranty 24 Troubleshooting & FAQs...
-
Page 2: Table Of Contents
7.1 Resolution & Preset Modes ... 22 8. Power Management ....23 9. Customer care and warranty . 24 9.1 Philips’ Flat Panel Displays Pixel Defect Policy ......24 9.2 Customer Care & Warranty ..27 10. Troubleshooting & FAQs ..28 10.1 Troubleshooting ......28... -
Page 3: Important
• Please use approved power cord provided by Philips at all times. If The Philips guarantee applies provided your power cord is missing, please the product is handled properly for contact your local service center. - Page 4 1. Important • Unplug the monitor if you need to known as “after-imaging” or “ghost clean it with a slightly damp cloth. imaging”, on your screen. The screen may be wiped with a • “Burn-in”, “after-imaging”, or dry cloth when the power is off. “ghost imaging”...
-
Page 5: Notational Descriptions
1. Important 1.2 Notational Descriptions The following subsections describe notational conventions used in this document. Notes, Cautions and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold or italic type. These blocks contain notes, cautions or warnings. -
Page 6: Disposal Of Product And Packing Material
From the planning, design and production stages, Philips emphasizes the important of making products that can easily be recycled. At Philips, end-of-life management primarily This marking on the product or on entails participation in national take-... -
Page 7: Setting Up The Monitor
This product has been manufactured by and is sold under the responsibility of Top Victory Investments Ltd., and Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license. - Page 8 2. Setting up the monitor Connecting to your PC your computer. 4. Plug the power cord of your Fast Charger computer and your monitor into a nearby outlet. 5. Turn on your computer and monitor. If the monitor displays an image, installation is complete.
- Page 9 The display must be powered ON at all times to be able to use this function. Some select Philips displays may not Power or Charge your device when it enters to “Sleep/Standyby” mode (White power LED blinking). In that case, please enter to OSD Menu and select “USB Standby Mode”, then,...
-
Page 10: Operating The Monitor
What is On-Screen Display (OSD)? Description of the control buttons On-Screen Display (OSD) is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance or select functions of the monitors directly through an on-screen instruction window. - Page 11 2. Setting up the monitor The OSD Menu Resolution notification Below is an overall view of the structure This monitor is designed for optimal of the On-Screen Display. You can use performance at its native resolution, this as a reference when you want to 3840 x 2160 When the monitor is work your way around the different powered on at a different resolution, an...
- Page 12 2. Setting up the monitor Height adjustment Physical Function Tilt 30° -5° 180mm Pivot Swivel +180° -180° 0° 0° -90° 90° Warning • To avoid potential screen damage, such as panel peeling, ensure that the monitor does not tilt downward by more than -5 degrees.
-
Page 13: Remove The Base Assembly For Vesa Mounting
2. Setting up the monitor Note 2.3 Remove the Base Assembly This monitor accepts a 100mm x 100mm for VESA Mounting VESA-Compliant mounting interface. Before you start disassembling the VESA Mounting Screw M4. Always display base, please follow the contact manufacturer for wall-mount instructions below to avoid any possible installation. -
Page 14: Image Optimization
There are multiple modes to select: in real time. Whether you're working EasyRead, Office, Photo, Movie, with text applications, displaying images Game, Economy, LowBlue Mode, or watching a video, Philips SmartImage SmartUniformity and Off. delivers great optimized display performance. ... - Page 15 LED displays can cause eye damage and affect vision over time. Developed for wellbeing, Philips LowBlue Mode setting uses a smart software technology to reduce harmful shortwave blue light. • SmartUniformity: Fluctuations in...
-
Page 16: Smartcontrast
3. Image Optimization 3.2 SmartContrast What is it? Unique technology that dynamically analyzes displayed content and automatically optimizes a Display's contrast ratio for maximum visual clarity and viewing enjoyment, stepping up backlighting for clearer, crisper and brighter images or dimming backlighting for clear display of images on dark backgrounds. -
Page 17: Powersensor
4. PowerSensor detection signal for distances up to 4. PowerSensor™ 120 cm or 47 inches. (Setting 4) • Since some dark colored clothing How does it work? tends to absorb infrared signals even when the user is within 100 cm • PowerSensor works on principle or 40 inches of the display, step up of transmission and reception of... - Page 18 4. PowerSensor monitor is returned to its default Landscape position. Note A manually selected PowerSensor mode will remain operational unless and until it is readjusted or the default mode is recalled. If you find that the PowerSensor is excessively sensitive to nearby motion for some reason, please adjust to a lower signal strength.
-
Page 19: Adaptive Sync
5. Adaptive Sync • AMD Radeon R9 290 5. Adaptive Sync • AMD Radeon R9 285 • AMD Radeon R7 260X • AMD Radeon R7 260 • Processor A-Series Desktop and Adaptive Sync Mobility APUs • AMD A10-7890K PC gaming has long been an imperfect •... -
Page 20: Designs To Prevent Computer Vision Syndrome (Cvs)
• Reposition your screen to computer vision appropriate height and angle syndrome (CVS) according to your height. 4. Choose Philips monitor for easy-on- eyes. Philips monitor is designed to prevent eye strain caused by prolonged • Anti-glare screen: Anti-glare computer use. -
Page 21: Technical Specifications
7. Technical Specifications 7. Technical Specifications Picture/Display Display Panel Type Backlight W-LED Panel Size 31.5" W (80 cm) Aspect Ratio 16:9 Pixel Pitch 0.18159(W) x 0.18159(H) Contrast ratio(typical) 3000:1 Optimum Resolution 3840 x 2160@60Hz Viewing Angle 178° (H) / 178° (V) @ C/R > 10 (Typ.) Display Colors 16.7M (8 bits) Flicker Free... - Page 22 7. Technical Specifications Power AC Input AC Input AC Input Consumption Voltage at Voltage at Voltage at 100VAC , 60Hz 115VAC , 60Hz 230VAC, 50Hz Normal Operation 60.8 W (typ.) 60.3 W (typ.) 60.2 W (typ.) Sleep (Standby mode) 0.3 W(typ.) 0.3 W(typ.) 0.3 W(typ.) Off mode...
- Page 23 Finish Texture Note 1. This data is subject to change without notice. Go to www.philips.com/support to download the latest version of leaflet. 2. SmartUniformity and Delta E information sheets are included in the box. 3. Power delivery function will base on laptop's capability.
-
Page 24: Resolution & Preset Modes
7. Technical Specifications For best display quality,please follow 7.1 Resolution & Preset Modes this resolution recommendation. Maximum Resolution 3840 x 2160 @ 60 Hz Recommended Resolution 3840 x 2160 @ 60 Hz H. freq Resolution V. freq (Hz) (kHz) 31.47 720 x 400 70.09 31.47... -
Page 25: Power Management
8. Power Management 8. Power Management If you have VESA DPM compliance display card or software installed in your PC, the display can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the display will 'wake up' automatically. -
Page 26: Customer Care And Warranty
Other combinations Pixel Defect Policy of lit and dark sub pixels appear as single pixels of other colors. Philips strives to deliver the highest quality products. We use some of the Types of Pixel Defects industry's most advanced manufacturing... - Page 27 Black Dot Defects the warranty period, a TFT Display panel Black dot defects appear as pixels or in a Philips flat panel display must have sub pixels that are always dark or 'off'. pixel or sub pixel defects exceeding the That is, a dark dot is a sub-pixel that tolerances listed in the following tables.
- Page 28 9. Customer care and warranty BRIGHT DOT DEFECTS ACCEPTABLE LEVEL 1 lit subpixel 2 adjacent lit subpixels 3 adjacent lit subpixels (one white pixel) Distance between two bright dot defects* >15mm Total bright dot defects of all types BLACK DOT DEFECTS ACCEPTABLE LEVEL 1 dark subpixel 5 or fewer...
-
Page 29: Customer Care & Warranty
Please contact our Philips Customer Service Representative or local contact center (by Consumer care number) for more details. Philips Customer Care Center number listed below. -
Page 30: Troubleshooting & Faqs
• Disconnect the monitor from mains No Picture (Power LED not lit) power source immediately for safety • Make sure the power cord is plugged • Contact with Philips customer service into the power outlet and into the representative immediately. back of the monitor. -
Page 31: General Faqs
For further assistance, refer to the Service "after-imaging" or "ghost imaging", contact information listed in Important on your screen. "Burn-in", "after- information manual and contact Philips imaging", or "ghost imaging" is a customer service representative. well-known phenomenon in LCD * Functionality different according to panel technology. - Page 32 • Shut down your computer, disconnect your old monitor and reconnect your How should I clean the LCD Philips LCD monitor. surface? • Turn on your monitor and then turn Ans.: For normal cleaning, use a clean, on your PC.
- Page 33 “ghost image” symptoms any PC, workstation or Mac? that will not disappear and cannot be repaired. The damage mentioned above Ans.: Yes. All Philips LCD monitors are is not covered under your warranty. fully compatible with standard PCs, Macs and workstations.
- Page 34 10. Troubleshooting & FAQs Q13: Where can I find Important Information manual mentioned in EDFU? Ans.: Important Information manual can be download on the Philips website support page.
- Page 35 This product has been manufactured by and is sold under the responsibility of Top Victory Investments Ltd., and Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are regis- tered trademarks of Koninklijke Philips N.V. and are used under license.
