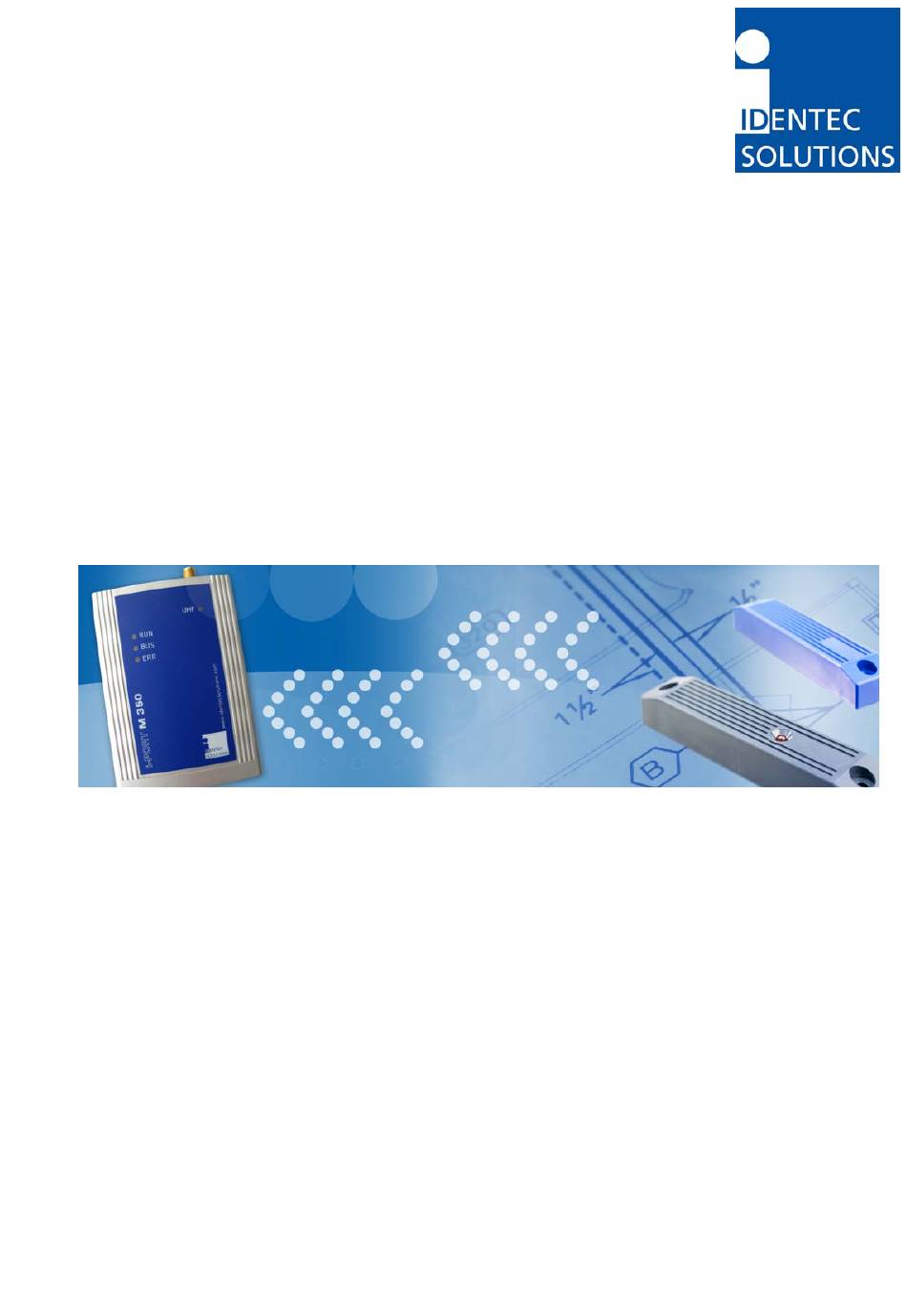

- Page 1 ILR 350 Series Installation and Operation Manual for Tag Models i-Q350, i-Q350T, i-Q350L, i-Q350TL...
- Page 2 Proprietary Notice This document contains confidential information proprietary to IDENTEC SOLUTIONS and may not be used or disclosed to other parties in whole or in part without prior written authorization from IDENTEC SOLUTIONS. Disclaimer and Limitation of Liability IDENTEC SOLUTIONS AG and its affiliates, subsidiaries, officers, directors, employees and agents provide the information contained in this Manual on an “as-is”...
- Page 3 The user(s) of these products are cautioned to only use accessories and peripherals approved, in advance, by IDENTEC SOLUTIONS. The use of accessories and peripherals, other than those approved by IDENTEC SOLUTIONS, or any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
-
Page 4: Table Of Contents
Installation and Operation Manual Contents INTRODUCTION ......................5 ......................5 REPARATIONS .................... 5 ECOMMENDED ROCEDURE ..................... 5 COPE OF THIS OCUMENT ......................5 ESPONSIBILITY ....................5 SSOCIATED OCUMENTS —V ................5 COPE OF ELIVERY ISUAL NSPECTION SAFETY PRECAUTIONS ....................6 TAG MOUNTING TECHNIQUES ..................7 ........................ -
Page 5: Introduction
Check delivery whether it is complete and for any damages. If the delivery is not complete or damaged immediately inform the carrier. The dispatch and service organization of IDENTEC SOLUTIONS should also be informed to facilitate the repair or exchange of the system. -
Page 6: Safety Precautions
Spare Parts We recommend that only original products, spare and replacement parts authorized by IDENTEC SOLUTIONS be used for installation, service and repair. Otherwise IDENTEC SOLUTIONS does not accept any responsibility for materials used, work carried out or possible consequences. -
Page 7: Tag Mounting Techniques
i-Q350TL Tag Manual Tag Mounting Techniques Rivets 3/16” dia. blind rivet (M5) Important Information A temperature of at least +10 °C (+50 °F) must be maintained during riveting to prevent the casing from cracking. Always position the blind-rivet gun straight down on the rivet site and all the way to the rivet socket. On occasion, a tag casing has been damaged through improper handling of the blind-rivet gun (slanted positioning of the gun to access the rivet socket). -
Page 8: Screws
Installation and Operation Manual Screws i.e. #10 cylinder head or lenticular head screws i.e. 3/16” hexagonal locknut with 3/16” washer 3/16” hexagonal nut, but together with spring washer or 3/16” Nordlock washer Important Information Only screws with cylindrical heads are suitable for mounting the tag. We do not advise using counter- sunk screws. -
Page 9: Maintenance
Parts or main components returned for repair or exchange must be handled with great care. PC cards must be returned in the appropriate ESD-protecting packaging material. All returns should include a completed returns form (see appendix) and be sent to the local distributor or to: IDENTEC SOLUTIONS AG Service Department Millenium Park 2... -
Page 10: Technical Data
Installation and Operation Manual Technical Data Operating Data Operating frequency ILR-RFID 868 MHz (EU) or 920 MHz (NA), further frequencies on request Maximum transmission power 0.75mW (EU / NA) Compatibility i-PORT M 350, i-CARD CF-350 Standards/Certification FCC Part 15 (US), ETSI EN 300 220 (EU) Communication Data Long-Range RFID (ILR, Response Technology) Multiple tag handling Up to 2,000 tags in the read zone... - Page 11 i-Q350TL Tag Manual Dimensional Drawing All dimensions in mm. External cable to temperature sensor (models i-Q350T & i-Q350TL) not shown. Page 11 of 11...
