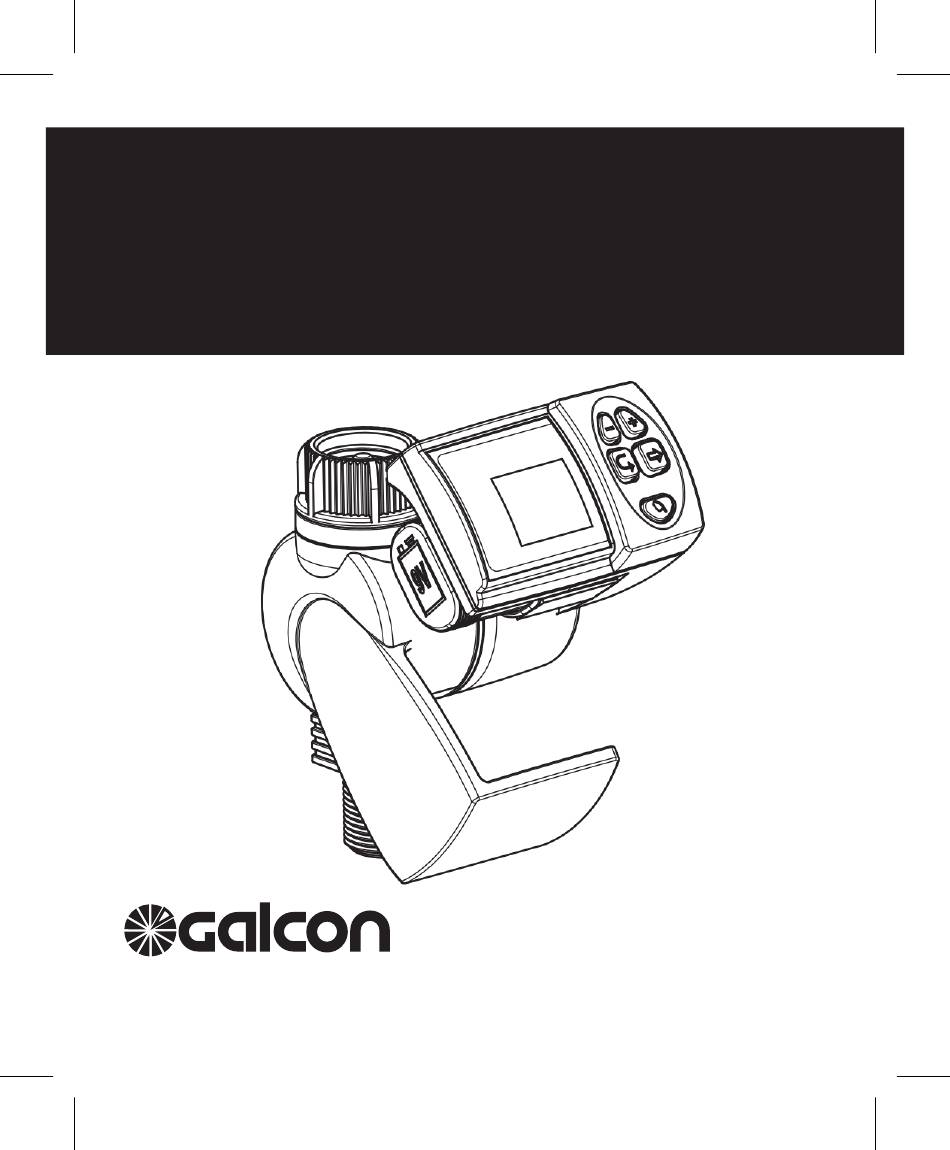

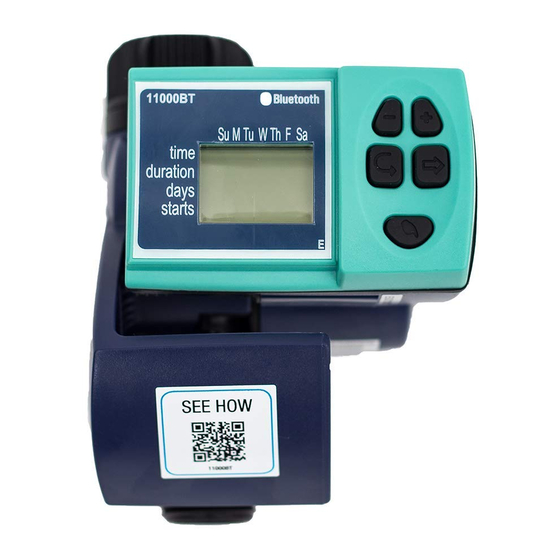

- Page 1 11000BT Bluetooth Hose-End Battery Operated Irrigation Controller Kfar-Blum 1215000, Tel. 972-4-690-0222, Fax. 972-4-690-2727 E - M a i l : i n fo@galconc.com, www. g a l c o n c . c o m...
-
Page 2: Parts Identification
1. PARTS IDENTIFICATION HOSE END TIMER 1.Controller body 2. Interior filter 3. Base 4. Controller display 5. Programming and operation buttons 6. Male hose thread connection 7. Battery compartment 8. Female swivel hose thread faucet/tap adaptor - 1 -... -
Page 3: Battery Installation
2. BATTERY INSTALLATION • Turn the controller to the position were the display is facing you • Remove the battery compartment cover • Connect 9V battery to the battery connector • Insert battery and press on battery cover • Pay attention: when changing the battery, make sure the battery compartment stays dry. - Page 4 3. CONTROLLER/TIMER INSTALLATION Make sure the filter (washer) is in place, then screw the controller to the faucet/tap by attaching the side with the female swivel hose thread connector to the faucet or hose end, then turn it clockwise (hand tighten only).Connect the controller hose male thread side to your system.
-
Page 5: Irrigation Programming
4. IRRIGATION PROGRAMMING This section contains an example of weekly irrigation program. Simply alter data in the example to adapt the program to meet your irrigation requirements. The digital controller is programmed with the aid of 4 buttons. Programming step – used to select the appropriate programming mode (e.g. -
Page 6: Setting Current Time & Day Of The Week
If no changes are implemented, the controller display will always revert to the main screen (clock). Display digits will stop blinking after 40 seconds. If the last parameter stops blinking before you have completed your programming, press to continue the process. Emergency Irrigation: After inserting batteries if no buttons are pressed,the clock will blink continuously.After 10 minutes, the controller will... - Page 7 1. Press several times until appears. 2. Press . The hour digits blink. Set the current hour with the aid of 3. Press . The minute digits blinks. Set the current minute with the aid of - 6 -...
- Page 8 Setting The Day Of The Week 1. Press until a blinking drop appears at the top of the display. 2. Set the drop on the current day of the week by pressing on For a 24 hour clock display, press concurrently buttons once the hour digits stop blinking.
- Page 9 PROGRAMMING A WEEKLY IRRIGATION SCHEDULE (SET DAYS OF THE WEEK) Let's assume that we want to program the irrigation controller to water three times a day, at 8:00 a.m., 1:00 p.m. and 7:00 p.m., for 10 minutes each time, on Tuesday and Friday. PROGRAMMING DURATION OF IRRIGATION 1.
- Page 10 PROGRAMMING IRRIGATION DAYS 1. Press will appear opposite the word 'Days'. If you are programming the controller for the first time, the word OFF will blink on the display. 2. Press . A blinking will appear under Monday in the upper section of the display. Using , position the blinking marker under Tuesday, and press .
- Page 11 SETTING IRRIGATION START TIME/DATE 1. Press . STARTI will appear on the display. Press . The hour display will start blinking. 2. Using set the start time at 08:00 AM (note the AM/PM indicators). Repeat this operation for the second irrigation period (START II) at 13:00, and for the third irrigation period (START III) at 19:00.
-
Page 12: Computerized Manual Operation
COMPUTERIZED MANUAL OPERATION This option operates the valve for the defined irrigation period. The valve will close automatically at the end of the irrigation period. Note that the originally programmed irrigation schedule will continue to function at the set times. This setting cannot be implemented when the display is blinking. -
Page 13: Blinking Low Battery Warning
BLINKING LOW BATTERY WARNING A blinking battery icon ( ) appears on the display when the batteries are low. At this point, the battery still contains a limited amount of energy for valve operation. The battery should be replaced promptly. If the battery is not replaced, the irrigation controller will continue to open the valve 8 times according to the program. - Page 14 MISSING DEFINITION IN IRRIGATION PROGRAM will appear when programming irrigation days (see Programming a Weekly Irrigation Schedule), if no irrigation days have been specified. in this case, the valve cannot be opened during the computerized manual operation (see Computerized Manual Operation). Please note: when finished, always turn the controller back to the original position.
- Page 15 5 Maintenance Remove batteries if the irrigation controller will not be used for a prolonged period. The controller contains an internal filter, which has to be removed and cleaned every few months. If the filter is not cleaned on a regular basis - it could create problems.
-
Page 16: Limited Warranty Certificate
Customer does not agree with any of the provisions of these Terms, the Customer must not access or use the Services and/or the Product. 2. Galcon shall, for a limited period of 24 months from the retail purchase date of the original (first) purchaser (“the Warranty Period”), provide limited warranty for the Product(s) and the Services, as provided for and subject to the provisions and limitations of these Terms. - Page 17 5. Galcon’s warranty for the Product and/or the Services and/or otherwise, shall not apply to any of the following: (i) any conduct (by act or omission) not by Galcon, including any misuse/abuse of any Product and/or the Services (or part/s thereof), and/or any failure to install and/or use any Product in full compliance with Galcon’s instructions;...
- Page 18 Services and/or the Product and/or access to Site or any part thereof; All of the above, whether or not Galcon and/or the Customer shall have been made aware of the possibility of such loss.
- Page 19 12. In any event, any liability which Galcon may have in connection with the Product and/ or the Services and/or access to Site and/or these Terms, including (without limitation) in connection with and/or resulting from the Product (or any part thereof) and the use...
- Page 20 The site and services are provided on an AS IS and on available basis without warranties of any kind from Galcon. The use of the Site, the Product and/or the Services is at the Customer sole risk. 17.Galcon is not responsible for any problems or technical malfunction of any telephone...
- Page 21 11000BT FCC Compliance Statement This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in residential installations. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio and television reception.
