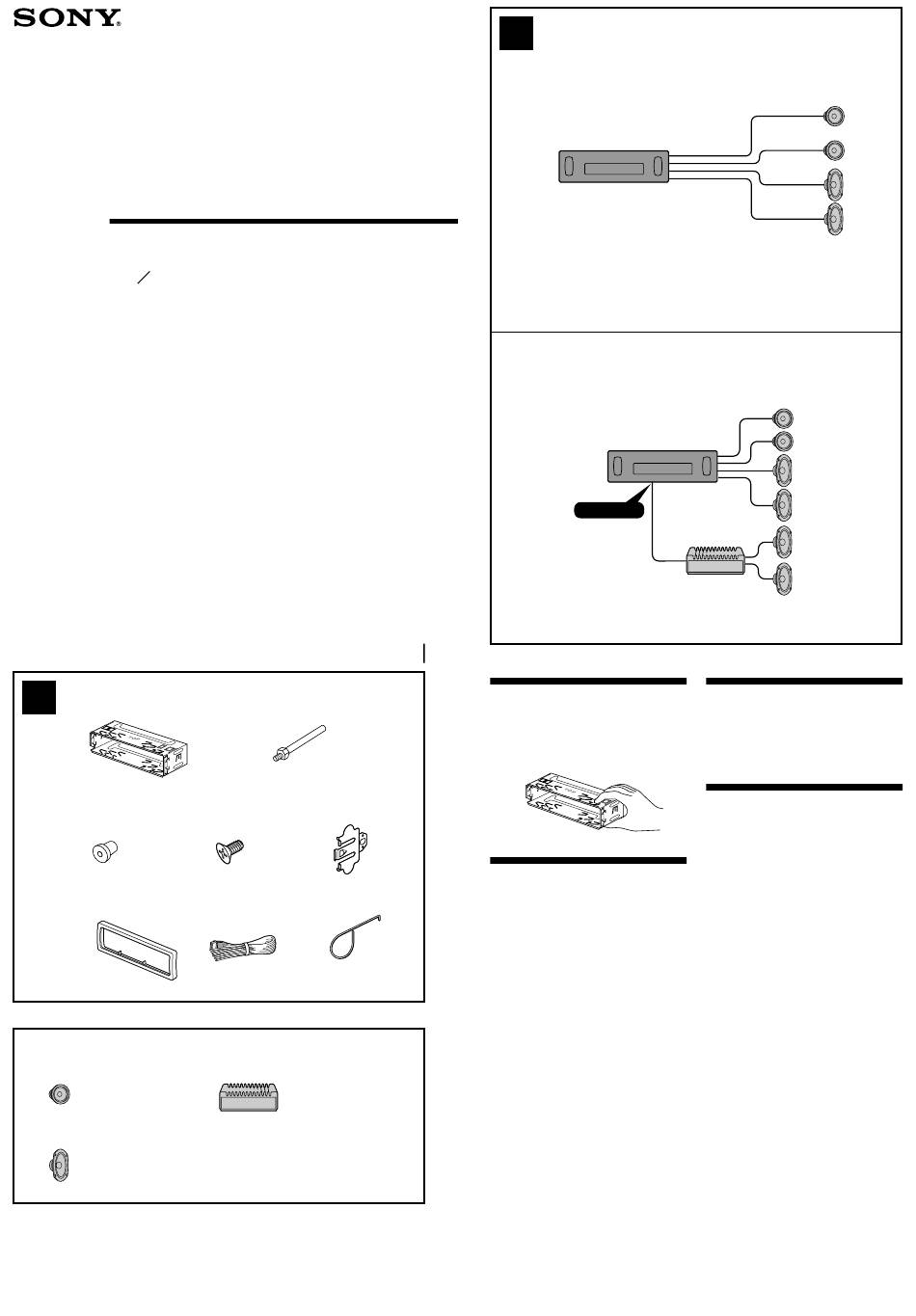

Sony CDX--L460X Installation/Connections

FM/AM
Compact Disc
Player
Installation/Connections
安裝 線路連接
CDX-L460X
CDX-L440B
Sony Corporation © 2002
1
1
3
6
Equipment used in illustrations (not supplied)
插圖中的裝置（非附送）
Front speaker
前揚聲器
Rear speaker
後揚聲器
3-237-524-12 (2)
Printed in Korea
2
4 5
× 4
× 2
7 8
Power amplifier
功率放大器
2
A
B
AUDIO OUT
Parts Iist (1)
The numbers in the list are keyed to those in the
instructions.
Caution
Handle the bracket 1 carefully to avoid injuring
your fingers.
1
Cautions
• This unit is designed for negative earth 12 V
DC operation only.
• Do not get the wires under a screw, or caught
in moving parts (e.g. seat railing).
• Before making connections, turn the car
ignition off to avoid short circuits.
• Connect the yellow and red power input leads
only after all other leads have been connected.
• Run all earth wires to a common earth
point.
• Be sure to insulate any loose unconnected
wires with electrical tape for safety.
Notes on the power supply cord (yellow)
• When connecting this unit in combination with
other stereo components, the connected car
circuit's rating must be higher than the sum of
each component's fuse.
• When no car circuits are rated high enough,
connect the unit directly to the battery.
Connection example (2)
Notes (2-B)
• Be sure to connect the earth cord before
connecting the amplifier.
• If you connect an optional power amplifier and do
not use the built-in amplifier, the beep sound will
be deactivated.
Connection diagram (3)
1 To a metal surface of the car
First connect the black earth lead, then connect
the yellow and red power input leads.
2 To the power aerial control lead or power
supply lead of aerial booster amplifier
Notes
• It is not necessary to connect this lead if there
is no power aerial or aerial booster, or with a
manually-operated telescopic aerial.
• When your car has a built-in FM/AM aerial in
the rear/side glass, see "Notes on the control
and power supply leads."
3
To AMP REMOTE IN of an optional power
amplifier
This connection is only for amplifiers. Connecting
any other system may damage the unit.
4 To the +12 V power terminal which is energised
in the accessory position of the ignition key
switch
Notes
• If there is no accessory position, connect to the
+12 V power (battery) terminal which is
energised at all times.
Be sure to connect the black earth to it first.
• When your car has a built-in FM/AM aerial in
the rear/side glass, see "Notes on the control
and power supply leads."
5
To the +12 V power terminal which is energised
at all times
Be sure to connect the black earth to it first.
