CAN IPP350 Quick Operator's Manual

IPP350
Quick Merchant Operator Guide

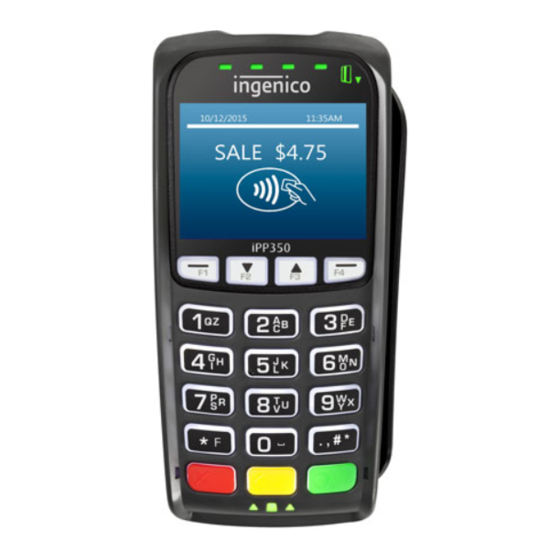

IPP350 Terminal Features
Alphanumeric keys
Menu button
Cancel button
Smart card reader
Note: The first three yellow option buttons will be used as the Cheque, Savings and Credit keys. The fourth soft key
will not be used. During Idle state, only the [Menu] and [Func] buttons are operable. Pressing either button will open
the Main Functions Menu.
Key Functions
Power on/off
To POWER ON, simply connect the terminal's USB cable
to the POS.
To REBOOT, hold down both the [FUNC] and [CLEAR]
keys on the terminal at the same time.
To POWER OFF, power from the POS will need to be
cut-off. The terminal can't be shut down locally as
it is powered via USB. This will need to be done by
unplugging the USB cable, shutting down the POS,
or putting the POS in sleep mode (or any other state
where power is cut off to the USB port).
USB port location
Integrated contactless reader
Magnetic strip reader
Yellow OPTION buttons
Function button
OK button
Clear button
Terminal Functions Menu
1. Press the [MENU] key
2. Press [1] to enter the EFTPOS menu
3. Press [2] to enter the TERMINAL menu
4. Press [4] to enter the PCEFTPOS menu
