Summary of Contents for AbodeFit WalkSlim Mini Walk 670

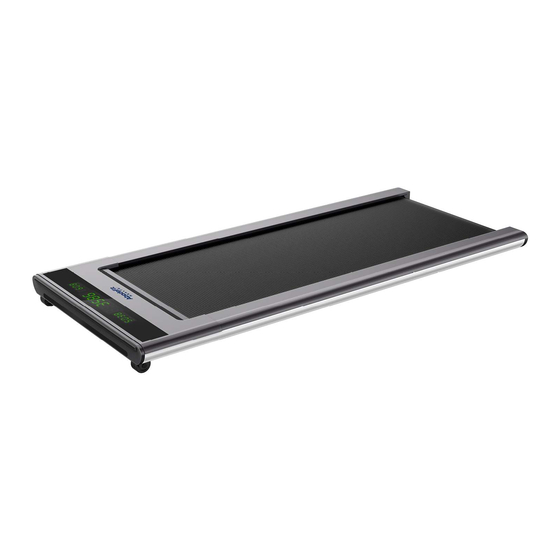

- Page 1 WalkSlim Mini Walk 670 TREADMILL • USER MANUAL...
- Page 2 Congratulations on your purchase of the AbodeFit Health™ WalkSlim Mini Walk 670 Please read the user manual carefully before using, pay special attention to the safety precautions and keep for future reference. Please contact AbodeFit Health’s warranty provider, Vitality 4 Life, (details on back page) if any malfunction occurs and a qualified technician will assist you.
-
Page 3: Table Of Contents
Safety Precautions Parts and Features Operating Instructions Using your Walkslim Mini Walk 670 Warm Up Exercises Maintenance Troubleshooting Warranty... -
Page 4: Safety Precautions
Safety Precautions • The WalkSlim Mini Walk 670 is only suitable for adults over the age of 18. It is not a toy and should not be used by children. The 3 Zone Sensor Mode can be activated by young children. - Page 5 • Do not exceed the treadmill’s maximum weight capacity of 110kgs, the treadmill is only suitable for individual use. • Unplug the WalkSlim Mini Walk 670 when it is not likely to be used for long periods of time. • Do not let cord contact any other parts such as cylinder, running belt etc.
-
Page 6: Parts And Features
Parts and Features Tread Belt Footrail Display Screen Remote Control, Transport Silicone Lubricating Oil & Wheels Allen Key DISPLAY SCREEN Time/Speed Steps Distance/Calories Displays the time Displays number Displays distance and speed. of steps. and calories burned. START DISPLAY When starting the The treadmill has started 2 short dashes in treadmill 6 short dashes... -
Page 7: Operating Instructions
Operating Instructions STARTING YOUR WALKSLIM MINI WALK 670 • First find the right spot for your WalkSlim Mini Walk 670 , ensuring you choose a location that is flat and open, free of sharp objects, with a sufficient 1 metre clear space around the treadmill. -
Page 8: Using Your Walkslim Mini Walk 670
Using your Walkslim Mini Walk 670 1. The Automatic (3 Zone Sensor) Mode This mode uses infrared induction technology to automatically control and adjust the speed by sensing the location of your feet according to the slow down, speed up and constant zones on the tread belt. - Page 9 WalkSlim Mini Walk 670 has stopped. SLEEP MODE • The WalkSlim Mini Walk 670 enters Sleep Mode when it is idle for more than 10 minutes. Two continuous lines will be displayed in the middle of the screen.
- Page 10 • If the treadmill is used consistently for more than 99 minutes the unit will turn off as a safety feature. SYNCING YOUR WALKSLIM MINI WALK 670 WITH THE REMOTE CONTROL Your remote control is synced to the treadmill during manufacture so a re-sync is only necessary if you are replacing the first remote with another one.
-
Page 11: Warm Up Exercises
(L145 x W62 x H9cm) • If you prefer to store it upright, the WalkSlim Mini Walk 670 comes with a magnetic base which holds up to 110kg. -
Page 12: Maintenance
• Use a damp cloth with soap or detergent to clean the tread belt. Do not use excessive water and avoid leakage to the electrical parts. • Disconnect the power cord when the WalkSlim Mini Walk 670 will not be used for a long time. - Page 13 Tread belt adjustment holes The tread belt Tread belt is too loose or too tight. Adjust the tread belt tightness is slipping to the correct tension. The tread belt should be able to be lifted from the base by about 5-7.5cm by hand. If you observe there are occassional pauses as you are walking normally, it means the belt has become loose.
- Page 14 Do not tighten the screw excessively. Error Messages Power Supply Issue Unplug the WalkSlim Mini Walk 670, leave for several minutes and then restart. If it does not restart please contact our Customer Service Centre.
-
Page 15: Warranty
Warranty Period: Lifetime Frame, 5 Years Motor, 2 Years Parts & Labour. Vitality 4 Life are the warranty providers for AbodeFit Health™ products. Vitality 4 Life warrant this product to be free from defects in materials and workmanship while in normal domestic use for a period of five years on the motor and two years on other parts (with the exception of a life warranty on the frame) from the original date of purchase. - Page 16 Support & Service Centres Contact your local distributor for warranty & service Vitality 4 Life – Australia & New Zealand E: support@vitality4life.com W: www.vitality4life.com.au Vitality 4 Life – United Kingdom E: support@vitality4life.co.uk W: www.vitality4life.co.uk Vitality 4 Life - United States E: support@vitality4life.com W: www.vitality4life.com Vitality 4 Life –...
