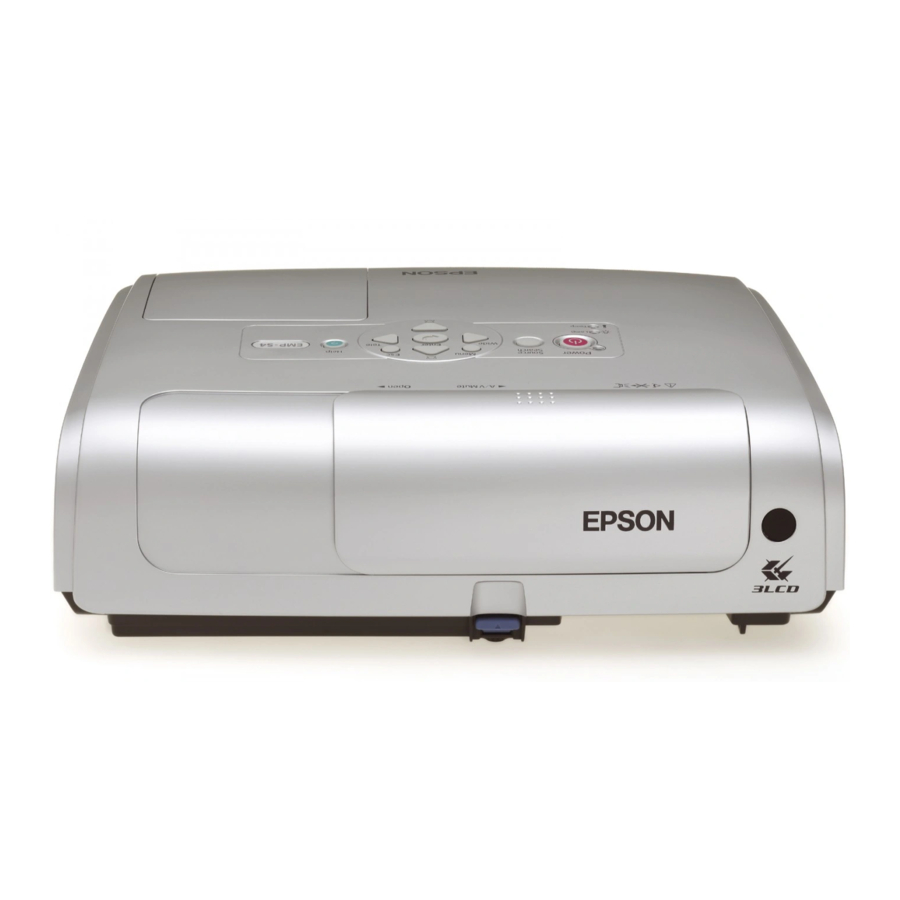

Epson PowerLite S4 Product Information

Projector Parts

Control panel
Lamp cover
Ventilation
slots
Lens cover
Computer port
Monitor
Out port
Audio input
AC power inlet
Adjustable foot
(for leveling projector)
Menu button
(displays on-screen menu)
Power button
LED
indicator
lights
Source Search button
(switches input source)
Keystone correction buttons
(correct shape of non-rectangular images)
Focus ring
Foot release button
Adjustable foot
(for raising projector)
Video port
S-Video
port
USB port
Infrared
receiver
Speaker
Wide and Tele buttons
(change image size)
Esc button
(exits current menu item)
Help button
Enter button
(selects menu options)

Projector Specifications

General
Type of display
Size of LCD panels
Lens
Zoom ratio
Resolution
Brightness
(ANSI lumens)
Infrared
Contrast ratio
receiver
Image size
Projection distance
Optical aspect ratio 4:3
Keystone correction
angle, vertical
Noise level
Speaker
* when using the Game color mode (see page 5)
Lamp
Type
Power consumption 170 W
Lamp life
Part number

Remote Control

Range
Battery
Dimensions
Height
Width
Depth
Weight
6/06
Epson PowerLite S4
Poly-silicon Thin Film Transistor (TFT)
active matrix
0.5 inches (12.7 mm)
f=1.4, focal length 16.6 mm
1:1.35 (digital zoom)
800 × 600 pixels (SVGA)
1800 (high brightness mode)*
1500 (low brightness mode)
500:1
30 to 300 inches (0.76 to 7.6 m)
2.85 to 39.7 feet (0.87 to 12.1 m)
±
30° (for 4:3 images)
±
20° (for 16:9 images)
36 dB (high brightness mode);
30 dB (low brightness mode)
1 W monaural
UHE (Ultra High Efficiency)
2000 to 3000 hours, depending on
brightness mode selected
V13H010L36
20 feet (6 meters)
AAA × 2
3.4 inches (87 mm)
12.9 inches (327 mm)
9.7 inches (247 mm)
5.7 lb (2.6 kg)
Epson PowerLite S4 - 1
