Epson PowerLite 8000i Quick Setup

EPSON ® Multimedia Projector

Quick Setup

Make sure your EPSON ® PowerLite
Connecting to a
PC
Laptop

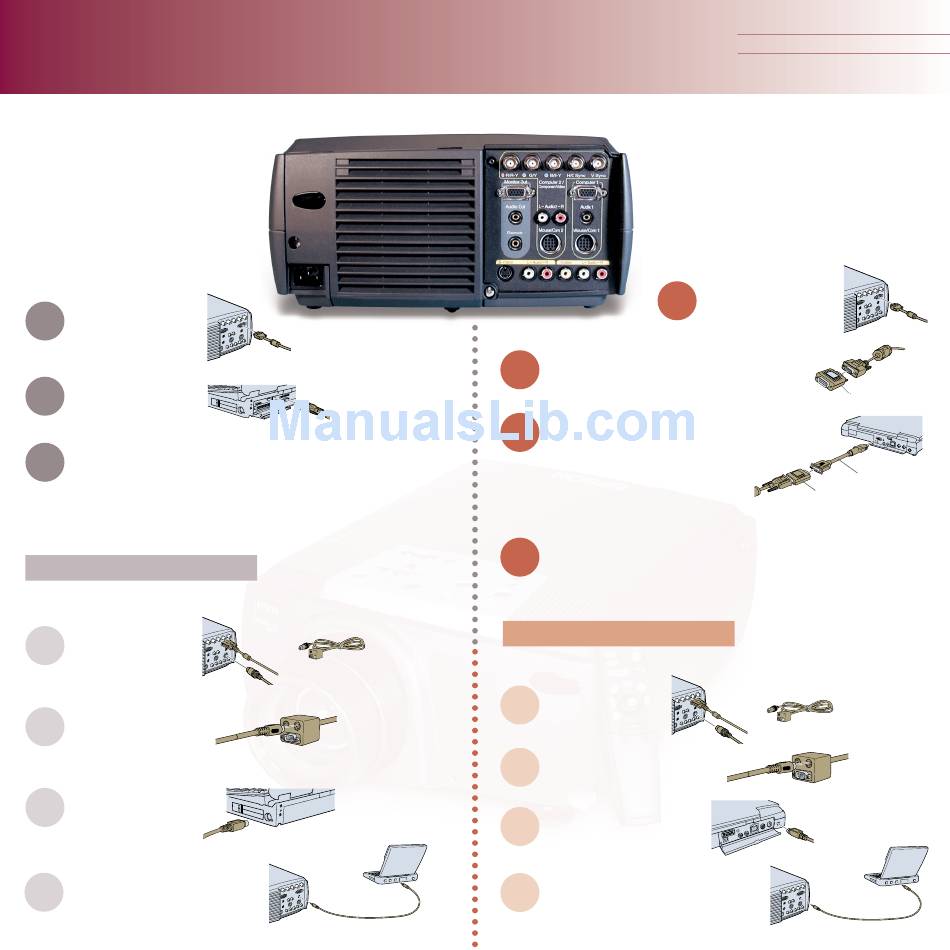

Connect one end of the
1
projector video cable to
the projector's
Computer 1 port.
Connect the other end
2
of the video cable to the
laptop's monitor port.
Connect the power cord
3
to the projector.
If you want to use the remote control as a mouse, see below.
If not, just follow the steps in "Using Your Projector" (see other side).
Optional Connections
To use your remote control as a mouse or to use audio, follow these steps:
Connect the round end
1 of the main cable to the
projector's Mouse/Com 1
port.
Connect the PS/2 or USB
2
cable to the MOUSE terminal
on the main cable.
Connect the other end of
3
the PS/2 or USB cable to
the mouse or USB port
on your laptop.
To use audio, connect one end of the
4
audio cable to the projector's Audio 1
jack and the other end to your laptop.
® projector and computer are turned off. Then follow these steps:
main cable
1
Connect the small terminal of the desktop adapter to
2 the other end of the projector video cable. (Be sure
the desktop adapter DIP switches are set correctly for
the resolution you want. See your PowerBook manual.)
Connect the projector video cable
3
(with Macintosh desktop adapter attached)
to the video-out port of your PowerBook.
Note: If your PowerBook requires
a video-out cable (not included),
connect the smaller end of the cable to
the video-out port on the back of the
PowerBook.Then connect the other end
to the desktop adapter.
Connect the power cord
4
to the projector.
If you want to use the remote control as a mouse, see below.
If not, just follow the steps in "Using Your Projector" (see other side).
Optional Connections
To use your remote control as a mouse or use audio, follow these steps:
Connect the round end
1 of the main cable to
the projector's
Mouse/Com 1 port.
2
Connect the Mac or USB cable to the
MOUSE terminal on the main cable.
Connect the other end of the
3
Mac or USB cable to the mouse
or USB port on your PowerBook.
To use audio, connect one end of the audio
4
cable to the projector's Audio 1 jack and
the other end to your PowerBook.
EPSON PowerLite
EPSON PowerLite
Connecting to a
Macintosh
PowerBook
Connect one end of
the projector video cable
to the projector's
Computer 1 port.
desktop adapter
video-out
cable
desktop
adapter
main cable
8000i
9000i
®
®
video-out
cable
