Wi-Fi Wireless Device
Quick Installation Guide
Homeowner or contractor installation
WARNING:
• Refer to this Quick Installation Guide to install Fujitsu Wi-Fi Wireless Device IS-IR-WIFI-1 only. This guide does NOT replace
any installation manual(s).
• Have contractors refer to the installation manuals that accompany this unit for complete and specific installation details and
requirements.
• The manufacturer shall in no way be responsible for improper installation, start-up, maintenance or service, including issues
caused by failure to follow all appropriate instructions in the installation manuals.
• Carefully read the installation and owner manual(s) before beginning.
• NOTE to Contractors: For technical support, contact your Fujitsu Distributor.

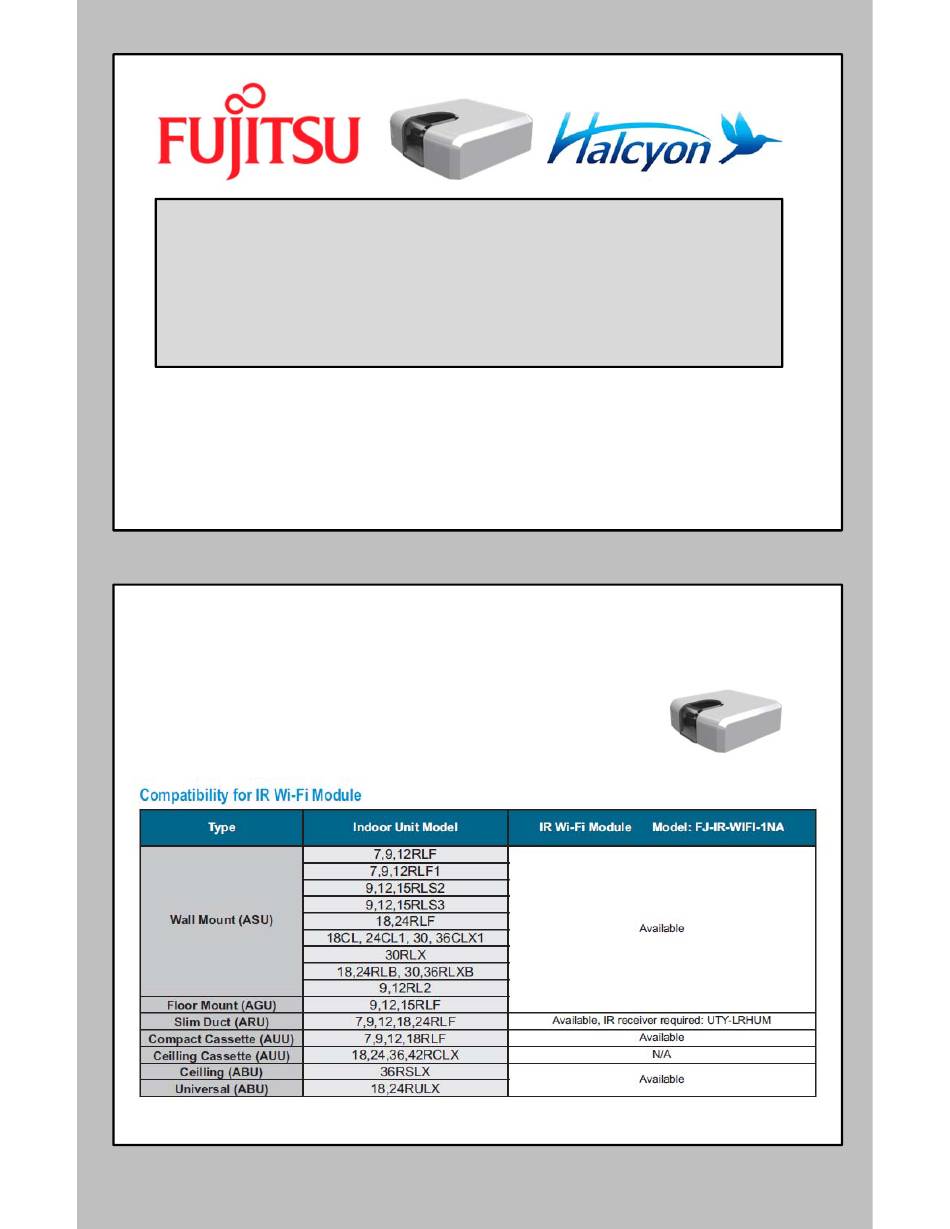

Compatibility & Requirement
Recommended for the following indoor types:
Wall mount / Floor Mount / Compact Cassette /
Ceiling / Universal type
FJ-IR-WIFI-1NA
FJ-IR-WIFI-1NA
Advertisement
Related Manuals for Fujitsu Halcyon FJ-IR-WIFI-1NA
Summary of Contents for Fujitsu Halcyon FJ-IR-WIFI-1NA
- Page 1 Homeowner or contractor installation WARNING: • Refer to this Quick Installation Guide to install Fujitsu Wi-Fi Wireless Device IS-IR-WIFI-1 only. This guide does NOT replace any installation manual(s). • Have contractors refer to the installation manuals that accompany this unit for complete and specific installation details and requirements.
-
Page 2: Before Starting
Wireless Device Installation FJ-IR-WIFI-1NA Power supply Recommended for the following indoor types: • Wall mounted • Floor • Compact Cassettes Possible mounting positions To update the App status according to the last command sent from the Fujitsu wireless 20 ft direct remote controller. Use the following Wi‐Fi module mounting position illustrated below when sending signal from the wireless 10 ft remote controller. 10 ft + 10 ft 10 ft____ Total: 20 ft Total=20ft max 20 ft max IR Emitter 1 IR Receiver IR Emitter 2 Setting up Wireless Device FJ-IR-WIFI-1NA You need the following:... -
Page 3: Open Web Browser
Set up 1) Select IntesisHome Device network With your Smartphone, Tablet or Laptop, search for the Wi‐Fi • Go to your device network settings. Click on the INTESISHOME inside your network options. network called "INTESISHOME" and connect to it. 2) Open Web browser On the same device. open a web browser of your choice. Set up ihconfig.com Go to ... - Page 4 Set up Select your Wi‐Fi network Insert Password Click Next Setting up Device will blink in the following sequence: *Note: If the Wi‐Fi device is not connecting to your Wi‐Fi network. Please re‐check the following and start from step one. • Check Wi-Fi Signal Strength • Check if internet service is active (Connect to Wi-Fi network with smart phone to verify the internet connection is working) •...
- Page 5 Android Sign in with your new IntesisHome Download account and enjoy controlling your Fujitsu application from: system! IR Configuration Once you have the IntesisHome device installed and Wi‐Fi configured, you are ready to start the IR Configuration process. Learning mode is use to provide the end user a quick way to set up their IR wireless connection in seconds. NOTE: Make sure that the AC unit is Off and the Fujitsu wireless Controller is Off before pressing the On/Off button. In order to ensure the learning process, please make sure you send an On command from your Fujitsu Wireless controller. Make sure your wireless remote controller has fully charge batteries. 1) Fujitsu wireless remote controller is off, only time should be display in the remote controller. 2) Press and hold the black button on the back of the Wi‐Fi module for 4 seconds and release. Top LED will turn on steady white. 3) Press Start Stop on your Fujitsu wireless remote controller while pointing to the Wi‐Fi module. Refer to picture A: • If the IntesisHome device LED starts blinking Green, the IR learning process has been successful. • If the IntesisHome device LED starts blinking in Red, repeat the process from step 1 and check our compatibility list. If problem still persists, please 3ft Max visit our support section at www.fujitsugeneral.com/wifi.htm • If the IntesisHome device LED turns Off, repeat the process from step 1 and check that your IR wireless remote controller has batteries and that you are pointing directly to the IntesisHome IR ...
- Page 6 Wireless module LED Definitions WPS: Wi‐Fi Protected Setup.
- Page 7 Multiple indoor unit (including Multi‐Zone) Applications • Each indoor unit must have its own Intesis Wi‐Fi module to manage each zone independently in one account. • Room 1 • Room 2 • Room 3 Room 1 Room 2 • Room 4 Room 3 Room 4 Multi‐Zone Application: Steps to Register New (additional) Devices Click 1) In your IntesisHome account click on the settings option 2) Click on Devices Click 4) Fill and verify code. Code is located on the 3) Click on Add a Facility. Fill all information needed then Click on the device or in the products box. Follow the same plus sign procedure if you have more than one module in your installation. Click Click...
- Page 8 Warning Use only parts, accessories and controls supplied or specified by Fujitsu. Ask a licensed contractor to install all parts, accessories and controls. Use of unauthorized or improper installation of parts, accessories and controls can result in injury, major equipment repairs or property damage. Read the owner's operation manual carefully before using this product. The owner’s operation manual provides important safety instructions and warnings which should be followed closely. For any questions or concerns, please contact Fujitsu General America, Inc. Non‐Internet Retail Policy Internet sales are strictly prohibited and unauthorized. Any Fujitsu HVAC systems or components purchased on the Fujitsu General America, Inc. 353 Route 46 West Internet, from an online retailer or any similar e‐tailing website, OR where the original factory serial numbers of the Fairfield, NJ 07004 Toll Free: (888) 888‐3424 display have been removed, defaced, or replaced in any way Local: (973) 575‐0380 WILL NOT BE COVERED BY WARRANTY. Fax: (973) 836‐0447 Email: hvac@fujitsugeneral.com Trademarks www.fujitsugeneral.com A subsidiary of The Fujitsu logo is a registered trademark of Fujitsu Limited. The Halcyon logo and name is a trademark of Fujitsu General Fujitsu General Limited America, Inc. Rev. 3/16 Copyright © 2015 Fujitsu General America, Inc. Fujitsu’s products are subject to continuous improvements. Latest Sell Owner’s Fujitsu reserves the right to modify product design, FAQ’s...
