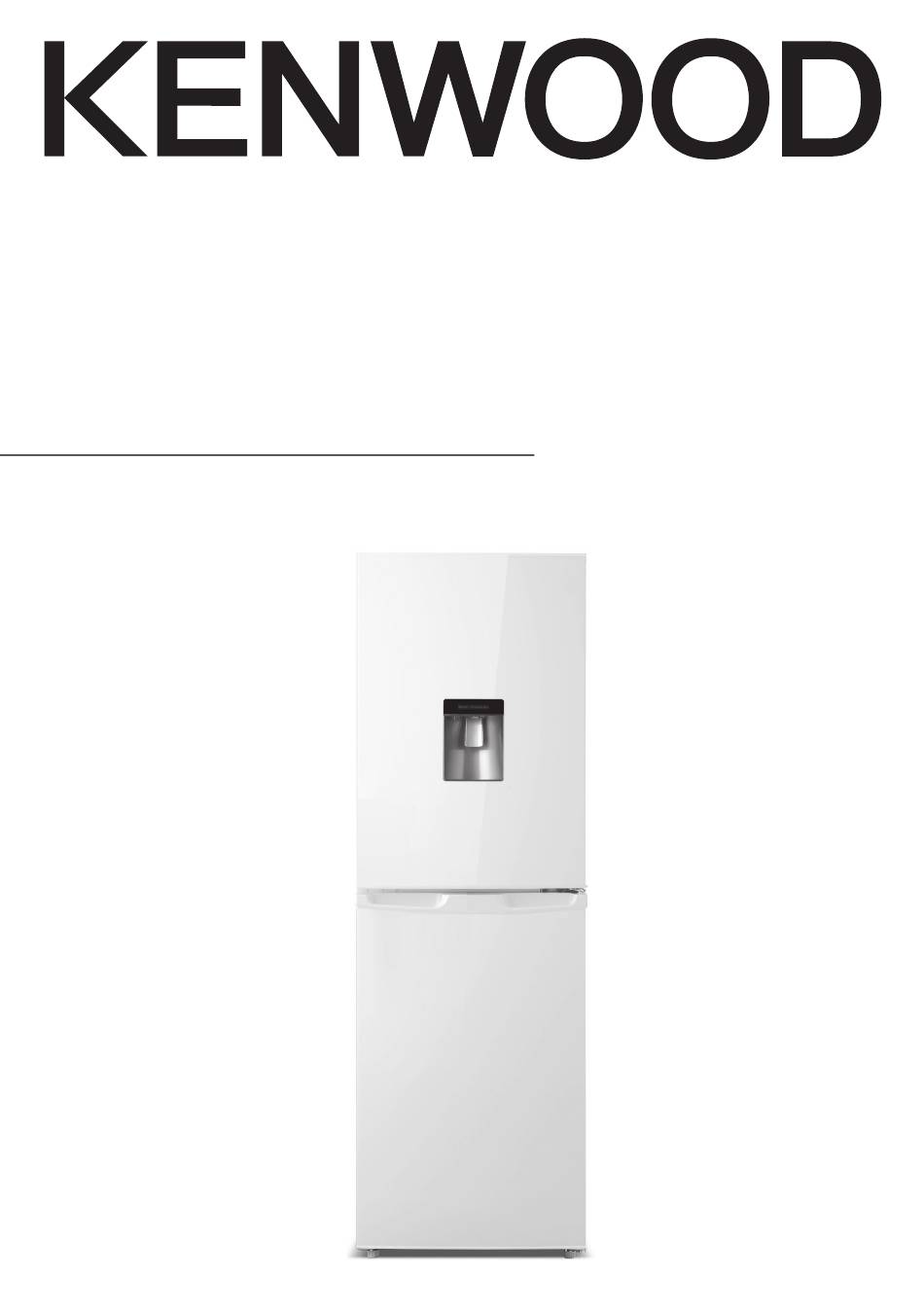

- Page 1 55cm Frost Free Fridge Freezer with Water Dispenser KFCD55B15 / KFCD55W15 / KFCD55X15 installation / instructions manual...
-
Page 3: Table Of Contents
Contents safety warnings ........................4 unpacking ..........................6 installation ........................... 7 location ..........................7 levelling the unit ....................... 7 free space requirements ....................7 installing the water tank ....................8 reversing the door swing ....................8 cleaning before use ......................11 before using your unit .....................11 product overview ...................... -
Page 4: Safety Warnings
safety warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • Read all instructions carefully before using the unit and keep them for future reference. • Retain the manual. If you pass the unit onto a third party, make sure to include this manual. - Page 5 • Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. • Do not store bottles or glass containers in the freezer compartment. Contents can expand when frozen (fizzy drinks) which may break the bottle and damage your freezer compartment.
-
Page 6: Unpacking
Thank you for purchasing your new Kenwood Fridge Freezer. These operating instructions will help you use it properly and safely. We recommend that you spend some time reading this installation/instruction manual in order that you fully understand all the operational features it offers. -
Page 7: Installation
installation installation location When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16°C and 43°C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. -
Page 8: Installing The Water Tank
installation installing the water tank • If the fridge door shelf in the middle is installed in the fridge door, remove it first in order for the water tank to be installed. • Insert the valve of the water tank into the hole of the water dispenser and push down the water tank to attach securely with the water dispenser. - Page 9 installation 1. Remove all fridge door shelves and water tank from the upper door. Remove the upper hinge cover, screws and upper hinge. Lift the upper door and place it on a padded surface to prevent from being scratched. 2. Remove the stopper from the bottom of the upper door and move it to the opposite side.
- Page 10 installation 5. Lay down the unit. Remove both levelling feet, levelling feet fix board and bottom hinge. 6. Swap the position of the levelling feet fix board with the bottom hinge. On the bottom hinge, move the position of the bottom hinge pin to the other hole.
-
Page 11: Cleaning Before Use
installation 9. Place the bottom hole of the lower door onto the bottom hinge pin. Insert the middle hinge pin into the upper hole of the lower door. Tighten the pin securely. Screw the middle hinge tightly. Cover the remaining holes with the hole covers. •... -
Page 12: Product Overview
product overview main unit Thermostat and Bulb Fridge Door Shelf Wine Rack Fridge Glass Water Tank Shelf Water Dispenser Salad Bin (inside the fridge Cover Shelf door) Fridge Door Salad Bin Shelf Freezer Drawer Freezer Glass Shelf Wine Rack Bottle Stopper Egg Tray Ice Tray (recommend... -
Page 13: Operation
operation switching on your unit 1. Connect the mains cable to the mains socket. The internal temperature of your unit is controlled by a thermostat. There are eight settings, of which position 7 is the coldest and position 0 turns the unit off. 2. -
Page 14: Receiving Water From The Water Dispenser
receiving water from the water dispenser • You should use the type of container that can fit under the water dispenser. Place the container properly underneath and push on the lever for water to flow. • Before you dispense the water, make sure the lock device is at “Unlock”... -
Page 15: Tips For Keeping Food In The Unit
tips for keeping food in the unit • Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf. •... -
Page 16: Defrosting Frozen Food
defrosting frozen food 1. Take the frozen food out from the freezer compartment and uncover the frozen food. Let it defrost at room temperature. Don’t forget that defrosting in a warm area encourages the growth of bacteria and low temperature cooking may not destroy dangerous bacteria. 2. -
Page 17: Maintenance
maintenance changing the internal bulb 1. Before carrying out bulb replacement, always turn the thermostat control dial to Position 0, then disconnect the mains supply. 2. Unscrew and remove the bulb cover. 3. Remove the old bulb. 4. Replace with a new bulb (max. 15 W). Please make sure that it is pushed to the bottom. -
Page 18: Specifications
Model KFCD55B15 / KFCD55W15 / KFCD55X15 Appliance Category Category 7 (Refrigerator – Freezer) Overall Dimension (H x W x D) 1750 x 550 x 572 mm Fresh Food Storage Volume 144 L Frozen Food Storage Volume 81 L Defrosting Type... - Page 20 Need Help with your product? Your product is supported by Knowhow under a Trademark Licence from Fisher & Paykel Appliances Italy SpA. For help or spare parts please call us on: 0344 561 1234 The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste.
