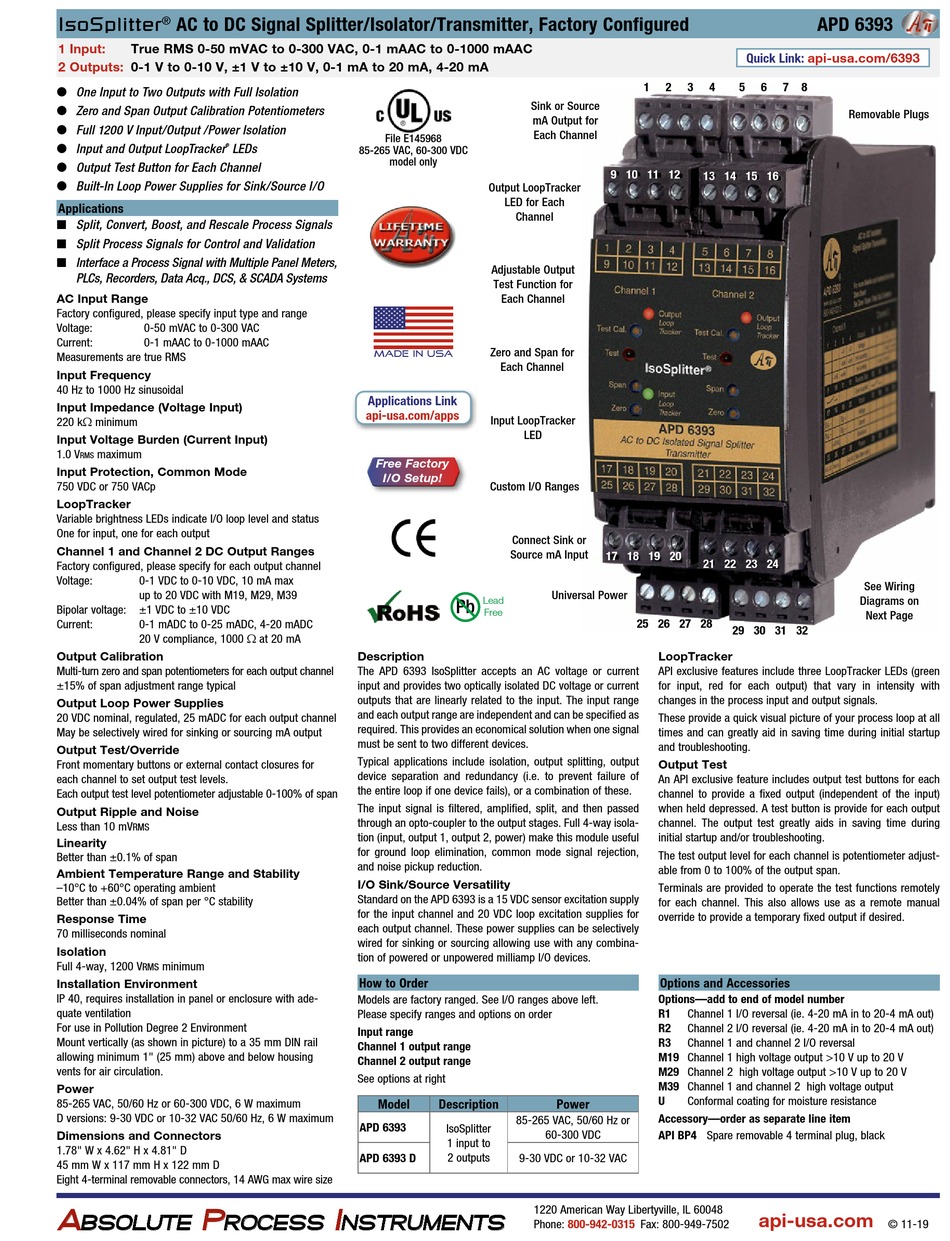

Absolute Process Instruments IsoSplitter APD 6393 Quick Start Manual

IsoSplitter AC to DC Signal Splitter/Isolator/Transmitter, Factory Configured
®
1 Input: True RMS 0-50 mVAC to 0-300 VAC, 0-1 mAAC to 0-1000 mAAC
2 Outputs: 0-1 V to 0-10 V, ±1 V to ±10 V, 0-1 mA to 20 mA, 4-20 mA
O One Input to Two Outputs with Full Isolation
O Zero and Span Output Calibration Potentiometers
O Full 1200 V Input/Output /Power Isolation
O Input and Output LoopTracker LEDs
®
O Output Test Button for Each Channel
O Built-In Loop Power Supplies for Sink/Source I/O
Applications
Q Split, Convert, Boost, and Rescale Process Signals
Q Split Process Signals for Control and Validation
Q Interface a Process Signal with Multiple Panel Meters,
PLCs, Recorders, Data Acq., DCS, & SCADA Systems
AC Input Range
Factory configured, please specify input type and range
Voltage: 0-50 mVAC to 0-300 VAC
Current: 0-1 mAAC to 0-1000 mAAC
Measurements are true RMS
Input Frequency
40 Hz to 1000 Hz sinusoidal
Input Impedance (Voltage Input)
220 kΩ minimum
Input Voltage Burden (Current Input)
1.0 V maximum
RMS
Input Protection, Common Mode
750 VDC or 750 VACp
LoopTracker
Variable brightness LEDs indicate I/O loop level and status
One for input, one for each output
Channel 1 and Channel 2 DC Output Ranges
Factory configured, please specify for each output channel
Voltage: 0-1 VDC to 0-10 VDC, 10 mA max
up to 20 VDC with M19, M29, M39
Bipolar voltage: ±1 VDC to ±10 VDC
Current: 0-1 mADC to 0-25 mADC, 4-20 mADC
20 V compliance, 1000 Ω at 20 mA
Output Calibration
Multi-turn zero and span potentiometers for each output channel
±15% of span adjustment range typical
Output Loop Power Supplies
20 VDC nominal, regulated, 25 mADC for each output channel
May be selectively wired for sinking or sourcing mA output
Output Test/Override
Front momentary buttons or external contact closures for
each channel to set output test levels.
Each output test level potentiometer adjustable 0-100% of span
Output Ripple and Noise
Less than 10 mV
RMS
Linearity
Better than ±0.1% of span
Ambient Temperature Range and Stability
–10°C to +60°C operating ambient
Better than ±0.04% of span per °C stability
Response Time
70 milliseconds nominal
Isolation
Full 4-way, 1200 V minimum
RMS
Installation Environment
IP 40, requires installation in panel or enclosure with ade-
quate ventilation
For use in Pollution Degree 2 Environment
Mount vertically (as shown in picture) to a 35 mm DIN rail
allowing minimum 1" (25 mm) above and below housing
vents for air circulation.
Power
85-265 VAC, 50/60 Hz or 60-300 VDC, 6 W maximum
D versions: 9-30 VDC or 10-32 VAC 50/60 Hz, 6 W maximum
Dimensions and Connectors
1.78" W x 4.62" H x 4.81" D
45 mm W x 117 mm H x 122 mm D
Eight 4-terminal removable connectors, 14 AWG max wire size
A A P P
BSOLUTE BSOLUTE ROCESS ROCESS
File E145968
85-265 VAC, 60-300 VDC
model only
Output LoopTracker
LED for Each
Adjustable Output
Test Function for
Each Channel
H H H H H H
H H H H H
H H H H H H
H H H H H
H H H H H H
H H H H H
H H H H H H
H H H H H
H H H H H H
Zero and Span for
Made in USA
Each Channel
Applications Link
api-usa.com/apps
Input LoopTracker
Free Factory
I/O Setup!
Custom I/O Ranges
Connect Sink or
Source mA Input
Pb Lead
Free
Description
The APD 6393 IsoSplitter accepts an AC voltage or current
input and provides two optically isolated DC voltage or current
outputs that are linearly related to the input. The input range
and each output range are independent and can be specified as
required. This provides an economical solution when one signal
must be sent to two different devices.
Typical applications include isolation, output splitting, output
device separation and redundancy (i.e. to prevent failure of
the entire loop if one device fails), or a combination of these.
The input signal is filtered, amplified, split, and then passed
through an opto-coupler to the output stages. Full 4-way isola-
tion (input, output 1, output 2, power) make this module useful
for ground loop elimination, common mode signal rejection,
and noise pickup reduction.
I/O Sink/Source Versatility
Standard on the APD 6393 is a 15 VDC sensor excitation supply
for the input channel and 20 VDC loop excitation supplies for
each output channel. These power supplies can be selectively
wired for sinking or sourcing allowing use with any combina-
tion of powered or unpowered milliamp I/O devices.
How to Order
Models are factory ranged. See I/O ranges above left.
Please specify ranges and options on order
Input range
Channel 1 output range
Channel 2 output range
See options at right
Model Description
APD 6393
IsoSplitter
1 input to
APD 6393 D 2 outputs
I I
NSTRUMENTS NSTRUMENTS
1 2 3
Sink or Source
mA Output for
Each Channel
9 10 11 12
Channel
LED
17 18 19 20
Universal Power
25 26 27 28
LoopTracker
API exclusive features include three LoopTracker LEDs (green
for input, red for each output) that vary in intensity with
changes in the process input and output signals.
These provide a quick visual picture of your process loop at all
times and can greatly aid in saving time during initial startup
and troubleshooting.
Output Test
An API exclusive feature includes output test buttons for each
channel to provide a fixed output (independent of the input)
when held depressed. A test button is provide for each output
channel. The output test greatly aids in saving time during
initial startup and/or troubleshooting.
The test output level for each channel is potentiometer adjust-
able from 0 to 100% of the output span.
Terminals are provided to operate the test functions remotely
for each channel. This also allows use as a remote manual
override to provide a temporary fixed output if desired.
Options and Accessories
Options—add to end of model number
R1 Channel 1 I/O reversal (ie. 4-20 mA in to 20-4 mA out)
R2
Channel 2 I/O reversal (ie. 4-20 mA in to 20-4 mA out)
R3 Channel 1 and channel 2 I/O reversal
M19 Channel 1 high voltage output >10 V up to 20 V
M29 Channel 2 high voltage output >10 V up to 20 V
M39 Channel 1 and channel 2 high voltage output
U Conformal coating for moisture resistance
Power
Accessory—order as separate line item
85-265 VAC, 50/60 Hz or
60-300 VDC API BP4 Spare removable 4 terminal plug, black
9-30 VDC or 10-32 VAC
1220 American Way Libertyville, IL 60048
Phone: 800-942-0315 Fax: 800-949-7502
APD 6393
Quick Link: api-usa.com/6393
4 5 6 7 8
Removable Plugs
13 14 15 16
21 22 23 24
See Wiring
Diagrams on
Next Page
29 30 31 32
api-usa.com
© 11-19
