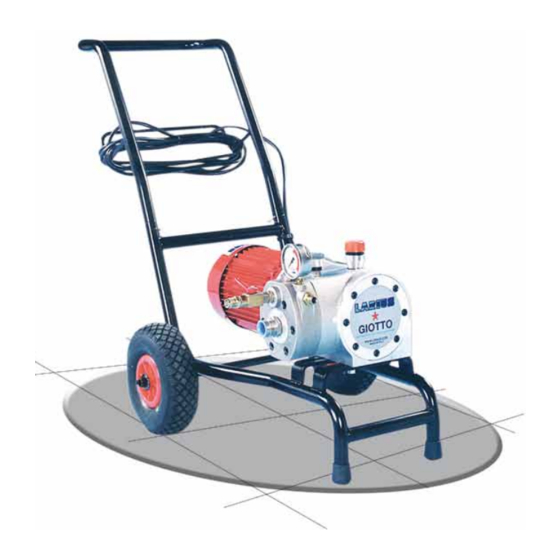

Larius Giotto Operating And Maintenance Instructions Manual
  1. Manuals
  2. Brands
  3. Larius Manuals
  4. Industrial Equipment
  5. Giotto
  6. Operating and maintenance instructions manual

Larius Giotto Operating And Maintenance Instructions Manual

Hide thumbs Also See for Giotto:
Table of Contents

Advertisement

Quick Links

Download this manual
PAINTING EQUIPMENT
ENGLISH

Advertisement

Table of Contents
loading

Related Manuals for Larius Giotto

Summary of Contents for Larius Giotto

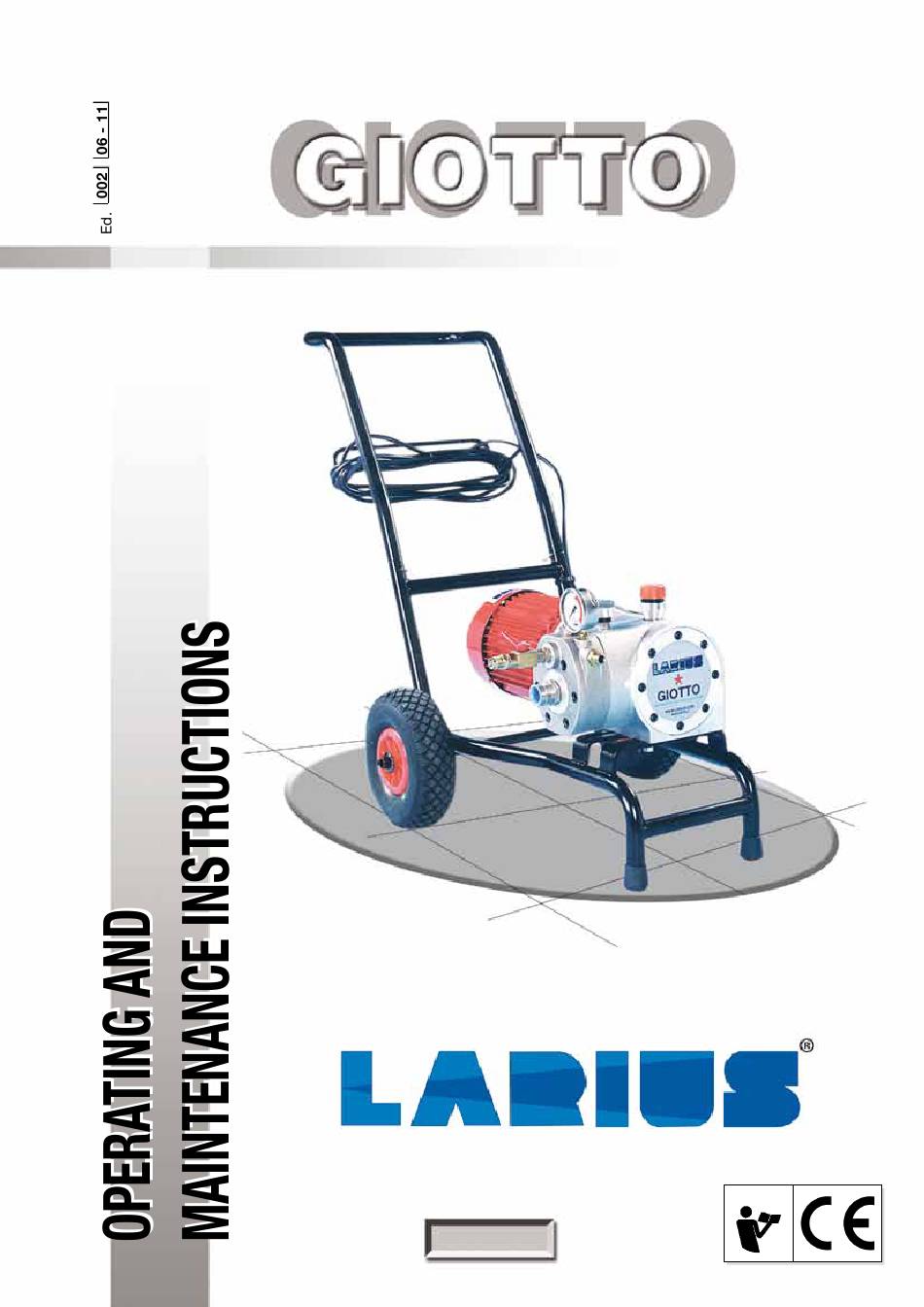

  • Page 1 PAINTING EQUIPMENT ENGLISH...

  • Page 3: Table Of Contents

    ONLY USE THIS MACHINE FOR USAGE SPECIFICALLY MENTIONED IN THIS MANUAL. Thank you for choosing a LARIUS S.R.L. product. As well as the product purchased, you will receive a range of support services enabling you to achieve the results desired,...

  • Page 4: Working Principle

    GIOTTO WORKING PRINCIPLE and sends the suction diaphragm into fibrillation. When The Larius Giotto unit is defined as an “electric the diaphragm moves, it creates a vacuum. The product is diaphragm pump”. An electric diaphragm pump is used sucked up, pushed towards the pump outlet and sent to for high pressure paint spraying without air (known as the guns through the flexible hose .

  • Page 5: Description Of The Equipment

    DESCRIPTION OF THE EQUIPMENT POS. POS. Description Description Carriage Complete colour body Electric motor Suction and recirculation tube High pressure manometer High pressure feed tube Setting valve LARIUS AT 300 gun Hydraulic oil filling cap Fast clean Hydraulic body Tools box...

  • Page 6: Transport And Unpacking

    • ALWAYS FOLLOW THE INSTRUCTIONS ABOUT SAFETY In case of damage, call immediately LARIUS and the AND THE REGULATIONS IN FORCE. Shipping Agent. All the notices about possible damage or anomalies must arrive timely within 8 days at least •...

  • Page 7: Setting-Up

    GIOTTO CONNECTION BETWEEN PUMP, FLEXIBLE HOSE AND Electrical safety precautions SPRAY GUN BEFORE USING THE EQUIPMENT. • Check the "ON/OFF" switch is on the "OFF" position before • ALWAYS USE THE FLEXIBLE HOSE SUPPLIED WITH STAN- connecting the cable to the mains.
  • Page 8 GIOTTO • Check the mains voltage corresponds to the equipment’s CONNECTION OF THE TOOLING TO THE POWER SUPPLY rating (F1). • Check the ON/OFF switch (F2) is on the "OFF" position (0) before connecting the cable to the mains. •...
  • Page 9 Make sure the product is suitable to be used with a spray gun. • Mix and filter the product before using it. For filtration, use CLOSE-MESH (ref.214) and LARGE-MESH (ref.215) LARIUS METEX braids. Make sure the product to be used is compatible with the materials employed for manufacturing the equipment (stainless steel and aluminium).

  • Page 10: Working

    GIOTTO WORKING START OF THE PAINTING OPERATIONS Use the tooling after performing all the SETTING UP ope- • rations above described. • Make sure the product recycles from the return tube (G4). • Dip the suction pipe (G1) into the product tank.

  • Page 11: Cleaning At The End Of The Work

    GIOTTO CLEANING AT THE END WORK • Reduce pressure to the minimum (turn counterclockwise the pressure control knob (H1) ). • Press the ON/OFF switch (H2) placed on the box of the • Now point the gun at the solvent tank and press the trigger electric motor, to stop the equipment.

  • Page 12: Routine Maintenance

    GIOTTO ROUTINE MAINTENANCE REPLACING HYDRAULIC OIL TOP UP HYDRAULIC OIL After operating for 100 hours, replace the oil in the pump; With each start up, check the hydraulic oil level by looking through the gauge on the side of the hydraulic body. If necessary, use “AGIP OSO 46 type hydraulic oil”...

  • Page 13: Mproblems And Solutions

    GIOTTO PROBLEMS AND SOLUTIONS Problem Solution Cause • Check the correct connection to the The equipment does not start • Lack of voltage; • power supply; • Check the extension cable; • Considerable drops in mains voltage; • Ensure the ON-OFF switch is on the •...

  • Page 14: Ncorrect Procedure Of Decompression

    GIOTTO CORRECT PROCEDURE OF DECOMPRESSION • Insert the gun clamp (N1). • Move the ON/OFF switch (N2) to the OFF position (0) to stop the equipment. • Disconnect the power supply cable (N3). • Release the gun clamp (N4). Point the gun at the tank of the product and press the trigger to release pressure.

  • Page 15: Osuction System

    GIOTTO SUCTION SYSTEMS Pos. Code Description 85009 Suction systems 85010 Suction tube 16609 Recirculation tube 18096 Spring 85012 Filter of suction...

  • Page 16: Pcomplete Hydraulic Body

    GIOTTO COMPLETE HYDRAULIC BODY...
  • Page 17 GIOTTO Pos. Code Description Pos. Code Description 12455 Hydraulic support 81009 Dowel 12456 Hydraulic piston 81012 Spline 82019 Spring pad 81014 82021 Spring 81033 Washer 82017 Cylinder liner 95158 82022 O-Ring 32007 Oil level plug 82023 Spring housing 32108 Plug...

  • Page 18: Giotto Petrol - Giotto Liner

    GIOTTO GIOTTO PETROL – GIOTTO LINER...
  • Page 19 Code Description 18260 Complete gearbox – petrol membra- 95114 Washer ne version 18268 Hydraulic flange B+C+D 18342 Complete gearbox kit – Giotto petrol 81009 Dowel version with trolley 18269 Reduction 18346 Complete Giotto liner kit 18264 Plating guard 4415 Motor...

  • Page 20: Rcomplete Colour Body

    GIOTTO COMPLETE COLOUR BODY...
  • Page 21 GIOTTO Pos. Code Description Pos. Code Description 83000 Complete colour body 83002/1 Diaphragm 96099 Cylinder liner 83002/2 Oil distributor 33024 Self-tightening nut 83002/3 Spring 33023 Washer 83002/4 Sealing block 33022 Spring 83002 Complete diaphragm 33021 Shutter guide 33008 Manometer 33020...

  • Page 22: Smotor

    GIOTTO MOTOR ELECTRIC MOTOR Pos. Code Description 81001 Electric motor 230V 50HZ 81002 Electric motor 400V 50Hz three-phase 81003 Electric motor 115V 60Hz 86003 Electic box 86001 Condenser 81012 Stud bolt 81033 Washer 95158...

  • Page 23: Ttrolley

    GIOTTO TROLLEY Pos. Code Description 12355 Trolley assembly 12454 Foot 12710 Trolley base 37218 Pneumatic wheel 91047 Elastic washer 84007 Split pin 12711 Trolley handle 12473 Plug...

  • Page 24: Accessories

    GIOTTO ACCESSORIES Code 11090: AT 300 1/4" Code 35017: 1/4" - 10 mt Code 270: FILTER 100 MESH Code 11000: AT 300 M16x1,5 ANTIPULSATIONS HOSE Code 271: FILTER 60 MESH PISTON GUNSTOCK FILTERS Code 11039: Green (30M) - Code 11038: White (60M)
  • Page 25 GIOTTO Nozzles code 07-20 19-60 29-80 07-40 21-20 31-40 09-20 21-40 31-60 21-60 31-80 09-40 11-20 23-20 33-40 FAST-CLEAN 11-40 23-40 33-60 13-20 23-60 33-80 13-40 25-20 39-40 13-60 25-40 39-60 15-20 25-60 39-80 15-40 27-20 43-40 15-60 27-40 43-60...
  • Page 26 Code 16997: Roller cover for smooth surfaces Code 16998: Roller cover for very smooth surfaces Code 16999: Roller cover for semi-rough surfaces Code 16780: Extension 120 - 195 cm GIOTTO VERSIONS VERSION WITHOUT ACCESSORIES VERSION WITH ACCESSORIES Rif. 12450: 220V / 50 Hz Rif.
  • Page 27 Due to a constant product improvement programme, the factory reserves the right to modify technical details mentioned in this manual without prior notice.
  • Page 28 EXCALIBUR Ref. 18600 LARIETTE Ref. 50001 MANUFACTURER: 23801 CALOLZIOCORTE - LECCO - ITALY - Via Stoppani, 21 Tel. (39) 0341/62.11.52 - Fax (39) 0341/62.12.43 E-mail: larius@larius.com - Internet http://www.larius.com DIRECT LINE CUSTOMERS TECHNICAL SERVICE Tel. (39) 0341/621256 Fax (39) 0341/621234...
