SPECIFICATIONS
Power supply
Power consumption
User's foot size
Dimensions (H x W x D)
Weight
* Only available in Taiwan
2006 Matsushita Electric Works, Ltd.All rights reserved.
Unauthorized copying and distribution is a violation of law.
1. WIRING SCHEMATICS
SPECIFICATIONS
AC110V, 60Hz
500W
Up tp 28cm (actual length of foot)
39 x 40 x 51cm (with lid)
Approx. 4.8kg (with lid)
1
ORDER NO. PCD0512A66C3

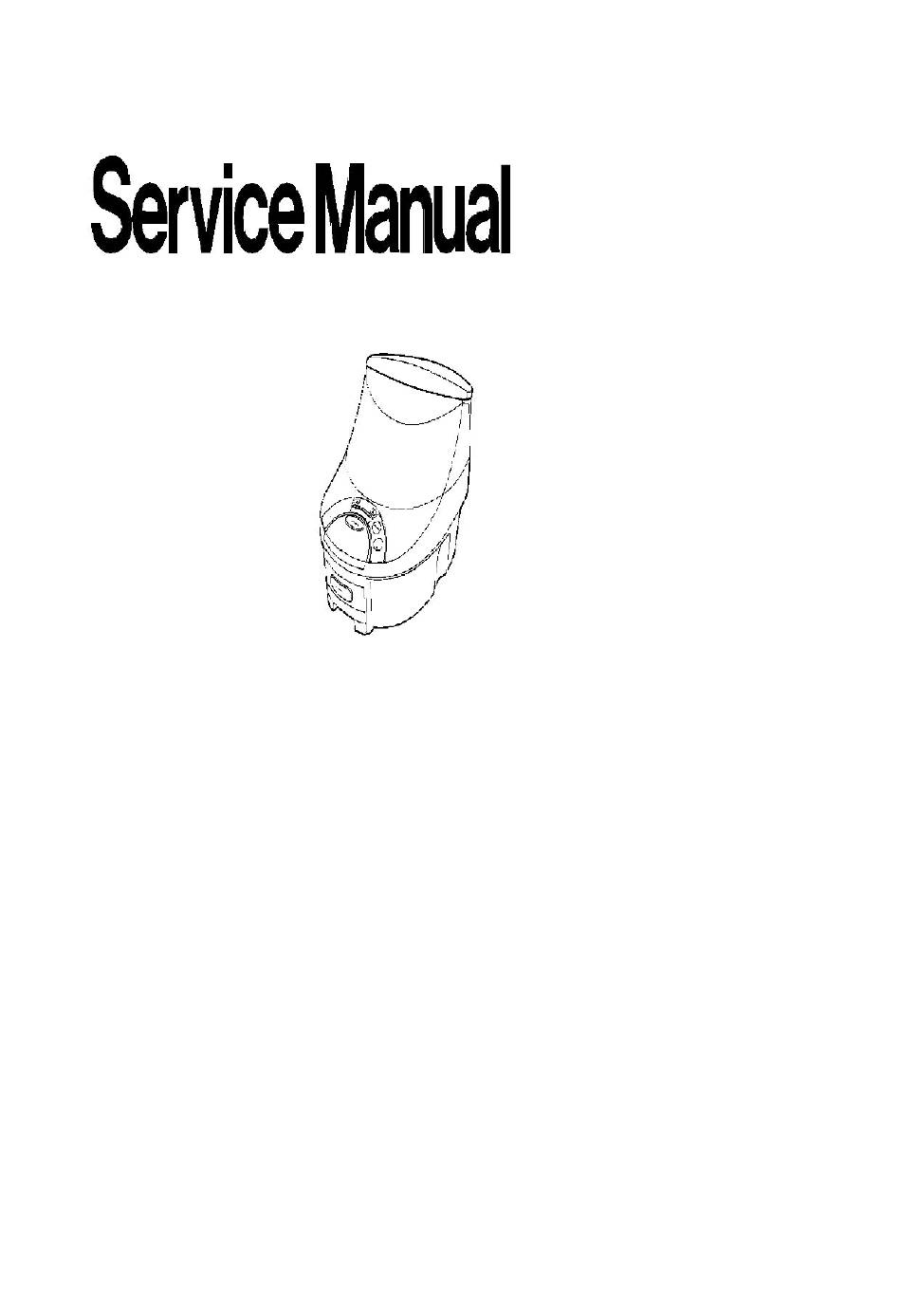

Steam Foot Spa
AC220V, 50-60Hz
EH2851-A3
Advertisement
Related Manuals for Panasonic EH2851-A3
Summary of Contents for Panasonic EH2851-A3
- Page 1 ORDER NO. PCD0512A66C3 Steam Foot Spa EH2851-A3 SPECIFICATIONS SPECIFICATIONS Power supply AC110V, 60Hz AC220V, 50-60Hz Power consumption 500W User's foot size Up tp 28cm (actual length of foot) Dimensions (H x W x D) 39 x 40 x 51cm (with lid) Weight Approx.
- Page 2 2. CHECKING (Refer to WIRING SCHEMATICS) - Check the conductivity of the Power cord and the operation of the Switch before the investigation.
- Page 5 3. DISASSEMBLY INSTRUCTIONS 1. Remove the Main body lid and the Slide housing. (Refer to the Figure Figure 4 2. Unscrew 10 screws as the Figure Figure 5...
- Page 6 3. Unscrew three screws as the Figure Figure 6 4. Unscrew eight screws as the Figure *When you remove the Inhalation/ventilation duct, be sure to replace with the brand-new Duct rubber set. (Refer to HOW TO PASTE THE DUCT RUBBER.) Figure 7 5.
- Page 7 7. Unscrew three screws as the Figure Figure 10 8. Unscrew one screw as the Figure Figure 11 4. HOW TO PASTE THE DUCT RUBBER 1. Put the tips of the Duct rubber on the tips of the Inhalation/ventilation duct. 2.
-
Page 8: Exploded View
together. 5. CHECKING AFTER REPAIR - Plug into the Power outlet. - Steam comes out normally. - Fan rotates. - No scratches or taints. 6. EXPLODED VIEW... - Page 9 6.1. BOILER DUCT...
- Page 10 6.2. POWER CORD, BASE...
- Page 11 6.3. HOUSING...
- Page 12 6.4. CONCEAL, TANK...
- Page 13 7. REPLECAMENT PARTS LIST...
- Page 14 Ref.No. Part No. Part Name & Description Remarks Per Unit WEH2851A4058 VENTILATION DUCT WEH2851A0027 MOTOR FITTING WEH2851A4377 MOTOR BASE WEH2851W0797 BASE RUBBER WEH2851L9057 SCREW WEH2411L9057 SCREW WEH2851K4438 BOILER FOR HK WEH2851K4448 BOILER FOR TAIWAN WEH2851W0717 SUPPLY WATER TUBE A WEH2851W0707 STEAM TUBE WEH2851W0697 DRAIN TUBE B...
