Summary of Contents for Kathrein FRM 100

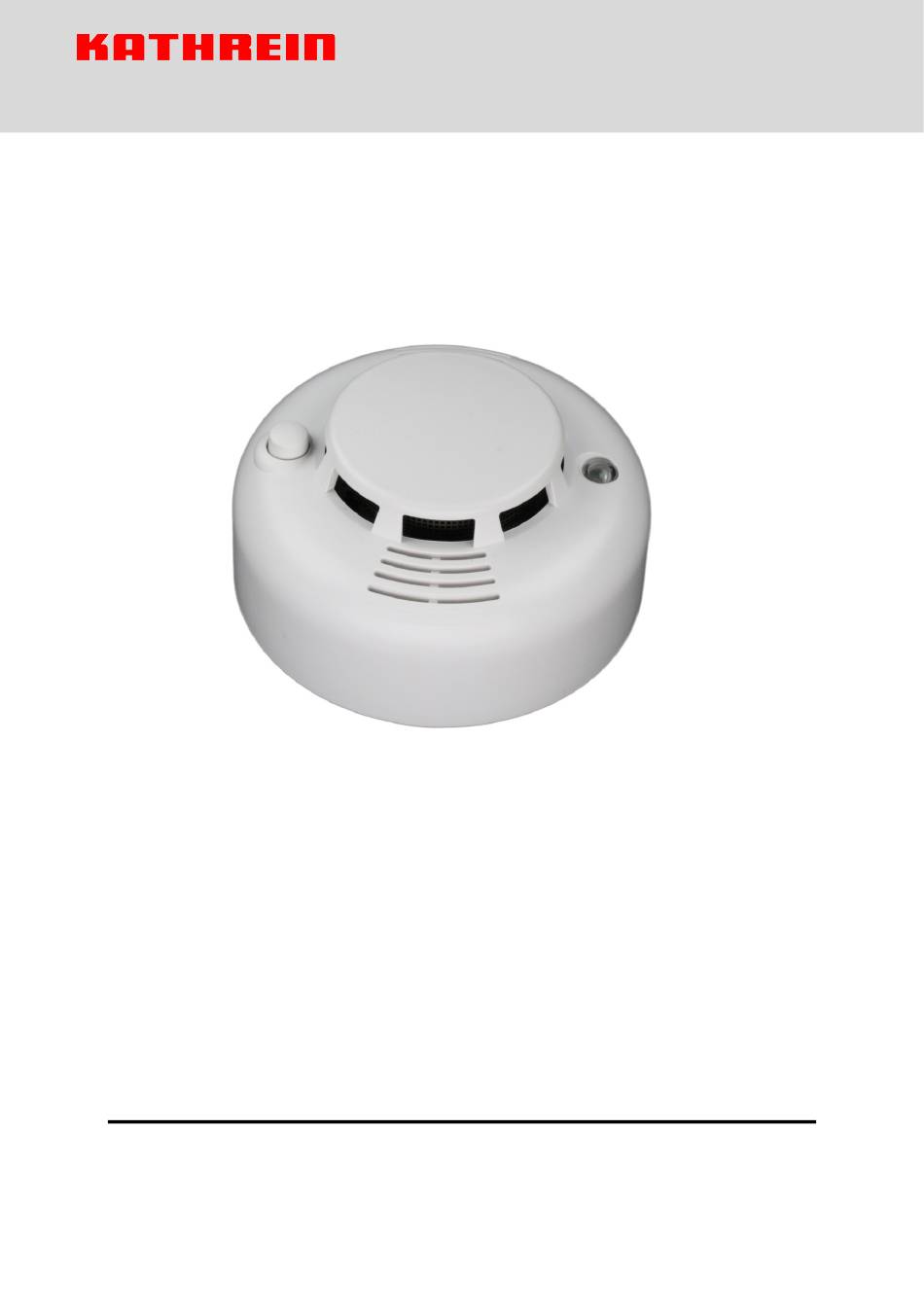

- Page 1 FRM 100 2220000008 Smoke Detector User Manual...
- Page 2 In addition, KATHREIN Digital Systems GmbH reserves the right to change the product and the manual without prior notice. We do not assume any guarantee with regard to the content of this document.
- Page 3 TO MINIMISE THE RISK OF ELECTRIC SHOCK, YOU MUST NOT EXPOSE THIS PRODUCT TO WET AND MOIST CONDITIONS AT ANY TIME. All KATHREIN Digital Systems GmbH products are lead-free and meet the requirements stated under the European Directive on the Restriction of Hazardous Substances (RoHS).
-
Page 4: Important Safety Information
The warranty claim will expire in such cases! The smoke detector FRM 100 is equipped with a high-quality housing. However, please observe the following safety instructions: • The housing of the smoke detector must not be opened for any reason. - Page 5 Malfunctions and Defects If you notice any kind of defect, remove the batteries from the smoke detector FRM 100 and contact your retailer or KATHREIN Digital Systems GmbH directly. Any further usage of the system may lead to fire or electric shock!
- Page 6 Smoke Detector FRM 100 Product description: You can install several smoke detectors on several floors, corridors and escape routes to warn you of a fire ahead of time. The smoke detector works according to optical principles. In a measurement chamber, the concentration of smoke particles is measured. If the concentration exceeds a set limit, the smoke detector will sound an alarm of 95 dB (measured from a distance of 1 meter / 3.2 feet).
- Page 7 100 cm from the top of the ceiling. Unsuitable installation locations: To increase the lifetime of your smoke detector and avoid false alarms, the FRM 100 should not be installed in the following locations: Kitchens and bathrooms – due to the high humidity and water vapour, •...
- Page 8 Connecting the smoke detector FRM 100 and putting it into operation 1. After inserting the batteries, you hear two brief signals and the LED begins to flash. During the warm-up phase of six minutes, you can connect the smoke detector with your alarm panel.
- Page 9 Range test: To test the signal strength at the desired installation location, perform a range test. 1. Open the alarm panel menu “Sensors” “Range” and press “Start”. 2. Press the Learn button of the smoke detector. 3. The sensor and the signal strength should be indicated. The higher the indicated number the better the reception (1 –...
- Page 10 • To clean the slots, please use the brush attachment of your vacuum cleaner carefully or blow out the dust (e.g. with a compressor). • The KATHREIN Digital Systems GmbH is not liable for contaminations. This is considered normal wear.
-
