Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS.
USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE
DAMAGE OR PERSONAL INJURY, AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1.
SAFETY INSTRUCTIONS
Familiarise yourself with product application and limitations, as well as the specific potential hazards peculiar to the puller.
p WARNING! Hand power pullers are not designed and certificated for lifting or slinging loads. They are intended only as a
3
pulling/tensioning device and must be used with care.
Ensure the puller is maintained in a safe working condition. Inspect the cable regularly. Check for fraying, kinks, broken strands or
distortion. If found, replace the cable. Check all component parts, do not use if damaged, contact authorised service agent.
3
p WARNING! Ensure you know how much load you are pulling. Never exceed the maximum pulling capacity. Take into account
any angle of incline over which the load must be pulled. Also account for pulling loads from thick mud, or through snow or
water. Chock the wheels of vehicles to be winched then release any brakes and place gears in neutral. Ensure the load is capable
of free movement before pulling. Take up the strain on the puller before removing the wheel chocks in order to move the load.
Fit an adequate sling, eyebolt or other accessory to load to be pulled. Ensure accessories are equal to, or exceed pullers maximum capacity.
Ensure there is positive engagement of the puller hook to the load before pulling.
3
Maintain correct balance and footing whilst using the puller.
3
Remove ill fitting clothing. Remove ties, watches, rings, and other loose jewellery, contain and/or tie back long hair.
3
Keep children and non essential persons away from the operating area. Be aware of the location of other persons assisting you.
3
Take necessary precautions to protect your personal safety whilst using the puller.
3
Apply even and steady pressure to the handle when releasing the tension from the load.
3
DO NOT operate the puller if any parts are damaged or missing as this may cause failure and/or possible personal injury.
3
p WARNING! DO NOT exceed the maximum pulling capacity.
7
p WARNING! DO NOT use the puller as a lifting device. DO NOT use the puller for any purpose other than for which it is designed.
p WARNING! DO NOT exceed the rated capacity of the puller.
DO NOT pull the cable over or around a corner.
DO NOT wrap cable around any object or hook the cable back on to itself.
7
DO NOT operate the puller with less than THREE wraps of cable on the spindle.
7
s DANGER! DO NOT use a Cheater pipe, lever, or other device to lengthen the handle for additional leverage, as the pulley may fail
7
causing damage and /or possible personal injury.
DO NOT operate the puller if you are tired, under the influence of alcohol, drugs or intoxicating medication.
DO NOT move the handle abruptly when releasing the tension from a load.
7
Keep the puller clean and store in a safe, dry, childproof location when not in use.
7
3
2.
INTRODUCTION & SPECIFICATIONS

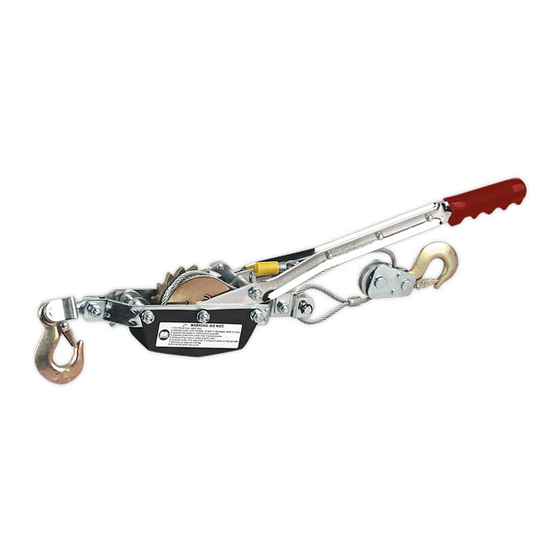

GS/TUV approved at indicated pulling capacity this hand operated device is
perfect for marine, industrial and automotive applications, for example: moving
vehicles, logs, machines and other heavy objects. Vehicles must be in a condition
capable of acting as a rolling load within the rated capacity. All models are fitted
with ratchet safety devices. Models HP1000 and HP1500 are equipped with
double ratchet safety device and double ratcheting mechanism for applying the
load evenly and with minimum effort.
SPECIFICATIONS
Model:
Pulling capacity . . . . . . . . . . . . . . . . . . .700kg . . . . . . . . . . . . .1000kg . . . . . . . . . . . .1500kg
Breaking strain . . . . . . . . . . . . . . . . . .1000kg . . . . . . . . . . . . .2000kg . . . . . . . . . . . .4000kg
Chassis thickness . . . . . . . . . . . . . . . .2.6mm . . . . . . . . . . . . .3.5mm . . . . . . . . . . . .6.0mm
Gear/Pawl type . . . . . . . . . . . . . .single/single . . . . . . . .double/double . . . . . . .double/double
Cable Ø and length . . . . . . . . . . . .Ø5mm/3mt . . . . . . . . . .Ø5mm/3mt . . . . . . . . .Ø6mm/3mt
No. of hooks . . . . . . . . . . . . . . . . . . . . . . . . .2 . . . . . . . . . . . . . . . . . .2 . . . . . . . . . . . . . . . . .3
Note: Pulling capacity is given as a rolling load on a level surface. Exercise extreme caution and do not overload, particularly on deadweight loads.
01284 757500
HP700
HP1000
Sole UK Distributor, Sealey Group,
Bury St. Edmunds, Suffolk.
01284 703534
INSTRUCTIONS FOR:
HAND POWER PULLERS Models:
HP700, HP1000 & HP1500
HP1500
E-mail: sales@sealey.co.uk
HP700-1000-1500 (0016) -(3) - 010700
