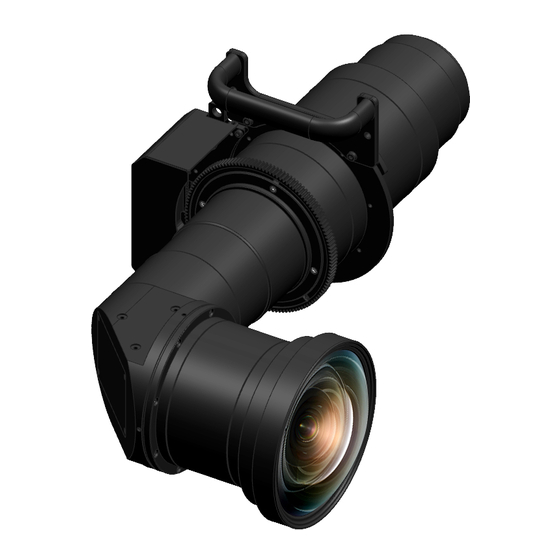

Panasonic ET-D3QW200 Operating Instructions Manual

Zoom lens
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Thank you for purchasing this Panasonic product.
■ To ensure correct use of this lens, please read the operating instructions supplied

with the lens and the projector carefully.
■ Before using this product, be sure to read "Read this first!" (

■ Please save this manual for future use.

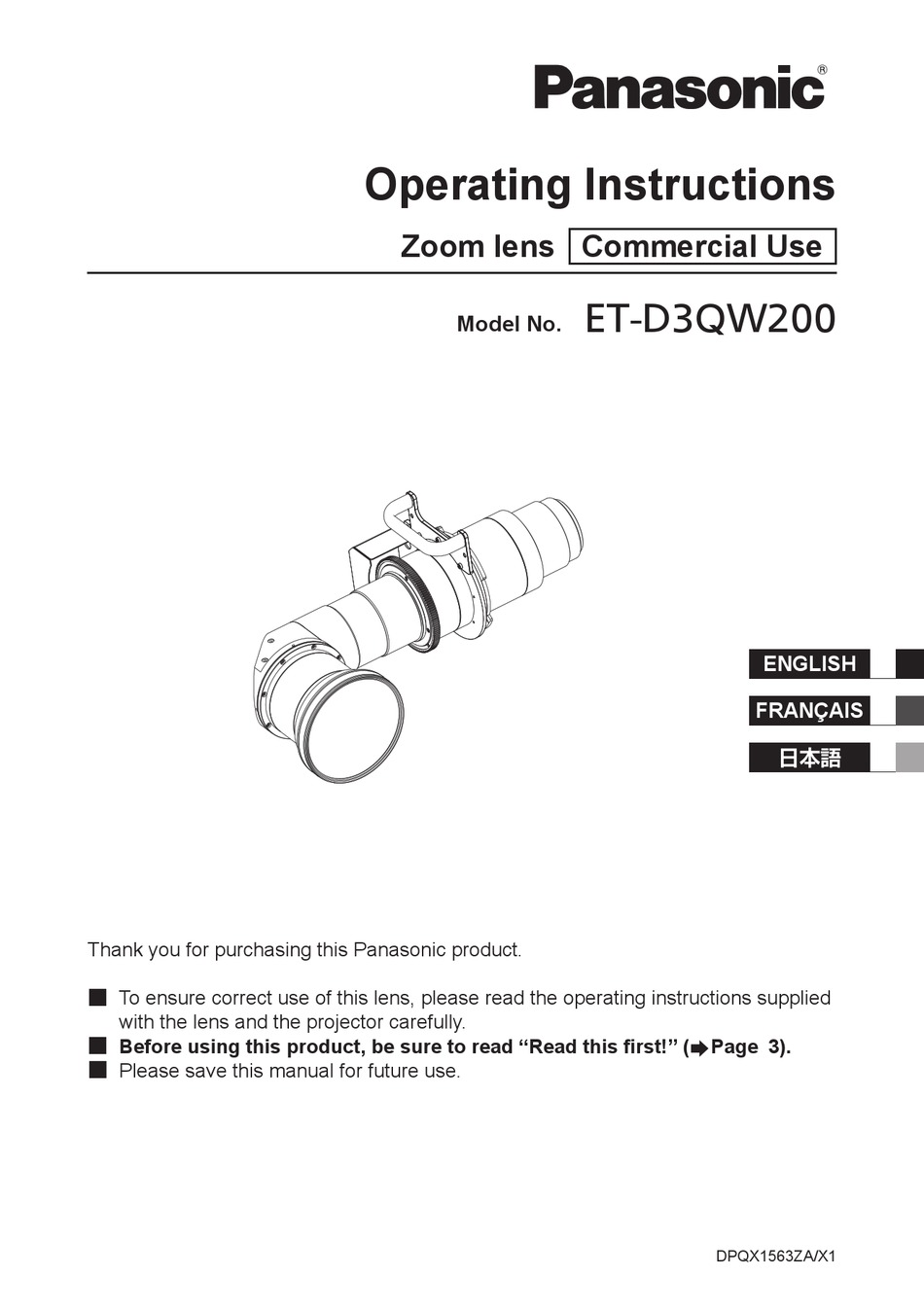

Operating Instructions
Zoom lens
Model No.
Commercial Use
ET-D3QW200
FRANÇAIS
Page 3).
DPQX1563ZA/X1
ENGLISH
日本語

Advertisement

Table of Contents
loading

Related Manuals for Panasonic ET-D3QW200

Summary of Contents for Panasonic ET-D3QW200

  • Page 1 Model No. ENGLISH FRANÇAIS 日本語 Thank you for purchasing this Panasonic product. ■ To ensure correct use of this lens, please read the operating instructions supplied   with the lens and the projector carefully. ■ Before using this product, be sure to read “Read this first!” (  ...

  • Page 2: Table Of Contents

    █ Contents Read this first! ..................3 Before Use.....................5 Preparation....................5 Before replacing the projection lens ............5 Attaching and Detaching the Lens ............5 Peripheral focus adjustment function ............6 Lens calibration ..................7 Projection relationships...............8 Lens shift ranges ................12 Specifications ..................13 Dimensions ..................13 Projected image size and Projection distance..Appendix / Annexe / 付録...

  • Page 3: Read This First

    Read this first! Always follow these precautions WARNING: Do not look at or place your skin into the light emitted from the lens while the projector is being used. Doing so can cause burns or loss of sight. z Strong light is emitted from the projector’s lens. Do not look at or place your hands directly into this light.
  • Page 4 Read this fi rst! (continued) ■ Hazard distance (IEC 62471-5:2015) The distance from the projection lens surface, at which the emission reaches the Accessible Emission Limit (AEL) of risk group 2, is known as the hazard distance (HD) or safety distance. The area where the emission exceeds the Accessible Emission Limit of risk group 2 is called the hazard zone (HZ).

  • Page 5: Before Use

    Some of the alphabet letters at the end of projector model numbers may be omitted in this manual. z Models other than the above may also be supported. Refer to the operating instructions for your projector or the Panasonic website (https://panasonic.net/cns/projector/). ■ Supplied Accessories Make sure that the following has been provided.

  • Page 6: Peripheral Focus Adjustment Function

    This shift in balance tends to increase proportionally with smaller throw ratios. The ET-D3QW200 is equipped with a peripheral focus adjustment function to correct the shift in focal balance between the center and peripheral areas of the screen.

  • Page 7: Lens Calibration

    ACTIVE FOCUS OPTIMIZER z The [LENS CALIBRATION] screen LENS CALIBRATION appears. MENU SELECT SUB MENU ENTER Use the ▲ and ▼ buttons to LENS CALIBRATION : ET-D3QW200 select [SHIFT/FOCUS/ZOOM], SHIFT/FOCUS/ZOOM SHIFT/FOCUS and press the <ENTER> ZOOM button. MENU SELECT z The confirmation screen appears.

  • Page 8: Projection Relationships

    Projection relationships The dimensional relationship between the screen and the projector is shown below. ■ Dimensional relationship diagram Projected image Screen L (LW/LT) L (LW/LT) Screen Note z This diagram assumes that the size and position of the projected image will be adjusted so that the image fills the entire screen.
  • Page 9 Projection relationships (continued) Note z The illustrations of projectors in this manual are for informational purposes only and do not represent a specific projector model. Configurations may vary with the model. z If the screen is tilted downward, extend the adjustable feet on the sides of the projector until the projected image is rectangular.
  • Page 10 Projection relationships (continued) ■ [GEOMETRY] projection range [VERTICAL KEYSTONE] (viewed from the side) [HORIZONTAL KEYSTONE] (viewed from above) Screen Screen Vertical arc correction (viewed from the side) Horizontal arc correction (viewed from above) Screen Screen L2: Projection L2: Projection distance distance R2: Arc radius R2: Arc radius...
  • Page 11 Projection relationships (continued) Note z When [GEOMETRY] is used, the focus of the entire screen may be lost as correction increases. z Adjustment range of the [GEOMETRY] items may not match the listed projection range depending on the projection lens. Use this projector within the projection range, otherwise the correction may not work.

  • Page 12: Lens Shift Ranges

    Lens shift ranges After moving the lens to the home position according to “Lens calibration” on page 7, you can use the lens shift adjustment function on the projector to adjust the position of the projected image within the respective lens shift ranges based on the optical screen center position (standard projection position).

  • Page 13: Specifications

    Specifications F value Focal Length (f) 17.5 mm (11/16") - 20.7 mm (13/16") Supported screen size 100" - 1500" Width 313 mm (12-5/16") Dimensions Height 192 mm (7-9/16") Depth 532 mm (20-15/16") Net Weight 11.3 kg (24.9 lb) Dimensions (Unit: mm) 456 (17-15/16") 532 (20-15/16") ENGLISH-13...
  • Page 14 This symbol is only valid in China. Panasonic Corporation Web Site : https://panasonic.net/cns/projector/ © Panasonic Corporation 2021 Panasonic System Solutions Company of North America Two Riverfront Plaza, Newark, NJ 07102 TEL: (877) 803 - 8492 Panasonic Canada Inc. 5770 Ambler Drive, Mississauga, Ontario L4W 2T3...

  • Page 15: Projected Image Size And Projection Distance

    Appendix / Annexe / 付録 ■ Projected image size and Projection distance ■ Taille de l'image projetée et Distance de projection ■ 投写画面サイズと投写距離 （Unit / Unités / 単位 : m） When the screen aspect ratio is 17:9 (Throw ratio: [0.548 - 0.650:1]) Lorsque le rapport d’aspect de l'écran est 17:9 (Rapport de projection : [0.548 - 0.650:1]) アスペクト比...
  • Page 16 Appendix / Annexe / 付録 （continued / suite / つづき） （Unit / Unités / 単位 : m） When the screen aspect ratio is 16:10 (Throw ratio: [0.652 - 0.772:1]) Lorsque le rapport d’aspect de l'écran est 16:10 (Rapport de projection : [0.652 - 0.772:1]) アスペクト比...
  • Page 17 Appendix / Annexe / 付録 （continued / suite / つづき） （Unit / Unités / 単位 : m） When the screen aspect ratio is 4:3 (Throw ratio: [0.785 - 0.929:1]) Lorsque le rapport d’aspect de l'écran est 4:3 (Rapport de projection : [0.785 - 0.929:1]) アスペクト比...
  • Page 18 Appendix / Annexe / 付録 （continued / suite / つづき） z Projection distance formulas z Formules de distance de projection z 投写距離計算式   The dimensions of the following table contain a slight error. Periods are used to represent decimal points in the calculation formulas in the following table. Les dimensions du tableau suivant peuvent présenter un léger écart.
  • Page 19 MEMO Appendix / Annexe / 付録...
  • Page 20 Panasonic Corporation Web Site : https://panasonic.net/cns/projector/ Panasonic System Solutions Company of North America Two Riverfront Plaza, Newark, NJ 07102 TEL: (877) 803 - 8492 Panasonic Canada Inc. 5770 Ambler Drive, Mississauga, Ontario L4W 2T3 TEL: (905) 624 - 5010 パナソニック株式会社　コネクティッドソリューションズ社...
