Model No.
Description
C
ONCEPT AND MAIN APPLICATIONS
Model HR4030C 40mm Hex Rotary Hammer has been developed
as the successor model of HR3850 and HR3811 to compete with
Model H1 and H2 of the competitor H.
Ensures work efficiency higher than the competing models,
but still featuring lightweight, slim and compact tool design.
S
pecification
Voltage (V)
110
120
220
230
240
Continuous rating input: W
No load speed: min
Impacts per minute: min
Shank type: mm (")
Max TCT bit diameter
:
Capacity
mm (")
Max Core bit diameter
Variable speed control
Electronic
Soft start
features
Constant speed control
Double insulation
Power supply cord: m (ft)
Net weight: kg (lbs)
S
tandard equipment
Plastic carrying case .........1 pc
Depth gauge ................... 1 pc
Side handle ...................... 1 pc
Note: The standard equipment for the tool shown may differ from country to country.
O
ptional accessories
TCT bits (hex shank),TCT bits (straight shank), Bull points, TCT bits (taper shank), Cold chisels, Taper shank adapter,
Scaling chisels, Cotter, Core bits, Grooving chisels, Clay spade, Center bit, Rammer, Core bit adapter,
Bushing tool, Chemical anchor adapter, Shank (for Rammer and Bushing tool),
Blow-out bulb, Ground rod adapter, Hammer service kit, Hammer grease, Bit grease
HR4030C
Rotary Hammer 40mm (1-9/16")
Cycle (Hz)
Current (A)
12.0
50/ 60
11.0
50/ 60
6.2
50/ 60
6.2
50/ 60
6.2
50/ 60
= rpm
-1
= ipm
-1
Europe: 4.0 (13.1), Brazil: 2.0 (6.6), other countries: 5.0 (16.4)
Continuous Rating (W)
Input
Output
1,100
500
---
500
1,100
550
1,100
550
1,100
550
1,100
230 - 460
1,300 - 2,600
17 (11/16) Hex
40 (1-9/16)
118 (4-5/8)
Yes (by dial)
Yes
Yes
Yes
6.2 (13.7)

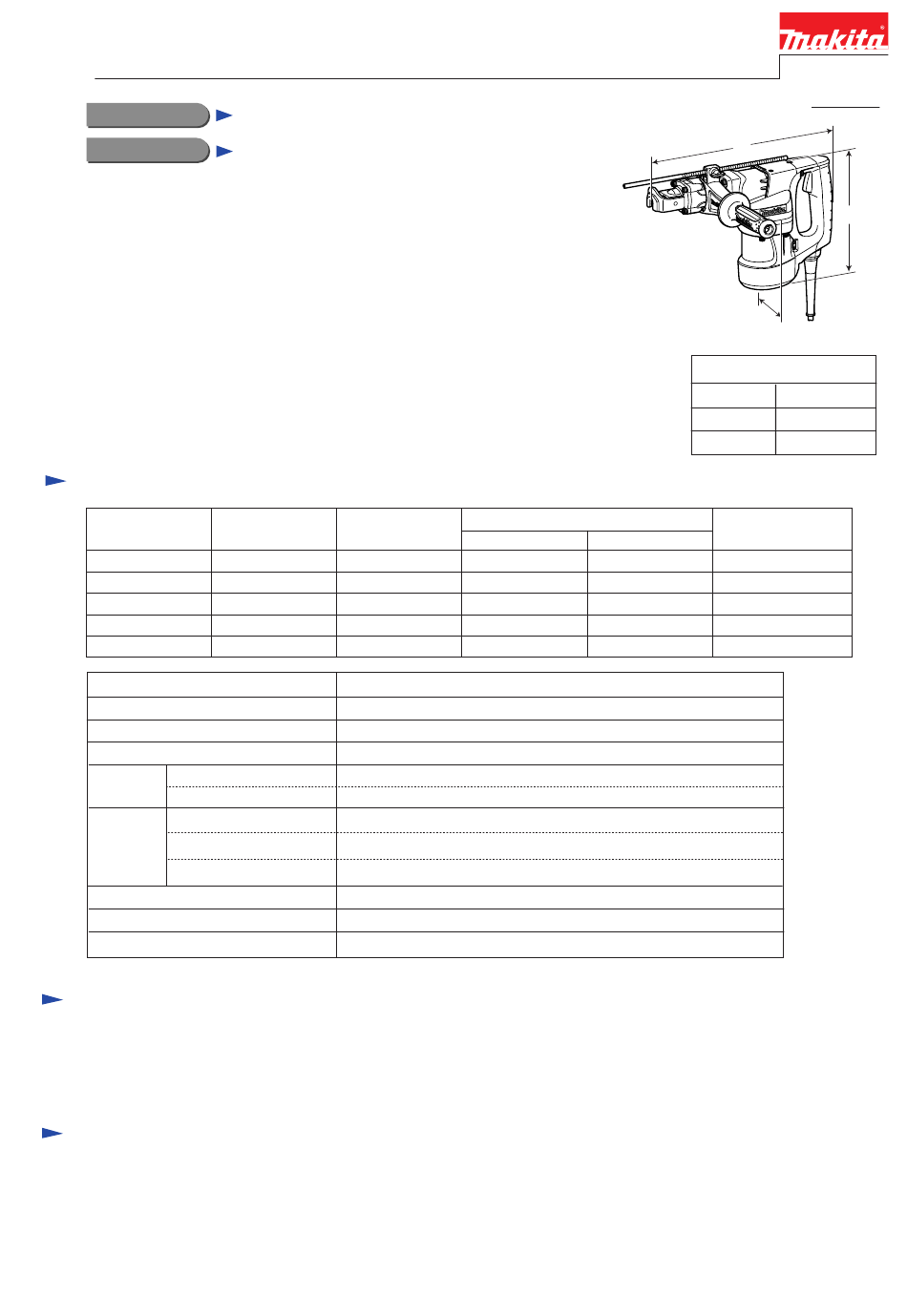

PRODUCT
P 1 /13
L
H
W
Dimensions: mm (")
Length (L) 413 (16-1/4)
Width (W)
107 (4-1/4)
Height (H)
247 (9-3/4)
Max. Output (W)
1,200
1,200
1,500
1,500
1,500
