Sony LocationFree LF-X11 Quick Start Manual

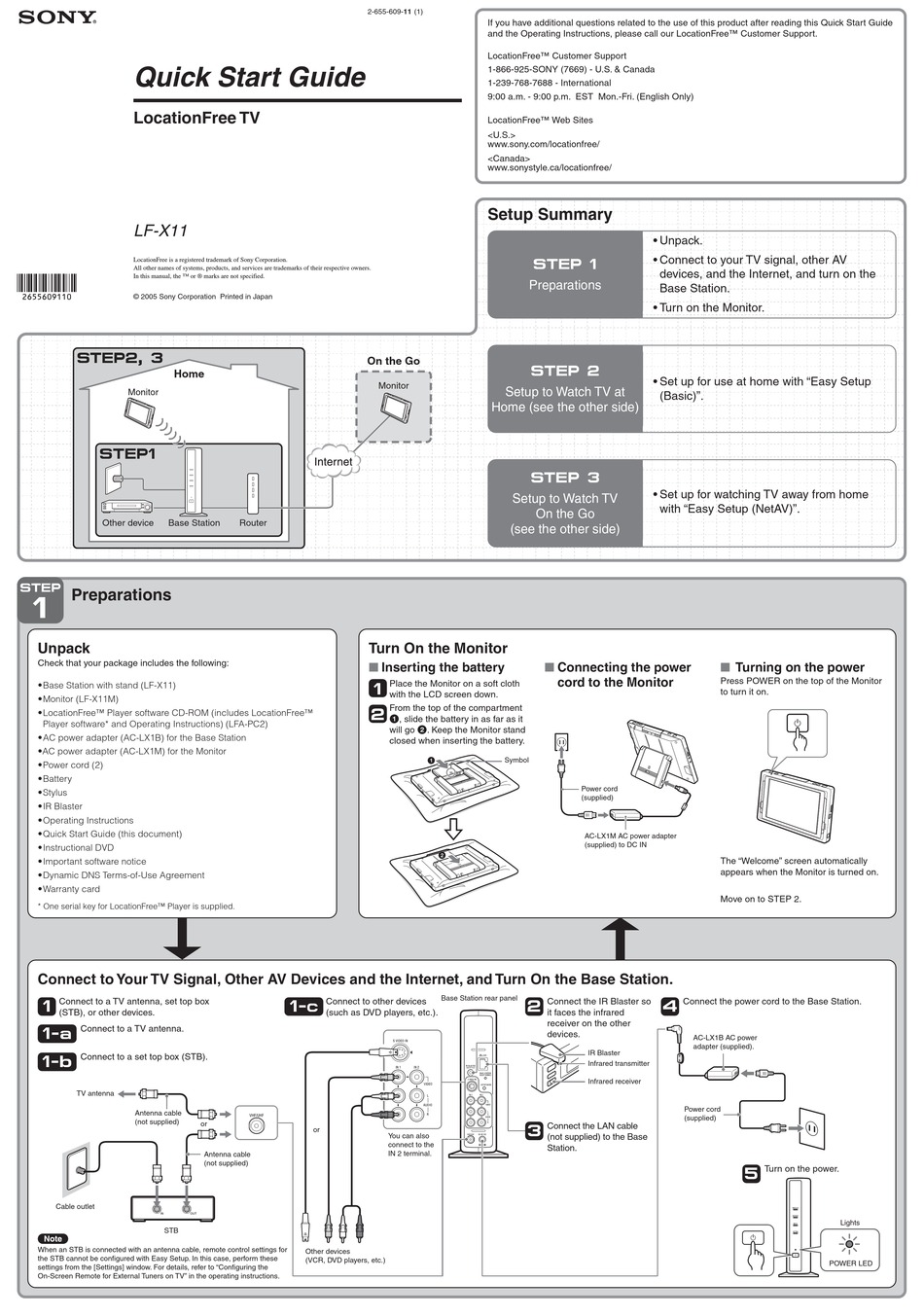

Quick Start Guide

LocationFree TV
LF-X11
LocationFree is a registered trademark of Sony Corporation.
All other names of systems, products, and services are trademarks of their respective owners.
In this manual, the ™ or ® marks are not specified.
© 2005 Sony Corporation Printed in Japan
STEP2, 3
Home

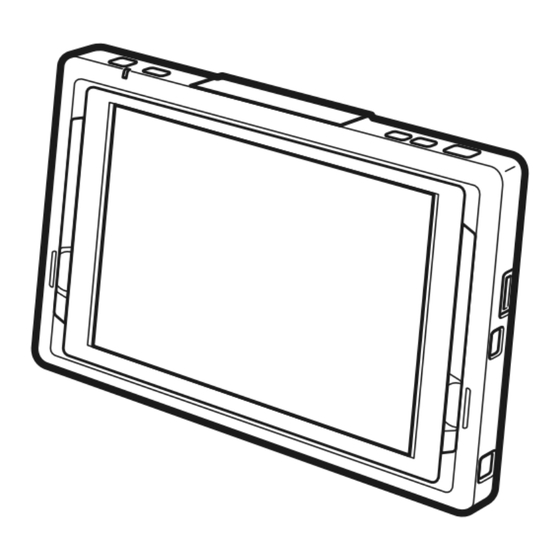

Monitor
STEP1
Other device Base Station
STEP
Preparations
1
Unpack
Check that your package includes the following:
•Base Station with stand (LF-X11)
•Monitor (LF-X11M)
•LocationFree™ Player software CD-ROM (includes LocationFree™
Player software* and Operating Instructions) (LFA-PC2)
•AC power adapter (AC-LX1B) for the Base Station
•AC power adapter (AC-LX1M) for the Monitor
•Power cord (2)
•Battery
•Stylus
•IR Blaster
•Operating Instructions
•Quick Start Guide (this document)
•Instructional DVD
•Important software notice
•Dynamic DNS Terms-of-Use Agreement
•Warranty card
* One serial key for LocationFree™ Player is supplied.
Connect to Your TV Signal, Other AV Devices and the Internet, and Turn On the Base Station.
Connect to a TV antenna, set top box
1
(STB), or other devices.
Connect to a TV antenna.
1-a
Connect to a set top box (STB).
1-b
TV antenna
Antenna cable
(not supplied)
Cable outlet
STB
When an STB is connected with an antenna cable, remote control settings for
the STB cannot be configured with Easy Setup. In this case, perform these
settings from the [Settings] window. For details, refer to "Configuring the
On-Screen Remote for External Tuners on TV" in the operating instructions.
2-655-609-11 (1)
On the Go
Router
Turn On the Monitor
■
1
2
Connect to other devices
1-c
(such as DVD players, etc.).
or
or
Antenna cable
(not supplied)
Other devices
(VCR, DVD players, etc.)
If you have additional questions related to the use of this product after reading this Quick Start Guide
and the Operating Instructions, please call our LocationFree™ Customer Support.
LocationFree™ Customer Support
1-866-925-SONY (7669) - U.S. & Canada
1-239-768-7688 - International
9:00 a.m. - 9:00 p.m. EST Mon.-Fri. (English Only)
LocationFree™ Web Sites
<U.S.>
www.sony.com/locationfree/
<Canada>
www.sonystyle.ca/locationfree/
Setup Summary
STEP 1
Preparations
STEP 2
Monitor
Setup to Watch TV at
Home (see the other side)
STEP 3
Setup to Watch TV
On the Go
(see the other side)
■
Inserting the battery
Place the Monitor on a soft cloth
with the LCD screen down.
From the top of the compartment
1, slide the battery in as far as it
will go 2. Keep the Monitor stand
closed when inserting the battery.
Symbol
Base Station rear panel
Connect the IR Blaster so
2
it faces the infrared
receiver on the other
devices.
Connect the LAN cable
3
You can also (not supplied) to the Base
connect to the
Station.
IN 2 terminal.
• Unpack.
• Connect to your TV signal, other AV
devices, and the Internet, and turn on the
Base Station.
• Turn on the Monitor.
• Set up for use at home with "Easy Setup
(Basic)".
• Set up for watching TV away from home
with "Easy Setup (NetAV)".
■

Connecting the power

cord to the Monitor Press POWER on the top of the Monitor
to turn it on.
Power cord
(supplied)
AC-LX1M AC power adapter
(supplied) to DC IN
The "Welcome" screen automatically
appears when the Monitor is turned on.
Move on to STEP 2.
Connect the power cord to the Base Station.
4
AC-LX1B AC power
adapter (supplied).
IR Blaster
Infrared transmitter
Infrared receiver
Power cord
(supplied)
Turning on the power
Turn on the power.
5
Lights
POWER LED
