  • Page 1 Version 1.01 | 03/23/2017 User Manual HD Pan & Tilt Wi-Fi Day/Night Camera DCS-5030L...
  • Page 2 Manual Overview D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Information in this document may become obsolete as our services and websites develop and change.

  • Page 3: Table Of Contents

    Firmware Upgrade ..............56 Configuration ..............24 Status ....................57 Using the Web Configuration Interface ......24 Device Info ................57 Live Video ..................25 Active User ................58 Setup ....................27 Help ..................59 Wizard ..................27 Internet Connection Setup Wizard ......28 Troubleshooting ..............60 Network Setup ..............30 D-Link DCS-5030L User Manual...
  • Page 4 Table of Contents Technical Specifications ..........63 Regulatory Statements ...........65 D-Link DCS-5030L User Manual...

  • Page 5: Product Overview

    Section 1 - Product Overview Package Contents Micro-USB Power Adapter DCS-5030L HD Pan & Tilt Wi-Fi Day/Night Camera Camera Base and Mounting Kit Quick Install Guide Quick Install Card CAT5 Ethernet Cable If any of the above items are missing, please contact your reseller.

  • Page 6: System Requirements

    Visit www.java.com to download the latest version. • Broadband Internet connection Computer with: • Internet Explorer 8 or higher (ActiveX) mydlink Website Requirements • Firefox 12 or higher • Safari 6 or higher • Chrome 20 or higher D-Link DCS-5030L User Manual...

  • Page 7: Introduction

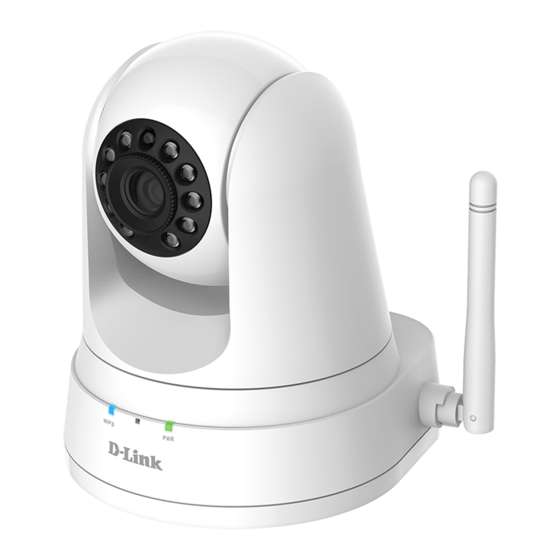

    Congratulations on your purchase of the DCS-5030L HD Pan & Tilt Wi-Fi Day/Night Camera. The DCS-5030L is a versatile and unique solution for your home or small office. Unlike a standard webcam, the DCS-5030L is a complete system with a built-in CPU, web server, and wireless networking device that transmits high-quality video images for security and surveillance.

  • Page 8: Features

    Pan/Tilt for Wide Viewing Area Patrol a large area with one camera thanks to the DCS-5030L’s pan and tilt functions. You can use the web interface to manually adjust the camera lens position, or set up to 24 pre-defined preset positions, enabling you to quickly move to frequently viewed points of interest.
  • Page 9 Micro-USB Powered for Convenience For added convenience, the DCS-5030L can be powered via any Micro-USB cable, so you don’t have to worry about looking for a matching power adapter when setting it up for use. Simply use the included or standard Micro-USB cable and plug it into any USB power adapter or powered USB port and it’ll be powered on and ready for use.

  • Page 10: Hardware Overview

    Indicates the WPS connection status of the camera. WPS LED Records audio from the surrounding area. Microphone Illuminate the camera’s field of view in low light environments.. Infrared LEDs Indicates the camera’s current status. Power and Link LED D-Link DCS-5030L User Manual...

  • Page 11: Rear View

    Press and hold this button for 10 seconds to reset the camera. Reset Button Connect a Micro-USB cable here to power on the camera. Micro-USB Port Insert a microSD card to record to the card. microSD Port D-Link DCS-5030L User Manual...

  • Page 12: Installation

    Installation There are three ways to set up your camera: • Mobile App Setup: You can set up your DCS-5030L with the free mydlink Lite app. Refer to Mobile App Setup on page 13. • Zero Configuration Setup: If you have a mydlink-enabled router (D-Link cloud router), this is the easiest way to set up your camera.

  • Page 13: Mobile App Setup

    Lite compatible devices. Search for the free mydlink Lite app on the App Store or Google Play and download it to your smartphone or tablet. You can also use a QR code reading app to scan the corresponding code for your device below. D-Link DCS-5030L User Manual...

  • Page 14: Mydlink Lite

    2. Download the mydlink Lite app using a QR code in the previous page. mydlink Lite 3. On the login page, tap Local. The app will automatically discover any D-Link cameras in your network. 4. Tap the DCS-5030L icon to begin setup.

  • Page 15: Zero Configuration Setup

    Connect your camera to your mydlink-enabled Cloud Router and Zero Configuration will automatically configure your DCS-5030L and add the camera to your mydlink account. After a short period of time, you will be able to remotely access your camera from the website http://www.mydlink.com to manage and monitor your DCS-5030L.
  • Page 16 Click the notification to continue. DCS-5030L A summary and confirmation notification will appear with the automatically configured details. Make a note of the details and click Yes to add the camera to your account. DCS-5030L D-Link DCS-5030L User Manual...
  • Page 17 24 for advanced configuration of your camera. Note: If the live image is blurry or out of focus, you can manually adjust the focus by rotating the manual focus bezel surrounding the camera lens. D-Link DCS-5030L User Manual...

  • Page 18: Manual Hardware Installation

    You can use WPS to connect your camera to your network wirelessly. For more information, refer to WPS - Push Button Setup on page 20. If your router does not support WPS, you will still be able to set up your camera’s wireless settings in the camera’s web interface. D-Link DCS-5030L User Manual...

  • Page 19: Wireless Installation Considerations

    Section 2 - Installation Wireless Installation Considerations Your D-Link Wireless Network Camera lets you access your network using a wireless connection from anywhere within the operating range of your wireless network. However, the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range.

  • Page 20: Wps - Push Button Setup

    WPS feature. If you are not sure where the WPS button is on your router, please refer to your router’s User Manual. The DCS-5030L will automatically create a secure wireless connection to your router. While connecting, the blue LED will flash and your camera will reboot.

  • Page 21: Mounting The Camera

    If desired, the power and Ethernet cables can be concealed behind the mounting bracket. Run the cables through the back of the mounting bracket, securing them with the built-in guides. Be sure to leave enough cable length protruding from the top to allow connection to the camera. D-Link DCS-5030L User Manual...
  • Page 22 Using the supplied thumbscrew, fasten the camera to the mounting bracket. Connect the power and Ethernet cables to the camera. Adjust the angle of the arm on the mounting bracket as required. Tighten the thumbscrew to lock the arm in place. D-Link DCS-5030L User Manual...

  • Page 23: Mydlink

    After registering your DCS-5030L camera with a mydlink account in the mydlink Lite app, you will be able to remotely access your camera from the www.mydlink.com website. After signing in to your mydlink account, you will see a screen similar to...

  • Page 24: Configuration

    After completing setup through the mydlink Lite mobile app or Zero Configuration Setup, you are ready to use your camera. The camera’s built-in web configuration interface is designed to allow you to easily access and configure your DCS-5030L. There are two ways in which you can access your camera’s web configuration interface: •...

  • Page 25: Live Video

    Night Mode: feature can be toggled using these buttons. Note: If the live image is blurry or out of focus, you can manually adjust the focus by rotating the manual focus bezel surrounding the camera lens. D-Link DCS-5030L User Manual...
  • Page 26 Section 3 - Configuration Note: If the live image is blurry or out of focus, you can manually adjust the focus by rotating the manual focus bezel surrounding the camera lens. D-Link DCS-5030L User Manual...

  • Page 27: Setup

    Section 3 - Configuration Setup Wizard You may choose to configure your Internet connection by using the Internet Connection Setup Wizard that includes step-by-step instructions. Otherwise, you may manually configure your connection using the Manual Internet Connection Setup. D-Link DCS-5030L User Manual...

  • Page 28: Internet Connection Setup Wizard

    Internet Connection Setup Wizard This wizard will guide you through a step-by-step process to configure your new D-Link Camera and connect the camera to the Internet. Click Next to continue. Select what kind of Internet connection your camera should use: •...
  • Page 29 Configure the correct time to ensure that all events are triggered, captured, and scheduled at the right time. Click Next to continue. This page displays your configured settings. Click Apply to save and activate your changes, or click Back to change your settings. DCS-5030L D-Link DCS-5030L User Manual...

  • Page 30: Network Setup

    For example, if the port is changed to 1010, users must type http://192.168.0.100:1010 instead of only “http://192.168.0.100”. Enable this setting to configure your camera as a UPnP device UPnP in the network. You can also enable UPnP port forwarding. Settings: D-Link DCS-5030L User Manual...
  • Page 31 Section 3 - Configuration Enable this setting to allow your camera to be discovered by Bonjour the Bonjour service. You can also specify a Bonjour name for Settings: the device. D-Link DCS-5030L User Manual...

  • Page 32: Wireless Setup

    Select the wireless security mode used by your wireless network. Wireless If you select WEP or WPA-PSK/WPA2-PSK, enter the password Security for your wireless network in the text box that appears. Mode: D-Link DCS-5030L User Manual...

  • Page 33: Extender Setup

    • WEP - WEP is the simplest form of wireless encryption, and should only be used if you devices do not support WPA/WPA2 encryption. • WPA/WPA2 - This is currently the most advanced D-Link DCS-5030L User Manual...
  • Page 34 Section 3 - Configuration encryption method. Enter a Pre-shared Key (PSK/ password) in the text box provided. Wireless clients will require this password in order to access your extended network. D-Link DCS-5030L User Manual...

  • Page 35: Dynamic Dns (Ddns)

    Enter your username or e-mail used to connect to the DDNS. User Name: Enter your password used to connect to the DDNS server. Password: This allows you to specify the periodic update time for the DDNS Timeout: address. D-Link DCS-5030L User Manual...

  • Page 36: Image Setup

    -5 and +5. Control: Allows you to adjust the contrast level. Select a setting between Contrast -5 and +5. Control: Allows you to adjust the saturation level. Select a setting Saturation between -5 and +5. Control: D-Link DCS-5030L User Manual...

  • Page 37: Video

    Medium, Low, and Very Low. Select the default encoding to use when viewing your video Default View on the Live Video page. Mode: Select the frequency used by your lighting and power to help Light reduce image flicker. Frequency: D-Link DCS-5030L User Manual...

  • Page 38: Audio

    This section allows you to adjust the audio settings for your camera. Note: Please wait a few seconds for the camera to adjust the audio after making changes. You may Enable or Disable the camera audio feed. Audio Settings: Select the desired volume percentage level. Volume Settings: D-Link DCS-5030L User Manual...

  • Page 39: Motion Detection

    Schedule that you define. Specify the amount of difference required to determine whether Sensitivity: there was motion. Use your mouse to click on the areas of the video that you would Detection like to monitor for motion. Areas: D-Link DCS-5030L User Manual...

  • Page 40: Sound Detection

    Specify the volume level that a sound must exceed in order to Detection trigger the sound detection feature. The graph at the bottom Level: of the page will show the current volume levels being detected by the camera. D-Link DCS-5030L User Manual...

  • Page 41: Mail

    Step 6 - Enter the password required to access the SMTP server. Step 7 - Select SSL-TLS and then click Save Settings. Step 8 - Click the Test button to send a test e-mail to the account listed above. D-Link DCS-5030L User Manual...
  • Page 42 Frame interval time to specify how far apart the snapshots should be. This sets the limit for how frequently e-mail notifications will E-mail be sent. This can be set from 1 to 65535 seconds. Interval: D-Link DCS-5030L User Manual...
  • Page 43 Video Limit video clips settings you specify. to an e-mail account: This will send a test e-mail according to the e-mail settings you Test E-mail have specified above. Account: D-Link DCS-5030L User Manual...

  • Page 44: Ftp

    Set how frequently you want images to be taken and uploaded. Image You can choose to upload by frames per second, or by seconds Frequency: per frame. D-Link DCS-5030L User Manual...
  • Page 45 Specify the maximum file size and duration of the videos to be Video Limit: uploaded. Clicking on the Test button will send a test JPEG snapshot to Test FTP the FTP server specified above to make sure that your settings Server: are correct. D-Link DCS-5030L User Manual...

  • Page 46: Time And Date

    If Synchronize NTP Server is disabled, you can set the date and Set the Date time manually. You can also click on the Copy Your Computer’s and Time Time Settings to automatically set the date and time based on Manually: your computer’s settings. D-Link DCS-5030L User Manual...

  • Page 47: Day/Night Mode

    This sets the camera to always use Night mode. Always Night Mode: This sets the camera to use Day mode during the times you Day Mode specify, and will switch to Night mode outside the times you Schedule: specify. D-Link DCS-5030L User Manual...

  • Page 48: Camera Control

    Select the increment of movement for each press of a pan (up/ Pan Step: down)arrow on the pan/tilt wheel. Select the increment of movement for each press of a tilt (left/ Tilt Step: right) arrow on the pan/tilt wheel. D-Link DCS-5030L User Manual...
  • Page 49 • Enter a name to help you easily identify the preset. • Click on the Set button to save the preset. • Any pre-saved positions can be cleared by selecting the desired preset and clicking on the Clear button. D-Link DCS-5030L User Manual...

  • Page 50: Sd Recording

    Enter the space in MB that you want to reserve on your SD card SD Card: for other recordings. Tick Cyclic if you want to record over old images as soon as the free space limit is reached. D-Link DCS-5030L User Manual...
  • Page 51 Section 3 - Configuration Click the Test button after configuring your settings to test Test SD Card: your system. D-Link DCS-5030L User Manual...

  • Page 52: Sd Management

    Select the number of files to be displayed on a single page. The Files per maximum is 25 files. page: Show the current and total number of pages and lets you jump Pages: to a page. D-Link DCS-5030L User Manual...

  • Page 53: Maintenance

    You can create new users to provide viewing access for your Add User camera’s video. User accounts will only be able to access the Live Account: Video section of the web configuration interface, but cannot access any other parts or change any settings. D-Link DCS-5030L User Manual...
  • Page 54 Add. A maximum of 8 user accounts can be created. Displays the account names of authorized users. You can modify or delete an account by clicking on its modify or delete icon. D-Link DCS-5030L User Manual...

  • Page 55: System

    Please note that this will erase any To Factory changes you have made to the settings of the camera. Default: Click the Reboot the Device button to reboot the camera. Reboot The Device: D-Link DCS-5030L User Manual...

  • Page 56: Firmware Upgrade

    Section 3 - Configuration Firmware Upgrade Your current firmware version and date will be displayed on your screen. You may go to the D-Link Support Page to check for the latest firmware versions available. To upgrade the firmware on your DCS-5030L, download the latest firmware from the D-Link Support Page to your local hard drive.

  • Page 57: Status

    Section 3 - Configuration Status Device Info This section displays all the detailed information about your device and network settings. D-Link DCS-5030L User Manual...

  • Page 58: Active User

    Section 3 - Configuration Active User This page lists all the active users’ information including the User Name, IP address, and the time that camera access began. D-Link DCS-5030L User Manual...

  • Page 59: Help

    Section 3 - Configuration Help This page lists all the topics and links to respective helpful instructions for each feature. D-Link DCS-5030L User Manual...

  • Page 60: Troubleshooting

    It is therefore recommended that you make a record of the password for future reference. To reset your camera, please use an unfolded paperclip to press and hold the RESET button for at least 10 seconds while your camera is plugged in. D-Link DCS-5030L User Manual...
  • Page 61 It could be that the image sensor has become overloaded when it has been exposed to bright light such as direct exposure to sunlight or halogen lights. Reposition the camera into a more shaded area immediately, as prolonged exposure to bright lights will damage the sensor. D-Link DCS-5030L User Manual...
  • Page 62 Also, check that you have the latest version of Java installed. Java can be downloaded from http://www.java.com If you are using Internet Explorer with a version number 6 or lower, then you will need to upgrade your Web browser software in order to view the streaming video transmitted by the Network Camera. D-Link DCS-5030L User Manual...
  • Page 63 • MJPEG • NTP Client (D-Link) • JPEG for still images • DNS Client Video Features • DDNS Client (Dyndns and D-Link) • Adjustable image size and quality • SMTP Client • Time stamp and text overlay • FTP Client •...
  • Page 64 • Camera Only - 116.4 x 109.1 x 133.6 mm (4.58 x 4.29 x 5.26 inches) • Camera Including Mounting Bracket - 116.4 x 109.1 x 230.0 mm (4.58 x 4.29 x 9.06 inches) Weight • Device: 292.4 grams (0.64 lbs) • Stand: 60.8 grams (0.13 lbs) D-Link DCS-5030L User Manual...
  • Page 65 Note The country code selection is for non-USA models only and is not available to all USA models. Per FCC regulations, all WiFi product marketed in the USA must be fixed to USA operational channels only. D-Link DCS-5030L User Manual...
  • Page 66 (ii) pour les dispositifs munis d'antennes amovibles, le gain maximal d'antenne permis pour les dispositifs utilisant les bandes de 5250 à 5350MHz et de 5470 à 5725 MHz doit être conforme à la limite de la p.i.r.e; D-Link DCS-5030L User Manual...
  • Page 67 Appendix B - Regulatory Information NCC 警語 ： 以下警語適用台灣地區 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之 特性及功能。低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善 至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工 業、科學及醫療用電波輻射性電機設備之干擾。 本模組於取得認證後將依規定於模組本體標示審驗合格標籤系統廠商應於平台上標示「本產品內含射頻模 組: <CCAFXXLPXXXXTX>」字樣 電磁波曝露量MPE標準值(MPE) 1 mW/cm ，送測產品實值為 0 mW/cm D-Link DCS-5030L User Manual...
  • Page 68 Max. Output Power (EIRP) Frequenzband Max. Output Power Fréquence bande(s) Consommation d’énergie max. Bandas de Frecuencia Potencia máxima de Salida Frequenza/e Potenza max. Output Frequentie(s) Max. Output Power 2.4 G 2.4 – 2.4835 GHz 100 mW D-Link DCS-5030L User Manual...
  • Page 69 υλικολογισμικό του προϊόντος είναι διαθέσιμα για λήψη από τη σελίδα του προϊόντος στην τοποθεσία www.dlink. com. Par les présentes, D-Link Corporation déclare que ce produit, ces accessoires et ce logiciel sont conformes aux Français [French] directives 2014/53/UE.Le texte complet de la déclaration de conformité de l'UE et le icroprogramme du produit sont disponibles au téléchargement sur la page des produits à...
  • Page 70 2014/53/EU. Pełen tekst deklaracji zgodności UE oraz oprogramowanie sprzętowe do produktu można pobrać na stronie produktu w witrynie www.dlink.com. Desta forma, a D-Link Corporation declara que este produto, os acessórios e o software estão em conformidade Português [Portuguese] com a diretiva 2014/53/UE. O texto completo da declaração de conformidade da UE e do firmware...
  • Page 71 Appendix B - Regulatory Information Hér með lýsir D-Link Corporation því yfir að þessi vara, fylgihlutir og hugbúnaður eru í samræmi við tilskipun Íslenska [Icelandic] 2014/53/EB. Sækja má ESB-samræmisyfirlýsinguna í heild sinni og fastbúnað vörunnar af vefsíðu vörunnar á www.
  • Page 72 Access Points unterstützen die Funktionen DFS (Dynamic Frequency Selection) und TPC (Transmit Power Control) wie erforderlich bei Betrieb auf 5 GHz innerhalb der EU. • Bitte schlagen Sie im Handbuch oder Datenblatt nach nach, ob Ihr Gerät eine 2,4 GHz und / oder 5 GHz Verbindung nutzt. D-Link DCS-5030L User Manual...
  • Page 73 5 Ghz dentro de la UE. • Por favor compruebe el manual o la ficha de producto para comprobar si el producto utiliza las bandas inalámbricas de 2.4 GHz y/o la de 5 GHz. D-Link DCS-5030L User Manual...
  • Page 74 Toegangspunten ondersteunen DFS (Dynamic Frequency Selection) en TPC (Transmit Power Control) functionaliteit zoals vereist bij gebruik in 5 GHz binnen de EU. • Raadpleeg de handleiding of de datasheet om te controleren of uw product gebruik maakt van 2.4 GHz en/of 5 GHz. D-Link DCS-5030L User Manual...
  • Page 75 • Halten Sie das Produkt von Heizkörpern und anderen Quellen fern, die Wärme erzeugen. • Trennen Sie das Produkt immer von der Stromzufuhr, bevor Sie es reinigen und verwenden Sie dazu ausschließlich ein trockenes fusselfreies Tuch. D-Link DCS-5030L User Manual...
  • Page 76 • Mantenga el producto alejado de los radiadores y de otras fuentes de calor. • Desenchufe siempre el producto de la alimentación de red antes de limpiarlo y utilice solo un paño seco sin pelusa. D-Link DCS-5030L User Manual...
  • Page 77 • Houd het product uit de buurt van radiators en andere warmtebronnen. • U dient het product steeds los te koppelen van de stroom voordat u het reinigt en gebruik uitsluitend een droge pluisvrije doek. D-Link DCS-5030L User Manual...
  • Page 78 D-Link designs and builds its products to be as environmentally friendly as possible, by using recyclable, low toxic materials in both products and packaging. D-Link recommends that you always switch off or unplug your D-Link products when they are not in use. By doing so you will help to save energy and reduce CO2 emissions.
  • Page 79 D-Link et l’environnement Chez D-Link, nous sommes conscients de l'impact de nos opérations et produits sur l'environnement et nous engageons à le réduire. Pour limiter cet impact, D-Link conçoit et fabrique ses produits de manière aussi écologique que possible, en utilisant des matériaux recyclables et faiblement toxiques, tant dans ses produits que ses emballages.
  • Page 80 D-Link zijn producten zo milieuvriendelijk mogelijk, door het gebruik van recycleerbare producten met lage toxiciteit in product en verpakking. D-Link raadt aan om steeds uw D-Link producten uit te schakelen of uit de stekker te halen wanneer u ze niet gebruikt. Door dit te doen bespaart u energie en beperkt u de CO2-emissies.
  • Page 81 D-Link a životní prostředí Ve společnosti D-Link jsme si vědomi vlivu našich provozů a výrobků na životní prostředí a snažíme se o minimalizaci těchto vlivů. Proto své výrobky navrhujeme a vyrábíme tak, aby byly co nejekologičtější, a ve výrobcích i obalech používáme recyklovatelné a nízkotoxické materiály.
  • Page 82 D-Link produkter som er så miljøvennlig som mulig, ved å bruke resirkulerbare, lav-toksiske materialer både i produktene og forpakningen. D-Link anbefaler at du alltid slår av eller frakobler D-Link-produkter når de ikke er i bruk. Ved å gjøre dette hjelper du å spare energi og å redusere CO2-utslipp.
  • Page 83 D-Link sine produkter, så de er så miljøvenlige som muligt, ved at bruge genanvendelige materialer med lavt giftighedsniveau i både produkter og emballage. D-Link anbefaler, at du altid slukker eller frakobler dine D-Link-produkter, når de ikke er i brug. Ved at gøre det bidrager du til at spare energi og reducere CO2-udledningerne.
  • Page 84 D-Link och miljön På D-Link förstår vi och är fast beslutna att minska den påverkan våra verksamheter och produkter kan ha på miljön. För att minska denna påverkan utformar och bygger D-Link sina produkter för att de ska vara så miljövänliga som möjligt, genom att använda återvinningsbara material med låg gifthalt i både produkter och förpackningar.
