Use this guide to quickly and easily install your AirStation 2.4GHz Indoor Omni
Antenna.
The AirStation 2.4GHz Indoor Omni Antenna can be used with all
Buffalo AirStation 2.4GHz 11Mbps, 802.11b and 54Mbps, 802.11g Access
Points (Base Stations) to boost performance and improve the signal range
by 20%. The 2.4GHz antennas can also be used with select AirStation
Client Cards with the MC connector.
Contents

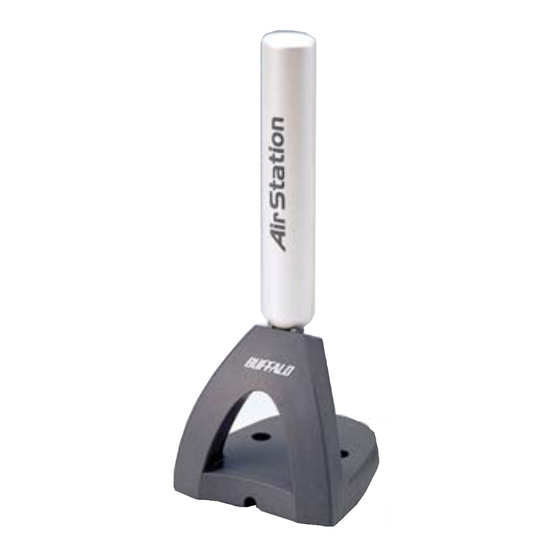

2.4GHz Indoor Omni Antenna
- WLE-NDR
2 Screws for Mounting
Quick Setup Guide
Warranty Card
If any items are missing, please contact the reseller from whom you purchased
this product.
System Requirements
Any Buffalo AirStation wireless product with an MC connector
Quick Setup Guide
2.4GHz Indoor Omni Antenna
WLE-NDR
1
WLE-NDR
PY00-26117-DM10-01
¤
